P0463 on 2007-2012 Hyundai Santa Fe: Fuel Level Sensor Circuit High Input Causes and Fixes

What's Unique About the 2007-2012 Hyundai Santa Fe

The 2007-2012 Hyundai Santa Fe (CM generation) uses a saddle-shaped fuel tank, which requires two separate fuel level sending units to measure the fuel on both sides of the tank's hump. Failure of the delicate resistor 'finger' contacts on these sensors is a widely documented weak point for this specific vehicle. When these contacts break, it creates an open circuit, which the PCM interprets as maximum voltage (high input). While P0463 points to the 'A' sensor (the main unit on the driver's side), it's extremely common for both sensors to fail around the same time, leading many owners and shops to replace them as a pair to avoid a repeat repair.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge reads empty, full, or fluctuates erratically
• Low fuel warning light may be on constantly
• Trip computer's 'distance to empty' reading is inaccurate or shows '---'

Most Likely Causes

1. Failed Fuel Level Sensor (Sending Unit) 🔴 High Probability → Shop Fuel Tank Sending Unit The resistor 'fingers' that sweep across the sensor's circuit board are known to wear down, break, or corrode over time. This creates an open circuit, which the PCM reads as a 'high input' voltage. This is the most common failure by a wide margin for this code on this vehicle.
   How to confirm: Access the sensor and test its resistance with a multimeter while moving the float arm. The resistance should change smoothly within the specified range. An infinite resistance reading (OL) indicates a failed, open sensor. Visually inspecting the old sensor will often show broken or missing contact fingers. 🎬 Watch: Visual comparison of worn versus new fuel level sensors.
   Typical fix: Replace the faulty fuel level sensor. The sensor can be purchased separately from the entire fuel pump assembly. It is highly recommended to replace both the left and right sensors at the same time.
   Est. part cost: $60-$150 per sensor
2. Damaged Wiring or Connectors ⚪ Low Probability The wiring is located under the rear seat and on top of the fuel tank. While less common than sensor failure, connectors can become loose, or wires can be damaged during other repairs, leading to an open circuit.
   How to confirm: Visually inspect the wiring harness going to both fuel pump/sender assemblies. Check for breaks, corrosion, or loose pins at the connector on top of the fuel tank access panels. A continuity test from the PCM to the sensor connector can also be performed per the service manual.
   Typical fix: Repair the damaged section of wire or clean/replace the affected connector.
   Est. part cost: $5-$50

Rare But Worth Checking

• Faulty Instrument Cluster: → Shop Instrument Cluster This is very rare. If the fuel gauge is the only gauge acting erratically and both sensors and all wiring test good, the cluster itself could be the issue. This should be the last item to check.
• Faulty Powertrain Control Module (PCM): This is extremely unlikely and should only be considered after all other possibilities, including wiring and the instrument cluster, have been exhaustively ruled out by a professional.

Diagnosis Steps

1. Scan the vehicle for codes to confirm P0463 and check for any other related codes like P0464 or P2068.
2. Relieve fuel system pressure. The safest method is to remove the fuel pump fuse/relay from the under-hood fuse box and run the engine until it stalls.

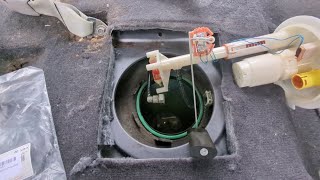

3. Gain access to the fuel sender units. This requires removing the rear seat bottoms to expose the two black access panels on the floor.
4. Disconnect the electrical connector for the 'A' sensor (driver's side) and inspect for corrosion or damage.
5. Using a multimeter set to Ohms, measure the resistance across the sensor pins. Compare readings to the vehicle-specific values. An infinite resistance reading (OL) at any point in the float's travel indicates the sensor has failed open.
6. If the sensor appears to test correctly, the next step is to test the wiring between the PCM and the sensor for continuity and shorts to power or ground, following the service manual procedure. Check voltage at terminal 29 of PCM connector C130-A.
7. If wiring and both sensors test good, the issue may lie with the instrument cluster or PCM, which typically requires professional diagnosis.

Parts You'll Likely Need

• Fuel Level Sensor (Sending Unit, Left/Main) (OEM #94460-0W000) — This is the 'A' sensor and the most common failure point for P0463. The resistor contacts wear out, causing an open circuit. It is located on the driver's side. Note: This part number is for 2007-2009 models; 2010-2012 models use a different part.
  Trusted brands: Genuine Hyundai, Delphi, Spectra Premium
  OEM price range: $120-$170
  Aftermarket price range: $60-$100
• Fuel Level Sensor (Sending Unit, Right/Sub) (OEM #94430-0W000) — This is the 'B' sensor. It is highly recommended to replace this at the same time as the 'A' sensor, as it is prone to the same failure and requires the same amount of labor to access. Note: This part number is for 2007-2009 models; 2010-2012 models use a different part.
  Trusted brands: Genuine Hyundai, Delphi, Spectra Premium
  OEM price range: $120-$170
  Aftermarket price range: $60-$100

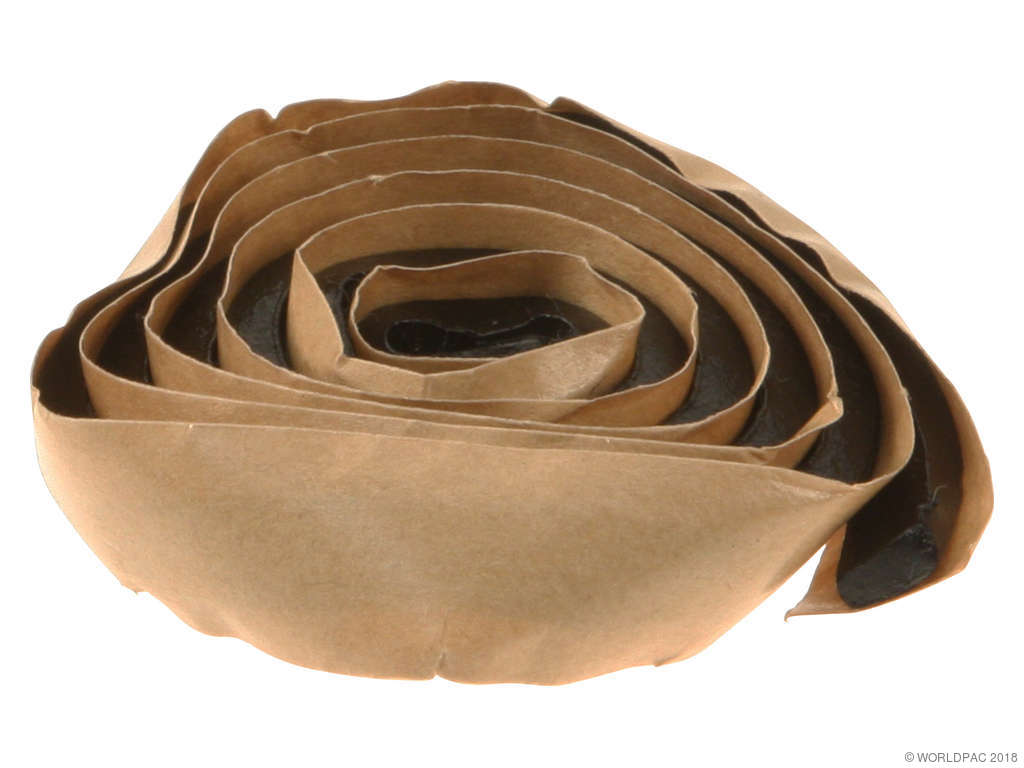

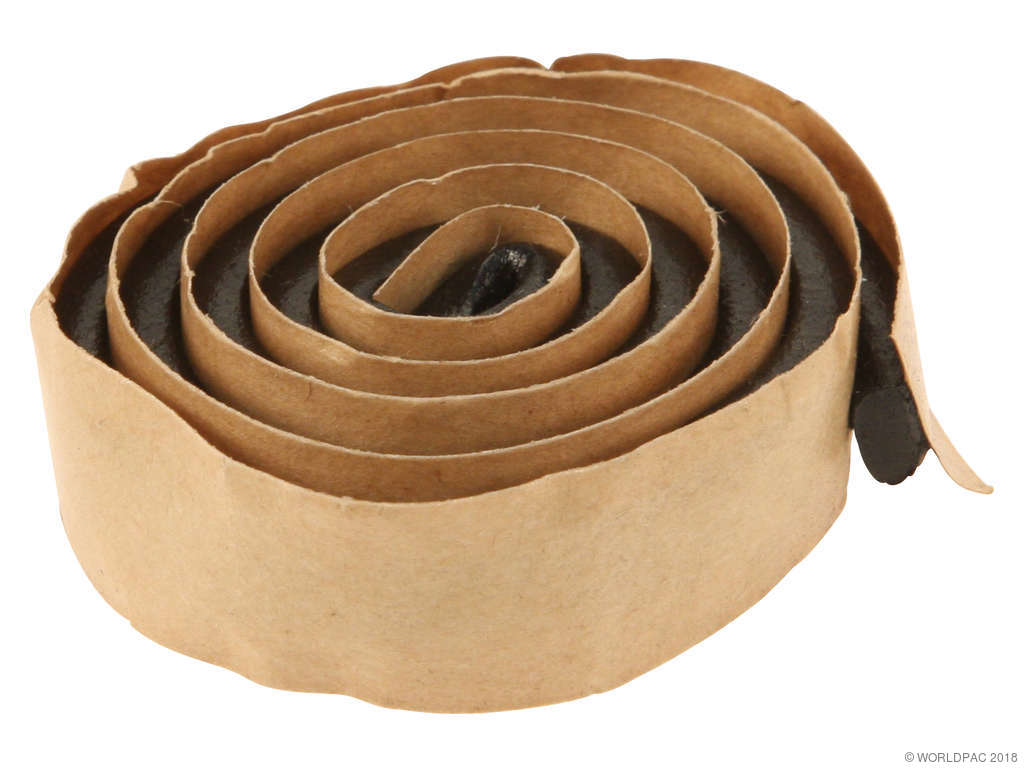

• Fuel Pump Assembly Gasket / Seal (OEM #31115-0W000) — The large rubber gasket that seals the access plate to the fuel tank should always be replaced to prevent fuel leaks and vapor smells. One is needed for each side.
  Trusted brands: Genuine Hyundai
  OEM price range: $15-$25
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0464 — P0464 indicates an intermittent fault in the fuel level sensor 'A' circuit. It often appears with P0463 as the sensor begins to fail completely, with the contacts making and breaking connection.
• P2068 — P2068 is the equivalent 'Circuit High' code for the second fuel level sensor ('B' circuit, passenger side). Seeing P0463 and P2068 together strongly indicates failure of both sending units and is a very common combination.
🎬 See a mechanic diagnose these specific P0463 and P2068 codes.

Platform-Specific Known Issues

• Accessing the fuel sending units requires the removal of the second-row seats 🎬 Watch this complete walk-thru of the seat removal and repair., which makes the repair more labor-intensive than on many other vehicles.
• The plastic locking rings that hold the fuel pump assemblies in place can be extremely difficult to remove without a specialized tool (like OTC #6599). Using a hammer and screwdriver is often attempted but can break the ring or the tank.
• On models with third-row seating, the access and seat removal process is slightly different but the core repair is the same.

Mechanic-Grade Diagnostic Values

• Main Fuel Level Sensor (Left/Driver Side) Resistance — expected: Approx. 4 Ohms (Full) to 70 Ohms (Empty). Failure: Resistance is infinite (OL), does not change smoothly, or is significantly outside the expected range.
• Sub Fuel Level Sensor (Right/Passenger Side) Resistance — expected: Approx. 9 Ohms (Full) to 110 Ohms (Empty). Failure: Resistance is infinite (OL), does not change smoothly, or is significantly outside the expected range.
• Fuel Level Sensor Signal Circuit Voltage at PCM — expected: Approx. 0.5V (Empty) to 4.5V (Full). Failure: Voltage is stuck high (e.g., >4.8V) regardless of fuel level. Test at terminal 29 of PCM harness connector C130-A.

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System): ECU Update / Module Reset — Used by dealers for advanced diagnostics. This would only be necessary if the PCM or instrument cluster were suspected of being faulty after sensors and wiring tested good, which is extremely rare for this code.

Wiring & Ground Locations

• C130-A, Pin 29 — At the Powertrain Control Module (PCM).. This is the specific pin for the fuel level sensor signal circuit. Measuring voltage here allows a technician to verify if the high voltage signal is reaching the PCM, helping to isolate the fault between the sensor and the module.
• G01 / G02 — G01 is at the base of the left kick panel. G02 is at the base of the right kick panel.. These are primary body ground points. While the sensor has a dedicated ground wire in the harness, a poor main ground at these locations can cause various electrical issues, including sensor reading faults. They are a good place to check for corrosion or looseness if bizarre electrical issues accompany the P0463 code.
• G05 — At the base of the driver's side 'B' pillar.. Another key chassis ground point. Verifying that major grounds are clean and tight is a fundamental step when diagnosing any persistent electrical fault code.

Real Owner Repair Stories

• YouTube - Tony Fix it (Meineke Cinnaminson) (2008 Hyundai Santa Fe 3.3L) — Check Engine Light with codes P0463 and P2068.

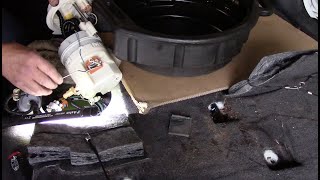

  ✅ What actually fixed it The video shows the replacement of the driver-side fuel level sender ('A' sensor). The technician disassembles the old sensor on camera and points out that the metal 'fingers' on the variable resistor are physically worn off, creating the open circuit and confirming the root cause of the failure.
• YouTube - JustDoItYourself (2007 Hyundai Santa Fe (with third-row seating)) — Fuel gauge does not work.
  ✅ What actually fixed it Replaced both fuel level sensors. The video is valuable as it details the seat removal process specifically for a Santa Fe equipped with the optional third-row seats, which differs from the standard five-seat models.
• YouTube - Jimthecarguy (2008 Hyundai Santa Fe) — Intermittent fuel gauge, codes P0463, P0464, and P2068.
  ✅ What actually fixed it Replaced both the left and right fuel sending units simultaneously. The technician states this is a very common problem and recommends replacing both at once because the labor to access them is significant, and the second unit is likely to fail soon after the first.
• NHTSA ODI #11315420 — An owner reported that their check engine light came on steady with code P0463: Fuel Level Sensor A Circuit High Input. They noted that while the part lists for approximately $79.99, it is integrated into the fuel system components.
• NHTSA ODI #10960401 — A driver described a situation where, after filling up with gas, the fuel gauge would drop to zero and the service light would illuminate with codes P2067, P0463, and P0464.

Model Year Variations Within This Range

• 2007-2009 vs. 2010-2012: The fuel sending units have different part numbers for the pre-facelift (2007-2009) and post-facelift (2010-2012) models, which coincided with a change in engine options. The part number for the main 'A' sensor on 2007-2009 models is 94460-0W000. The part for 2010-2012 models is different and must be ordered by VIN or for the specific model year to ensure correct resistance values and fitment.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using a used part is NOT recommended. The failure is due to mechanical wear of the sensor's resistor contacts. A used part from a salvage yard will have an unknown amount of wear and is highly likely to fail prematurely, forcing you to repeat the significant labor involved in the repair.

What to inspect on the donor part:

• Not applicable, as used parts are not advised. There is no reliable way to inspect the internal wear of the resistor contacts without disassembly.

OEM-only on this vehicle (don't cheap out):

• While not strictly OEM-only, using a Genuine Hyundai part or a reputable OEM-supplier brand like Delphi is strongly advised. The labor cost is high, so saving a small amount on an unproven, low-quality aftermarket sensor is a poor value proposition.

Aftermarket brands forum-validated for this vehicle:

• Delphi
• Spectra Premium

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' parts from online marketplaces should be avoided due to the high labor cost of a potential repeat failure.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P2068 — This is the companion code for P0463. The Santa Fe has a saddle-style tank with two fuel level sensors. P0463 refers to the 'A' circuit (primary sensor), while P2068 refers to the 'B' circuit (secondary sensor). They frequently appear together because both sensors wear out at a similar rate.
• P0464 — This code indicates an intermittent fault in the same Fuel Level Sensor 'A' Circuit that P0463 monitors. While P0463 indicates a constant high input (open circuit), P0464 suggests the signal is dropping out or fluctuating erratically. Both point to the same failing sensor.
