P0463 on 2011-2015 Kia Sorento: Fuel Level Sensor Circuit High Input Causes and Fixes

What's Unique About the 2011-2015 Kia Sorento

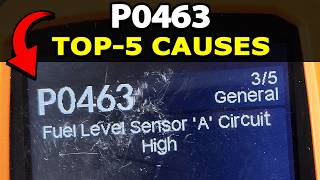

The 2011-2015 Kia Sorento (generation XM) and its platform-mate, the Hyundai Santa Fe, are known for fuel level sensor failures that trigger the P0463 code. The issue is typically 🎬 Watch: How to fix the P0463 engine code standard wear and tear on the sensor's variable resistor contacts. While not a unique design flaw, it's a very common failure point. It's important to note that the part numbers for the fuel sending unit and the complete fuel pump assembly differ between the 2011-2013 and 2014-2015 model years, making it crucial to select the correct part for your specific vehicle.

Generation note: The 2011-2015 model years all fall within the second generation (XM) of the Kia Sorento. However, there was a significant refresh for the 2014 model year which may account for different part numbers for the fuel pump and sending unit.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge reads inaccurately (e.g., stuck on full, stuck on empty, or fluctuates wildly)
• Low fuel warning light may illuminate even with a full tank
• Fuel gauge takes a long time to drop from full after a fill-up

Most Likely Causes

1. Faulty Fuel Level Sensor (Sending Unit) 🔴 High Probability → Shop Fuel Tank Sending Unit The fuel level sensor is a moving part (a float attached to a resistor) that can wear out over time from constant movement and exposure to fuel. The small contact points on the variable resistor can break or wear down, causing an open circuit, which the PCM interprets as a high voltage signal.
   How to confirm: Test the sensor's resistance with a multimeter. The resistance should change smoothly as the float arm is moved up and down. 🎬 See how to test a faulty fuel gauge An open circuit (infinite resistance) or erratic readings indicate a faulty sensor. You can access the sensor via an access panel under the rear seats.

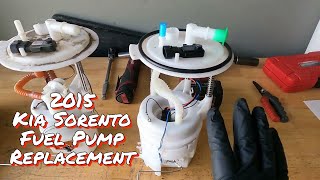

   Typical fix: Replace the fuel level sending unit. On many Sorentos, this is part of the larger fuel pump module assembly and may be replaced as a single unit. Some owners elect to replace both the primary and secondary (if equipped) sending units at the same time as a preventative measure.
   Est. part cost: $150-$225 for the sending unit, $200-$400+ for a full fuel pump assembly.
2. Damaged Wiring or Poor Connection 🟡 Medium Probability Wiring to the fuel tank can be susceptible to corrosion or damage from road debris over time. The connector on top of the fuel pump assembly is a common point for moisture intrusion and corrosion.
   How to confirm: Visually inspect the wiring harness leading to the fuel tank for any breaks, corrosion, or loose connectors. Perform a voltage and ground check at the connector. Check for high resistance in the ground circuit.
   Typical fix: Repair or replace the damaged section of the wiring harness or clean the connectors.
   Est. part cost: $10-$50 for wiring repair supplies.
3. Bad Ground Connection ⚪ Low Probability The ground strap for the fuel tank can corrode or become loose, leading to electrical issues and an improper voltage reference for the sensor.
   How to confirm: Locate the ground strap for the fuel tank and check for corrosion or looseness. Test the ground circuit for high resistance using a multimeter; it should be 1Ω or less.
   Typical fix: Clean the grounding point and re-secure the connection, or replace the ground strap if necessary.
   Est. part cost: $10-$30.

Rare But Worth Checking

• Faulty Instrument Cluster: → Shop Instrument Cluster While rare, a problem within the instrument cluster itself can cause the fuel gauge to read incorrectly. This is usually considered after all fuel tank components and wiring have been checked.
• Faulty Powertrain Control Module (PCM): This is extremely rare, but a malfunctioning PCM can misinterpret the signal from the fuel level sensor. This should be the last item to consider after exhausting all other possibilities.

Diagnosis Steps

1. Scan the vehicle for OBD-II codes to confirm P0463 is present. Note any other related codes like P2068 or P0464.
2. Check the fuel gauge reading. Note if it is stuck on full, empty, or behaving erratically.
3. Access the fuel pump assembly connector. On the Sorento, this is typically located under an access panel beneath the rear seats.
4. Inspect the wiring harness and connector for any signs of damage, corrosion, or loose pins.
5. Using a multimeter, check for proper voltage and ground at the fuel pump connector according to the vehicle's service manual.
6. If wiring is intact, disconnect the connector and measure the resistance (Ohms) across the fuel level sensor pins. Compare this reading to the manufacturer's specifications for the current fuel level.
7. If the resistance is out of spec (often an open circuit, or infinite resistance), the sending unit is bad and must be replaced.
8. If the sensor and wiring test good, the problem may lie with the instrument cluster or PCM, which requires more advanced diagnostics.

Parts You'll Likely Need

• Fuel Gauge Sending Unit (OEM #31130-1U000 (for 2011-2013 models)) — This is the sensor that fails most frequently, causing the P0463 code.
  Trusted brands: Kia (OEM), Spectra Premium, Delphi
  OEM price range: $150-$225
  Aftermarket price range: $80-$150
• Fuel Pump Assembly (OEM #31110-4Z000 (for 2014-2015 3.3L models), 31110-4Z500 (for 2014-2015 2.4L GDI models), 31110-1U000 (for 2011-2013 2.4L models)) — The fuel level sensor is often integrated into the fuel pump module. Replacing the entire assembly is a common repair strategy to address the sensor and the fuel pump at the same time, especially on higher mileage vehicles.
  Trusted brands: Kia (OEM), Delphi, Bosch, Carter
  OEM price range: $350-$500
  Aftermarket price range: $150-$300

Related Codes That Often Appear With This One

• P2068: Fuel Level Sensor 'B' Circuit High - If the Sorento has a saddle-style tank with two sensors, this code may appear alongside P0463, indicating the secondary sensor has also failed.
• P0464: Fuel Level Sensor 'A' Circuit Intermittent - This indicates the signal is fluctuating erratically rather than being stuck high, but points to the same failing component.

Technical Service Bulletins (TSBs) & Recalls

• SC172: This is a recall related to a potential fuel leak from the high-pressure fuel pipe after an engine replacement. While it does not directly cause P0463, it is a notable fuel system issue for this vehicle generation.
• SC147: A recall concerning premature engine bearing wear in 2012-2014 Sorento models, which could lead to engine seizure. This is unrelated to P0463 but is a critical issue for owners to be aware of.

Platform-Specific Known Issues

• Common Failure on Platform: Owners on Hyundai and Kia forums frequently report this issue, often accompanied by codes P0464 and P2068. The failure of the sender unit is a well-known problem for this vehicle generation and its Hyundai Santa Fe counterpart.
• DIY Repair Experience: A user on the Hyundai Forums described the repair on a 2007 Santa Fe (a platform mate), noting that upon removal, the broken contact on the circuit board of the sensor was visibly damaged. The repair took 2-3 hours and cost around $150 for the parts.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor 'A' (Main) Resistance — expected: Approximately 6-7 Ohms at Full, ~94 Ohms at 1/2 tank, and ~192 Ohms at Empty.. Failure: An open circuit (infinite resistance) or readings that do not change smoothly as the float is moved. A high resistance reading when the tank is full will cause the P0463 code.
• Fuel Level Sensor Signal Voltage at PCM — expected: A range between approximately 0.5V (Empty) and 4.5V (Full).. Failure: A reading that is consistently above 4.8V, which the PCM interprets as a 'High Input' condition, triggering the code.

Scan Tool Commands That Help

• Kia GDS (or equivalent professional scanner): Actuation Test for Instrument Cluster — Use this command to force the fuel gauge to sweep from empty to full. If the gauge responds correctly to the scan tool command but reads incorrectly during normal operation, it confirms the instrument cluster is working properly and the fault lies in the sending unit or its wiring.

Wiring & Ground Locations

• Fuel Pump Connector — On top of the fuel pump assembly, accessible via a service cover under the rear passenger-side seat.. This 5-pin connector is the primary test point for voltage, ground, and sensor resistance. Pin 3 is typically the main sender signal, Pin 2 is the sub-sender signal (if equipped), and Pin 4 is the ground.
• G32 (Ground) — On the floor panel in the left rear side of the luggage compartment.. This is a potential grounding point for the fuel pump assembly. A corroded or loose connection here can cause a floating ground, leading to the high voltage signal of P0463.

Real Owner Repair Stories

• Kia-Forums.com user (2014 Kia Sorento) — Check engine light on with code P0463, fuel gauge reading incorrectly.
  ✅ What actually fixed it The user replaced the fuel level sending unit, which was part of the fuel pump assembly located under the rear passenger seat. This resolved the code and restored proper fuel gauge function.
• NHTSA ODI #11316903 — An owner of a related Kia model reported that after refueling, the fuel gauge did not move at all. A code reading confirmed OBD-II code P0463 for a high pressure fuel sensor issue.

Model Year Variations Within This Range

• 2011-2013: These pre-refresh models use different fuel pump assembly part numbers than the 2014-2015 models. For example, OEM part 31110-1U000 is common for the 2.4L engine.
• 2014-2015: The post-refresh models have different part numbers which are also specific to the engine. The 2.4L GDI engine uses a different fuel pump assembly (e.g., 31110-4Z500) than the 3.3L V6 GDI engine (e.g., 31110-4Z000). Using the wrong part can result in fitment or electrical incompatibility issues.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Theta II Engine Failure 🔴 High — Widespread across multiple model years, particularly the 2.4L GDI engine. Can occur at various mileages. (Ref: Recall SC147 / NHTSA 17V224000. Subject of a major class-action lawsuit.)
• Hydraulic Electronic Control Unit (HECU) Fire Risk 🔴 High — Affects multiple Kia models including the 2011-2015 Sorento. Brake fluid can leak internally, causing an electrical short. (Ref: Recall SC197 / NHTSA 20V519000.)
• High Pressure Fuel Pipe Leak 🔴 High → Shop Fuel Line — Can occur after an engine replacement if the pipe was damaged or improperly torqued. (Ref: Recall SC172 / NHTSA 18V907000.)
• Faulty Door Latches 🟠 Medium — Common on 2011 models, where doors may fail to open from the outside handle after extended use. (Ref: Customer Satisfaction Program CS1603.)
• Front Right CV Axle Fracture 🔴 High — Reported on 2014 models with the 2.4L engine, can result in loss of motive power. (Ref: NHTSA Recall 13V114000.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used fuel pump assembly from a junkyard can be a cost-effective diagnostic tool if you are unsure the pump is the problem, as one owner did in a repair video. However, for a permanent repair, it is generally not recommended due to the high failure rate of the sending unit and the labor involved in the replacement.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle's mileage is low.
• Inspect the electrical connector pins for any signs of corrosion or heat damage.
• Ensure the plastic housing is not cracked or damaged.
• If possible, ask the seller if the fuel gauge was working correctly prior to removal.

Aftermarket brands forum-validated for this vehicle:

• Delphi
• Bosch
• Spectra Premium

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name parts from online marketplaces should be avoided, as quality control can be poor, leading to premature failure.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0464 — Often accompanies P0463 on this platform; it indicates an intermittent circuit issue with the fuel level sensor.
• P2068 — A common companion code for the Sorento and Santa Fe, referring to high voltage in the fuel level sensor 'B' (secondary) circuit.
• SC172 — While a recall code rather than an OBD-II code, it involves the fuel system (high-pressure pipe leaks) and is frequently cited in the context of Sorento fuel issues.
• SC147 — A critical engine-related recall for the Sorento's Theta II engine that owners often encounter when researching fuel and engine management codes.
