P0513 on 2008-2012 Jeep Liberty: Incorrect Immobilizer Key Causes and Fixes

What's Unique About the 2008-2012 Jeep Liberty

The 2008-2012 Jeep Liberty (KK generation) uses a Wireless Control Module (WCM), also known as the Sentry Key Remote Entry Module (SKREEM), which is a known failure point. This module acts as the antenna and reader for the key's transponder chip and is prone to electronic lockup, often caused by an electrostatic discharge (ESD) from the key into the ignition. This can cause an intermittent or permanent no-start condition and trigger the P0513 code. Unlike simple key fob battery issues, a WCM failure requires replacement and programming with specialized tools. A Chrysler TSB (08-007-08 Rev. A) was issued for this exact problem across many 2007-2008 Chrysler/Jeep/Dodge vehicles, including the 2008 Liberty KK.

Symptoms You May Notice

• Engine will not crank or start.
• Engine starts and immediately stalls (within 2 seconds).
• Solid or flashing red security light on the instrument cluster (a small red dot or a key symbol).
• Remote keyless entry (power locks) may not function.
• The code P0513 is stored in the PCM, which may require a more advanced scan tool to read than a basic code reader.

Most Likely Causes

1. Faulty Wireless Control Module (WCM/SKREEM) 🔴 High Probability This module is a documented common failure point on this platform, leading to electronic lockup. TSB 08-007-08 Rev. A directly addresses this failure, often triggered by electrostatic discharge in dry/cold weather.
   How to confirm: If trying a spare key doesn't work and the key fob battery is good, the WCM is the most likely culprit. A temporary fix that points to WCM failure is to pull the IOD fuse (M13 on many Jeeps) for 30 seconds to reset the module; if the car starts afterward, the WCM is faulty and the problem will return. A professional will confirm by checking for communication with the module using a scan tool. A failing WCM can also cause the entire CAN C bus to go down, resulting in a no-communication status with multiple modules.

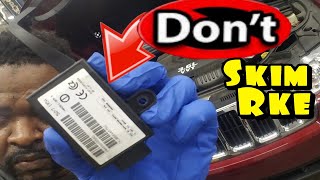

   Typical fix: Replace the WCM and program it to the vehicle 🎬 See this WCM removal walkthrough and existing keys. This requires a dealer or a properly equipped automotive locksmith with access to the vehicle's PIN code.
   Est. part cost: $100-$250
2. Defective Key Fob 🟡 Medium Probability → Shop Keyless Entry Transmitter The transponder chip inside the key can fail over time due to drops or internal damage. The chip itself is passive and doesn't use the fob battery for starting the car.
   How to confirm: Try starting the vehicle with a known-good spare key. If the spare key works, the original key is faulty. A locksmith can also test the transponder signal directly.
   Typical fix: Replace the faulty key fob and have the new key programmed to the vehicle. This requires two existing keys for owner programming or a trip to a dealer/locksmith.
   Est. part cost: $150-$300
3. Low or Dead Key Fob Battery ⚪ Low Probability → Shop Vehicle Battery While a low battery can cause remote entry issues, the transponder chip for starting the engine is typically passive and doesn't rely on the fob's battery. However, it's an easy and cheap first step to rule out.
   How to confirm: Replace the battery in the key fob (typically a CR2032). If this resolves the issue, the battery was the cause.
   Typical fix: Replace the key fob battery.
   Est. part cost: $1-$5
4. Weak or Dead Vehicle Battery ⚪ Low Probability → Shop Vehicle Battery Low system voltage during startup can cause communication errors between security modules, incorrectly triggering the P0513 code. One owner on Reddit reported their P0513 issue was ultimately just a dead vehicle battery.
   How to confirm: Test the main vehicle battery's voltage. A healthy battery should be above 12.4 volts. If the battery is weak or old, it can cause various electrical issues. Some owners have resolved the issue with a simple battery disconnect/reconnect to reset all modules.
   Typical fix: Charge or replace the vehicle's 12V battery.
   Est. part cost: $150-$250

Rare But Worth Checking

• Wiring Issue: A damaged or corroded wire or a bad ground connection to the WCM or PCM can interrupt the security signal. This often happens after other work has been done under the dash.
• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) While rare, the PCM itself can fail in a way that prevents it from recognizing the security handshake. This is usually a last resort after all other components have been verified. Manufacturer service bulletins such as TSB Bulletin #S2225000003 and TSB Bulletin #S2208000073 note that P0513 can be triggered specifically after programming a replacement generic PCM or performing a flash update.
• Aftermarket Remote Starter Interference: Improperly installed aftermarket remote starters can interfere with the factory immobilizer system, causing intermittent P0513 codes.

Diagnosis Steps

1. Check the instrument cluster for a solid or flashing red security light. This confirms an immobilizer issue.
2. Try starting the vehicle with a known-good spare key. If it starts, the first key is faulty.
3. If you only have one key, replace its internal battery (CR2032) as a low-cost first step.
4. Check the vehicle's main 12V battery to ensure it is fully charged and healthy. A weak battery can cause numerous electrical gremlins.
5. As a temporary reset, try pulling the IOD (Ignition-Off Draw) fuse, often M13, for 30 seconds and then reinstalling it. If this allows the vehicle to start, it strongly points to a failing WCM.
6. Inspect the fuses related to the ignition and security system (e.g., M13 and M27 in the interior fuse panel).
7. If the issue persists, the vehicle needs to be diagnosed with a professional scan tool that can read immobilizer system data and communicate with the Wireless Control Module (WCM).
8. A technician will check for communication with the WCM and PCM. If the WCM is unresponsive or shows internal faults, it is the likely cause. Note that TSB Bulletin #S2508000085 indicates that replacing related modules like the BCM can also trigger an active P0513 no-crank, no-start condition.

Parts You'll Likely Need

• Wireless Control Module (WCM) (OEM #56046909AF (Note: Part numbers are frequently superseded, always verify with VIN. Other possible numbers include 68020982AB, 5026134AD, 68209837AA)) — This is the most common failure point for the P0513 code on this specific vehicle, often failing due to electronic lockup as documented in TSB 08-007-08 Rev. A.
  Trusted brands: Mopar
  OEM price range: $150-$250
  Aftermarket price range: $100-$200
• Transponder Key Fob — The internal transponder chip can fail, preventing the vehicle from recognizing it as a valid key.
  Trusted brands: Mopar
  OEM price range: $200-$300
  Aftermarket price range: $75-$150

Technical Service Bulletins (TSBs) & Recalls

• TSB 08-007-08 Rev. A - 'No Engine Crank Or No Engine Start Due To Electronic Lockup Of The WCM / SKREEM'. This TSB directly addresses the P0513 symptom, identifying the WCM as the faulty component, often due to electrostatic discharge. It covers the 2008 Jeep Liberty (KK) among many other Chrysler vehicles.
• TSB Bulletin #S2225000003 - Notes that P0513 (Invalid Skim Key) can set in the PCM specifically after programming a replacement generic PCM.
• TSB Bulletin #S2508000085 - Describes a no-crank, no-start condition with an active P0513 code occurring after a Body Control Module (BCM) replacement.
• TSB Bulletin #S2208000073 - Identifies a no-start condition and DTC P0513 that may occur after a module flash or PCM replacement.

Platform-Specific Known Issues

• A known issue on Jeep Liberty models is the electronic lockup of the Wireless Control Module (WCM), also called the SKREEM, which leads to a no-start condition and P0513.
• TSB 08-007-08 Rev. A was released to address the WCM locking up due to electrostatic discharge, requiring replacement of the module.

Mechanic-Grade Diagnostic Values

• WCM Fused B+ Circuit Voltage Drop — expected: The voltage reading at the WCM connector should be within 0.5 volts of the main battery voltage as read by a scan tool.. Failure: A voltage drop greater than 0.5 volts indicates high resistance or an open in the power feed circuit to the WCM.
• WCM Fused B+ Circuit Voltage Level — expected: Above 9.0 volts with the key in any position except RUN.. Failure: A voltage below 9.0 volts will set a B210D trouble code in the WCM, indicating a power supply issue that can lead to P0513.
• CAN C Bus Termination Resistance — expected: Approximately 60 Ohms when measured between pins 6 and 14 of the DLC.. Failure: A reading of ~120 Ohms indicates a missing termination resistor, which could be due to a faulty WCM or PCM, or a break in the CAN bus wiring. The WCM contains one of the two terminating resistors on this network.

Hidden / Shadow Codes Worth Checking

• B210D: Battery Voltage Low. This code is set by the WCM itself when its power supply drops below 9 volts. It can be a precursor to P0513 as low voltage can cause module lockup. (see via A professional scan tool (like wiTECH) capable of reading DTCs from the Wireless Control Module (WCM/SKREEM).)
• U-series codes (e.g., U0100, U0141): Lost Communication codes. A failing WCM can intermittently corrupt the entire CAN C bus, causing other modules (like the PCM, ABS, or SRS) to report lost communication with each other or with the TIPM. (see via A professional scan tool that can view DTCs in all vehicle modules. These codes may appear in multiple modules simultaneously during a WCM failure event.)

Scan Tool Commands That Help

• wiTECH: WCM Replaced / PCM Replaced — This function is mandatory after replacing either the WCM or the PCM. It initiates the 'secret key' transfer process, allowing the new module to be recognized by the vehicle's security system. For a PCM replacement, this function is often found under the BCM's 'Misc. Functions' menu.
• wiTECH: Proxy Configuration Alignment — This procedure must be run after replacing a module (like the WCM or PCM) to ensure all modules on the network recognize the vehicle's current configuration. Failure to perform a proxy alignment can result in a P0513 code.
• DRB III (for earlier models, but principles apply): SKIM Replaced — On older Chrysler systems, this was the function to initialize a new security module. It required the vehicle's 4-digit PIN to enter secured access mode and transfer the secret key from the PCM to the new SKIM/WCM.

Wiring & Ground Locations

• WCM/SKREEM Module — Located behind the left side of the dashboard, mounted to the steering column. It has an integrated antenna ring that fits around the ignition lock cylinder.. This is the central module for the Sentry Key system. All power, ground, and communication circuits must be intact for it to function and validate the key.
• Fuse M13 and M27 — In the interior fuse panel (Totally Integrated Power Module - TIPM).. Fuse M13 (20A) and M27 (10A) provide power to the Wireless Control Module. The M13 fuse is also the IOD (Ignition-Off Draw) fuse, which can be pulled to perform a hard reset of the WCM.
• PCM Ground Pins — On the Powertrain Control Module connector C1, pins 9 and 18 are ground circuits. The wires are typically Black (BK).. A poor ground at the PCM can cause a wide range of issues, including failure to correctly process the 'valid key' signal from the WCM.
• G100 Ground Point — Chassis ground point located on the left-hand side, just below the PCM.. This is a major chassis ground point. Corrosion or a loose connection here can cause intermittent electrical issues for multiple systems, including the immobilizer.

Real Owner Repair Stories

• Reddit r/MechanicAdvice (2009 Jeep Liberty) — P0513 code present, car would only make a clicking noise, no turnover. Remote start also stopped working.
  ❌ Tried (didn't work) Diagnosing it as a complex security system or remote starter issue.
  ✅ What actually fixed it The root cause was a dead main vehicle battery. Replacing the 12V battery resolved all symptoms and the P0513 code.
• YouTube user Steve Lowenstein (2014 Jeep Wrangler JK (similar immobilizer system)) — P0513 Invalid SKIM error, engine starts and stalls after 2 seconds, then locks out and will not crank. Red security light stayed lit. Spare key did not work either.
  ❌ Tried (didn't work) Using the spare key., Restoring the vehicle's PCM to factory settings using a Superchips programmer.
  ✅ What actually fixed it Performed a hard reset by disconnecting both battery terminals for five minutes, then touching the positive and negative cable ends together for 10 seconds before reconnecting them to the battery. This cleared the fault and allowed the vehicle to start normally with both keys.
• ScannerDanner Forum (2011 Jeep Liberty) — Intermittent no-crank, no-start. Key fob stops working, alarm goes off when using physical key. PRNDL light flashes randomly. No communication with any modules on the CAN C bus.
  ❌ Tried (didn't work) Initial diagnosis was inconclusive as the vehicle would start working again on its own.
  ✅ What actually fixed it Diagnosis pointed to a faulty WCM that was intermittently corrupting the CAN C bus. Unplugging the WCM and the 4WD module restored communication with other modules. The WCM contains a terminating resistor for the CAN C bus, making its failure critical to the entire network. The final fix is the replacement and programming of the WCM.

Documented NHTSA Reports

• NHTSA ODI #11684770: An owner reported the vehicle shut off and displayed a red immobilizer warning. Scans revealed immobilizer lockout (P0513), CAN-C bus communication errors, and repeated low-voltage codes. Despite a dealer replacing the PCM for approximately $1,550, the vehicle remained inoperable.

When the Usual Fixes Don't Work

• While the most common cause is a faulty WCM, multiple owner reports confirm that a simple dead or weak main vehicle battery can mimic the exact symptoms of a catastrophic security system failure, including setting code P0513 and causing a no-start. Always test and verify the 12V battery's health before condemning expensive electronic modules.

OEM Part Supersession History

• 5026071AH, AI, AJ, AK, AL, AM, AN, AO, AP, AQ, AR → 68209837AA — Module has been revised multiple times by the manufacturer, likely to address the known electronic lockup and failure issues.
  Heads up: While physically interchangeable, a new module must be programmed to the vehicle's VIN and security system using a wiTECH scan tool. A used module cannot be easily reprogrammed to a new vehicle.
• 5026072AL, AM, AN, AO, AP, AQ, AR → 68223406AA — Module has been revised multiple times by the manufacturer, likely to address known electronic failure points.
  Heads up: This part is also listed for the Dodge Nitro, which shares a platform with the Liberty KK. Programming is required upon installation.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Defective Sky Slider Sunroof 🔴 High — Very common on equipped models (2008-2010). Failure of cables or tracks leads to leaks, getting stuck open/closed, or lifting at highway speeds. Parts are discontinued, making repair extremely difficult. (Ref: A TSB was issued to install a new front bow to reduce noise, but no recall for the main failure mechanism.)
• Power Window Regulator Failure 🟠 Medium — Extremely common across all years. Plastic clips and components in the regulator assembly break, causing the window to drop into the door, often with a popping or grinding noise.
• Water Leaks into Cabin 🟠 Medium — Common issue, especially for models without the Sky Slider. Water can leak into the rear headliner area due to poor seam sealing in the roof ditches. (Ref: TSB 23-006-13 describes the diagnosis and repair procedure, which involves applying seam sealer to the roof ditch.)
• 3.7L V6 Hydraulic Lifter Noise 🟠 Medium — Occurs with higher mileage or neglected oil changes. Sludge buildup can cause lifters to tick, leading to rough idle and potential valve train damage if ignored.
• Premature Automatic Transmission Failure 🔴 High — Reported by many owners, often after 60,000 miles. Symptoms include slipping, harsh shifting, or getting stuck in 'limp mode' (second gear). Can be caused by contamination from factory coatings breaking down inside the transmission pan.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, a used part from a junkyard is almost never a smart choice. The WCM is electronically tied to the original vehicle's VIN and security PIN. It cannot be simply installed in another vehicle without being professionally reprogrammed.

What to inspect on the donor part:

• Not applicable, as even a perfectly functional used WCM will not work without reprogramming.

OEM-only on this vehicle (don't cheap out):

• Wireless Control Module (WCM/SKREEM)
• Powertrain Control Module (PCM)

Aftermarket brands forum-validated for this vehicle:

• No widely forum-validated aftermarket brands exist for the WCM itself. The recommended replacement is always a new Mopar part.

Brands owners have reported issues with on this vehicle:

• Unknown or unverified 'plug-and-play' or 'unlocked' modules sold online should be avoided, as they often do not work correctly with the Chrysler security architecture.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U0100 — Lost communication with PCM; related because a failing WCM can disrupt the CAN C bus, leading to widespread communication codes between modules.
• U0121 — Lost communication with ABS; often appears alongside P0513 when a failing WCM causes the entire CAN C bus to go down.
• B2229 — SKREEM Internal Error; directly related to the hardware failure of the Wireless Control Module (WCM) mentioned in TSB 08-007-08 Rev. A.
• B1A25 — Invalid Key; often stored when the transponder chip in the key fob fails or is not recognized by the WCM.
