P0751 on 2012-2013 Mazda 3 SkyActiv: Shift Solenoid 'A' Stuck Off Causes and Fixes

What's Unique About the 2012-2013 Mazda 3

For the 2012-2013 Mazda 3 with the SkyActiv 6-speed automatic (FW6A-EL), this code is the subject of several Mazda Technical Service Bulletins (TSBs). These bulletins reveal that the root cause is often not the solenoid itself, but contamination in the transmission fluid that causes internal oil pressure switches on the valve body to stick. This contamination can consist of fine metallic debris from normal wear of components like the torque converter clutch. Simply replacing the P0751-related solenoid without addressing the underlying valve body/pressure switch issue will likely result in the problem returning. This code is frequently seen with P1738 (Automatic Transaxle Internal Malfunction), which points directly to this known internal issue.

Symptoms You May Notice

• Check Engine Light and/or A/T (Automatic Transmission) warning light illuminated
• Vehicle enters 'limp mode' or fail-safe mode, often stuck in one gear.
• Harsh, abrupt, or delayed gear shifts.
• Transmission will not shift into certain gears.
• Noticeable loss of engine power (torque limitation).
• Manual shift mode is disabled.
• Reduced fuel economy.

Most Likely Causes

1. Sticking Oil Pressure Switches on Valve Body 🔴 High Probability → Shop Engine Oil Pressure Switch A known issue documented in Mazda TSBs (05-002/15, 05-003/14, etc.). Fluid contamination from normal wear causes the switches to stick, leading to incorrect pressure readings that trigger the P0751 code.
   How to confirm: Often diagnosed when P0751 appears with P1738 or other pressure switch codes (P0842, P0847, etc.). A technician will follow the TSB diagnostic procedure, which leads to inspecting and replacing the switches. The official Mazda diagnostic procedure for P0751 specifically checks if P1738 is also present as the first step.
   Typical fix: Replace the affected oil pressure switches (A and B) on the valve body and perform a transmission fluid flush. In some cases, the entire valve body assembly is replaced. The TSB repair evolved from replacing the whole valve body to just the switches.
   Est. part cost: $50-$150 for switches, $800-$1800 for a valve body assembly.
2. Low or Dirty Automatic Transmission Fluid (ATF) 🟡 Medium Probability → Shop Transmission Assembly Dirty or degraded fluid is the source of the contamination that causes the pressure switches to stick. Low fluid levels can cause pressure issues, slipping, and overheating.
   How to confirm: Check the transmission fluid level and condition. The fluid should be at the correct level, pink/red in color, and not smell burnt. Mazda's procedure requires the fluid to be at a specific temperature (e.g., 50°C / 122°F) for an accurate level check.
   Typical fix: Perform a transmission fluid drain-and-fill or flush using the correct fluid (Mazda ATF-FZ). If the fluid is very dirty, this may be a temporary fix if the switches are already mechanically stuck.
   Est. part cost: $75-$150 for fluid.
3. Faulty Shift Solenoid 'A' ⚪ Low Probability → Shop Transmission Valve Body
   How to confirm: A technician can test the solenoid's resistance with a multimeter (should be 5-7 ohms) or try to activate it with a scan tool to listen for a 'click'. However, on this platform, the solenoids are calibrated to the TCM and Mazda does not sell them individually, only as part of a complete valve body assembly.
   Typical fix: Replace the entire control valve body assembly. Individual solenoid replacement is not a standard repair on this transmission.
   Est. part cost: $60-$150

Rare But Worth Checking

• Faulty Transmission Control Module (TCM) or wiring: → Shop Transmission Assembly The TCM is integrated into the valve body on the FW6A-EL transmission. While rare, a damaged wire in the harness leading to the transmission or an internal failure of the TCM can prevent the solenoid from getting the correct electrical signal. This should be checked after the more common mechanical and hydraulic causes are ruled out.

Diagnosis Steps

1. Scan the TCM for all stored diagnostic trouble codes. Note if P1738, P0780, or any pressure switch codes are present with P0751.
2. Check the automatic transmission fluid (ATF) level and condition. The fluid must be at the correct operating temperature for an accurate reading. If the fluid is low, top it off. If it is dark, burnt, or contains debris, a fluid change is necessary, but internal damage may already exist.
3. Consult Mazda TSBs 05-002/15 and 05-005/14. These guide the diagnosis toward the known pressure switch issue.
4. If fluid and level are correct, the next step is to inspect the valve body. This involves dropping the transmission oil pan.

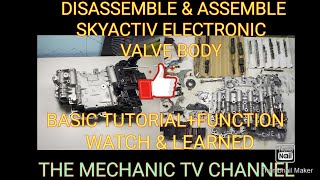

🎬 Watch: Detailed walkthrough of the SkyActiv valve body and parts.
5. Following the TSB, inspect and replace the oil pressure switches (A and B) on the valve body. If the oil pan contains a large amount of foreign material, the oil strainer should also be replaced.
6. Inspect the wiring harness and connectors between the main vehicle harness and the transmission for any damage, corrosion, or loose connections.
7. After repairs, clear the codes and perform the 'Initial Learning' procedure as specified by Mazda to ensure the TCM adapts to the new components. This can be done with a dealer-level scan tool or via a specific sequence of shifter and pedal movements.
🎬 Watch: How to perform the transmission reset procedure yourself.
8. Road test the vehicle to confirm the repair and ensure smooth shifting.

Parts You'll Likely Need

• Automatic Transmission Oil Pressure Switch Kit (OEM #FZ01-21-2J0) — This is the most common failure point according to Mazda TSBs. Contamination causes these switches on the valve body to stick. This part is also referred to as 'Switch B, Oil Pressure'.
  Trusted brands: Mazda OE
  OEM price range: $50-$100
  Aftermarket price range: $30-$70
• Automatic Transmission Valve Body (OEM #PEY0-21-C00) — In cases of severe contamination or if early TSB procedures are followed, the entire valve body assembly is replaced. The TCM is integrated into this assembly. Remanufactured units are available.
  Trusted brands: Mazda OE
  OEM price range: $1500-$1800
  Aftermarket price range: $800-$1200
• Automatic Transmission Fluid (ATF) (OEM #0000-FZ-113E-01) — Required for any repair and to address the contamination issue. Only Mazda ATF-FZ should be used in this transmission. A partial replacement (drain and fill) requires about 4-5 quarts.
  Trusted brands: Mazda OE
  OEM price range: $15-$25 per quart
  Aftermarket price range: N/A

Related Codes That Often Appear With This One

• P1738 — This code for 'Automatic Transaxle Internal Malfunction' is explicitly linked with P0751 in Mazda TSBs and points to the known valve body/pressure switch issue.
• P0780 — This 'Gear Shifting Malfunction' code is also listed in TSBs alongside P0751 as being caused by the same internal valve body problem.
• P0842, P0847, P0872, P0877 — These are all codes for specific oil pressure switch circuit problems. Their presence strongly confirms the issue is within the valve body, not just a single solenoid.

Technical Service Bulletins (TSBs) & Recalls

• Mazda TSB 05-002/15: Supersedes multiple earlier bulletins and details the repair procedure for DTCs P0842, P0847, P0872, P0877, P0780, and P1738 by replacing oil pressure switches A and B due to internal contamination.
• Mazda TSB 05-003/14 & 05-005/14: Earlier versions of the bulletin that were eventually superseded by 05-002/15. These documents show the evolution of Mazda's understanding and recommended fix for the problem.
• Bulletin #05-003-14-2898A: Notes that P0751:00 may be stored in memory alongside P1738 (Automatic Transaxle Internal Malfunction), with or without U0401 or other DTCs.
• Bulletin #05-003-14-2898: A manufacturer service bulletin identifying that P0751:00 can occur with P1738 and a range of other pressure and solenoid-related codes including P0842:00 and P0847:00.

Platform-Specific Known Issues

• Mazda has issued multiple Technical Service Bulletins (TSBs) for the SkyActiv-Drive 6-speed automatic transmission (FW6A-EL) used in this vehicle. The bulletins state that due to contamination, oil pressure switches inside the valve body can stick, causing a variety of DTCs including P0751, P1738, and P0780. The prescribed fix evolved from replacing the entire valve body to the more targeted replacement of just the affected pressure switches, which is a more cost-effective repair.

Mechanic-Grade Diagnostic Values

• Shift Solenoid 'A' (No. 1) Resistance — expected: 5-7 ohms. Failure: A reading outside this range, or infinite resistance (open circuit), indicates a faulty solenoid coil.
• On/Off Solenoid Resistance — expected: 11-14 ohms. Failure: A reading outside this range indicates a fault in this specific solenoid within the valve body.
• Solenoid Power Supply Voltage — expected: ~12.6V (Battery Voltage). Failure: A voltage reading significantly lower than battery voltage (e.g., >0.5V drop) at the solenoid connector (Key On, Engine Off) points to a wiring or ground issue.
• Live Data: Transmission Fluid Pressure Response — expected: Pressure should rise 40-60 psi when Solenoid 'A' is activated via a scan tool.. Failure: No corresponding pressure rise when the solenoid is commanded 'On' indicates a stuck solenoid, a clogged passage, or a faulty pressure sensor.

Scan Tool Commands That Help

• Mazda M-MDS or equivalent professional scan tool: Solenoid Control / Activate Solenoid A — This bidirectional command is used to manually trigger the solenoid. A technician can listen for an audible 'click' from the transmission pan and watch live data for a corresponding pressure change to confirm if the solenoid is electrically and mechanically responsive.
• Mazda M-MDS or equivalent professional scan tool: Initial Learning Procedure / Reset Adaptive Values — This function is mandatory after replacing the valve body or internal components like pressure switches. It forces the TCM to relearn the hydraulic response times and clutch fill volumes of the new parts to ensure smooth shifting.
• No Tool Required (Manual Procedure): Manual Initial Learning Mode Reset — Can be attempted after repairs if a dealer-level scan tool is unavailable. The complex procedure involves a specific sequence of warming the vehicle, pressing the brake, shifting between Neutral and Manual, turning the ignition on/off, and holding the shifter in Manual +/- positions for set times until the idle speed changes, indicating the learning mode is active.

Wiring & Ground Locations

• Transmission Harness Ground — A ground wire on the harness located on top of the transmission case.. A poor ground at this location can cause erratic behavior or a lack of response from the electronically controlled solenoids inside the transmission.
• Main Transmission Grounds — Two ground points on the front of the transmission case (one large wire, one small).. These are primary grounds for the transmission assembly. Corrosion or looseness here can lead to a variety of electrical faults, including solenoid performance codes.
• TCM/PCM Grounds — Multiple black ground wires at the Powertrain Control Module (PCM) connector. On a 2012 model, four grounds were identified on the PCM connectors.. Since the TCM is integrated, ensuring the main control module has solid grounds is critical. A bad ground can cause the TCM to misinterpret data or fail to send correct signals to the solenoids.

Real Owner Repair Stories

• Synthesized from multiple forum and Reddit threads (2012-2013 Mazda 3 SkyActiv) — A/T light on, Check Engine Light on, stuck in 3rd gear (limp mode), harsh shifting.
  ❌ Tried (didn't work) Performing a transmission fluid drain and fill without replacing any parts., Clearing the codes, only for them to return immediately or after a short drive.
  ✅ What actually fixed it Following the Mazda TSB procedure. The definitive fix was dropping the transmission pan, accessing the valve body, and replacing the two oil pressure switches (Part No. FZ01-21-2J0). This was almost always done in response to finding both P0751 and P1738 codes together. After replacing the switches and fresh ATF-FZ fluid, performing the 'Initial Learning' procedure resolved the issue.
• NHTSA ODI #11596026 — An owner reported that the check engine light, AT light, and traction lights illuminated, resulting in absolutely no power to the transmission with codes P0780 and P0751 stored.

OEM Part Supersession History

• fza1212j0 → FZ01-21-2J0 — Part revision or update by the manufacturer.
  Heads up: The new part number FZ01-21-2J0 is the correct replacement for the oil pressure switches mentioned in the TSB.

Model Year Variations Within This Range

• 2012-2013: According to TSB 05-005/14, for 2012-2013 Mazda3 vehicles within the VIN range JM1BL****500001 - 733727, a TCM reprogram to the latest software version is required after performing the mechanical repair (such as replacing the pressure switches). This is done using the Mazda Modular Diagnostic System (M-MDS).
• 2012+: The 2012 model year was the first to introduce the SkyActiv engine and the FW6A-EL 6-speed automatic transmission to the Mazda 3 platform, which is why this issue is specific to this period and not earlier models.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using used parts is highly discouraged, especially for the valve body. The only potentially acceptable used part would be a low-mileage transmission wiring harness if a specific connector or wire is needed for a repair.

Donor-vehicle mileage cap: roughly under 40000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring harness, inspect for any signs of brittleness, cracking, or previous repairs.
• Ensure all connector locking tabs are intact and pins are free of corrosion.

OEM-only on this vehicle (don't cheap out):

• Automatic Transmission Fluid (ATF-FZ): The chemistry is specific to this transmission; using non-OEM fluid can cause shifting problems or damage.
• Transmission Control Module (TCM) / Valve Body Assembly: Due to the TCM being integrated with the valve body, a used unit from a donor car is very likely to have VIN incompatibility issues, preventing it from working without dealer-level programming which may not be possible.

Brands owners have reported issues with on this vehicle:

• Unknown/unbranded valve bodies or solenoids from online marketplaces. Many remanufactured valve body sellers require confirmation against your original part's casting number (e.g., FZ01) to ensure compatibility, highlighting the risk of buying an unverified part.

Related OBD-II Codes

• P1738 — Often appears with P0751. Mazda's official diagnostic procedure for P0751 specifically checks for P1738 as the first step, as both are caused by the same sticking oil pressure switches documented in TSB 05-002/15.
• P0780 — Shift Malfunction code that is frequently triggered by the same root cause as P0751: sticking oil pressure switches due to fluid contamination. TSB 05-002/15 lists this as a related code.
• P0842 — Transmission Fluid Pressure Sensor/Switch 'A' Circuit Low. This code is directly related as it points to the pressure switches that are known to stick and cause P0751. It is covered under the same TSB (05-002/15).
• P0847 — Transmission Fluid Pressure Sensor/Switch 'B' Circuit High. Like P0842, this code points directly to the pressure switches that fail and is caused by the same internal contamination issue that triggers P0751.
• P0872 — Transmission Fluid Pressure Sensor/Switch 'C' Circuit Low. This is another pressure switch code mentioned in Mazda TSB 05-002/15 as being caused by the same fluid contamination issue.
• P0877 — Transmission Fluid Pressure Sensor/Switch 'D' Circuit High. This code is also covered by TSB 05-002/15 and stems from the same known issue of sticking pressure switches on the valve body.
