P0841 on 2008-2020 Dodge Grand Caravan: L/R Pressure Switch Causes and Fixes

What's Unique About the 2008-2020 Dodge Grand Caravan

The 2008-2020 Grand Caravan uses the 62TE automatic transmission exclusively. For this specific transmission, P0841 is not a generic pressure sensor code but points directly to the Low/Reverse pressure switch's performance. These pressure switches are not sold individually but are integrated into a larger component called the solenoid pack or solenoid/TRS assembly. This makes diagnosis slightly different, as the entire pack is the usual point of failure and replacement, rather than a single, externally-mounted sensor.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle is stuck in 'limp mode' (typically 2nd or 3rd gear)
• Vehicle launches from a stop in 2nd gear instead of 1st
• Harsh or erratic gear shifts, sometimes described as a "clunk" when shifting.
• Delayed gear engagement when shifting from Park to Drive or Reverse
• Disabled torque converter clutch engagement, leading to higher RPMs at cruising speed
• Inability to shift into certain gears
• A whining noise accompanied by a loss of propulsion while accelerating, as noted in some manufacturer-related reports.

Most Likely Causes

1. Faulty Solenoid Pack (Solenoid/Pressure Switch Assembly) 🔴 High Probability The pressure switches are integrated into the solenoid pack, which is a known high-failure item on the 62TE transmission. Internal contamination from normal clutch wear and heat cycles cause the delicate electrical components and seals within the pack to fail over time.
   How to confirm: After verifying fluid level and wiring integrity, the most definitive test is to replace the solenoid pack. A technician can also use a high-end scan tool to monitor the L/R pressure switch state in real-time to observe its erratic behavior. 🎬 Watch: Understanding pressure switch rationality codes and how to fix them. If the code sets immediately at key-on (before starting the engine), it strongly suggests an electrical failure in the pack or wiring.
   Typical fix: Replace the entire solenoid pack assembly. This is located on the front of the transmission, behind the side pan. 🎬 See this step-by-step solenoid pack replacement walkthrough for 62TE vans.
   Est. part cost: $200-$400
2. Low or Dirty Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly The 62TE can be sensitive to fluid level and condition. Contamination from normal wear, especially from the torque converter clutch, can clog the small passages and filter screens within the solenoid pack, causing pressure reading errors. Leaks from the transmission pan gasket are also common.
   How to confirm: Check the transmission fluid level using the dipstick (if equipped, some later models may not have one, requiring a special tool). The fluid must be at the correct level, bright red (ATF+4), and not smell burnt. Dark, brown, or burnt-smelling fluid indicates a problem requiring service.
   Typical fix: Perform a transmission fluid and filter change using only the correct Mopar ATF+4 fluid. If the fluid is heavily contaminated, the solenoid pack will likely still need replacement as it is likely clogged internally.
   Est. part cost: $60-$120
3. Wiring Harness or Connector Issue ⚪ Low Probability The wiring harness leading to the transmission can be exposed to heat, vibration, and road debris, potentially causing chafed or broken wires over time. The main connector plug on the transmission can also accumulate dirt or corrosion, leading to a poor connection.
   How to confirm: Visually inspect the wiring harness going to the transmission case connector for any signs of damage, corrosion, or loose pins. A technician would perform continuity and resistance checks on the (T50) L/R Pressure Signal circuit between the PCM and the transmission connector.
   Typical fix: Repair the damaged section of the wire or clean/replace the faulty connector.
   Est. part cost: $10-$100

Rare But Worth Checking

• Internal Mechanical Transmission Failure: → Shop Transmission Assembly While rare, an internal hydraulic leak in the L/R clutch circuit or a problem in the valve body could prevent proper pressure from reaching the switch, mimicking a switch failure. This is usually accompanied by more severe symptoms like slipping or noise and is a last-resort diagnosis.
• Faulty Powertrain Control Module (PCM): A PCM failure is very uncommon but possible. This should only be considered after all other causes, including wiring and the solenoid pack, have been definitively ruled out by a professional.
• Faulty Totally Integrated Power Module (TIPM): The TIPM is the vehicle's main fuse and relay center and is a known failure point on this platform, causing a wide array of bizarre electrical issues. While not a common cause for a single, specific code like P0841, a failing TIPM can theoretically send erratic signals or power to the transmission controls, triggering faults. This is more likely if other unrelated electrical problems are also present.

Diagnosis Steps

1. Check the transmission fluid level and condition. Ensure it is at the correct level and does not appear dark, burnt, or contaminated. Use only ATF+4 fluid. Top off or change if necessary.
2. Use a quality OBD-II scanner to check for any other transmission-related codes, such as P0944 or P0868.
3. Monitor the live data for the 'L/R Pressure Switch State' on the scan tool while driving to see if it reports illogical states. Note if the code appears immediately at key-on, which points to an electrical fault.
4. Inspect the main transmission wiring harness and the connector at the transmission case for any signs of damage, corrosion, or loose pins.
5. If fluid and wiring are good, the most likely cause is the solenoid pack. Proceed with replacing the solenoid pack, transmission filter, and pan gasket.

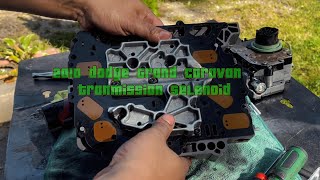

🎬 Watch: A complete guide to replacing the solenoid pack and filters.
6. When servicing the transmission, it is critical to also replace the spin-on cooler return filter, as a clogged one can restrict flow and cause pressure issues.
7. If a new solenoid pack does not resolve the issue, perform detailed circuit testing for opens or shorts between the PCM and transmission, or consult a professional for diagnosis of a potential internal mechanical fault or a faulty TIPM.

Parts You'll Likely Need

• Transmission Solenoid Pack (OEM #68371508AB) — This assembly contains the L/R pressure switch that causes the P0841 code. It is the most common failure point for this issue on the 62TE transmission. The original part number 68371508AA has been superseded by 68371508AB. Other associated numbers include 05078709AB and 68376696AA.
  Trusted brands: Mopar, Dorman (P/N: 609-040)
  OEM price range: $250-$400
  Aftermarket price range: $150-$300
• ATF+4 Automatic Transmission Fluid — The transmission pan must be removed to access the solenoid pack, requiring the fluid to be drained and refilled. Using the correct ATF+4 fluid is critical for the 62TE transmission's health.
  Trusted brands: Mopar, Valvoline, Castrol
  OEM price range: $10-$15 per quart
  Aftermarket price range: $7-$12 per quart
• Transmission Filter Kit (Sump Filter, Pan Gasket, Cooler Return Filter) — The internal sump filter and pan gasket should always be replaced when servicing internal transmission components. It is also highly recommended to replace the external spin-on cooler return filter at the same time.
  Trusted brands: Mopar, Wix, ATP
  OEM price range: $30-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0944 — P0944 indicates a loss of hydraulic pump prime. If the transmission pump loses prime, it can cause erratic pressure readings throughout the system, potentially triggering P0841.
• P0868 — P0868 indicates low transmission fluid pressure. This often points to low fluid level or a clogged filter, which are also common contributing causes for P0841.
• P083B, P0846, P0871 — These are other pressure switch rationality codes for the 62TE transmission. Seeing them together with P0841 strongly points to a failing solenoid pack or a widespread hydraulic issue.

Technical Service Bulletins (TSBs) & Recalls

• While no TSB directly targets P0841 on the Grand Caravan, several exist for 62TE shift quality improvements which involve flashing the TCM. For example, TSB 21-004-14 was released for other Chrysler vehicles to improve shift quality via a software update, showing that software can play a role in transmission behavior. On the related Ram ProMaster with the same 62TE transmission, TSB 08-076-20 was issued to address false P0841 triggers with a software update.

Platform-Specific Known Issues

• Recall S44 (NHTSA 16V-461) was issued for some 2015-2016 Grand Caravans for a transmission pump that could have dimensional variances, potentially leading to seizure, a loss of hydraulic pressure, and subsequent loss of motive power.

Documented NHTSA Reports

• NHTSA ODI #11707919 describes a situation where a vehicle experienced a loss of propulsion while accelerating, accompanied by a whine noise and code P0841.
• NHTSA ODI #10456949 reports a vehicle that would not move under its own power, where multiple codes were found including P0841 (Left Rear Pressure Switch Rationality), P0733 (Gear Ratio Error in 3rd), and P0944 (Loss of Pump Prime).
• NHTSA ODI #10177075 notes that a loud pop was heard while braking, with the MIL lamp illuminating for codes P0700, P1776, and P0841, suggesting this issue occurs frequently with certain Dodge models.

Mechanic-Grade Diagnostic Values

• Resistance of the (T50) L/R Pressure Signal circuit between the PCM and transmission connector. — expected: Less than 5.0 Ohms. Failure: A reading above 5.0 Ohms indicates an open in the circuit.
• Voltage of the (T50) L/R Pressure Signal circuit (with specific test setup). — expected: Less than 0.5 Volts. Failure: Voltage above 0.5V indicates a short to voltage in the circuit.
• Resistance of the pressure switch resistors at the solenoid pack connector. — expected: Approximately 300 Ohms. Failure: A significantly different reading indicates a faulty pressure switch circuit within the pack.
• Resistance of the Low/Reverse solenoid at the solenoid pack connector (between pin 10 and pin 2). — expected: 1.6 - 1.8 Ohms (at ~70°F). Failure: An open circuit (infinity) or a reading far outside this range indicates a failed solenoid coil.

Scan Tool Commands That Help

• Professional Scan Tool (Autel, Snap-on, wiTECH): Quick Learn / Transmission Adaption Re-learn — This procedure is mandatory after replacing the solenoid pack, valve body, or entire transmission. It resets and relearns the transmission's adaptive values for shift timing and clutch volume indexes (CVIs), ensuring smooth operation and preventing harsh shifts.
• Professional Scan Tool (Autel, Snap-on, wiTECH): Live Data Monitoring - L/R Pressure Switch State — During diagnosis, this allows a technician to view the switch's reported state (Open/Closed) in real-time while driving or manually shifting. Observing a state that is illogical for the current gear (e.g., showing 'Closed' in Park) confirms a rationality fault.

Wiring & Ground Locations

• (T50) L/R Pressure Signal Circuit — This wire runs between Pin 16 of the main transmission solenoid/TRS assembly harness connector and a pin on the C4 (Green) harness connector of the Powertrain Control Module (PCM).. This is the specific signal wire that carries the open/closed status from the L/R pressure switch back to the PCM. An open, short to ground, or short to voltage on this wire will directly cause a P0841 code.
• Transmission Connector Pin 10 — Pin 10 on the main 23-way transmission solenoid/TRS assembly harness connector.. This pin receives 12V power from the transmission control relay and serves as the common power feed for multiple solenoids and pressure switches within the pack. It is the reference pin used for most resistance checks when testing the solenoid pack.
• Transmission Connector Pin 16 — Pin 16 on the main 23-way transmission solenoid/TRS assembly harness connector.. This is the specific output pin for the L/R pressure switch signal that connects to the T50 circuit. Testing at this pin is crucial for diagnosing the pack versus the vehicle's wiring harness.

Real Owner Repair Stories

• YouTube user '62TE, P083B, Limp Mode' (Dodge Grand Caravan with 62TE transmission, failure at ~220,000 miles) — Intermittent limp mode, often when hot. A pending P083B (LC Pressure Switch Rationality, a related code) would appear but clear itself after restarting the engine, leaving no stored codes.
  ❌ Tried (didn't work) A thorough cleaning of the solenoid pack's electrical contactors initially fixed the problem, but the issue returned after 21,000 miles.
  ✅ What actually fixed it The owner disassembled the solenoid pack and installed a Sonnax Solenoid Spacer Service Kit (P/N 44836-02K). This kit replaces the internal rubber switch cups, springs, and adds a spacer to prevent the contactor board from flexing. This, combined with another cleaning and a fluid/filter change, provided a permanent fix.

OEM Part Supersession History

• 68371508AA → 68371508AB — Standard part revision and improvement by the manufacturer.
• 05078709AB → 68371508AB or other modern numbers — Older part number that has been replaced by newer revisions.

Model Year Variations Within This Range

• 2008-2010 vs 2011-2020: The primary difference was the engine paired with the 62TE transmission. Early models used 3.3L, 3.8L, or 4.0L V6 engines, while 2011 and later models exclusively used the 3.6L Pentastar V6. While TCM software calibrations differ, the physical solenoid pack, the P0841 fault, and the diagnostic/repair procedure remain fundamentally the same across the entire generation.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• 3.6L Pentastar Oil Filter/Cooler Housing Leak 🔴 High — Extremely common, typically occurs after 60,000 miles. The original plastic housing cracks from heat cycles.
• Totally Integrated Power Module (TIPM) Failure 🔴 High — Common across many 2008-2014 Chrysler/Dodge products. Can cause a wide range of random electrical issues, including no-start, fuel pump problems, or accessories turning on by themselves.
• Power Sliding Door Wiring Harness Failure 🟠 Medium — Very common. The wires inside the flexible track leading to the sliding doors break from repeated motion, causing the power door, window, and lock to fail.
• Heater Core Clogging (Driver's Side No Heat) 🟠 Medium — Common issue where casting sand from the engine block manufacturing process clogs the heater core, resulting in poor or no heat output on the driver's side vents.
• Premature Brake Wear 🟠 Medium — Widespread owner complaints of rapid wear of brake pads and rotors, often attributed to undersized components for the vehicle's weight.
• 3.6L Pentastar Rocker Arm/Lifter Failure 🔴 High — A known issue on earlier Pentastar engines, causing a distinct ticking noise from the valvetrain, often leading to misfire codes and requiring replacement of lifters and rocker arms.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used solenoid pack from a junkyard is a high-risk, low-reward option. Given that this is the most common failure point on the 62TE transmission, a used part has a significant chance of being already faulty or having very limited life remaining. It should only be considered in extreme budget situations where the owner accepts the risk of having to do the job twice.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle's mileage if possible; lower is always better.
• Inspect the main electrical connector pins for any signs of green or white corrosion, or bent pins.
• If possible, check the color of the transmission fluid from the donor vehicle. Bright red is good; dark brown or black is a major red flag.
• Avoid parts from vehicles that show signs of major collision damage near the transmission.

OEM-only on this vehicle (don't cheap out):

• Transmission Solenoid Pack

Aftermarket brands forum-validated for this vehicle:

• Mopar (OEM)
• Dorman (specifically P/N 609-040)
• Sonnax (offers highly-regarded internal rebuild/upgrade kits rather than complete packs)

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name solenoid packs from online marketplaces (e.g., Amazon, eBay) have a high reported incidence of being dead-on-arrival, poorly refurbished, or failing prematurely.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0868 — Transmission Fluid Pressure Low. This code often appears with P0841. While P0841 points to a specific pressure switch (L/R) reading incorrectly, P0868 indicates a general low line pressure condition. Both frequently stem from the same root causes: a failing solenoid pack, low fluid, or clogged filters.
• P0944 — Hydraulic Pressure Unit Loss of Prime. This is another common companion code. A loss of prime can be caused by low/aerated fluid or a faulty solenoid pack that cannot properly direct fluid pressure, which is the same system that P0841 monitors.
• P0846 — Transmission Fluid Pressure Sensor/Switch 'B' Circuit Range/Performance. P0841 relates to the L/R pressure switch. Since the solenoid pack is an assembly containing multiple pressure switches, a failure of the pack due to contamination or electrical faults can easily trigger codes for other switches it contains.
• P0871 — Transmission Fluid Pressure Sensor/Switch 'C' Circuit Range/Performance. Similar to P0846, this code points to a fault in another pressure switch (e.g., Overdrive) housed within the same solenoid pack assembly. It is common to see multiple pressure switch codes when the entire pack is failing.
• U0101 — Lost Communication With TCM. The context notes that Totally Integrated Power Module (TIPM) failure is a common issue on these vans. A faulty TIPM can cause widespread electrical problems, including interrupting communication with the Transmission Control Module (TCM), which could potentially trigger false transmission codes like P0841 as a secondary effect.
