The grille (often called the front grill, radiator grille, or grill shell) on a GMC Sierra 1500 does three big jobs: it lets cool air reach the radiator and engine, shields those parts from rocks and debris, and gives the truck its bold face. Sierra grilles come in several sizes for different model years, are built from plastics, chrome-plated metal, or stainless steel, and may hide fuel-saving active grille shutters behind the slats. Most owners can swap a grille with common hand tools, but keeping it clean and checking the shutter system prevents trouble codes.

Modern trucks still need a front grille because it channels air to the radiator, intercooler, and transmission cooler; without that flow the engine can overheat quickly (Craig Dunn Chevy Buick GMC Ltd).
A sturdy grille also blocks rocks, birds, and road debris that could puncture the radiator or condenser. Finally, designers use the grille shape-like the signature "C-clamp" outline on recent Sierras-to signal trim levels such as Denali or AT4 (GMAuthority).

• 2007-2013 (GMT900): Two-piece grille and bumper fascia; will not bolt to newer body styles.

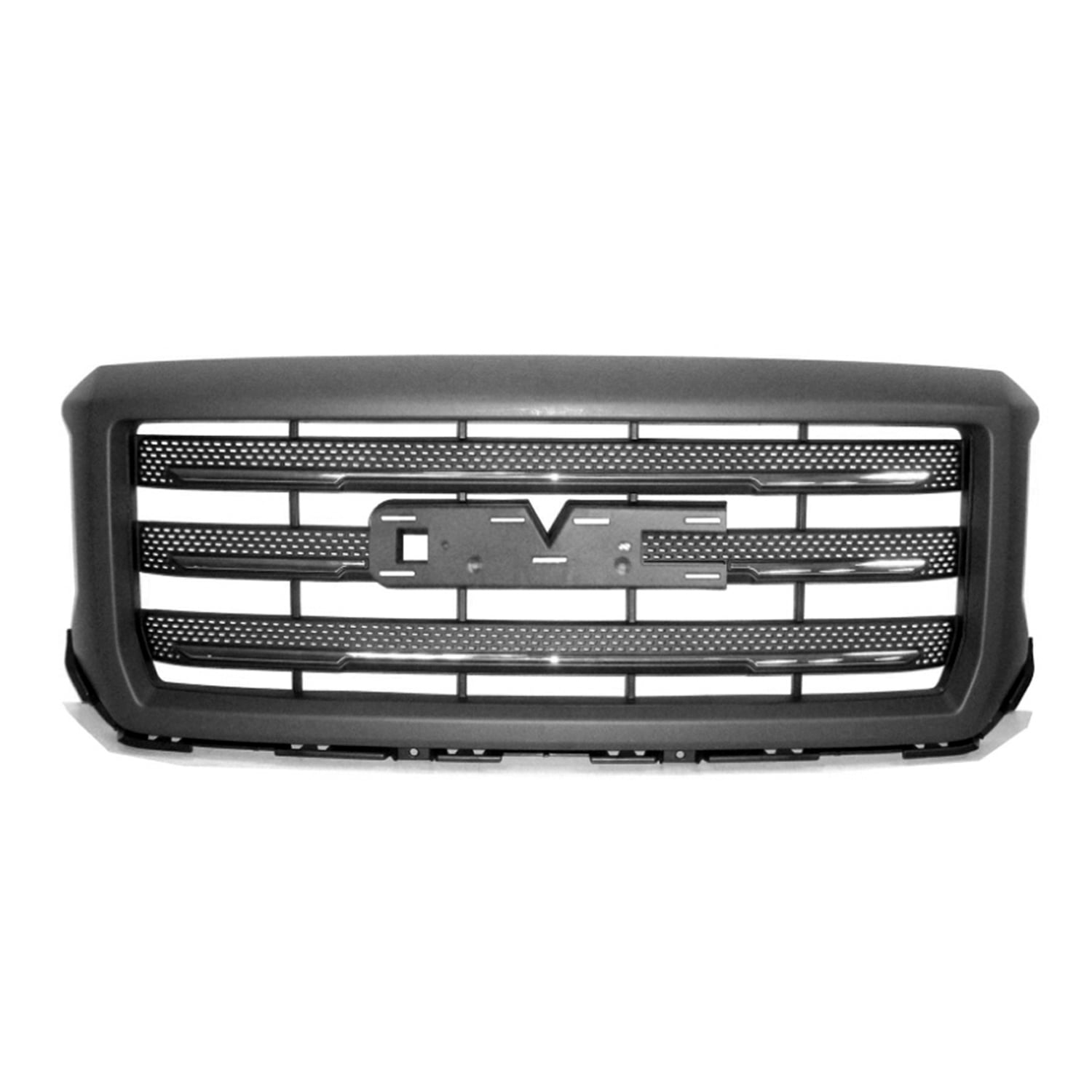

• 2014-2018 (K2XX): Single surround secured by ten 10 mm bolts and plastic pop-clips; removal video shows the full process (YouTube, YouTube).
• 2019-2022 (T1): Larger opening, integrated active shutters. Different shape for Elevation, SLT, AT4, Denali, and Denali Ultimate trims (GMAuthority).
• 2023-2025 refresh: New LED lighting signature and revised shutter motor; Denali uses "Vader Chrome," and AT4X adds gloss-black mesh (GMC).

Tip: Always match the grille to the truck's production generation; mounting tabs, hood lines, and bumper caps change even when the cab looks the same.

← scroll table horizontally →

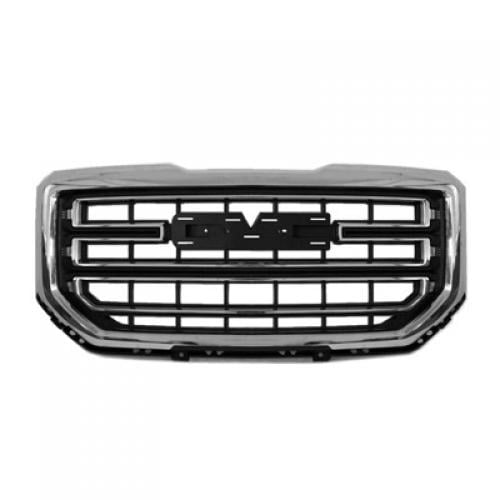

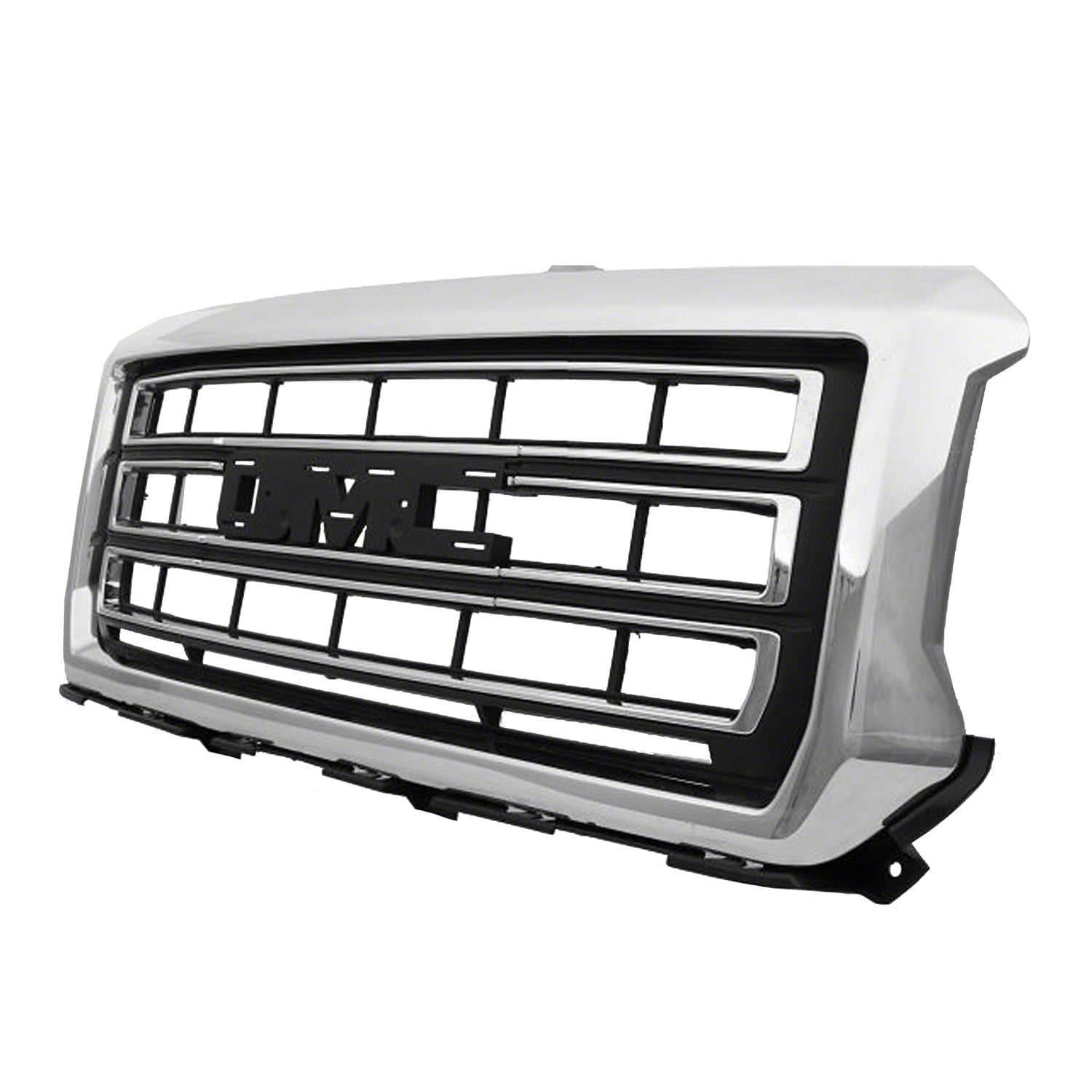

• Chrome surround for a factory look.
• Matte-black or color-matched shells-DIY painting guide shows four simple steps (YouTube).

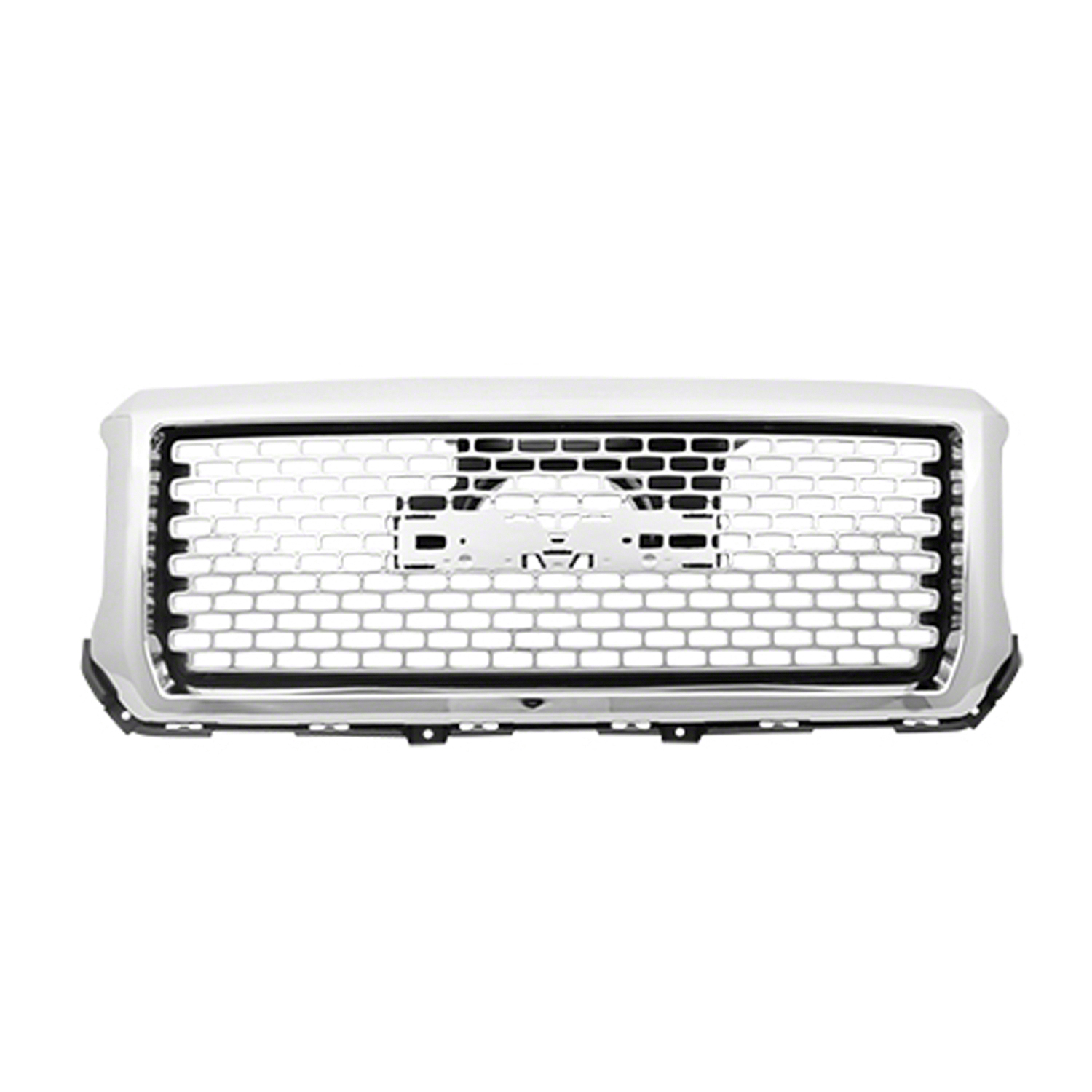

• Honeycomb or mesh patterns for sport trims.
• LED-backlit or laser-cut steel designs add light bars but increase weight (T-Rex Grilles).
• Brush or grille guards can sit in front, but some owners report frame damage in crashes (GM-Trucks.com, ranchhand.com).

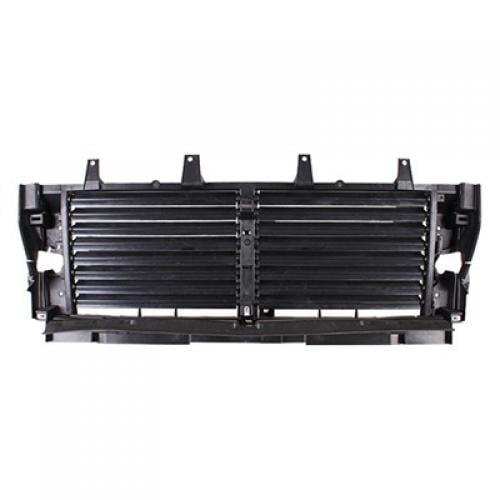

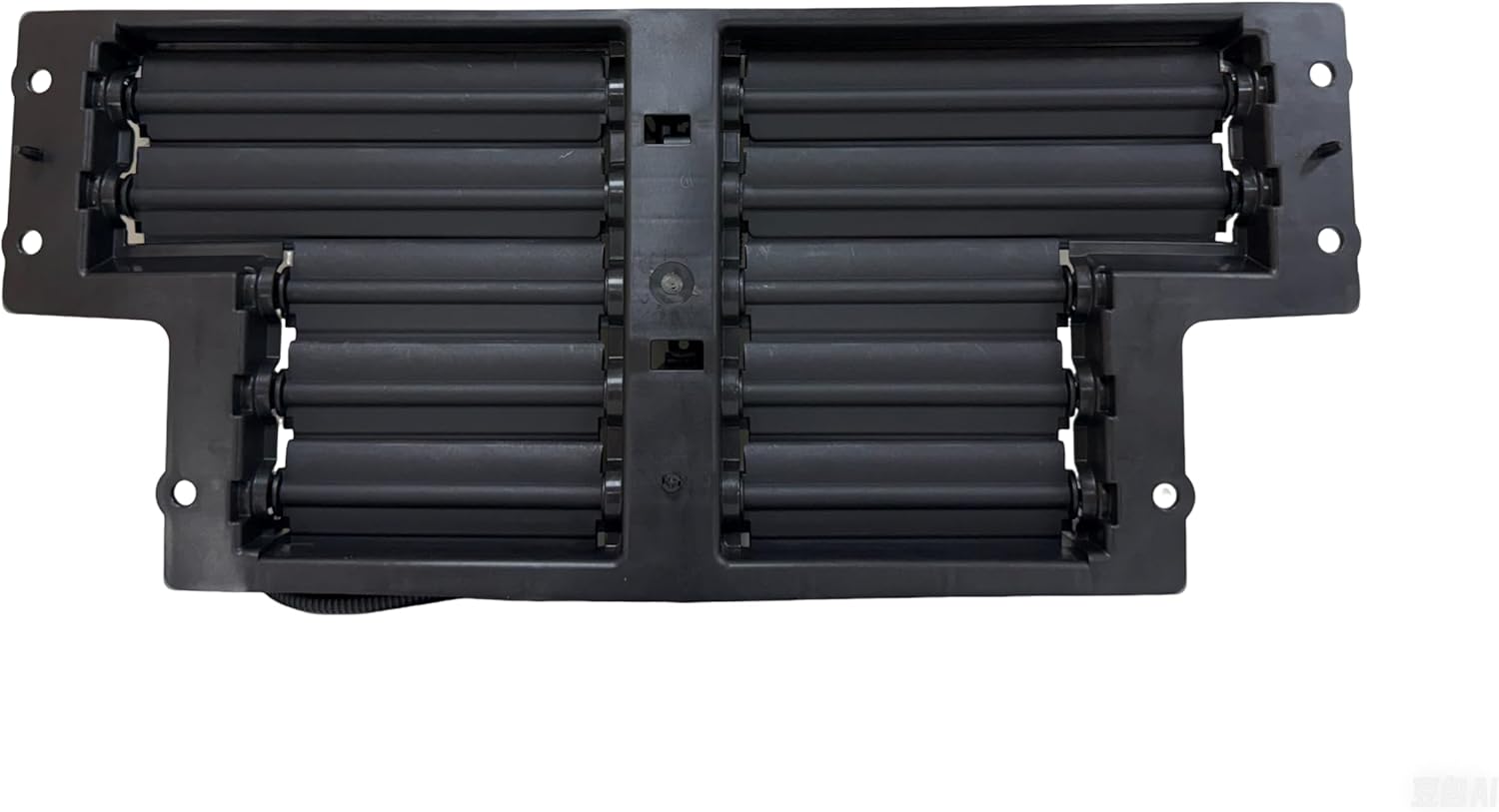

Many 2016-up Sierras hide active grille shutters (AGS) behind the slats. These motorized doors close at highway speed or in cold weather, boosting aerodynamics and saving about 0.5 % fuel (GM-Trucks.com).
If an AGS is blocked or unplugged, the truck can set diagnostic codes P05A0, P059F, or U1510 and may turn on the check-engine light (Foxwell Diag, GMC AT4 Forum).

1. Pop the hood and remove the plastic radiator cover.
2. Unsnap the upper clips and remove the ten bolts holding the grille-shell (YouTube, YouTube).
3. Gently pull the grille forward; disconnect the shutter or camera harness if present.
4. Transfer the GMC emblem and sensor brackets to the new shell.
5. Reverse to install, tightening bolts to 18 lb-ft (hand snug plus ¼ turn).

A first-time installer needs about 45 minutes on a driveway.

• Wash often: Bugs left on chrome can etch the finish; use mild car soap.
• Clay bar & wax: Removes hard water spots on plated grilles (GM-Trucks.com).
• Touch-up paint: Chips on color-matched shells should be dabbed quickly to stop rust (Silverado Sierra).
• Check shutter vents: Clear leaves or stones that jam the AGS louvers; one small rock can trigger a U1510 code (Reddit).

Grilles take the brunt of rock spray. A peeling chip-guard or cracked slat usually means the protective film has failed and rust may start (Silverado Sierra).
While a grille guard sounds protective, tests and owner reports show some guards transfer crash energy to the frame, raising repair costs (GM-Trucks.com). Choosing a full replacement bumper or a "bull-bar" rated for impacts provides more effective protection (ranchhand.com).

The U.S. National Highway Traffic Safety Administration is drafting pedestrian-head protection rules that affect hood and grille design (Federal Register). Expect future Sierra grilles to incorporate energy-absorbing structures or pop-up hoods to meet these standards.

← scroll table horizontally →

Q: What does a grille actually do?
A: It lets fresh air cool the radiator while shielding it from debris and giving the truck its look (Craig Dunn Chevy Buick GMC Ltd).

Q: Will a 2020 Sierra grille fit my 2024 model?
A: No-GM changed the shape and mounting tabs for the 2022-up refresh, so they are not interchangeable (GMAuthority).

Q: Can I paint a chrome grille black at home?
A: Yes; sand lightly, use plastic adhesion promoter, spray primer, then color and clear coats as shown in DIY videos (YouTube).

Q: What are billet grille inserts?
A: They are aluminum bars that mount inside the factory shell; a "complete grille" includes both the shell and the insert (apsautoparts.com).

Q: How heavy is a steel aftermarket grille?
A: A typical mild-steel insert for a 2019-22 Sierra weighs about 29 pounds (T-Rex Grilles).

Q: Do active grille shutters really save gas?
A: Yes, tests show about a 0.5 % fuel-economy gain, which helps GM meet federal targets (GM-Trucks.com).

Q: What codes point to shutter trouble?
A: Common Sierra codes are P05A0, P059F, and U1510 (Foxwell Diag).

Q: My grille guard bent the frame after a minor hit-why?
A: Some frame-mounted guards bypass factory crush zones, increasing damage in a crash (GM-Trucks.com).

Q: How do I clear bug stains on chrome?
A: Use a detailing clay bar and follow with wax to protect the finish (GM-Trucks.com).

Q: Does a mesh grille improve cooling?
A: Airflow depends on the total open area; dense mesh may reduce flow, while factory grilles are sized for the engine's cooling needs (Craig Dunn Chevy Buick GMC Ltd).

Q: Are LED grilles legal?
A: Extra lighting must stay off on public roads in some states-check local lighting laws before wiring LEDs into the grille (ranchhand.com).

Q: What is "Vader Chrome"?
A: It's the dark-tinted chrome finish on the Sierra Denali Ultimate grille (GMAuthority).

Q: Can a bird jam my shutters?
A: Yes-owners have found birds and stones lodged in the louvers, causing fault codes (Reddit).

Q: Will a bull bar protect the grille from deer?
A: A full replacement bumper offers better impact absorption than a light-duty bull bar (ranchhand.com).

Q: How often should I wax a painted grille?
A: Every three months keeps the clear coat sealed against salt and bug acids (GM-Trucks.com).

Q: Where can I see the latest factory grille options?
A: The official GMC website lists current trim-level designs and photos (GMC).

This guide should equip any reader-DIYer, truck enthusiast, or first-time owner-with clear, reliable answers about GMC Sierra 1500 grilles, their care, and their many customization paths.
