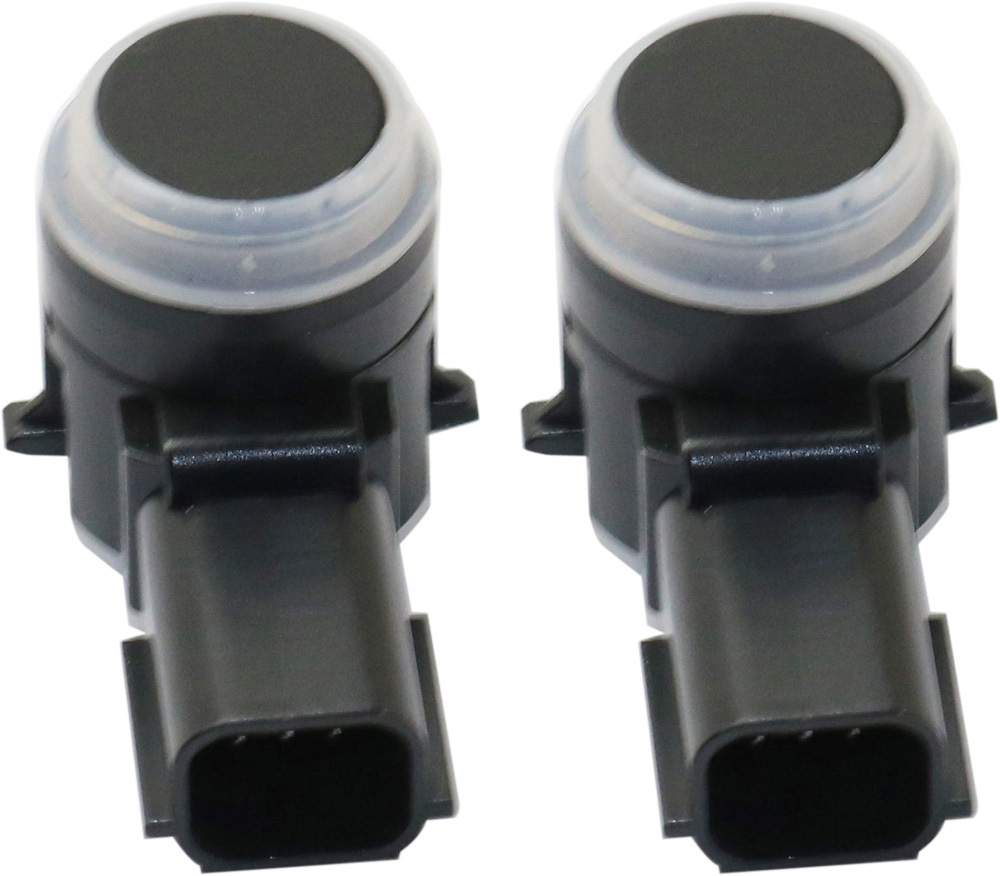

The GMC Yukon XL's parking-assist sensor-also called a backup sensor, park-distance sensor, or reverse sensor-is a small ultrasonic device in the bumpers that "pings" high-frequency sound waves, listens for echoes, and feeds distance data to the Park Assist control module. When the sensor works, it warns you of close objects with beeps or visual bars, making slow-speed maneuvers safer. When it fails, you may see a "Service Park Assist" alert or hear constant tones. Below you'll find everything most Yukon XL owners, DIY techs, and curious readers need to know about this part-from how it works and common failure clues to replacement, upkeep, safety notes, and answers to everyday questions.

Overview

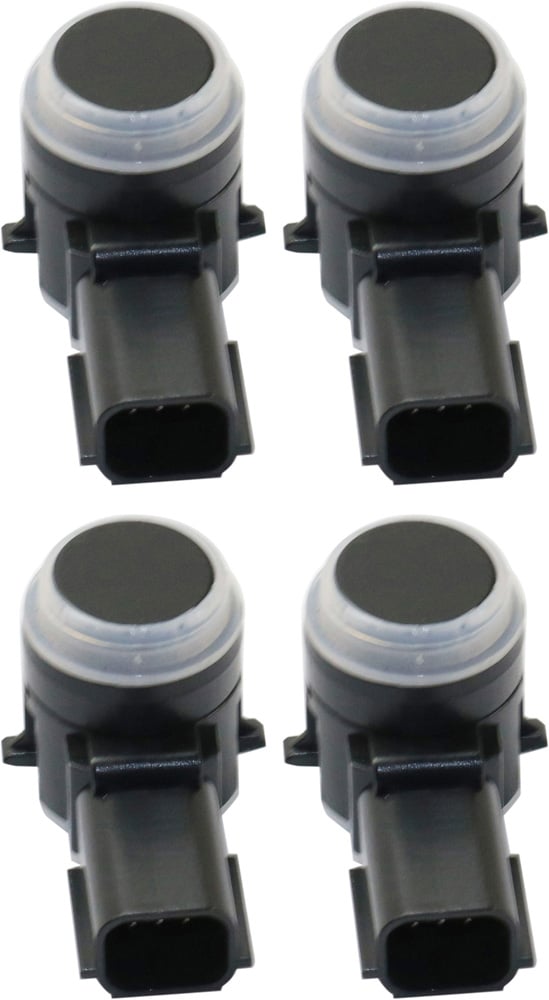

The rear Park Assist system on the Yukon XL uses four ultrasonic sensors spaced across the bumper to watch for obstacles when the shifter is in REVERSE (GMC). A simple button or menu toggle lets the driver switch the feature on or off whenever needed (GMC). Because the system relies on sound waves, it works best at very low speeds, usually under 5 mph, and in clear weather.

How It Works

An ultrasonic parking sensor fires pulses around 50 kHz-far above human hearing-then measures how long the echo takes to bounce back to gauge distance (TDK). The Yukon's module turns that raw data into spaced beeps or colored bars on the dash screen to show how close you are to an object (YouTube). If multiple sensors "see" the same target, the system chooses the shortest distance to alert you sooner.

Common Symptoms

Typical signs of a failing proximity sensor include:

• "Service Park Assist" message in the cluster.
• A fast or solid tone even when nothing is behind the SUV.
• No sound or display when backing up.
• Trouble codes such as C0797 stored in the module.

Dirt, snow, or a cracked lens can also cause false alerts or silence (NHTSA Static). Cleaning the sensor face with mild soap may clear the fault before parts are replaced (Consumer Reports).

Causes of Failure

Sensors fail for four main reasons: water intrusion past the bumper seal, road salt corrosion, wiring damage from minor bumps, or internal electronic wear. Tape, bumper stickers, or thick wax that cover the lens can block the ultrasonic beam and set a fault (NHTSA Static). Extended snow or ice buildup also bends the sound waves and confuses the module (NHTSA Static).

Diagnosis

1. Visual check - Look for chips, mud, or mis-seated sensors.
2. Click test - With ignition ON, gently place a finger on each sensor; a good unit usually ticks faintly.
3. Scan tool - Pull DTCs and read live distance data to spot the dead sensor (YouTube).
4. Bumper removal - Expose the Park Assist module mounted behind the bumper beam for continuity tests (JustAnswer).

Replacement Steps

Replacing one sensor is straightforward and takes about an hour:

1. Disconnect the battery.
2. Remove the plastic bumper cover clips and pull the cover slightly outward.
3. Unclip the suspect sensor from its bracket and unplug the connector.
4. Snap in the new unit, taking care to match the painted cap orientation.
5. Refit the bumper and reconnect the battery.
6. Turn ignition ON, shift to REVERSE, and verify the beep pattern (YouTube).

If several sensors fail at once, GM issued a service bulletin calling for module replacement and software setup on 2023 models (NHTSA Static).

Compatibility

Most Yukon XLs from 2007-to-present use a 16-mm round ultrasonic sensor with four tab locks, but part numbers change by model year, paint color, and trim (Denali vs. standard). Always match the connector shape and two-digit color code on the old sensor before ordering a replacement (GMC).

Installation Tips

• Keep the rubber gasket seated flat so water cannot seep behind the lens.
• Do not over-torque the bracket screws; snug plus ¼-turn is enough.
• Fill the connector cavity with a light dab of dielectric grease for corrosion resistance.
• After installing multiple sensors or a new module, cycle the ignition, shift into REVERSE, drive forward above 15 mph, then back up-this lets the module self-learn the new sensor IDs (Meadowland GMC).

Maintenance

Wash the bumper gently and wipe the sensor face with a microfiber cloth-no harsh polish, and avoid direct pressure-washer spray (YouTube). In winter, clear ice rings around each sensor so echoes stay accurate (NHTSA Static).

Cost & Labor

A single aftermarket sensor runs about $40-$60, and dealer labor averages 0.8-1.2 hours. Expect a total bill between $150 and $400 for one sensor, depending on shop rate and paint match (RepairPal.com, TeamTalk). DIY owners often save over 60 percent by tackling the job at home.

Safety & Legal

Park Assist is a driver aid. You must still look around and brake on your own; the beeps do not apply the brakes. In 2023 GM issued a control-module update to restore sensor function on certain SUVs built during chip shortages (NHTSA Static). Check your VIN for open recalls with the National Highway Traffic Safety Administration.

Environment

Faulty sensors are e-waste. Many recycling centers accept small automotive electronics; separating them keeps heavy metals out of landfills and supports smart waste-management goals (Conure).

Frequently Asked Questions

Q: Where are Yukon XL parking sensors located?
A: Four are spaced across the rear bumper, and on some trims four more sit in the front bumper corners for low-speed forward parking help (GMC).

Q: Does paint thickness affect sensor accuracy?
A: Yes. Too many paint layers can dull the ultrasonic signal, so re-spray work should keep clear-coat thickness near factory spec (NHTSA Static).

Q: Can I drive with the "Service Park Assist" light on?
A: The SUV will drive normally, but you lose the audible distance warnings. Fix it soon to avoid backing accidents (YouTube).

Q: How do I reset the system after cleaning or replacing a sensor?
A: Turn Park Assist off, wait ten seconds, turn it back on, or press the odometer stem to clear the dash message (Meadowland GMC).

Q: What sound does a healthy sensor make?
A: Place a fingertip on it-if you feel a faint ticking, it is pulsing correctly (YouTube).

Q: Why does the sensor beep in heavy rain?
A: Water droplets bend ultrasonic waves, so the module may think an object is closer than it is (NHTSA Static).

Q: Do I need to program a new sensor?
A: No special scan tool is needed; the module auto-learns as long as the replacement part matches the original spec (YouTube).

Q: How long should a parking sensor last?
A: With normal washing and no bumper impacts, many last ten years or more before moisture or corrosion causes failure (Consumer Reports).

Q: Can I reuse an old painted sensor in another bumper?
A: Yes, if the connector and bracket match, but handle it gently to avoid cracking the face lens (YouTube).

Q: What's the operating range of each sensor?
A: On the Yukon XL the system alerts at about 6 ft and gives a steady tone roughly 1 ft from an obstacle (GMC).
