2021 - 2022 Chevrolet Trailblazer Wireless Charging Control Module (OEM)

• Check Compatibility: Even though this module fits many Buick, Cadillac, Chevrolet, and GMC vehicles from 2018-2025, confirm it's the correct part for your specific year and model.
• Inspect the Part: Look for any signs of damage, corrosion, or wear.
• Verify Functionality: If buying a used part, ask if it has been tested and is guaranteed to work.
• Warranty: Check if the part comes with any warranty or return policy.

Quality Indicators:

• OEM Markings: Genuine OEM parts will have the manufacturer's markings.
• Physical Condition: A well-maintained part will look clean and free of damage.
• Testing Documentation: Ask for any documentation showing the part has been tested.

What's Included:

• The Wireless Charging Control Module.
• Mounting hardware may or may not be included. Check with the seller.

• Difficulty Level: Intermediate.
• Estimated Time: 1-2 hours.

Special Tools Needed:

• Basic hand tools (sockets, wrenches, screwdrivers).
• Trim removal tools (to avoid damaging interior panels).
• Diagnostic scan tool (optional, for clearing error codes).

Critical Steps and Tips:

1. Disconnect the negative battery cable before starting any electrical work.
2. Locate the Wireless Charging Control Module. It's typically located under the center console or dashboard.
3. Carefully remove any trim panels or components that are blocking access to the module.

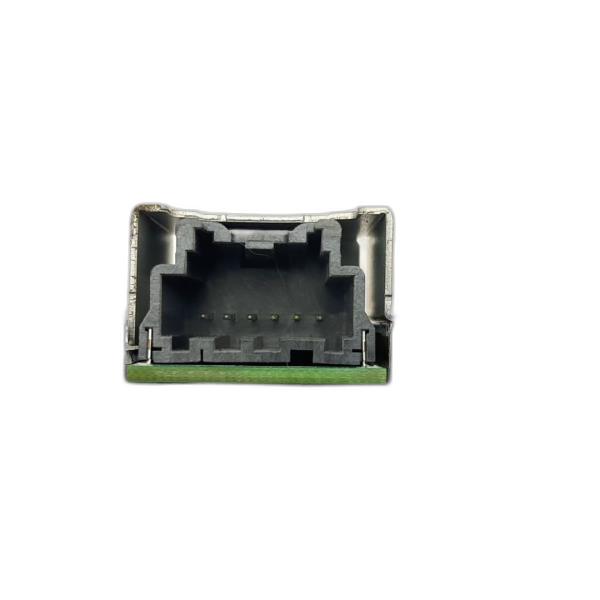

4. Disconnect the electrical connectors from the module.
5. Remove the old module and install the new one.
6. Reconnect the electrical connectors.
7. Reinstall any trim panels or components that were removed.
8. Reconnect the negative battery cable.
9. Test the wireless charging system to ensure it's working properly.

DIY vs. Professional Installation:

• If you're comfortable working with electrical systems and removing interior panels, you can likely do this yourself. However, if you're not experienced, professional installation is recommended to avoid damaging the vehicle or the new module.

Compare: Used OEM vs. New Aftermarket

• Used OEM: Offers the best value. These are genuine factory parts that have been tested and inspected. They are typically much cheaper than new parts.
• New Aftermarket: These are brand new parts made by third-party manufacturers. They are built to meet or exceed OE specifications.

Used OEM:

• These are original equipment parts that came from the factory.
• They are tested to ensure they are working properly.
• They offer a cost-effective way to repair your vehicle.

New Aftermarket:

• These are brand new parts made by companies other than the original manufacturer.
• They are often more affordable than new OEM parts.
• Ensure the aftermarket part is from a reputable manufacturer.

• USB Ports: If the wireless charging isn't working, the USB ports in the same area might also be affected.
• Center Console Wiring Harness: Damaged wiring can cause issues with the wireless charging system.
• Fuses: Blown fuses are a common cause of electrical problems.

Why Replace Related Parts:

• Replacing related parts can prevent repeat failures. If the original problem was caused by a voltage spike or other electrical issue, other components may have been damaged as well. Replacing these components at the same time can help ensure that the problem is fixed correctly and doesn't recur.

• The Wireless Charging Control Module typically lasts 5-10 years.

Factors That Affect Longevity:

• Operating Temperature: Extreme heat can shorten the lifespan of the module.
• Electrical Surges: Voltage spikes can damage the module.
• Usage: Frequent use of the wireless charging system can put more wear and tear on the module.

• Used OEM: $50 - $150
• New Aftermarket: $80 - $200
• Labor Cost: $100 - $200
• Total Job Cost: $150 - $400

• Some models have known issues with the wireless charging system overheating.
• Check for any Technical Service Bulletins (TSBs) related to the wireless charging system on your specific vehicle.
• Some owners have reported that certain phone cases can interfere with the wireless charging system.

• Charging Indicator: The vehicle's infotainment system should show that your phone is charging.
• Phone Battery: Your phone's battery percentage should increase while on the charging pad.
• Temperature: Monitor the temperature of the charging pad and your phone. They should not get excessively hot.
• Error Codes: Use a diagnostic scan tool to check for any new error codes related to the wireless charging system.

Q: Will this module work with my phone?
A: This module is designed to work with most Qi-enabled smartphones. However, some phones or phone cases may not be compatible. Check your phone's specifications to ensure it supports Qi wireless charging.

Q: How do I know if this module is the problem?
A: If your phone isn't charging wirelessly and you've ruled out other causes, such as a blown fuse or incompatible phone, this module is likely the problem. A diagnostic scan tool can also help identify if the module is faulty.

Q: Is it difficult to install this module?
A: The installation is moderately difficult. It requires removing some interior trim panels and disconnecting electrical connectors. If you're not comfortable with this type of work, professional installation is recommended.

Q: What if the used module I buy doesn't work?
A: Make sure to buy from a seller that offers a warranty or return policy. This will protect you in case the module is defective.

Q: Does this module come with the charging pad?
A: No, this module is the control unit that powers the charging pad. The charging pad itself is a separate component.

OEM Part Numbers:

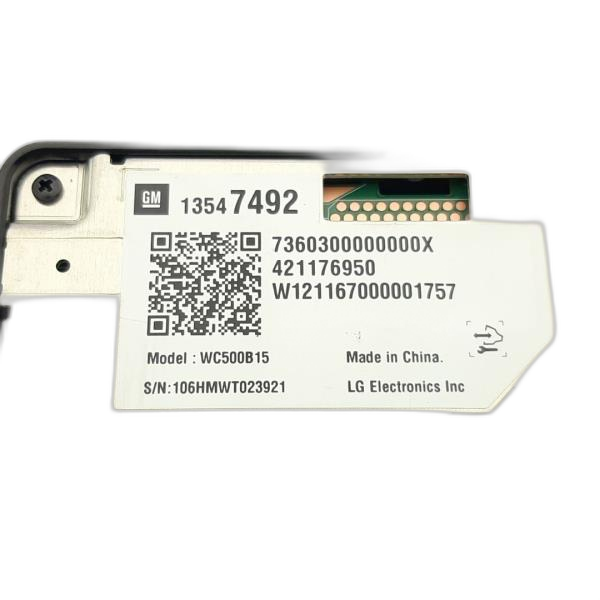

• GM: 13521065, 13523281, 13526246, 13529205, 13533077, 13547492, 13547618, 2343965, 84162497

Fits Years: 2021 2022
