Buy Honda Civic Radiator Support

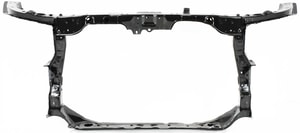

A radiator support is the strong, box-shaped frame that holds the radiator, A/C condenser, cooling fans, hood latch, and sometimes the headlights in perfect alignment. On the Civic it also links the left and right front frame rails, so it helps the Advanced Compatibility Engineering™ (ACE) crash structure share impact energy. If this part bends, the cooling system can leak, body panels mis-align, and air-bag sensors may not read hits correctly, lowering safety.

• Keeps cooling parts fixed: The cradle prevents the radiator and condenser from shaking or rubbing holes in their thin aluminum fins.
• Aligns sheet-metal & lamps: Because the support spans the nose, it ensures even gaps between the hood, fenders, and headlights.
• Adds crash stiffness: The ACE design routes crash loads from the bumper into the side frames through the bulkhead, protecting the cabin.
• Mounts sensors & wiring: Many late-model Civics have temperature sensors, ADAS camera brackets, and pedestrian-protection devices on the bulkhead.

← scroll table horizontally →

Composite lowers save weight and resist rust, but once fractured they cannot be welded or patched; Honda says "replace, don't repair."

• 2016 update: First Civic to use a bolt-on composite bulkhead; improves service access.
• 2020 refresh: Added crush-tube extensions to meet IIHS small-overlap test.
• 2022 redesign: Composite core support now integrates air-deflector tunnels and cable guides, plus lighter aluminum hood mates to it.

1. Hood won't latch or sits uneven. Core support may be bent.
2. Coolant puddle + sweet smell under the nose indicates radiator stress cracks from misalignment.
3. Headlights aim too high/low. Mounting tabs on the cradle could be warped.
4. Rattling at idle. Broken rubber isolator grommets on the cradle let the radiator vibrate.
5. Front airbags or ADAS faults after a minor bump can come from distorted sensor mounts on the support.

• Measure first. Use a tram gauge or 3-D measuring system to confirm symmetry before ordering parts.
• Support drivetrain. On 8th-gen models, the upper tie-bar is spot-welded; cutting it loose may let the engine sag if not braced.
• Drain coolant & A/C. The condenser often bolts to the core support-recover refrigerant legally.
• Bag hardware. 10th- and 11th-gen composite frames use 20 single-use bolts; replace them.

1. Remove bumper cover & headlights.
2. Unbolt upper tie-bar. Twelve 10 mm bolts, 16 lb-ft torque on re-install.
3. Separate lower cradle brackets. Support radiator/fans with a jack.
4. Swap rubber isolators to the new frame.
5. Torque bolts evenly. Follow the pattern shown in service video tutorial.
6. Refill coolant, bleed, and check leaks.

(For 2016+ composite bulkheads, Honda's manual shows a simple bolt-off/bolt-on swap-no welding-but always tighten fasteners in three stages to avoid distortion.)

• Inspect rubber cushions every oil change; torn cushions let metal rub and crack tanks.
• Wash away road salt to stop corrosion on steel tie-bars.
• Check bolt torque after any front-end hit or radiator change.
• Look for coolant stains at bulkhead edges; early leak clues.

Because the cradle is part of the crash path, insurers and repair standards forbid straightening kinked steel or glued plastic supports; replacement is mandatory. Honda also warns that using uncertified salvage supports may change how airbags deploy.

• Part price: $150-$650 depending on generation and material (steel vs. composite).
• Labor: 3-6 hours steel weld-in; 2-3 hours bolt-in composite.
• Hidden extras: Coolant, A/C recharge, bumper clips, headlamp aiming.
  Replacing a bent cradle restores cooling efficiency and protects the more expensive condenser and radiator from premature failure.

Composite bulkheads are recyclable thermoplastic. Ask the body shop to send cracked parts to a plastics recycler instead of landfill. Steel supports can be scrapped and melted into new auto steel, closing the material loop.

Aftermarket aluminum "tubular" cores save weight for racing but may lack crash certification. Street-driven Civics should keep factory-grade steel or composite supports to preserve crumple performance.

Q: Will a damaged radiator cradle cause overheating?
A: Yes. If the frame twists, it can pinch coolant hoses or shove the radiator into the fan, reducing airflow and leading to hot engine temps.

Q: Can I drive with a cracked core support?
A: Only very short distances and slowly. Even small bumps could collapse the weakened part and pierce the radiator, stranding you.

Q: Is the 2016-2021 composite bulkhead repairable?
A: No. Honda states it must be replaced if cracked or deformed because plastic welding can't restore its designed strength.

Q: Do I need to remove the engine to change the support?
A: No. On all Civic generations the engine stays. You only support it from below when unbolting lower brackets.

Q: What's the torque for upper tie-bar bolts on an 8th-gen Civic?
A: Honda literature and owner forums list 16 lb-ft (22 N·m).

Q: Why does the 2022 Civic use composite instead of steel?
A: The lighter material trims curb weight and helps meet stricter fuel-economy rules without sacrificing frontal-impact energy paths.

Q: Will an aftermarket tubular brace improve cooling?
A: It may add airflow holes, but unless wind-tunnel-tested it can also disturb factory aerodynamics. Stick with OEM-grade parts for daily driving safety.

Q: Does the support affect ADAS camera calibration?
A: Yes. The Honda multipurpose camera sits just above the bulkhead. If the support sits a few millimeters off, camera aiming can fail, disabling lane-assist systems.

Q: How many bolts secure the 10th-gen composite bulkhead?
A: Twenty bolts-Honda says to replace each one during installation.

Q: Can rust be treated instead of replacing the tie-bar?
A: Surface rust can be sanded and coated. If holes or deep scaling appear, swap the support to keep crash integrity.

Q: Are there recalls on Civic radiator supports?
A: As of May 2025 no U.S. recall targets the support itself, but always check your VIN at nhtsa.gov/recalls for the latest safety campaigns.
