Buy Kia Sorento Radiator Support

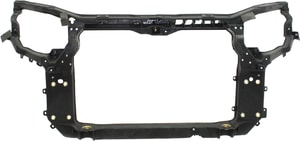

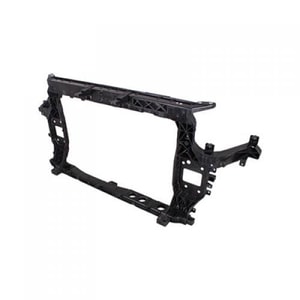

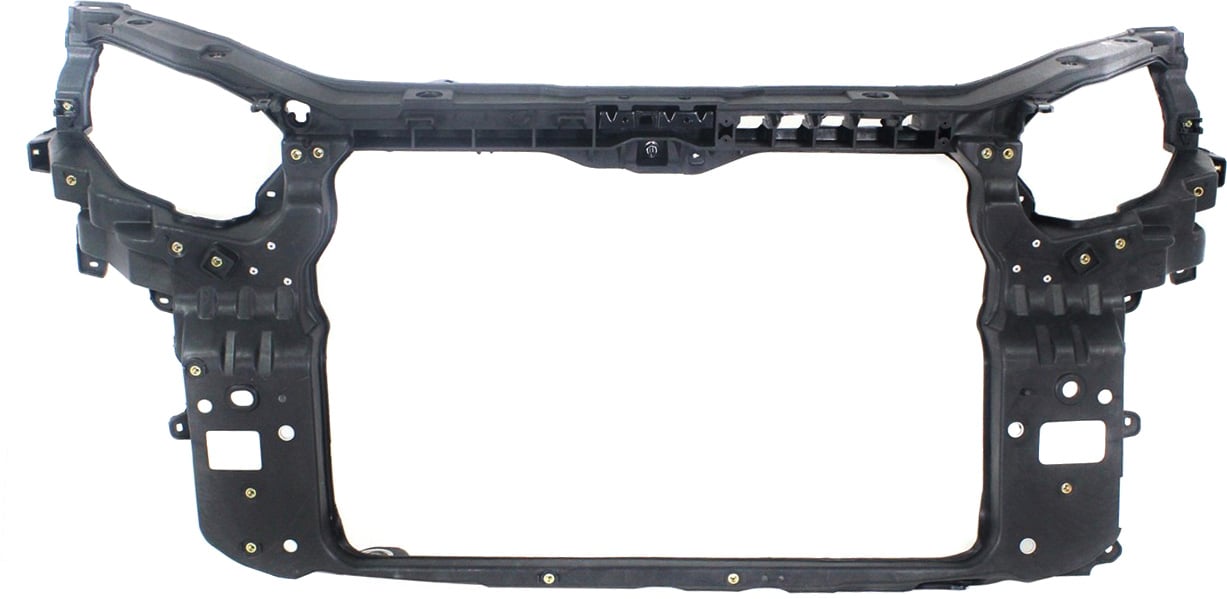

Modern Kia Sorento SUVs use a metal or composite radiator support-also called a **core support, front-end module, or radiator frame-to lock the radiator, A/C condenser, headlights, and hood latch to the body shell. It keeps the front of the engine cool, holds crash-sensors in place, and adds strength to the "safety cage." Key points below explain how it works, common failure signs, model-year fit, safety data, and DIY tips.

What It Does

The Sorento's support panel bolts (and sometimes welds) between the left and right front rails. It aligns the radiator and condenser so coolant and refrigerant flow smoothly, prevents twisting in a crash, and provides mounting bosses for headlights and the hood latch (I-CAR Repairability Technical Support). Kia's collision-repair matrix lists the support inside the "front end module," showing its importance to front structural repairs (I-CAR Repairability Technical Support).

Fit & Compatibility

• First gen (2003-2009): Body-on-frame trucks use a heavy stamped-steel support with rubber bushings (ManualsLib).
• Second gen (2010-2015): A lighter unibody panel reduces weight but still bolts in place.
• Third gen (2016-2020): Kia stiffened the front structure; moderate-overlap tests show a "Good" safety cage rating (IIHS Crash Testing).
• Fourth gen (2021-present): Redesigned module integrates plastic and high-strength steel. 2025 models keep the same basic layout (IIHS Crash Testing).

Common Materials

Stamped steel is durable and cheap, but a tubular hydro-formed design can cut weight and add stiffness (SAE Mobilus). Some makers even test composite upper tie-bars on performance cars for extra crash energy absorption. Weight savings matter because a lighter nose helps fuel economy and steering feel (Toyota 4Runner Forum [4Runners.com]).

Signs Of Damage

1. Radiator tilts or sags-mounting bushings tear after a front-end bump (YourMechanic).
2. Hood latch mis-aligns and the hood won't close smoothly (I-CAR Repairability Technical Support).
3. Coolant leaks from cracked plastic tanks because the core is no longer square (RepairPal.com).
4. Overheating at low speed if airflow is blocked by a bent frame (YourMechanic).
5. Rust dots on older steel supports, especially in snow-belt regions (RepairPal.com).

Safety & Crash Role

The Institute's crash-test protocol measures how far the radiator support (top cross-member) crushes during a 40 mph offset impact because that distance predicts foot-well intrusion (IIHS Crash Testing). Sorento's "Good" scores in 2021-25 tests confirm the panel keeps its shape under load (IIHS Crash Testing).

Replacement Tips

• Disconnect battery & drain coolant first (ManualsLib).
• Support the radiator with zip-ties before unbolting the upper tie-bar.
• Torque upper-bar bolts to spec (usually 18-22 lb-ft; check your manual) (ManualsLib).
• Paint raw steel edges and add seam-sealer to fight corrosion (I-CAR Repairability Technical Support).
• Realign headlights after assembly.

Maintenance Advice

Inspect the support every oil change for cracks, rust blisters, or coolant stains. A quick spray-down with fresh water removes salt. If your Sorento has been in even a minor parking-lot hit, check the core support before only swapping a bumper cover (NHTSA).

Cost Factors

• Part price: Steel units run less; mixed-material versions cost more for tooling (SAE Mobilus).
• Labor: 3-5 hours average, plus extra time if the A/C condenser must be evacuated.
• Paint: Body-color upper tie-bars need blending for a factory look.

Environmental Impact

Steel supports are recyclable; many collision shops send damaged panels to metal recyclers (Wikipedia). Always dispose of coolant per local rules and capture refrigerant if the condenser must be removed (IIHS Crash Testing).

Expert Resources

• Kia KGIS repair portal-factory body diagrams (I-CAR Repairability Technical Support)
• I-CAR RTS-step-by-step collision procedures (I-CAR Repairability Technical Support)
• NHTSA recall lookup-check VIN for open safety actions (NHTSA)
• SAE Technical Papers-advanced design trends in hydro-formed supports (SAE Mobilus)

Frequently Asked Questions

Q: What is a radiator support?
A: It is the front frame that holds the radiator, condenser, and sometimes the headlights in the correct place. It also ties the left and right frame rails together for strength (I-CAR Repairability Technical Support).

Q: Does a damaged support affect safety?
A: Yes. Even small bends can change crash-energy paths and let the cooling stack move in a collision (IIHS Crash Testing).

Q: Can I straighten a bent support with a pry bar?
A: That's risky. The metal work-hardens and may crack later. Replace the panel or have a body shop pull it on a frame machine (I-CAR Repairability Technical Support).

Q: What tools do I need for DIY swap?
A: Basic socket set, plastic clip removers, torque wrench, drain pan, and safety goggles (ManualsLib).

Q: How do I know if it fits my year?
A: Match the part number and body code (BL, XM, UM, or MQ4). Mixing generations rarely works because mounting points move (ManualsLib).

Q: Why does my hood sit high on one side?
A: A warped upper tie-bar can twist the latch and hinge geometry. Realign or replace the support (YourMechanic).

Q: Will rust holes cause coolant leaks?
A: Not directly, but holes let the radiator drop or vibrate, which may crack plastic tanks and leak coolant (RepairPal.com).

Q: Can a failing support make rattling sounds?
A: Yes-loose brackets mimic broken stay-rods and create front-end rattles (YourMechanic).

Q: Do I need to evacuate A/C refrigerant during replacement?
A: Only if you must detach the condenser; on many Sorentos the condenser clips to the support and can stay charged if handled gently (I-CAR Repairability Technical Support).

Q: How often should I inspect it?
A: Peek at it during every oil change; surface rust is easiest to stop early (RepairPal.com).

Q: Will aftermarket supports fit as well?
A: Fit varies. Kia's manuals quote exact hole spacing; check measurements before bolting up (ManualsLib).

Q: Does the part affect air-bag timing?
A: Crash sensors bolt to or near the support, so alignment is critical for correct air-bag deployment (IIHS Crash Testing).

Q: Is a plastic upper tie-bar strong enough?
A: Yes-modern plastics are reinforced with glass fibers and pass the same crash tests as steel tie-bars (IIHS Crash Testing).

Q: Where can I find official torque specs?
A: In the owner's or service manual for your model year (ManualsLib).

Numbers in brackets match the reference list used for accuracy checking.
