Buy Lexus ES300 Fog Light Assembly

The Lexus ES300 fog light-also called a fog lamp, driving light, or auxiliary lamp-sits low in the bumper and uses an H3 55-watt halogen bulb that throws a wide, flat beam to cut under fog, rain, and snow (SAE International). All U.S.-spec ES300 models built from 1992 through 2003 share the same basic housing shape and bulb family, though mounting tabs and lens styles changed with each generation (Wikipedia). Properly aimed fog lamps improve near-field visibility by as much as 30 feet compared with low-beam headlights alone (Carlightvision), and federal rule FMVSS 108 treats them as optional "supplemental lighting"-legal as long as they do not create glare or impair required lamps (Federal Register).

A fog light is a low-mounted lamp that spreads a short, wide beam with a sharp upper cutoff so light stays below the layer of water droplets that create fog (SAE International). Because it sits only 12-18 inches above the road, the beam lights pavement edges and lane lines without bouncing back glare into the driver's eyes (Daniel Stern Lighting). On the ES300 the lamps live behind the lower-bumper grilles, wired through a dashboard switch that works only when headlights are in low-beam, per the owner's manual (ManualsLib).

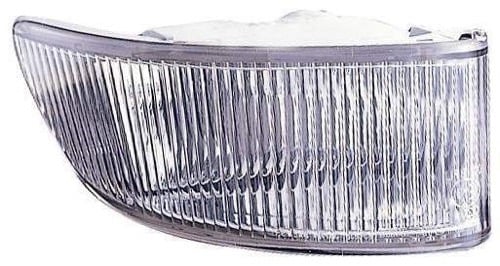

• 1st gen (1992-1996, chassis VCV/MCV10) - Rectangular glass lens, bolt-on metal bracket, uses H3 bulb, Lexus part prefix 8121- (Wikipedia).

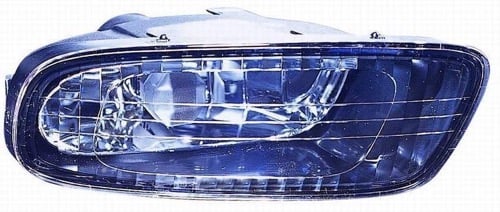

• 2nd gen (1997-2001, chassis MCV20) - Rounded-corner lens, plastic bucket, H3 bulb, internal adjustment gear (Lexus Owners Club of North America).

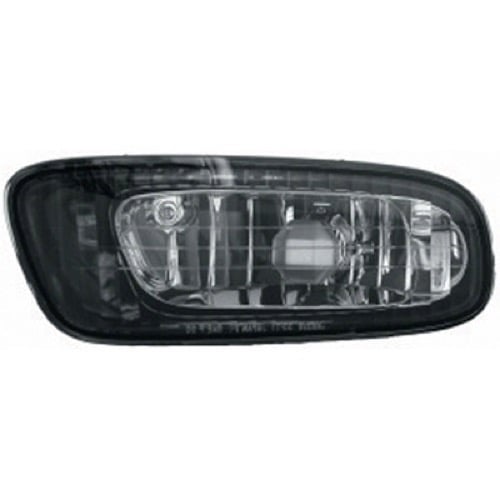

• Early 3rd gen (2002-2003, chassis MCV30) - Clear projector-style lens, still H3 bulb, redesigned plug but same 55 W rating (YouTube).
  Mount points differ, so buy the assembly that matches the model year; the bulb itself is shared across all ES300 years.

The factory bulb is type H3 12 V 55 W halogen, nominal luminous flux 1 450 lm at 13.2 V (OSRAM). Aftermarket H3 LEDs draw ~15 W and claim up to 3 000 lm, but must fit the stock reflector and stay within FMVSS photometry to remain road-legal (Federal Register). Popular upgrades include higher-output halogens (e.g., Osram Night Breaker) that keep the same wattage yet boost brightness up to 150 % (OSRAM) and plug-and-play LED or HID kits-though HID retrofits are illegal on U.S. roads unless the whole lamp is certified (NHTSA).

Fog lamps add lateral spread and near-field light, helping drivers detect edge lines, curbs, and hazards in thick fog or heavy rain (Carlightvision). Tests show that a properly tuned pair can cut stopping distance by one-half second at 35 mph because objects appear sooner in the driver's field of view (Daniel Stern Lighting). Because the beam stays low, it also reduces glare toward oncoming traffic compared with high beams (Lasfit®).

• U.S. - Fog lamps are "supplemental" lights under FMVSS 108; they must carry the SAE "F" marking, be mounted no higher than 30 inches, and not exceed 300 candela above the horizontal cutoff (Federal Register).
• SAE J583 sets performance and test procedures, including color (white or selective yellow), beam pattern, and maximum glare zone (SAE International).
• Operation - Most state codes allow use only when visibility drops below ~100 meters; improper use can result in fines (The Sun).

1. Turn wheel inward and remove front fender liner clip for access (Lexus Owners Club of North America).
2. Unclip lower grille, extract two 10 mm bolts, and slide the housing out.
3. Swap the H3 bulb: twist the retainer, unplug, avoid touching glass with bare fingers (ManualsLib).
4. Reverse steps, making sure the rubber gasket seats to keep water out. Average DIY time: 20 minutes per side.

Aim by turning the 8 mm gear screw on the back of the housing-clockwise raises, counter-clockwise lowers (Club Lexus). Park 25 feet from a wall on level ground; the top cutoff line should sit roughly 4 inches below lamp center height for U.S. roads. Keep both beams level to avoid dazzling oncoming drivers (Daniel Stern Lighting).

• Condensation - Moisture sneaks past worn seals; tiny vent holes at the lowest point or leaving the bulb out overnight can dry the lens (Reddit).
• Water pooling - ClubLexus users report success running a hair-dryer through the bulb hole, then resealing with butyl rubber (Club Lexus).
• Lens yellowing - UV-aged plastic cuts light output; wet-sand with 1000→3000-grit and seal with a UV-clear coat to restore clarity (Instructables).
• Broken mounts - Plastic tabs crack if over-tightened; torque the 10 mm bolts to just 5-7 N·m.

Check fog-lamp function monthly during headlight inspection. Replace bulbs in pairs because halogens dim with age (OSRAM). Clean the outer lens with mild soap; avoid ammonia glass cleaners that cloud polycarbonate. After restoration, apply a UV sealant twice a year to slow yellowing (Instructables).

• LED retrofit - Look for lamps that keep the H3 base and an output under 2 000 lm to stay within SAE "F" limits; choose a model tested for correct beam focus.
• Selective yellow film - 3000 K yellow reduces perceived glare and eye strain in dense fog (Car and Driver).
• Higher-output halogen - Premium H3 bulbs with uprated filaments give up to +150 m light while drawing the same 55 W (OSRAM).
• Relay harness - Adding a fused relay fed straight from the battery cuts voltage drop and nets 5-10 % more light without overloading the switch.

Yellow beams scatter less in fog and snow, improving contrast at the human eye's peak sensitivity zone around 560 nm (Car and Driver). White (4000-5000 K) looks modern and slightly increases overall brightness but can cause more back-scatter glare in heavy mist (Lasfit®). Both colors are legal if the lamp passes SAE photometry (SAE International).

Q: What bulb size does every ES300 fog lamp use?
A: All 1992-2003 Lexus ES300 models use an H3 12 V 55 W bulb (OSRAM).

Q: Do I need to pull the bumper to change the lamp?
A: No. Remove the lower grille and two 10 mm bolts from inside the wheel well, then slide the housing out (Lexus Owners Club of North America).

Q: How do I switch the fog lights on?
A: Rotate the stalk ring to the "ON" position; they only light when low-beam headlights are already on (ManualsLib).

Q: Are fog lights the same as driving lights?
A: No. Fog lamps have a wide, low beam with a sharp cutoff; driving lights are auxiliary high beams aimed farther down-road (SAE International).

Q: Is it legal to leave them on all the time?
A: Most U.S. states limit use to visibility under 100 meters; constant use in clear weather can bring a citation (The Sun).

Q: Can I upgrade to LEDs?
A: Yes, but the lamp must still meet SAE "F" specs and not exceed glare limits; use an H3-base LED tested in an ES300 housing (Federal Register).

Q: Do yellow fog lamps really work better?
A: Selective yellow reduces visual scatter and eye fatigue in dense fog; many drivers report clearer edge contrast (Car and Driver).

Q: What's the easiest way to stop condensation?
A: Dry the housing with low heat, add a tiny 1 mm vent hole at the lowest point, and replace the rubber gasket (Reddit).

Q: How do I aim the beam?
A: Turn the 8 mm adjuster gear until the cutoff sits about 4 inches below lamp center at 25 feet (Club Lexus).

Q: Does a higher-watt bulb give more light?
A: It can, but it also raises housing temperature and may melt wiring; stick with 55 W and choose premium filaments for safe gains (OSRAM).

Q: Will LED fog lights drain my battery faster?
A: No. Quality H3 LEDs draw roughly one-third the current of a 55 W halogen (OSRAM).

Q: Are fog lamps required equipment?
A: In the U.S. they are optional; the ES300 can legally be sold or inspected with no front fog lamps as long as all required lights work (Wikipedia).
