Buy Mercedes-Benz E350 Engine Splash Shield

Quick Take

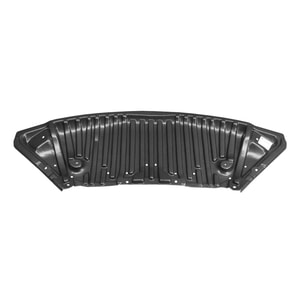

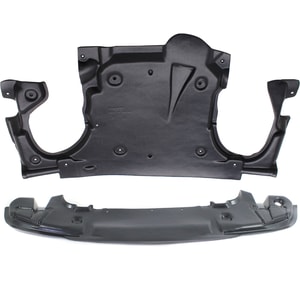

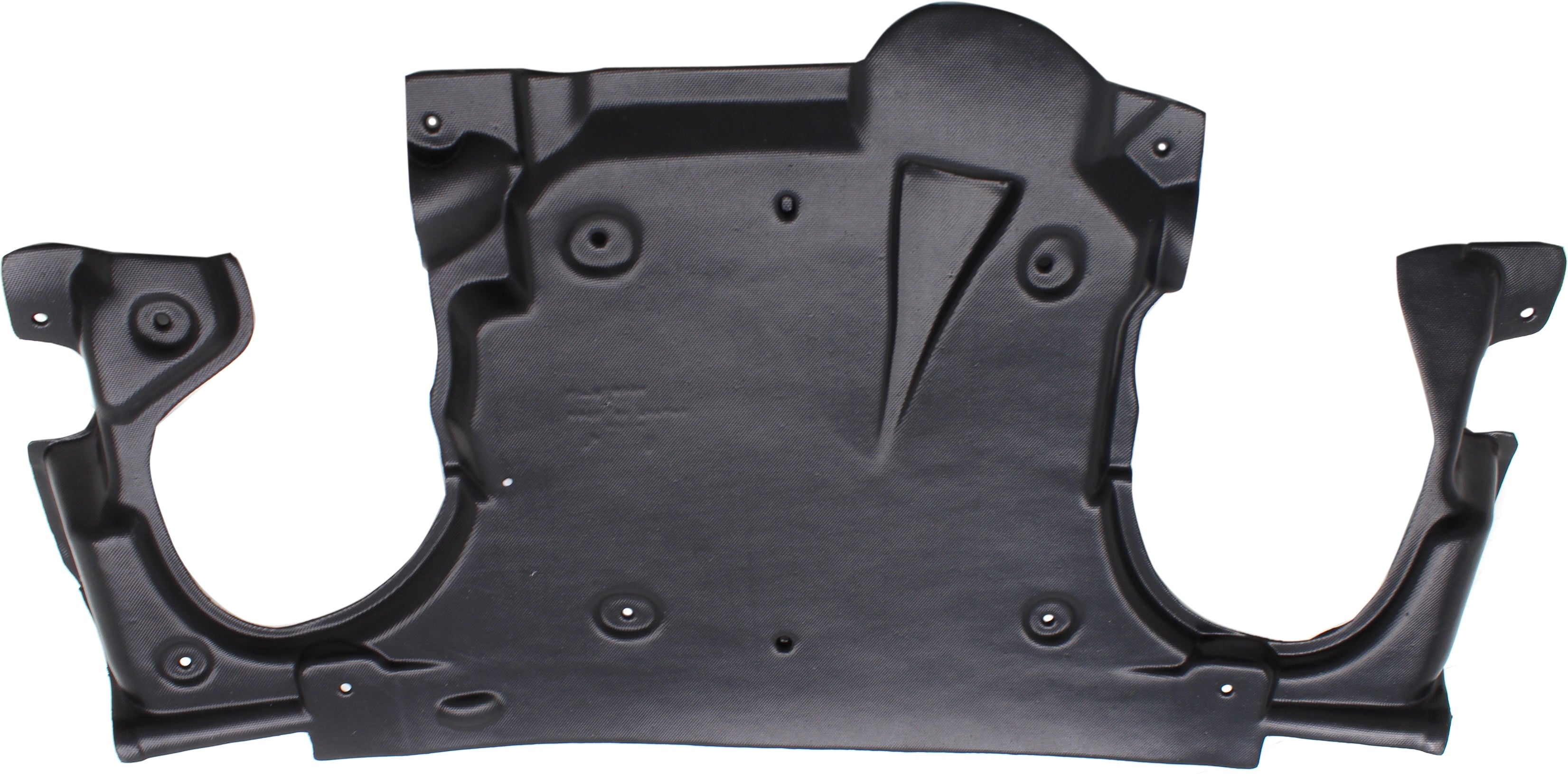

The Mercedes-Benz E350 engine splash shield-also called an engine under-cover, belly pan, skid plate, or splash guard-mounts under the motor to keep rocks, puddle water, salt, and stray road junk away from fragile parts like the oil pan, belts, and wiring harness. It also trims wind drag, lowers cabin noise, and helps cut corrosion, so a small plastic (or aluminum) panel does a lot of behind-the-scenes work. (Aspire Auto Accessories, Knauf Industries Automotive)

Purpose & Benefits

A good shield blocks flying stones and mud that could dent the oil pan or knock off the oil filter. (Aspire Auto Accessories) It also keeps salty splash from reaching steel sub-frames, slowing rust.
Wind-tunnel studies show a ragged, open underbody can bump drag by about 23 percent; adding a flat cover or diffuser claws back up to 7 percent of that loss. (ResearchGate) Real-world drivers on aero forums report roughly half-a-mile-per-gallon highway gains after adding or repairing a belly pan. (EcoModder)
Inside the cabin, the panel absorbs road‐noise vibrations, making the car quieter. (Knauf Industries Automotive)

Materials

• Injection-molded plastic (PP or HDPE) - factory choice; light, cheap, and flex-resistant.
• Aluminum - aftermarket favorite because it's strong yet still light and won't rust; a recent material study ranks aluminum as the best all-round option for everyday use. (ASFIR 4x4)
• Hybrid plastic-over-metal - mixes stiffness with sound-deadening but costs more.

Fit & Hardware

The E350 (W211 2003-09, W212 2010-16, W213 2017-20) uses a one-piece front shield held up by eight to ten 8 mm hex screws and clip-nuts. (MBClub) Always hand-start threads-stripped clip-nuts are the #1 cause of shields dragging on the pavement.

Damage Signs

• A scraping or flapping sound at low speed. (Reddit)
• New puddles in the engine bay after rain.
• Fasteners missing or cracked mounting ears.
  Leaving the guard off may let water soak belts (causing squeals) and send gravel against plastic oil pans.

DIY Swap

1. Park on level ground and set the parking brake.
2. Raise the nose with ramps or a jack and secure with stands.
3. Remove the 8 mm screws; keep them in order. (MBClub)
4. Drop the old cover, line up the new one, and snug the screws.
   Tip: working time is 15-30 minutes for an average do-it-yourselfer.

Maintenance Tips

• Inspect clips at every oil change-plastic clips cost less than $20 for a full set. (Reddit)
• Rinse winter salt off the shield with a garden hose.
• After off-road travel, check for deep scratches or bent edges that could funnel air into the engine bay.

Performance & MPG

A smoother underside lets air slide past instead of tumbling around hoses and cross-members, which trims drag and can add a small but measurable fuel-economy bump on highway trips. (EcoModder, ResearchGate)

Safety & Regulations

While U.S. rules don't force cars to carry a splash shield, federal safety standards require that no part can detach and create a road hazard, so keeping the panel secure meets the spirit of FMVSS. (NHTSA)
To see if your specific E350 has any under-body related recalls, enter your VIN in the Mercedes-Benz recall lookup tool. (Mercedes-Benz USA)

Costs

• Clips/bolts: $8-$20 for a full hardware kit. (Reddit)
• Plastic shield: parts commonly run under $100; aluminum versions cost more.
• Labor: shops usually bill 0.3-0.6 hours, so $50-$150 depending on local rates. (Prices vary-call around.)

Frequently Asked Questions

Q: What does an engine splash shield actually do?
A: It guards the motor and transmission from debris and water, reduces wind drag, and helps keep noise down. (Aspire Auto Accessories, Knauf Industries Automotive)

Q: Is it safe to drive without one?
A: You can, but belts may squeal after big puddles and gravel can dent the oil pan; long-term, corrosion risk goes up. (Reddit)

Q: Which material lasts the longest?
A: Aluminum panels balance strength, weight, and rust resistance better than plastic or steel for most daily driving. (ASFIR 4x4)

Q: How do I know mine is loose?
A: Listen for flapping under the floorboard or look for a panel hanging lower than the front bumper line. (Reddit)

Q: Do I remove the shield for an oil change?
A: Yes-undo the front screws, pivot the cover down, and you'll have clear access to the drain plug and filter.

Q: Will swapping to aluminum void my warranty?
A: Generally no, but any damage traced to a non-factory part could be excluded. Save your stock panel in case.

Q: What size are the bolts?
A: Eight-millimeter hex-head screws with captive washers are factory spec on the W212 chassis. (MBClub)

Q: How often should I inspect it?
A: Glance at it every oil change and after any off-road or deep-puddle drive.

Q: Does it help electric or hybrid E-Class models?
A: Yes-the panel also aids battery thermal management by smoothing air flow. (Knauf Industries Automotive)

Q: Where can I check for recalls?
A: Use the official Mercedes-Benz VIN recall checker. (Mercedes-Benz USA)
