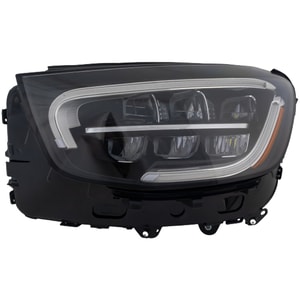

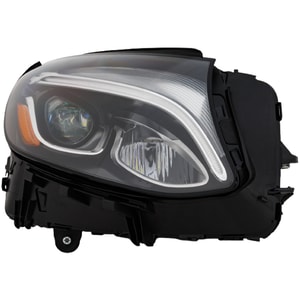

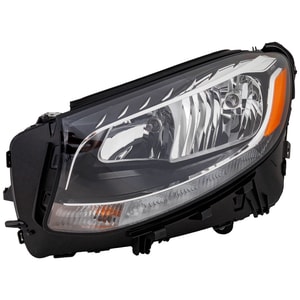

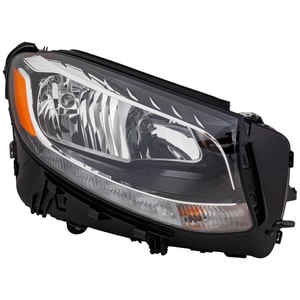

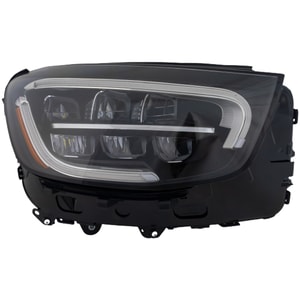

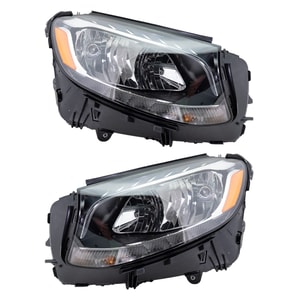

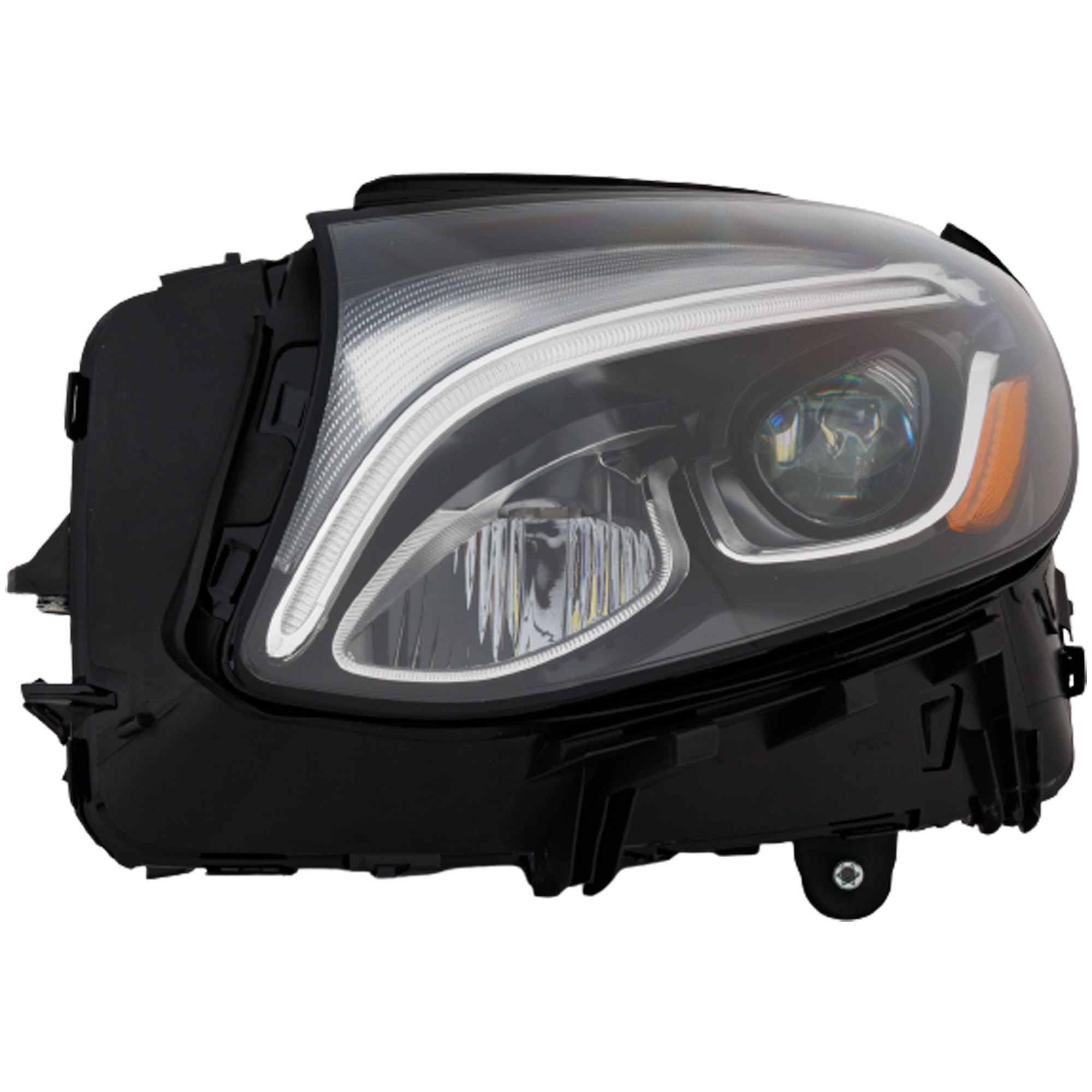

Buy Mercedes-Benz GLC300 Headlight Assembly

Below is a deep-dive guide to the Mercedes-Benz GLC 300 headlight-also called the headlamp, front lamp, or driving light. It covers how the light works, the kinds you may find, rules that control them, ways to fix or upgrade them, and answers to common questions. Each fact is backed by reliable studies, safety rules, or official Mercedes information.

Overview

The GLC 300's factory headlight uses LED projector units that earn a "Good" safety rating from IIHS, thanks to bright, well-aimed low and high beams with automatic high-beam assist (IIHS Crash Testing). Mercedes also offers advanced tech like Adaptive High-Beam Assist and DIGITAL LIGHT, which shape the beam so you see far ahead without blinding other drivers (Mercedes-Benz Greenway, Mercedes-Benz Group). U.S. law now lets automakers sell these smart beams because NHTSA amended Federal Standard 108 in 2022 (NHTSA, NHTSA). Still, some 2019-22 GLC SUVs were recalled in 2024 because their lamps were aimed a bit too high .

How It Works

A headlight is a sealed housing that holds the bulb, reflector or projector lens, wiring, and adjusters. LEDs in the GLC 300 sit behind a projector lens that focuses light into a sharp pattern so it stays on the road and out of oncoming eyes (Autobulbs Direct). Sensors read traffic ahead; software then dips or shields part of the beam to cut glare, a feature called adaptive high-beam assist (Mercedes-Benz Greenway).

Light Sources

Early GLC models with basic trim used halogen H7 or H11 bulbs, while higher trims switched to High-Performance LED units that last longer and pull less power (IIHS Crash Testing). LED chips also stay cooler and keep color stable, helping drivers detect obstacles faster than halogen at night (Federal Highway Administration).

Smart Features

Adaptive Driving Beam (ADB) headlights slice the light into tiny segments and turn individual LEDs on or off around other cars. The U.S. approved ADB in 2022, noting that it can help pedestrians and bicyclists be seen sooner (NHTSA). Mercedes' DIGITAL LIGHT ups the game further by using over one million micro-mirrors per lamp to project guide lines, warning icons, or pedestrian arrows right onto the pavement (Mercedes-Benz Group).

Safety Rules

All replacement lights must meet FMVSS 108, the U.S. lighting rule that sets brightness, color, and beam-aim limits (NHTSA). If aim drifts even 0.15 percent high, it can cause glare and trigger a recall-as happened on certain 2019-22 GLC builds . Studies show adaptive headlights let drivers spot objects on curves earlier while keeping glare "not excessive" (IIHS Crash Testing).

Common Issues

• Moisture in housing can cloud the lens or corrode LED drivers.
• Broken tabs after a fender-bender may let the lamp shake and mis-aim.
• Burned halogen bulbs grow dim before they die; replace in pairs to keep color even.
• Some drivers complain new LEDs look too bright, but research finds many lamps are still dimmer than ideal for safe stopping distances (The Guardian).

Fix & Change

Halogen bulb change takes about 10 minutes: turn the wheel in, pop the service hatch, twist the H7 bulb, and swap it-wear gloves to avoid skin oil. LED modules are sealed; replacing them means removing the full lamp assembly and may need a scan tool to reset headlight range. Always unplug the battery first and re-aim beams on a level wall after work (NHTSA).

Upgrades

Popular upgrades include:

• LED retrofit kits for older halogen GLCs-choose units with an external driver and a focused cutoff shield to stay legal.
• Projector retrofit-swap reflector bowls for bi-LED projectors to sharpen the step line.
• Coding the BCM for cornering light so the fog lamp lights the inside of turns. Before any change, confirm lumen output and beam shape match FMVSS 108 (NHTSA).

Cost Guide

A factory LED head-lamp assembly can run four figures, mainly because it bundles the control module and heat sink. Independent studies note LED technology costs more up front but saves energy and avoids repeated bulb purchases across a vehicle's life (IIHS Crash Testing).

Fit & Bulbs

GLC 300 chassis codes:

• X 254 (2023-present) - all LED with available DIGITAL LIGHT.
• X 253 (2016-2022) - halogen base (H7 low, H11 high) or LED upgrade. Always match the lamp to the build date on the door sticker; small mid-year changes affect wiring and mounting .

Beam Aim

Park 25 ft (7.6 m) from a flat wall, level the car, mark axle height with tape, and adjust the top of the low-beam cutoff just below the tape. Correct aim protects others and keeps you legal-IIHS notes poorly aimed good lamps perform as badly as low-grade units (IIHS Crash Testing).

Care Tips

Wash plastic lenses with car-soap, not household glass cleaner, to avoid micro-cracks. Apply UV sealant twice a year. Keep your windshield clean; a clear windshield lets auto-high-beam cameras "see" better and switch sooner (Mercedes-Benz Greenway).

Going Green

LED headlights cut energy draw by roughly 30 percent versus halogen, easing alternator load and saving fuel over time (Federal Highway Administration). Longer life also means fewer bulbs head to landfills.

Frequently Asked Questions

Q: Are all GLC 300 headlights LED?
A: 2016-22 base models may use halogen bulbs, while upper trims and every 2023-on model use LEDs (IIHS Crash Testing).

Q: What makes a projector better than a reflector?
A: A projector lens focuses light into a crisp cutoff that reduces glare and pushes more light down-road than a basic reflector bowl (Autobulbs Direct).

Q: What is Adaptive High-Beam Assist?
A: A camera watches for oncoming traffic and automatically turns high beams on or off so you get maximum reach without dazzling others (Mercedes-Benz Greenway).

Q: Did the GLC have a headlight recall?
A: Yes. 15,000 GLC vehicles built 2019-22 were recalled in 2024 for lamps aimed slightly too high; dealers re-set the aim for free .

Q: Are smart headlights legal in the U.S.?
A: Yes. NHTSA changed FMVSS 108 in 2022 to allow Adaptive Driving Beams like Mercedes DIGITAL LIGHT (NHTSA).

Q: How long do LED modules last?
A: Mercedes rates them for the life of the vehicle. Tests show LEDs out-last halogens by many years under normal heat loads (IIHS Crash Testing).

Q: Why do some LEDs seem blinding?
A: Glare often comes from mis-aim or aftermarket bulbs in reflector housings. Properly aimed projector LEDs keep glare within safe limits (IIHS Crash Testing).

Q: Can I polish a cloudy lens?
A: Yes. Wet-sand with 2000-grit, buff with plastic polish, then apply a UV clear coat to slow future haze.

Q: Do brighter bulbs always improve safety?
A: Not if they scatter light. IIHS found poorly aimed bright lights can leave dark spots, so pattern and aim matter more than raw brightness (IIHS Crash Testing).

Q: Is DIGITAL LIGHT available on every GLC?
A: No. It is optional on certain 2023-on trims and not retro-fit friendly because it requires dedicated wiring and control units (Mercedes-Benz Group).

Extra Resources

• Read the full IIHS headlight rating for the 2023 GLC 300 to compare beam reach (IIHS Crash Testing).
• Review NHTSA's ADB rule summary to know what's legal when upgrading lights (NHTSA).
• Learn about DIGITAL LIGHT technology direct from Mercedes-Benz engineers (Mercedes-Benz Group).
