Buy Mercedes-Benz GLE350 Bumper Covers

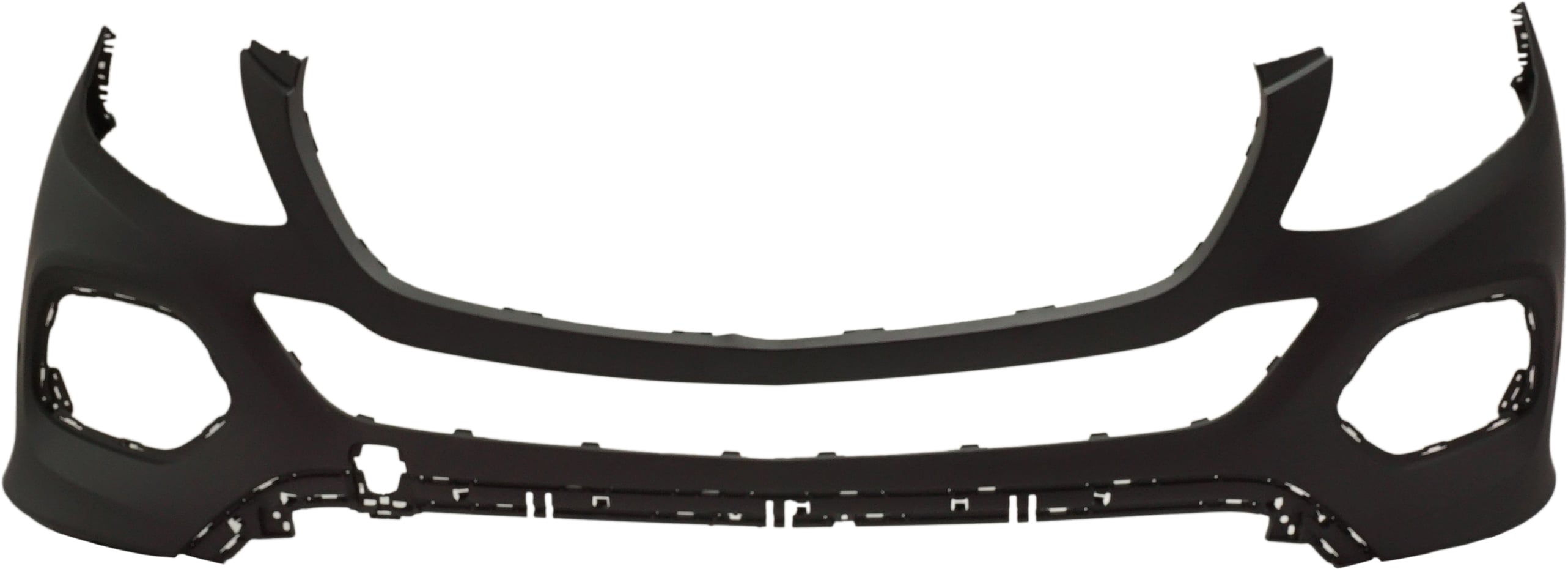

A bumper cover-also called a bumper skin, fascia, or front/rear guard-is the molded plastic shell you see on the outside of the bumper system. On a Mercedes-Benz GLE350, this part does three jobs at once: it dresses up the SUV's look, smooths airflow, and works with the hidden metal beam and foam absorber to soak up light impacts. The GLE switched from the older W166 body (2016-2019) to today's V167 generation (2020-present), so fitment always depends on model-year and whether you need the front or rear shell. (Wikipedia)

• 2016-2019 (W166) - Uses the last "legacy" bumper shape carried over from the M-Class facelift.
• 2020-2023 (early V167) - New body with slimmer grille opening and horizontal LED running-lamp slots.
• 2024-present (facelift V167) - Minor styling update; sensor and camera holes moved slightly. (Mercedes-Benz USA)

Tip: Always match parking-sensor count (4, 6, or 8) and whether the bumper has AMG-line air-vents before buying.

• Outer shell: flexible polypropylene (PP) or TPO plastic; chosen for light weight, paintability, and impact toughness. (A&C Plastics)
• Energy absorber: expanded polypropylene (EPP) foam block behind the cover cushions the metal beam. (Engineered Foam Products)
• Metal reinforcement: high-strength steel beam bolted to frame rails (not replaced when you swap the cover).
• Clips & bolts: mostly plastic push-pins plus Torx screws; torque values follow general M8 bolt chart (about 18 ft-lb). (BenzWorld)

Why PP? It bends without cracking, resists road salt, and can be recycled into new parts. (Protolabs, EPA NEEA)

• U.S. bumpers must meet FMVSS 581 low-speed crash standard-no damage to safety systems in 2.5 mph pole and pendulum hits. (NHTSA)
• Europe adds UNECE R127 for pedestrian leg protection; smooth edges and energy-absorbing foam help the GLE earn top marks. (Dun-Bri Services Ltd)
• The 2024 GLE earned an IIHS Top Safety Pick +, proving the bumper and crash structure work together in small-overlap tests. (IIHS Crash Testing)

← scroll table horizontally →

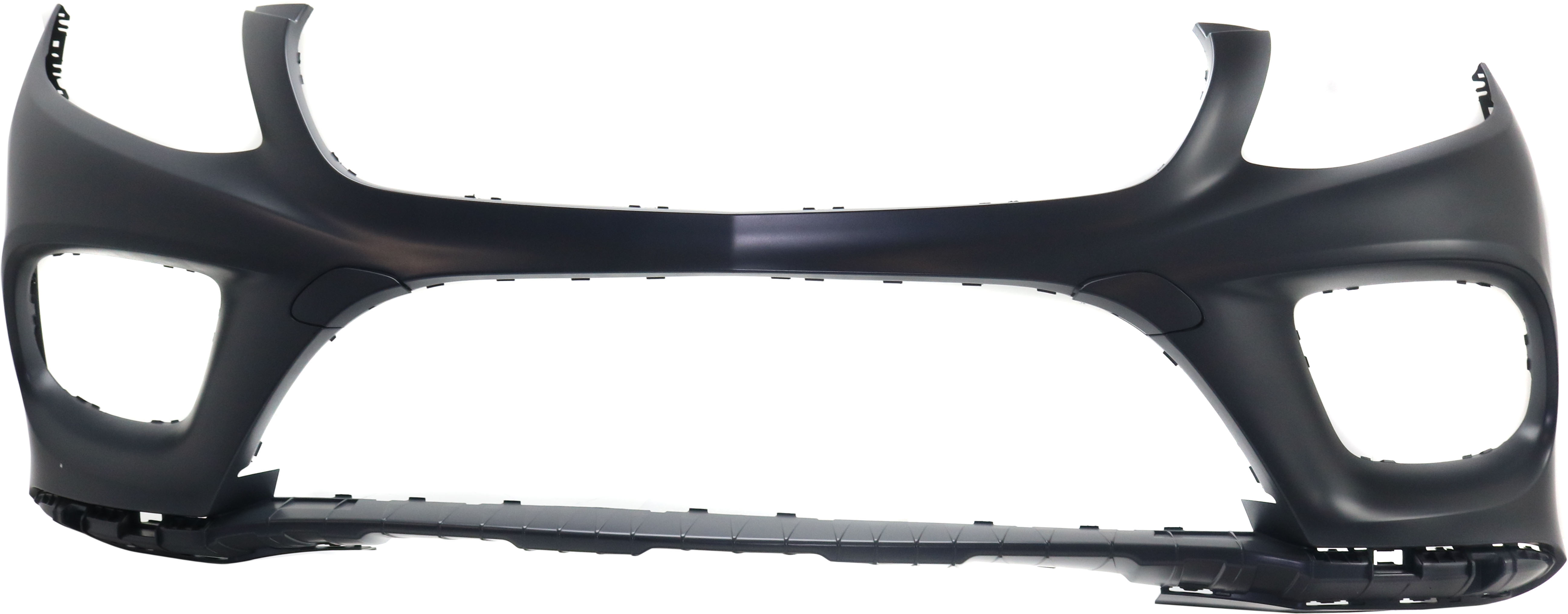

Front and rear covers are not interchangeable, and AMG-Line versions add a lower splitter lip for style.

1. Disconnect the battery (prevents air-bag or sensor faults).
2. Remove wheel-arch liners (T25 Torx).
3. Unclip lower splash guard.
4. Unplug fog-lamp, sensor, and camera leads.
5. Remove 6 main Torx bolts under the grille and slide cover forward.
6. Transfer grilles, radar emblem, and foam pad to the new skin.
7. Reinstall in reverse order-tighten hardware evenly to avoid gaps.

A helper prevents scratches because the shell is nearly 6 feet wide. (Mercedes-Benz USA)

• Mercedes paint codes (e.g., 040 Black, 149 Polar White, 775 Iridium Silver) are printed on the driver-door jamb. (Color N Drive)
• Scuff the raw plastic with gray sanding pad, then apply plastic adhesion promoter.
• Use light passes of primer-surfacer; keep the spray can 8-10 inches away to avoid sags. (Architectural Digest)
• Finish with 2-3 coats of base-color and 2 wet coats of clear. Bake or air-dry per paint-maker chart.

• Wash road salt quickly-chlorides can dull clear-coat.
• For minor gouges, plastic weld or two-part bumper repair epoxy, then sand and refinish.
• Deep cracks near mounting tabs call for replacement; structural foam must remain intact for crash performance.

Polypropylene bumper skins can be ground and re-extruded into new auto parts or pallets, cutting landfill waste. (EPA NEEA)
Some scrap yards pay by weight (about 4-6 kg per cover) because PP is in demand for re-use. (goodfishgroup.com)

• "2023 GLE350 front bumper fascia with sensor holes"
• "How to remove Mercedes GLE rear bumper skin V167"
• "Paint code 775 bumper cover touch-up"

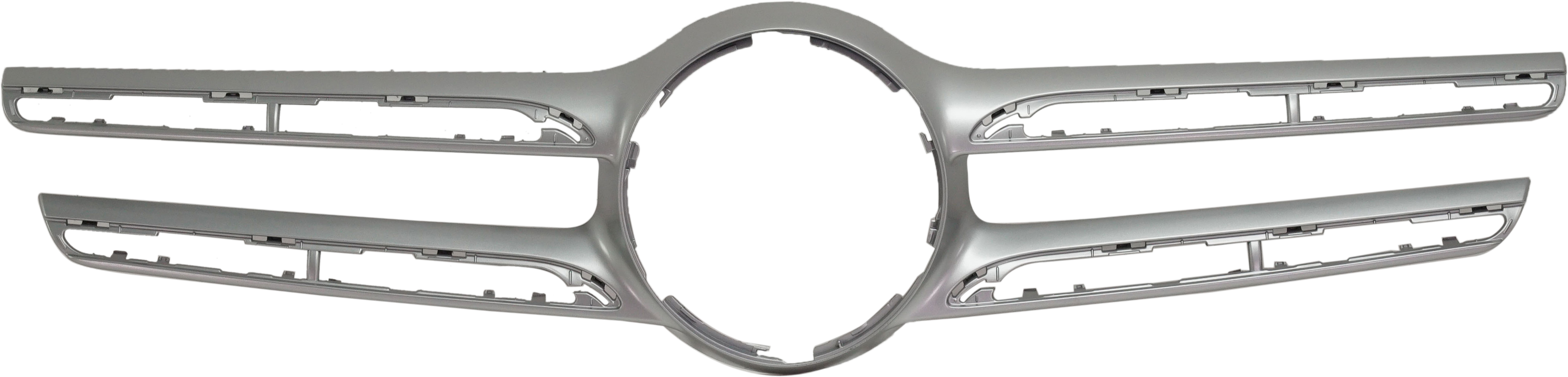

• "GLE350 AMG-Line bumper guard grill insert"
• "Plastic bumper repair epoxy for Mercedes SUV"

Q: What is a bumper cover?
A: It's the plastic outer shell-also called a fascia or skin-that clips over the metal bumper beam to shape style and airflow. (A&C Plastics)

Q: Does the 2024 GLE350 use the same cover as 2018?
A: No. The 2016-2019 W166 shell differs in width, sensor layout, and grille opening from the 2020-present V167 body. (Wikipedia, Mercedes-Benz USA)

Q: How can I tell if I need parking-sensor holes?
A: Count the round ultrasonic sensors in your existing cover-usually 4, 6, or 8. Order a part drilled for that exact number.

Q: Do I have to repaint a primed cover?
A: Yes. Primer is only the base layer; you still need body-color paint and clear-coat for UV protection.

Q: Will a crack fail inspection?
A: A cosmetic crack usually passes, but any sharp edge or sensor misalignment can cause safety-inspection failure.

Q: Can I drive without the cover?
A: It's legal for short distances, but the exposed foam and wiring are easily damaged, and aerodynamics suffer.

Q: What tools are required to swap it?
A: Torx drivers (T25, T30), plastic-trim tools, 10 mm socket, and a helper to lift the shell.

Q: Does the cover absorb crash energy?
A: Only partially; most impact absorption comes from the hidden EPP foam block and metal beam behind it. (Engineered Foam Products)

Q: Is the plastic recyclable?
A: Yes. PP bumper skins can be recycled into new automotive parts or consumer goods. (EPA NEEA)

Q: How heavy is the bumper cover?
A: Around 9-12 lb (4-6 kg) for PP plastic-light enough to lift with one hand. (Protolabs)

Q: What's the tow-eye door?
A: A small removable cap on the cover hides the threaded hole where you screw in the factory tow hook.

Q: Do I need special glue for repairs?
A: Use a two-part plastic repair adhesive labeled for PP/TPO; super-glue will not hold.

Q: How long does a DIY swap take?
A: Plan 1.5-2 hours with standard tools and a clear workspace.

Q: Will an AMG-Line cover fit a base GLE?
A: It bolts on, but the styling lip may not align with non-AMG lower moldings.

Q: Why are OEM color codes four digits?
A: Mercedes uses numeric paint codes (e.g., 040) so painters worldwide can match shades precisely. (Color N Drive)
