Buy Acura MDX Brake Master Cylinders

The brake master cylinder sits at the heart of the MDX's hydraulic braking system. When you press the pedal, this small pump turns foot pressure into fluid pressure that squeezes the calipers and slows the wheels. A healthy unit keeps stops smooth and straight; a failing one can make the pedal feel spongy, trigger warning lights, or even reduce braking power. Routine fluid service, correct bleeding, and timely replacement all protect passenger safety and extend pad, rotor, ABS, and brake‑booster life. (Wikipedia, acura.bernardiparts.com)

The master cylinder contains two pistons and seals that divide brake fluid into separate circuits for front and rear wheels, creating a safety backup if one side leaks. As your foot pushes the pedal, the pistons move, building up hydraulic pressure that travels through lines to each caliper. (Wikipedia)

On every MDX generation (2001‑present) the cylinder mounts on the driver‑side firewall ahead of the brake booster. It holds a translucent reservoir so you can check fluid against "MIN" and "MAX" marks without opening the cap. Key parts include:

• Primary & secondary pistons
• Return springs
• Rubber cups/seals
• Fluid reservoir & level sensor
• Rear mounting nuts (important for 2020‑up recall-see below) (NHTSA)

• Spongy or sinking pedal-air or internal seal wear lets pressure bypass. (acura.bernardiparts.com)
• Brake warning light-low fluid or sensor fault in the reservoir cap.
• Dark or contaminated fluid-seal debris or moisture reduces boiling point. (HowStuffWorks)
• Fluid around booster-leak at the cylinder's rear seal. (acura.bernardiparts.com)

Age‑hardening of rubber cups, moisture‑laden fluid, over‑tightened pushrods, or corrosion from skipped flushes all shorten service life. Hard panic stops create high temperatures that hasten seal breakdown. (HowStuffWorks, Machinery Lubrication)

• 1st Gen (2001‑2006) - One part number fits all trims; banjo fittings point straight forward.

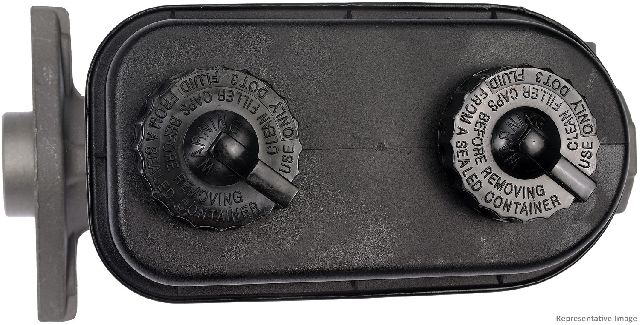

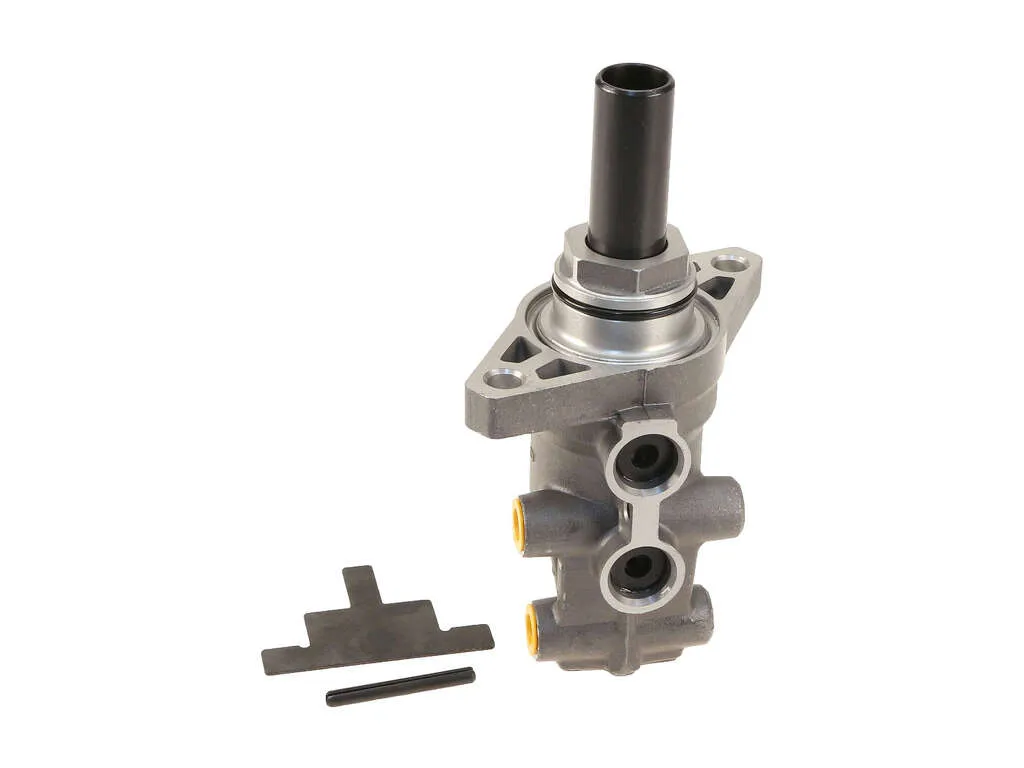

• 2nd Gen (2007‑2013) - Slightly larger bore for heavier curb weight.
• 3rd Gen (2014‑2020) - Redesigned reservoir with angled neck.
• 4th Gen (2022‑2025) - Cylinder similar to 3rd Gen, but paired to electric brake booster; ensure correct VIN before ordering. (NHTSA, YouTube)

• 2020 MDX recall-Honda/Acura ordered dealers to inspect torque on the master‑cylinder mounting nuts; loose hardware could let the unit detach and lengthen stopping distance. (NHTSA, AboutLawsuits.com)
• 2023‑2025 pedal pivot recall-A separate campaign involves pedal‑pivot pins, not the master cylinder itself, but it can mimic soft‑pedal symptoms. (AP News)

Acura lists DOT 3 heavy‑duty brake fluid for every MDX; DOT 4 is allowed in emergencies but should be flushed when convenient. Mixing silicone‑based DOT 5 with glycol DOT 3/4 is unsafe. Always keep containers sealed-water lowers boiling points. (acura.ca, HowStuffWorks)

After cylinder or caliper work, remove air with a clear hose and wrench. Acura service manuals specify this order: Left‑Front → Right‑Front → Right‑Rear → Left‑Rear (LF, RF, RR, LR). Torque bleeders to 6 ft‑lb and top the reservoir between steps. ABS/VSA systems self‑purge during test drives. (Mdxers, Mdxers)

1. Siphon old fluid, unplug level sensor.
2. Loosen lines with a flare wrench; cap to limit drips.
3. Unbolt cylinder from booster (12 mm nuts).
4. Bench‑bleed new unit until no bubbles appear.
5. Install, torque nuts, reconnect lines, and bleed wheels.
6. Check for leaks, clear any ABS codes with a scan tool.

Many home mechanics finish the job in about two hours with basic tools and a helper to pump brakes. (YouTube, Reddit)

• Inspect fluid at every oil change; swap fluid every 3 years or 36 k miles. (Mdxers)
• Keep the cap tight-brake fluid absorbs moisture from air. (HowStuffWorks)
• Replace the cylinder whenever pedal drop is paired with no external leaks. (acura.bernardiparts.com)

Used brake fluid is a hazardous waste. Store in a sealed, labeled jug and bring to a household hazardous‑waste site or certified recycler-never pour down drains or onto soil. (US EPA, US EPA)

A firm pedal also depends on:

• Brake booster-adds vacuum assist.
• ABS/VSA modulator-pulses pressure during skids. (Mdxers)
• Brake lines & hoses-any external leak will soften pedal feel.

Q: What exactly is a brake master cylinder?
A: It's a compact pump that turns foot force into hydraulic pressure so each wheel can clamp its rotor and stop the SUV. (Wikipedia)

Q: Where is it located on my MDX?
A: On the driver‑side firewall, directly in front of the steering wheel and bolted to the brake booster. (NHTSA)

Q: Which brake fluid should I use?
A: Acura recommends DOT 3; if you add DOT 4 in an emergency, flush back to DOT 3 soon. (acura.ca)

Q: What are common symptoms of failure?
A: Spongy pedal, sinking pedal, warning light, or fluid around the booster. (acura.bernardiparts.com)

Q: Is it safe to drive with a leaking master brake cylinder?
A: No-loss of pressure can greatly increase stopping distance. Have it fixed right away. (AboutLawsuits.com)

Q: How often should I flush brake fluid?
A: Every 3 years or 36 k miles to keep moisture out and protect seals. (Mdxers)

Q: Do I need to bleed the brakes after replacing the cylinder?
A: Yes; air enters during installation and must be removed for a firm pedal. (Mdxers)

Q: What is the correct bleeding order?
A: Left‑Front, Right‑Front, Right‑Rear, Left‑Rear. (Mdxers)

Q: Can I mix DOT 3 and DOT 4 fluids?
A: They can mix but lower the boiling point; stick with one type, preferably DOT 3 for MDX. (HowStuffWorks)

Q: How much does a replacement cost?
A: Parts run in the low hundreds of dollars; professional labor adds 1-2 hours. DIY kits lower costs but require proper bleeding. (YouTube)

Q: Do all MDX years share the same master cylinder?
A: No-each generation has its own bore size and reservoir style; always match by VIN. (NHTSA)

Q: Has Acura issued a master‑cylinder recall?
A: Yes, a 2020 model recall for loose mounting nuts; dealers inspect and repair free.

Q: Can a bad master cylinder trigger the ABS or VSA lights?
A: Indirectly-low fluid or uneven pressure can set those warnings because the control module senses a fault. (Mdxers)

Q: Does cold weather affect the cylinder?
A: Very cold fluid thickens, but DOT 3 stays workable well below freezing; keep it clean and moisture‑free. (Machinery Lubrication)

Q: How do I dispose of old brake fluid?
A: Seal it in a labeled jug and take it to a hazardous‑waste collection center-never pour it out. (US EPA)

Armed with these facts, you can spot early warning signs, choose the right fluid, and keep the brake master cylinder on your Acura MDX working safely for years to come.
