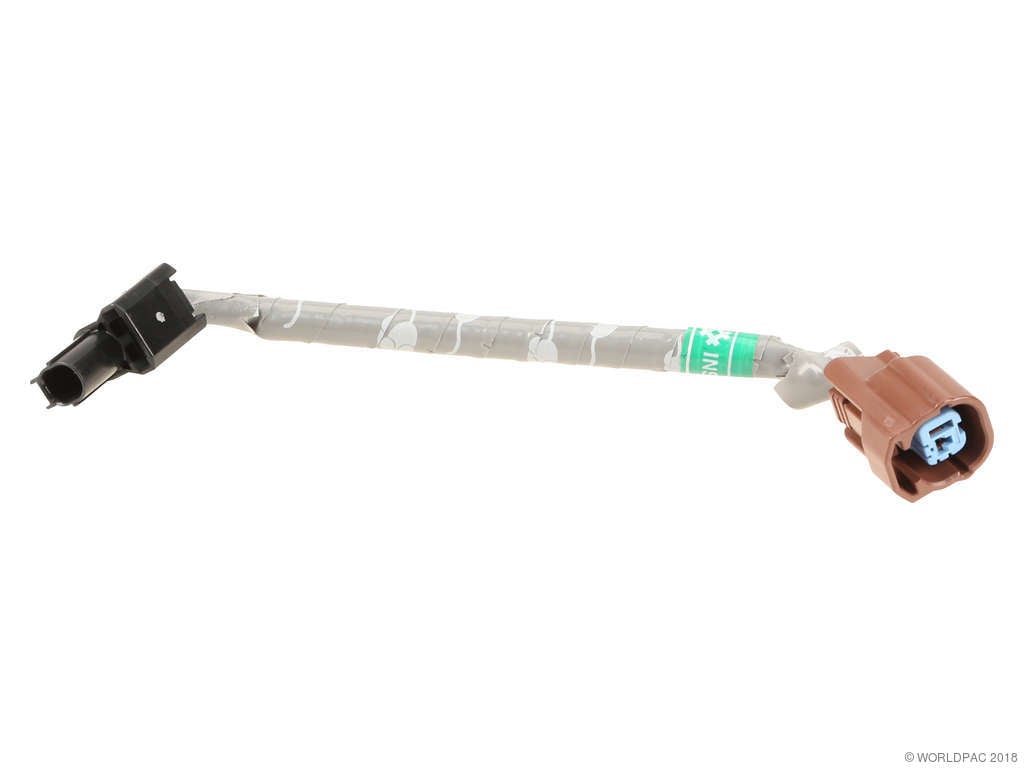

Buy Acura RL Ignition Knock (Detonation) Sensor Harness

The ignition knock sensor harness, also known as the detonation sensor wiring harness, is a crucial component of the engine's ignition system. It connects the knock sensor to the engine control unit (ECU), allowing the sensor to relay information about engine knocking or detonation. This connection enables the ECU to adjust ignition timing and prevent potential engine damage caused by uncontrolled combustion.

The primary function of the knock sensor harness is to transmit signals from the knock sensor to the ECU accurately. The knock sensor detects vibrations or pinging caused by premature combustion in the engine cylinders. By conveying this information through the harness, the ECU can modify the air-fuel mixture and ignition timing to eliminate knocking and improve engine performance.

A damaged or failing ignition knock sensor harness can lead to several noticeable issues, including:

Illuminated Check Engine Light: A malfunctioning harness may trigger warning lights on the dashboard.
Poor Engine Performance: The vehicle may experience reduced power or hesitation during acceleration.
Decreased Fuel Efficiency: Inaccurate sensor readings can cause the engine to consume more fuel.
Engine Knocking Sounds: Audible pinging or knocking noises may occur due to improper combustion.

Faults in the knock sensor harness can lead to diagnostic trouble codes (DTCs) being stored in the vehicle's computer system. Common codes associated with this issue include:

P0325: Knock Sensor Circuit Malfunction (Sensor 1)
P0330: Knock Sensor Circuit Malfunction (Sensor 2)

These codes indicate problems with the signal transmission between the knock sensor and the ECU, often due to a defective wiring harness.

Replacing a faulty ignition knock sensor harness promptly is essential to maintain engine health. A malfunctioning harness can prevent the ECU from correcting engine knocking, which may lead to severe internal damage, decreased performance, and increased emissions over time.

When installing a new detonation sensor harness, consider the following tips for a successful replacement:

1. Disconnect the Battery: Always disconnect the negative battery terminal to prevent electrical shorts.
2. Access the Harness Carefully: The knock sensor is often located beneath the intake manifold. Remove components carefully to avoid damage.
3. Inspect Connectors: Ensure all connectors are clean and free of corrosion before installation.
4. Secure the Harness Properly: Route the harness away from hot engine parts and secure it to prevent chafing or damage.
5. Follow Manufacturer Guidelines: Refer to the vehicle's service manual for specific instructions related to your model.

Regular maintenance of the ignition knock sensor harness can prolong its lifespan and ensure optimal engine performance:

Visual Inspections: Periodically check the harness for signs of wear, fraying, or damage.
Clean Connectors: Keep electrical connectors clean and free from moisture to prevent corrosion.
Protective Measures: Use wire looms or protective sleeves to shield the harness from heat and abrasion.

When dealing with issues related to engine knocking or sensor malfunctions, it may be helpful to inspect other related components:

Knock Sensors: Ensure the sensors themselves are functioning correctly.
ECU Connections: Check that the engine control unit connections are secure and free from damage.
Other Wiring Harnesses: Inspect additional wiring for signs of wear or corrosion that could affect performance.

Using a high-quality ignition knock sensor harness provides several advantages:

Reliability: Durable materials reduce the likelihood of future failures.
Accurate Signal Transmission: Ensures the ECU receives correct data for optimal engine tuning.
Ease of Installation: Precisely manufactured harnesses fit seamlessly into the existing setup.

Before purchasing a replacement harness, verify that it is compatible with your specific vehicle make and model. Using the correct harness ensures proper function and avoids potential issues related to mismatched connectors or wiring configurations.
