The Audi A3 direct-injection high-pressure fuel pump-often shortened to HPFP, fuel-pressure pump, or gasoline injection pump-raises fuel coming from the in-tank pump from roughly 6 bar up to about 40 bar at idle and as much as 200 bar (?2,900 psi) under load (Audizine). It is bolted to the end of the intake camshaft, which drives a tiny piston to create this pressure (NHTSA). When the pump or its small "cam follower" wears, drivers may notice hard starts, misfires, loss of power, or rough idle (Adelaide Auto Pro). Typical replacement bills run $400 - $800 for parts and labor, depending on model year and shop rate (Audizine). Performance builds can upgrade the pump internals to feed bigger turbos, while regular cars last longest when the follower is inspected every 20,000 mi (Shop DAP). Because fuel pressure can exceed 2,000 psi, always bleed the system before service to avoid injury (NHTSA).

A gasoline direct-injection (GDI) system uses two pumps: a low-pressure electric unit in the tank and the mechanical high-pressure pump on the engine (GMB North America, Inc.). The HPFP's cam-driven piston squeezes fuel so hard that it atomizes like a fine mist when the injectors open, letting the 2.0 TFSI engine make more power with less fuel (Automotive Seminars). Sensors watch rail pressure, and the engine computer modulates a tiny metering valve to keep pressure between about 40 bar and 150 bar during normal driving (FORVIA HELLA).

On every 2005-2020 A3 with the 1.8 TFSI or 2.0 TFSI engine, the HPFP sits on top of the cylinder head, just above the transmission side motor mount. A three-pin electrical connector (for the metering valve) and a short steel line leading to the fuel rail make it easy to spot (NHTSA). A thin circular "cam follower" rides between the intake cam and pump plunger; when this $20 part wears through, the cam lobe and pump can be damaged in minutes (Shop DAP).

• Long cranking or stalling when hot (YouTube)
• Bucking, hesitation, or loss of boost under hard acceleration (Adelaide Auto Pro)
• Lean or rich fuel-trim codes (P0087, P2293) (vwaudiforum.co.uk)
• Gas smell from engine bay (possible leak at the pump seal) (VWVortex)
• Metallic ticking that rises with engine speed (plunger wear) (TT Forum)

1. Cam follower wear-the TFSI's flat-bucket follower can wear through as early as 30 k mi if oil changes are skipped (Shop DAP).
2. Poor fuel quality-water or debris scores the pump barrel and lowers pressure (FORVIA HELLA).
3. Running aggressive tunes without pump upgrade-higher boost demands more flow than the stock pump can supply, overheating the plunger (HPA Motorsports).
4. Extended cranking after shut-off-heat-soak vaporizes fuel and makes the pump cavitate (GMB North America, Inc.).

• Scan-tool check: rail pressure should track target within ±5 bar at idle; large drops point to a weak pump or injectors (JustAnswer).
• Mechanical test: command the starter for 13 s with the pressure regulator unplugged; rail pressure must rise above 40 bar (vwaudiforum.co.uk).
• Visual check: pull the follower-any cupping, pitting, or a hole means replace the follower and inspect the cam immediately (VWVortex).

DIYers need basic sockets plus a low-profile triple-square bit for the two pump bolts. Always turn the engine by hand until the cam lobe is on its flat spot to relieve spring pressure (NHTSA). New bolts are torque-to-yield and must be replaced; tighten to 10 Nm + 30° per the service manual. Average shop quotes: $250-$350 parts, $150-$450 labor, depending on location and whether the cam follower or camshaft is included (Audizine).

For tuned A3s shooting past 300 hp, aftermarket larger-piston pump kits can raise maximum pressure from 200 bar to 240 bar or more, adding roughly 50 % flow headroom (034 Motorsport). These kits reuse the pump body but swap in a precision-ground piston and stronger spring; no tuning is needed beyond the ECU file supplied with most big-turbo packages. Keep in mind that greater pressure also increases injection noise and may shorten injector life (HPA Motorsports).

Gasoline at 2,000 psi can cut skin like a laser. Always:

• Depressurize the rail via scan-tool service mode or by pulling the fuel-pump fuse and cranking the motor (NHTSA).
• Wear safety glasses and gloves-fuel can jet several feet if the hard line is loosened under pressure (FORVIA HELLA).
• Check for leaks with an approved fuel-safe manometer before starting the engine.

Raising injection pressure helps lower particulate matter and hydrocarbons because finer droplets burn more completely (STS Sensors). Studies show that engines running 200 bar produce up to 30 % fewer soot particles than low-pressure systems (ScienceDirect). Conversely, a failing HPFP may trigger lean conditions, misfires, and elevated NOx emissions that can cause an inspection failure.

• Change oil every 5,000 mi with the correct 502-approved synthetic; dirty oil accelerates follower wear (Shop DAP).
• Log rail pressure occasionally; a slow drift downward often appears weeks before drivability issues (Audizine).
• Inspect or replace the follower at each timing-belt or timing-chain service interval.
• Keep fuel above one-quarter tank to avoid in-tank pump starvation, which starves the HPFP.

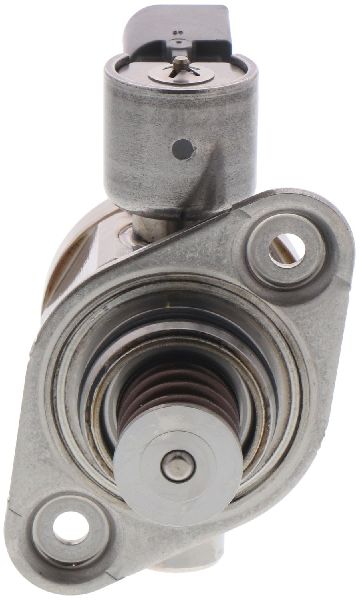

All 2005-2013 A3 8P models and 2015-2020 A3 8V models with 1.8L or 2.0L TFSI direct-injection engines share the same style of three-bolt flange pump (engine codes BPY, BYD, CCTA, CBFA, and later CXBB). Always confirm by VIN using the official Audi recall lookup to see if any fuel-system campaigns apply .

Q: What does the high-pressure fuel pump actually do?
A: It squeezes gasoline up to roughly 200 bar so the injectors can spray it straight into the cylinder, giving more power and cleaner emissions than older port-injection systems (GMB North America, Inc.).

Q: How long should the pump last?
A: With regular oil changes and follower checks, many pumps last 120,000 mi or more. Neglected followers can fail in as little as 30,000 mi (Shop DAP).

Q: Can I drive with a weak HPFP?
A: Short trips may be possible, but pressure can drop suddenly, causing stalling or engine damage; replace it as soon as symptoms appear (Adelaide Auto Pro).

Q: Does replacing the pump improve fuel economy?
A: A healthy pump restores factory mileage, but gains are usually small-1-2 mpg-because the main goal is stable pressure, not efficiency (FORVIA HELLA).

Q: What size wrenches are needed?
A: You'll need a 17 mm flare-nut wrench for the hard line and a T30 or M6 triple-square driver for the pump bolts, plus a torque wrench (NHTSA).

Q: Do I need a tune after installing a bigger pump?
A: Yes. The engine computer must know the new pump volume so it can command the correct rail pressure during boost (034 Motorsport).

Q: Why does the follower wear?
A: High contact load, lack of oil, and early camshaft designs with softer material all contribute. Audi revised the cam several times to slow wear (NHTSA).

Q: Are there recalls for the HPFP itself?
A: While recent U.S. recalls focused on low-pressure suction pumps, no active campaigns target the A3's HPFP directly; always check your VIN for updates (Reuters).

Q: Can high ethanol blends hurt the pump?
A: E15 is generally safe, but higher blends can swell the internal seals unless the pump is certified for ethanol; prolonged use can cause leaks (FORVIA HELLA).

Q: How do I reduce particulate emissions further?
A: Use top-tier gasoline, keep the pump and injectors clean, and ensure rail pressure remains within spec to promote complete combustion (STS Sensors).

By understanding how the A3's high-pressure fuel pump works, spotting early warning signs, and following simple maintenance steps, you can keep your direct-injection engine running smoothly for years.
