The Audi A5's oxygen sensor lives in the exhaust pipe, where it ÒsniffsÓ the hot gases and tells the engine computer whether the mix of fuel and air is rich, lean, or just right. By adjusting fuel flow in real time, these probes help the catalytic converter cut toxic pollution, boost gas mileage, and prevent engine damage. Modern A5s have at least two sensors-one before (upstream) and one after (downstream) the catalytic converter; turbo-four and V6 models may use wide-band sensors that react in milliseconds. A worn-out sensor can drop fuel economy by more than 10 percent and set dash codes such as P0130 or P0134. Replacing the sensor every 60,000-90,000 miles-or sooner if faults appear-keeps emissions low and power high. (Wikipedia, 700r4transmissionhq.com, Corpus Auto Service, carparts.com)

• Job - The oxygen sensor compares leftover oxygen in the exhaust to outside air, creating a small voltage (about 0.2-0.9 V on narrow-band types) that the ECU reads as rich or lean. (, Mobility Aftermarket)

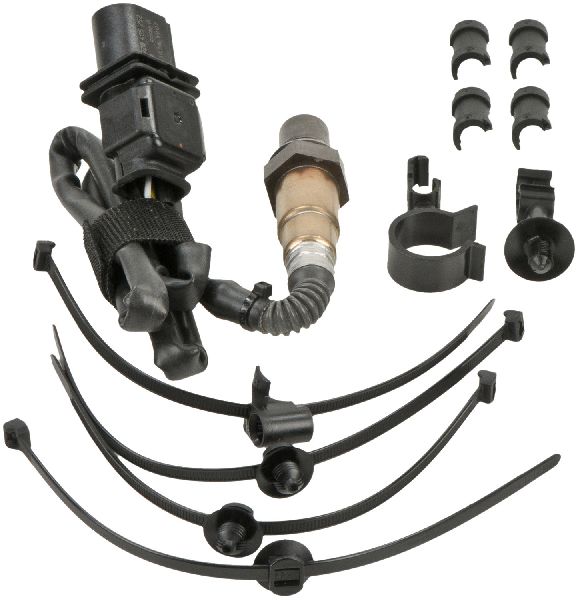

• Upstream vs. Downstream - Sensor 1 (upstream) mounts just after the exhaust manifold and fine-tunes the mixture. Sensor 2 (downstream) sits behind the catalytic converter and confirms that the cat is cleaning the gases. (700r4transmissionhq.com, Audi World)
• Banks - ÒBank 1Ó is the side of the engine containing cylinder 1; ÒBank 2Ó is the opposite side on V-engines. Inline-four A5s have only Bank 1. (700r4transmissionhq.com, AutoExplain)

• Check-engine light with codes P0130, P0134, P0031, or P0138. (AutoZone.com, carparts.com)
• Rough idle, hesitation, or misfire-especially when cold.
• Noticeable drop in mpg and strong fuel smell from the tailpipe. (Corpus Auto Service, EPA)
• Failed emissions test due to high CO or HC numbers.

Independent Audi specialists recommend swapping the probe at 60 k-90 k miles, even if no codes are present, because the sensing ceramic slowly ÒpoisonsÓ over time. (Corpus Auto Service, Bertinis German Motors)

1. Warm engine, then cool: Heat helps break loose the threads, but always let the pipe drop below burn temperature before wrenching.
2. Unplug harness: Lift the locking tab to avoid wire damage.
3. Remove sensor: Use an O2-sensor socket and back it out counter-clockwise.
4. Install new sensor: Start by hand to prevent cross-threading; tighten to 35-37 ft-lb (Å50 Nm) on M18 threads. (B5 Supply, NGK Spark Plugs, Walker Products)
5. Clear codes & test-drive: A short trip lets the ECU relearn fuel trims.

Safety tip

Always apply a dab of copper-free anti-seize to the threads-many new sensors arrive pre-coated. (Mobility Aftermarket)

• Quick multimeter check: Back-probe the signal wire; voltage should flip between ~0.1 V (lean) and ~0.9 V (rich) at idle on a narrow-band sensor. (carparts.com)
• Heater-element test: With the sensor unplugged and cold, the heater pins should show 10-20 Ω. A blown heater triggers P0031/P0051 codes. (General Technologies Corp.)
• Scan-tool watch: In live data, a healthy upstream sensor switches several times per second; a flat-line or sluggish trace means trouble. (gotech.com)

A lazy lambda probe forces the ECU to run a richer mixture, wasting fuel and raising CO₂ output. EPA studies show repairs to the emissions system, including the O2 sensor, can lift economy by 6-13 percent. (EPA, US EPA)

Because the sensor keeps the air-fuel ratio near the ideal 14.7:1, it lets the three-way catalytic converter slash NOx, CO, and HC by over 90 percent. A dead sensor can let raw hydrocarbons soar, harming air quality. (Wikipedia, Mobility Aftermarket)

• Typical Audi A5 part numbers include 06E 906 265 AK (upstream wide-band) and 4L0 906 262 K (downstream narrow-band); confirm by VIN because engine codes differ across model years. (Europa Parts, Amazon)
• Sensors are interchangeable across many 2.0 TFSI, 3.0 TDI, and 3.2 FSI Audi/Volkswagen engines, but wire length and connectors must match. (audiaccessories.ca, UroTuning)

When the O2 sensor fails, inspect:

• Exhaust leaks ahead of the sensor that can draw in air and skew readings. (YOUCANIC)
• Catalytic converter efficiency (code P0420). A bad downstream sensor can mimic a failing cat.
• Mass-air-flow sensor; filthy airflow data can lead to rich-running and sensor overload.

• Bosch 40-Year Lambda Story - A look back at sensor evolution. (Bosch Global)
• Audi Technical Reference PDFs - Factory manuals list full DTC charts and pin-outs.
• EPA Fuel-Economy Tips - Simple habits that keep sensors (and wallets) happy. (US EPA)

Feel free to bookmark these references for deeper study and smoother DIY fixes.
