Buy BMW 525i Spark Plugs

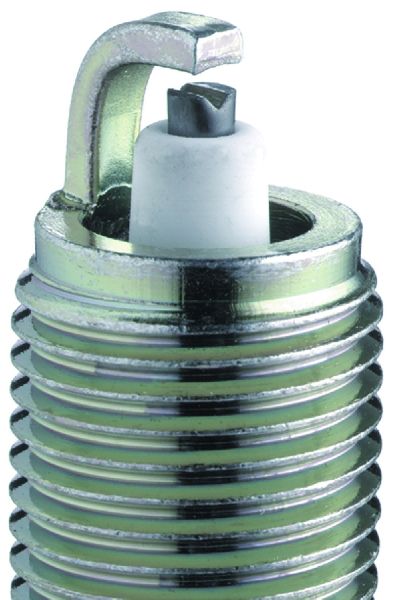

• Engines covered: The 525i's M54B25 (and earlier M52 variants) use 14 mm, 19 mm-reach plugs with a heat range of 6 in NGK's system (example: BKR6EQUP) (NGK, Wikipedia).
• Quantity & layout: Six identical plugs-one per cylinder-sit beneath the coil-on-plug modules (AutoZone.com).
• Thread & seat: 14 × 1.25 mm thread, flat seat, crush washer. Always start by hand to avoid cross-threading.

Spark plugs trigger combustion thousands of times each minute. A clean, correctly-gapped firing plug:

• Maximizes power and throttle response.
• Improves fuel efficiency (a tired plug can cut mileage notably) (Bimmerpost).
• Reduces emissions and keeps catalytic converters happier.

Most BMW schedules call for inspection at 30 k miles and replacement no later than 60 k miles, or every six oil-service cycles, whichever comes first (BMW of South Austin, 6Post). Short-trip driving, heavy loads, or performance tuning may justify 40 k mile intervals.

• Rough idle or shaking (bmwofelpaso.com, Bimmerpost)
• Misfire codes (P030x) and warning lights
• Sluggish starts or stumbles under load (Reddit)
• Drop in MPG-sometimes 2-4 mpg on a 525i (Bimmerpost)
  Catch these signs early to prevent coil damage and excess fuel dilution.

← scroll table horizontally →

Tip: Iridium and platinum tips are delicate-avoid regapping them; bending can break the welded disc (Wikipedia).

1. Work on a cool engine and remove the coil packs.
2. Blow out plug wells to keep grit out.
3. Thread each new plug by hand, seat with a plug socket, then torque to 18 ft-lb ± 2 (23 ± 3 Nm) (E90Post).
4. A thin dab of nickel anti-seize is acceptable on BMW aluminum heads per Bentley Manual guidance-but use sparingly (bimmerfest.com).
5. Re-install coils, listening for the click, and clear any stored misfire codes.

For first-timers, step-by-step pictorial guides and torque walk-through PDFs are widely available, showing the full coil removal and re-torquing sequence (club.autodoc.co.uk, bimmerfest.com).

Swapping tired plugs for fresh iridium units can sharpen throttle feel and restore lost horsepower on the 184 hp M54 engine (Wikipedia). Laboratory and dealer tests have documented fuel-consumption improvements up to 10 percent in mild cases and as high as 30 percent when misfires were present (Bimmerpost).

Efficient ignition means cleaner exhaust. Misfiring plugs dump raw fuel into the catalytic converter, shortening its life and raising tail-pipe emissions. A quick plug change keeps hydrocarbons and CO₂ lower, saving fuel and money.

Q: What is the correct gap for a BMW 525i ignition plug?
A: About 0.044 inch (1.1 mm); most quality plugs come pre-gapped at this spec (Reddit).

Q: How tight should I torque the plugs?
A: 18 ft-lb (23 Nm) is BMW's published figure for the aluminum head; stay within ±2 ft-lb for safety (E90Post).

Q: How often should plugs be replaced?
A: Inspect at 30 k miles and replace no later than 60 k miles under normal driving (BMW of South Austin). Harsh driving may cut that interval to about 40 k.

Q: Can I adjust the gap on iridium or platinum plugs?
A: It's risky; bending the fine tip can crack the precious-metal pad. Buy the right pre-gapped part instead (Wikipedia).

Q: What symptoms point to bad plugs?
A: Rough idle, misfire codes, sluggish acceleration, and noticeable drops in gas mileage (bmwofelpaso.com, Reddit).

Q: Will premium plugs add horsepower?
A: They restore lost power by delivering a strong spark, but they don't add extra horsepower beyond factory ratings.

Q: Do I need special tools?
A: A 16 mm spark-plug socket with extension, torque wrench, and basic hand tools are enough for a driveway job (club.autodoc.co.uk).

Q: What's the plug heat range?
A: NGK heat range 6 is stock (example BKR6EQUP) for most 525i engines (NGK).

Q: Is anti-seize required?
A: Modern plated threads usually don't need it, but a tiny dab of copper-based anti-seize is acceptable if BMW's workshop manual allows (bimmerfest.com).

Q: Could worn plugs damage coils?
A: Yes-misfires force coils to work harder, shortening their life and potentially damaging catalytic converters due to unburned fuel (Bimmerpost).

By following these simple guidelines-and keeping an eye on mileage and performance-you'll help your BMW 525i stay lively, efficient, and ready for many more carefree miles.
