Buy Buick Rainier Alternators

A healthy alternator-sometimes called the generator or charging unit-keeps every electrical part of your 2004-2007 Buick Rainier alive while the engine spins. It tops up the battery, powers the lights, and supplies steady voltage to the computers. When the alternator gets weak, owners often see a glowing battery light, flickering headlamps, or a dead battery after a short drive. Keeping this single part in good shape protects the SUV's comfort, starting power, and resale value. (HowStuffWorks, ManualsLib)

• Model years: The Rainier was built for 2004, 2005, 2006, and 2007, sharing its chassis with the Chevrolet TrailBlazer and GMC Envoy, so most charging-system pieces interchange across those years. (CarComplaints.com, CarComplaints.com)
• Engines served:

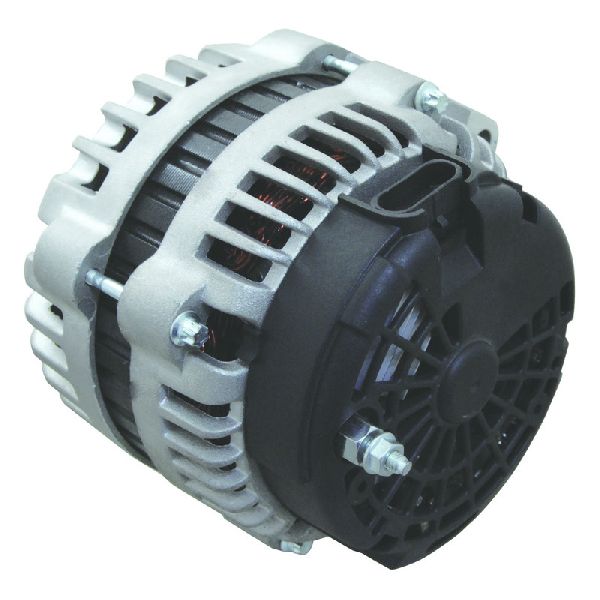

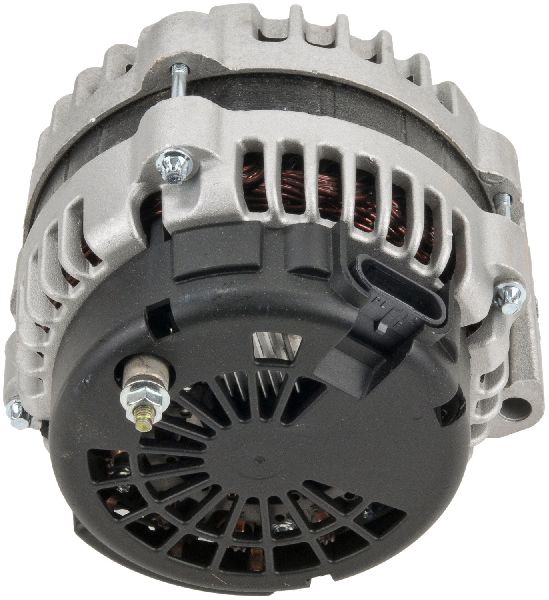

  • 4.2 L inline-6 gets a 12-volt, 150-amp alternator (GM p/n 10464468 and superseding numbers). (Amazon, eBay)
  • 5.3 L V-8 uses a 12-volt, 160-amp unit with a slightly different voltage-regulator plug starting in late 2006. (eBay, TBSOwners)
• High-output choices: Aftermarket builds rated 250 A to 400 A fit the same brackets for drivers running large stereos, winches, or campers. (JS Alternators)
• Belt type & pulley: A 6-groove serpentine belt spins the rotor clockwise; belt slip or glazing is a top cause of low voltage complaints. (HowStuffWorks)

Inside the alternator, a copper-wound rotor turns through a magnetic field, creating an alternating current that is flipped to direct current by six diodes in the rectifier bridge. A tiny built-in voltage regulator then holds output near 14 volts so bulbs do not burn out and the battery does not overcharge. (HowStuffWorks, Explain That Stuff)

• Battery icon stays on after start-up. (HowStuffWorks)
• Dim or flickering headlights while driving. (JustAnswer, HowStuffWorks)
• Clicking or grinding noises from the front of the engine as bearings fail.
• Electrical gremlins such as erratic gauges or radio drop-outs. (HowStuffWorks)

1. Battery at rest: engine off, 12.6 V is healthy.
2. Charging check: engine idling, 13.8-14.2 V means the alternator is working. (HowStuffWorks)
3. Full-load test: turn on lights, A/C, rear defogger; voltage should stay above 13 V. If it falls, the generator is weak. (YouTube)

1. Disconnect the negative battery cable.
2. Relieve belt tension with a 3/8-inch ratchet on the tensioner and slip the belt off the pulley. (HowStuffWorks)
3. Unplug the two-pin regulator connector.
4. Remove the main charge cable nut and the two mounting bolts.
5. Lift out the old unit, drop in the new one, and torque the bolts to 37 ft-lb.
6. Re-route the belt, reconnect the battery, and verify 14 V output.

• Inspect the belt every 15,000 miles for cracks or glazing.
• Clean battery posts and make sure the ground strap at the engine block is tight; loose grounds mimic alternator failure. (Reddit)
• Update software: Some TSBs add charging-system logic tweaks that cure low-voltage warnings without parts replacement. (CarComplaints.com, TrailVoy)

Owners who power big amplifiers, off-road lights, or snow-plow pumps often choose a high-output alternator rated 250 A or more; the upgrade bolts in but may need a thicker 2-gauge charge wire. (JS Alternators)

Alternators are packed with copper and aluminum that recyclers pay for, so never toss one in the trash. Drop-off at a metal recycler or use a parts-store core return; the metals are melted down and reused, cutting mining waste. (Ecomasteryproject)
For broader tips on auto-part recycling, see the U.S. EPA's vehicle product guidance. (external link).

• A 2005 charging-system bulletin explains how the secondary air-injection pump can momentarily load the alternator and trigger the battery light-no parts needed. (TrailVoy)
• Across all Rainier years, more than 900 factory bulletins exist, with many covering ground cables, belt noise, and software updates that affect voltage stability. (CarComplaints.com, Buick Problems)

Q: Does a low battery hurt the new alternator?
A: Yes. Installing a fresh alternator against a weak battery makes the new unit work at full tilt and can burn it out early. Always charge or replace the battery first. (HowStuffWorks)

Q: Can I drive with a dead alternator?
A: You may get 20-30 minutes of daylight driving before the battery empties; night driving drains it faster. Get the vehicle to a safe spot right away. (HowStuffWorks)

Q: Why did the battery light come on right after a jump-start?
A: Jump-starts spike voltage. If the alternator diodes were already weak, that surge can finish them off, tripping the warning lamp. (HowStuffWorks)

Q: What tools do I need to change the alternator at home?
A: Basic metric sockets, a ratchet, belt-tensioner bar, and a torque wrench set to 37 ft-lb for the mounting bolts.

Q: Where is the voltage regulator on this model?
A: It is built inside the alternator's rear housing, so replacing the whole unit is faster than trying to swap the regulator alone. (HowStuffWorks)

Q: How should I dispose of the old unit?
A: Return it for a core refund or drop it at a metal recycler; copper and aluminum inside can be reused instead of land-filled. (Ecomasteryproject)

With these details, you can confidently diagnose, replace, or upgrade the alternator on any Buick Rainier, keep your SUV's electronics happy, and help the planet by recycling the worn-out parts.
