Buy Cadillac DTS Alternators

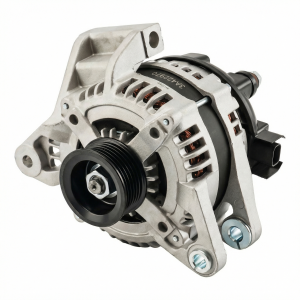

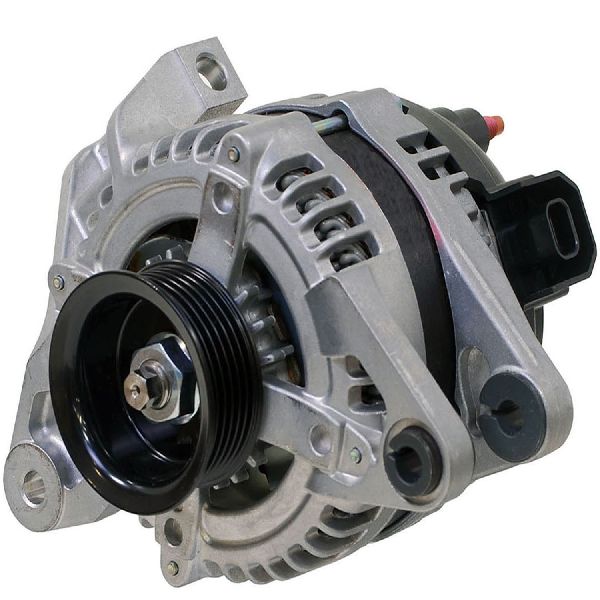

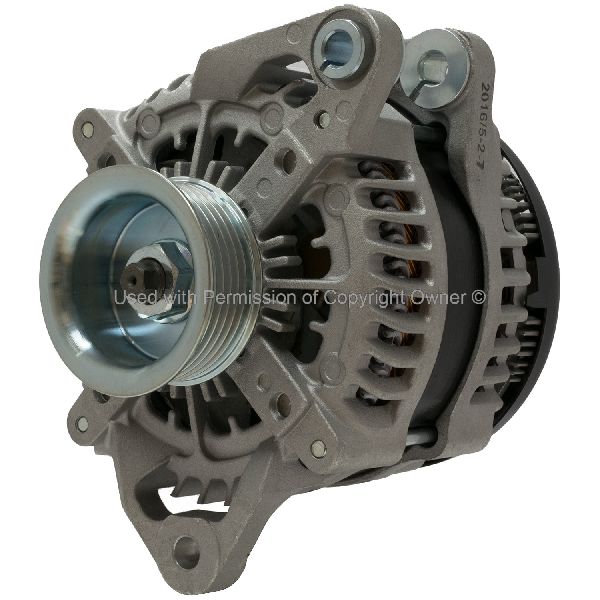

The Cadillac DTS (model years 2006‑2011) runs a 4.6‑liter Northstar V‑8 and uses a front‑wheel‑drive layout - every trim in that span relies on a belt‑driven alternator (also called a generator or charging unit) to keep the battery full and the electronics alive. (Wikipedia) The factory unit is a Denso‑built, 150‑amp, 12‑volt alternator (GM p/n 20843302; aftermarket reference 11178) with a six‑groove serpentine pulley. (alternatorbrush.com) Knowing these basics helps you choose the right replacement and spot compatibility red flags.

Cadillac used the same mounting points, belt routing, and two‑pin plug on all DTS cars from 2006 through 2011, including Luxury I, Luxury II, Performance, Premium and Platinum trims. That means one properly‑spec'd alternator fits every gasoline DTS sedan; only limousine/hearse upfits or heavy‑duty audio upgrades call for a higher‑output option.

An automotive alternator turns engine rotation into 3‑phase AC power, rectifies it to DC, regulates voltage (about 14-14.8 V), and sends that current back to the battery and circuits. (Wikipedia) If the unit fails, the car must run solely on the battery, which drains fast and can strand you.

• Battery symbol or "Service Battery Charging System" message in the Driver Information Center. (YourMechanic)
• Dim or flickering headlights, slow power windows, or unstable idle.
• Dashboard voltmeter showing much below 13 V or well above 15 V - over‑charging can cook a battery. (YourMechanic)
• Squealing belt, burnt‑rubber smell, or grinding from the alternator bearings.

1. Switch the multimeter to 20 V DC.
2. Measure battery voltage engine OFF - a healthy battery sits near 12.6 V.
3. Start the DTS; probe again. A good alternator raises voltage to 14-15 V. (Tameson.com)
4. Turn on lights, blower, and rear defogger. Voltage should stay above 13 V. If it drops, the charging unit is weak.
5. Pop the rear‑seat cushion and verify the 200 A fusible link and "GEN" fuses in the under‑seat block are intact; locations are labeled in the fuse‑box diagram. (Fuse Box)

• Disconnect the negative cable under the rear seat.
• Remove the right cooling fan and serpentine belt.
• Unbolt the generator (three bolts; torque to 36 ft‑lb / 47 Nm on install). (JustAnswer)
• Swing the unit past the frame rail; a helper below can guide it out.
• Re‑route belt per the under‑hood sticker, then clear any codes.
  DIY time averages 3-4 hours for first‑timers; pros book about 2.5 labor‑hours.

← scroll table horizontally →

GM recall 10V553 warns that the starter/alternator B+ cable can chafe the power‑steering line, risking steering loss or an engine‑bay fire; routing is corrected with a tie‑strap kit. (NHTSA) Always inspect cable clearance while the generator is out.

Nationwide shop data show an average alternator job costs $718-$1,004 ($182-$267 labor, $536-$737 parts). (RepairPal.com) A mobile‑mechanic platform lists Cadillac DTS alternator replacement around $1,112 total, reflecting higher part pricing for OEM‑grade pieces. (YourMechanic)

Choosing a remanufactured generator saves 80‑85 % of the raw material and about six units of energy for every unit used in rebuilding. (ACEEE) Major diesel‑engine supplier Cummins reports similar resource savings and full warranty coverage on its reman lines, underscoring the quality of modern rebuilds. (Cummins Inc.)

• Keep belt tension within spec; a loose belt lets the pulley slip and overheats the rotor windings.
• Clean both battery posts; poor connections mimic a bad alternator.
• After install, watch voltage with the hidden DIC test mode (hold "Info" & "On/Off" for 3 sec).
• Use dielectric grease on the two‑pin regulator plug to seal out moisture.
• If you run a 2,000‑watt amplifier, consider a 240‑plus‑amp "high‑output" generator and a 1‑farad capacitor to reduce voltage dips.

Q: Which DTS engines use this alternator?
A: All 4.6 L Northstar LD8 (275 hp) and L37 (292 hp) versions share the same bracket and plug, so one part covers every gasoline DTS sedan. (alternatorbrush.com)

Q: How long should a Cadillac alternator last?
A: Industry studies put normal life at 7-10 years or roughly 80,000-150,000 miles, depending on heat and electrical load. (The Drive)

Q: Can I drive with the "Service Battery Charging System" alert?
A: Only briefly. The battery alone can power the car for 10‑30 minutes; continued driving risks a stall and loss of power steering. (YourMechanic)

Q: What voltage should I see at idle?
A: A healthy unit shows 14.0-14.8 V on the dash or multimeter; anything below 13.0 V or above 15.2 V needs attention. (Tameson.com)

Q: Does upgrading to a 240‑amp unit hurt the computer?
A: No. The voltage regulator still targets ~14 V, so modules are safe. You may need a slightly shorter belt due to larger case size.

Q: Is there a fuse just for the generator?
A: Yes - a 200 A maxi‑fuse lives inside the rear under‑seat block; check it first if the alternator tests good but no charge reaches the battery. (Fuse Box)

Q: Why did my new alternator over‑charge at 15.5 V?
A: Over‑voltage often means the PCM's remote‑sense wire is open, or the replacement's internal regulator is faulty; inspect harness pins and ground points. (YourMechanic)

Q: What torque for the mounting bolts?
A: Tighten to 36 ft‑lb (47 Nm) per GM service data. (JustAnswer)

Q: Are reman alternators reliable?
A: Modern reman units are fully load‑tested and often updated; studies show they cut raw‑material use by up to 96 % while matching OE performance. (Cummins Inc.)

Helpful outbound resources:

• Cadillac DTS overview
• Automotive alternator basics
• Fuse layout guide
• Step‑by‑step multimeter test
• Average alternator lifespan
• NHTSA safety bulletin 10V553
• Repair cost estimator
• Energy savings of remanufacturing

With these facts, specs, and pro pointers, you can confidently choose, diagnose, or install a Cadillac DTS charging unit and keep your luxury sedan's electrical system running strong.
