Buy Chevrolet Cavalier Engine Timing Chain Kits

A timing chain kit-also called a timing chain set, cam-chain kit, or timing gear package-keeps the camshafts and crankshaft of a Chevrolet Cavalier engine turning in perfect rhythm. When the chain, guides, or tensioner wear out, the engine can rattle, set trouble-codes like P0017, or even quit.

A timing chain is a loop of hardened steel links that connects the crankshaft to one or more camshafts. As the crank turns, the chain opens and closes the valves at the right moments so the engine breathes and makes power. See this easy explainer video on what a timing chain does for a visual walkthrough. Watch here .
Unlike rubber timing belts, chains run inside the oil-bathed timing cover and are designed to last much longer. J.D. Power compares the two systems and lists pros and cons for each in a clear chart - durability is the chain's top win (read more) .

• 1995-2005 Cavaliers with the 2.2 L OHV (VIN 4) and the later 2.2 L DOHC Ecotec (VIN F) both use a timing chain, not a belt.
• The 2.4 L Twin Cam (1996-2002, VIN T) also runs a chain.
• All three engines share the same basic parts-primary chain, guides, tensioner, and crank/cam sprockets-but part numbers differ. A complete engine timing chain kit ensures everything matches. Melling's technical bulletin covers replacement on the 2.0-2.4 L Ecotec family (view) .

• Cold-start rattle that quiets after a few seconds signals chain slack (example symptoms) .
• Check-engine codes P0016-P0019 for cam/crank correlation usually point to a stretched chain or a stuck tensioner (diagnostic guide) .
• No-start with weak compression is common when the chain skips teeth, shown in this 2003 Cavalier teardown video (watch) .
• Owners on forums report ticking that grows louder before failure (read example) .

Properly oiled chains often last 150 000 mi or more, and GM did not publish a routine change interval (owner Q&A) . Failures come early when:

1. Oil changes are skipped-dirty oil lets links wear fast.
2. Low oil pressure starves the hydraulic tensioner (see GM bulletin PIP3535C on whine noise) (PDF) .
3. PCV clogging in 2.4 L Ecotec engines thins the oil and accelerates chain stretch (background) .

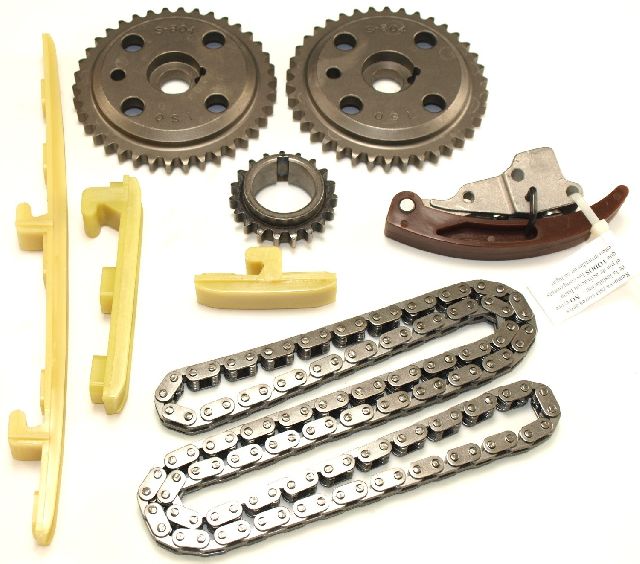

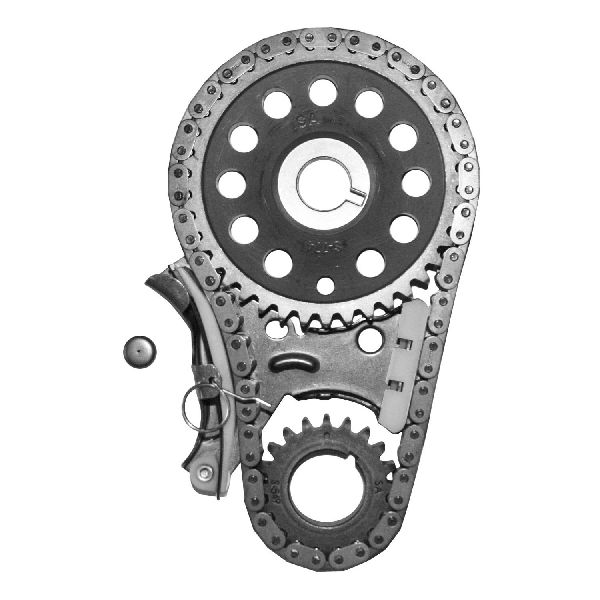

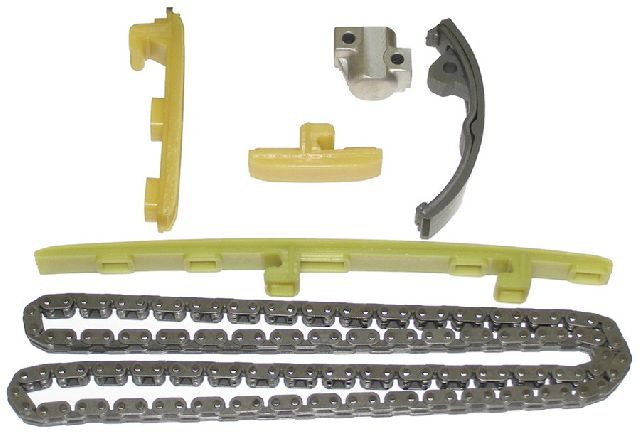

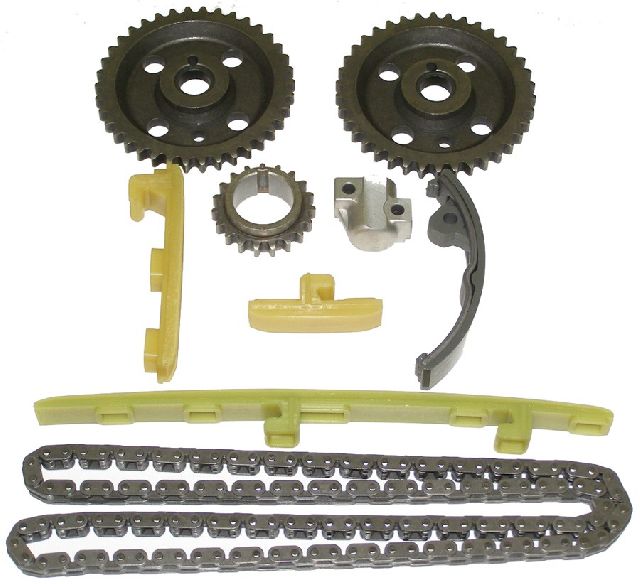

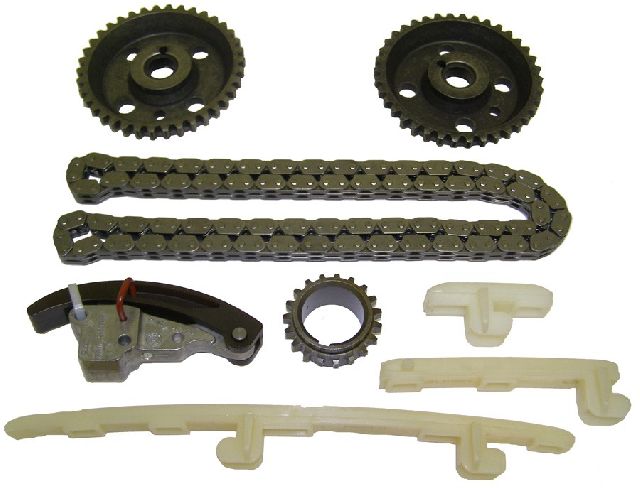

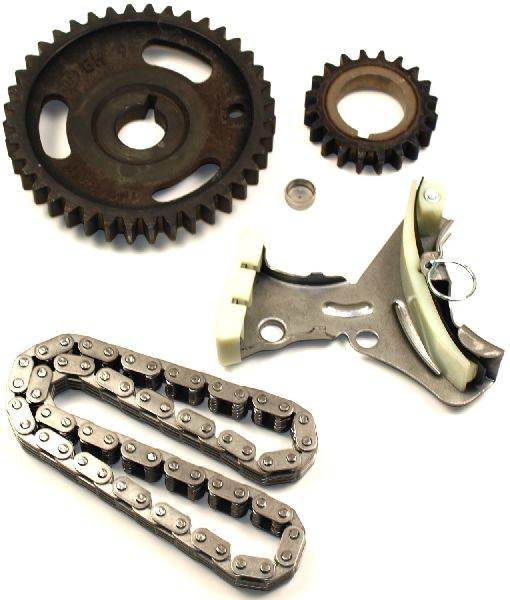

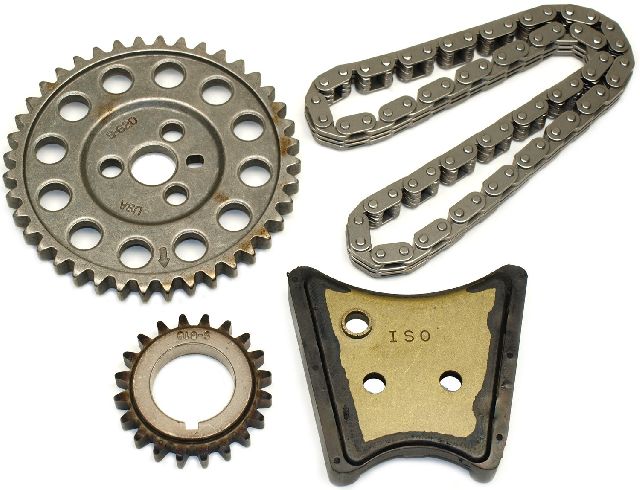

A complete timing chain kit / cam chain set usually includes:

• Primary chain
• Upper & lower guides
• Hydraulic or ratcheting tensioner
• Crankshaft sprocket
• Camshaft sprockets (one or two, depending on engine)
• Front crank seal & timing cover gasket

JustAnswer's service excerpt shows the Ecotec tensioner must be "popped" to 75 N·m (55 lb-ft) and then released with a small tap (procedure) .

Replacing the chain on a front-wheel-drive Cavalier is labor-intensive and can take 6-8 hours for a skilled DIYer. Core steps:

1. Disconnect battery and drain coolant.
2. Remove right-side engine mount and timing cover.
3. Align timing marks on crank and cam sprockets.
4. Swap guides and sprockets, fit new chain.
5. Torque bolts-cam sprockets to 63 N·m (47 lb-ft), tensioner body to 75 N·m (spec list) .
6. Prime oil system, re-assemble, and clear any stored codes.

For first-timers, the Melling video mentioned above gives a full walkthrough.

• Change oil every 3 000-5 000 mi with the correct viscosity to protect the chain and Variable Valve Timing (VVT) parts (maintenance schedule) .
• Listen at cold start-soft ticking that fades is normal; loud rattling needs inspection (Reddit advice) .
• A failing VVT solenoid can mimic chain noise-replace if duty-cycle tests fail (symptom checklist) (CarParts).

Timing chains are metal, ride in oil, and often outlast the engine, whereas belts are rubber and live outside the engine in a dry cover. Belts need change intervals (often 60 000-100 000 mi) and can snap, causing valve damage on interference engines. Chains can stretch but usually give noisy warnings long before failure. J.D. Power sums up the trade-offs (read) .

Q: Does my Cavalier have a timing belt or chain?
A: Every Chevrolet Cavalier engine came with a metal timing chain, not a belt. That includes the 2.2 L OHV, 2.2 L Ecotec, and 2.4 L Twin Cam engines.

Q: When should the timing chain be replaced?
A: GM gives no mileage interval. Replace the chain kit when you hear a persistent rattle, see cam/crank correlation codes, or measure more than 6 degrees of cam timing drift.

Q: What codes point to a stretched chain?
A: P0016, P0017, P0018, and P0019 indicate the cam and crank signals are out of sync. They often clear once a fresh chain set and tensioner are installed (diagnostic guide) .

Q: Can a bad chain ruin the engine?
A: Yes. If the chain skips teeth at high speed, valves and pistons can collide, bending valves or cracking pistons.

Q: What comes in a full engine timing chain kit?
A: A primary chain, guides, hydraulic tensioner, cam gear(s), crank gear, and usually new bolts, seals, and gaskets.

Q: Is special tooling required?
A: Besides standard sockets, you need a harmonic-balancer puller, torque wrench, and a small pick or drift to release the Ecotec tensioner.

Q: How much labor time will a shop charge?
A: Flat-rate books list 6.5-7.5 hours for the 2.2 L Ecotec. Labor rates vary by region.

Q: Can oil changes really prevent chain problems?
A: Absolutely. Clean oil keeps the hydraulic tensioner pressurized and reduces link wear, delaying stretch.

Q: Why does my chain rattle only on cold mornings?
A: Overnight, oil drains back to the pan. A worn tensioner takes a moment to refill, letting the loose chain slap the timing cover until oil pressure builds.

Q: Will thicker oil stop the noise?
A: A heavier oil can mask rattle for a short time, but it is not a fix. Replace the worn chain components to solve the root cause.

Q: Is there a recall for Cavalier timing chains?
A: No recall exists, but GM has issued technical service bulletins advising proper tensioner reset if noise appears (see bulletin excerpt) .

Q: Do I need to remove the engine?
A: No. The chain swaps in-car by supporting the engine and removing the right-side mount and timing cover.

Q: What torque should I use on the tensioner?
A: Tighten the Ecotec chain tensioner to 75 N·m (55 lb-ft), then "pop" it to release the ratchet (procedure) .

Q: How do I know the new chain is seated?
A: After assembly, rotate the crankshaft two full turns by hand and confirm the timing marks realign.

Q: Can a clogged PCV system hurt the chain?
A: Yes. Excess crankcase pressure aerates oil and starves the chain. GM updated the PCV design after owner complaints (details) .

Q: What happens if I ignore the rattle?
A: The chain can jump teeth, causing poor running, no-start, or catastrophic engine damage. An AutoSafety complaint shows a Cavalier that lost its chain after ticking noises (case file) .

Q: Is synthetic oil better for the chain?
A: Synthetic oils resist breakdown at high temp and help the chain last longer, especially in stop-and-go driving.

By understanding how the Chevy Cavalier timing chain kit works, recognizing early warning signs, and following good maintenance habits, drivers can keep their 2.2 L or 2.4 L engines humming for years to come.
