Buy Chevrolet Cruze Engine Timing Belt Kit with Water Pumps

The Chevrolet Cruze with the 1.8‑liter Ecotec engine uses a rubber timing belt (also called a cam belt or engine timing belt) to keep the crankshaft and camshafts moving in step. GM's maintenance schedule tells owners to change this belt, plus its idler, tensioner, and the belt‑driven water pump, every 100,000 miles or 10 years, whichever comes first. (Experience GM) Failing to do so can lead to overheating, engine misfires, or even piston‑to‑valve contact that ruins the engine. (colonial-chevy.com, CruzeTalk)

The belt's teeth ride in grooves on the cam and crank sprockets. As it turns, the belt also spins the water pump, pushing coolant through the block and radiator. (visit.gates.com, navigates-ws.gates.com) If the belt skips a tooth or snaps, valve timing jumps out of sync, coolant flow stops, and the engine quickly overheats.

• 2011‑2016 Cruze LS/LT with 1.8 L LUW/LWE engines use a belt. (CruzeTalk, Experience GM)
• Turbo 1.4 L Cruze engines run a timing chain, not a belt, so this kit does not apply. (CruzeTalk)

GM adds a "Change Timing Belt" alert to the cluster when the odometer nears 100 k miles. (CruzeTalk) The owner's manual lists the belt, idler, tensioner, and pump as required replacements at that milestone. (Experience GM) Many technicians advise inspecting the belt at 60 k miles for cracks, glazing, or oil contamination, especially in hot or dusty climates. (CruzeTalk, colonial-chevy.com)

• Tapping or ticking noise from the cam cover.
• Rough idle or misfire as valve timing drifts.
• Coolant leak at the pump weep hole or around the thermostat housing. (CruzeTalk, navigates-ws.gates.com)
• Dashboard message "Change Timing Belt." (CruzeTalk)

Because the water pump is turned by the same belt, any play in the pump bearing can shred a new belt. Major belt manufacturers recommend replacing the pump, tensioner, and idler together to "protect the ride" and avoid repeat labor. (go.gates.com, cms.gates.com, navigates.gates.com)

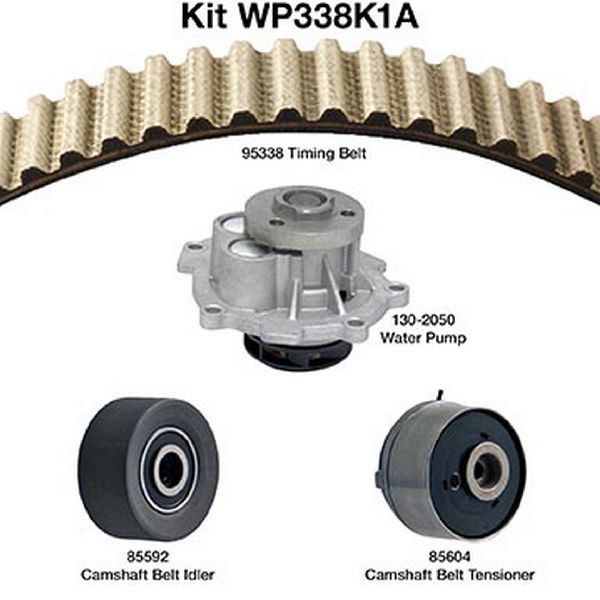

A quality kit typically contains:

• Fiberglass‑reinforced rubber timing belt
• Belt‑driven water pump with gasket or O‑ring
• Automatic tensioner assembly
• Idler pulley
• Cam/crankshaft seals (in some kits)
  These components are matched so belt length, tooth pitch, and pump pulley diameter keep factory timing. (navigates.gates.com, Gates)

1. Disconnect battery and set engine to top‑dead‑center.
2. Lock camshafts with a holding tool to prevent rotation. (CruzeTalk)
3. Remove the right‑side engine mount for access.
4. Release tensioner, slip off the old belt, and unbolt the pump.
5. Torque the new tensioner bolt to 41 lb‑ft (55 Nm). (JustAnswer)
6. Rotate engine two revolutions by hand and verify timing marks line up.
7. Refill coolant, bleed air, and check for leaks.

GM flat‑rate time for a Cruze 1.8 timing belt job is about 2 hours. (JustAnswer) Independent shop estimates run $388-$502 in the U.S., with parts roughly one‑third of that total. (RepairPal.com, Kbb.com)

• Use a cam‑lock set; paint marks alone can slip.
• Replace the accessory (serpentine) belt if it shows cracks.
• Flush old coolant; fresh 50/50 Dex‑Cool prevents pump seal wear. (navigates-ws.gates.com)

While the front of the engine is open, many owners also change:

• Front crank seal to prevent oil on the new belt.
• Thermostat housing if it shows seepage.
• Serpentine belt tensioner for quiet operation. (Gates)

Keeping the belt system fresh maintains fuel economy, protects against costly valve damage, and ensures steady coolant flow, which can extend head‑gasket life. (visit.gates.com, visit.gates.com)

• GM Service Bulletin PI0923 for updated belt procedure. (NHTSA)
• Gates "Timing 101" technician guide for belt system best practices. (go.gates.com)
• CruzeTalk community threads for real‑world experiences and DIY walkthroughs. (CruzeTalk, CruzeTalk)

These links offer step‑by‑step visuals, torque charts, and coolant‑bleed tricks to make your belt and pump swap smooth and worry‑free.
