Buy Chrysler Sebring Alternators

The alternator-also called the charging generator or charging unit-makes electricity while the engine runs and keeps the Sebring's battery full. (HowStuffWorks) It also powers headlights, radio, heater fan and every other electrical part once you're driving. (HowStuffWorks) A weak or failed alternator is one of the top electrical complaints on both early (1995-2000) and later (2007-2010) Sebring models. (CarComplaints.com, CarComplaints.com)

Inside, a spinning rotor cuts through a magnetic field and makes alternating current, which is changed to direct current by diodes. (Wikipedia) The built-in or PCM-controlled voltage regulator holds output near 14 volts so lights stay bright but the battery never over-charges. (sebringclub.net)

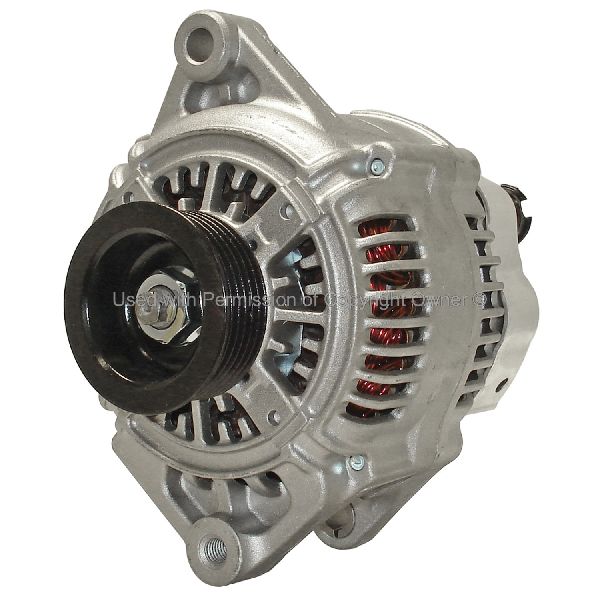

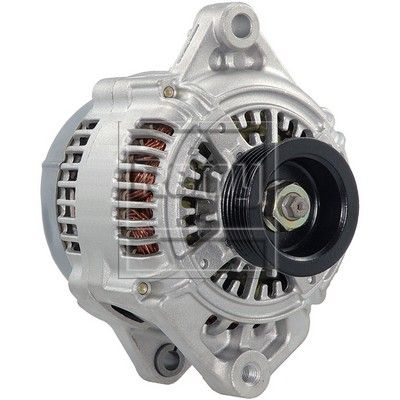

• 1995-2000 coupes used 85- to 120-amp units for 2.0 L, 2.5 L and 2.4 L engines. (O'Reilly Auto Parts)

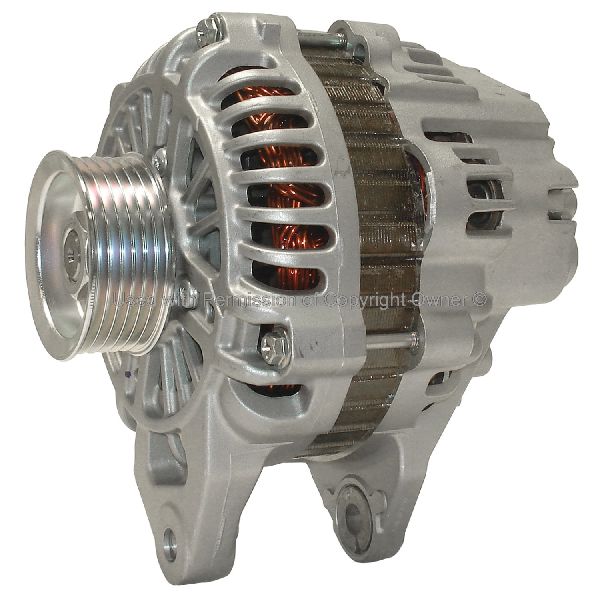

• 2001-2006 sedans and convertibles stepped up to 120 A (2.4 L), 136 A (2.7 L) and 160 A (3.0 L) ratings. (Advance Auto Parts)
• 2007-2010 models with the 2.4 L four kept the 120 A size, while the 2.7 L and 3.5 L V-6 cars got 160 A high-output versions to feed added electronics. (CarComplaints.com)

? scroll table horizontally ?

Amperage data compiled from service-manual specs and field measurements shared by owners. (sebringclub.net, JustAnswer)

• Battery symbol or "ALT" light glowing on the dash. (sebringclub.net)
• Headlights that pulse or dim at idle. (HowStuffWorks)
• Squealing or chirping belt noises near the alternator pulley. (Family Handyman)
• Dead battery after short trips, even when the battery is new. (HowStuffWorks)

1. With engine off, a healthy battery reads about 12.6 V. (Family Handyman)
2. Start the car; voltage should climb to 13.8-14.5 V. (sebringclub.net)
3. Turn on lights and blower; if voltage drops below 13 V, the generator may be failing. (Family Handyman)
4. If voltage stays low but belt is tight, check ground cables and the PCM regulator circuit. (sebringclub.net)

• Disconnect the negative battery cable first for safety. (Family Handyman)
• Remove the serpentine belt by rotating the tensioner with a breaker bar. (Family Handyman)
• Unplug the alternator harness and unbolt the unit (usually two or three M8 bolts). (JustAnswer)
• Install the new alternator assembly, torque bolts to spec, refit belt, then reconnect the battery. (Family Handyman)

Check belt condition every 50 000-60 000 miles or four years; cracks or frays speed alternator wear. (Family Handyman) Keep oil and coolant leaks off the belt; fluids can cause slip and heat. (Family Handyman) Clean battery posts twice a year so the alternator doesn't work harder than needed. (HowStuffWorks)

• Worn brushes or bearings after 100 000-150 000 miles of use. (PartsGeek)
• Heat buildup from a loose or glazed belt. (Family Handyman)
• Voltage spikes from jump-starting with reversed polarity. (HowStuffWorks)
• Water entry if the plastic splash shield is missing. (Car Complaints)

Replacing the charging generator often means inspecting:

• Serpentine belt and automatic tensioner for smooth travel. (Family Handyman)
• Battery-weak cells strain the alternator. (HowStuffWorks)
• Starter motor-hard cranking can hint at wiring-voltage drops. (HowStuffWorks)

Old alternators are 100 % recyclable for copper, aluminum and steel, cutting landfill waste. (Cohen) Many shops offer a core-return credit that helps parts get back to smelters and reduces mining of new metals.

? scroll table horizontally ?

Q: How long should a Sebring alternator last?
A: Owners report 100 000-180 000 miles before major wear, depending on driving habits and belt care. (PartsGeek)

Q: What voltage should I see while driving?
A: A healthy charging unit keeps the system between 13.8 V and 14.5 V. (Family Handyman)

Q: Can a bad alternator drain the battery overnight?
A: Yes. Shorted diodes can let current flow backward and empty the battery even with the key off. (HowStuffWorks)

Q: My belt squeals on cold mornings. Does that hurt the alternator?
A: Belt slip lets the pulley overheat and can shorten bearing life, so fix belt tension right away. (Family Handyman)

Q: Is the Sebring alternator hard to replace at home?
A: Most DIYers can swap it in under two hours with basic tools and a belt-routing diagram. (JustAnswer)

Q: Do I need to disconnect the battery first?
A: Always remove the negative cable to prevent sparks or PCM damage. (Family Handyman)

Q: Why did my new alternator fail so soon?
A: Common reasons are cheap rebuilds, a slipping belt, or a weak battery over-loading the unit. (sebringclub.net)

Q: What if my voltage regulator is inside the PCM?
A: On many 2.7 L models, the PCM controls field current; if charging stays low after a new alternator, test the regulator circuit next. (sebringclub.net)

Q: Are there any recalls for Sebring alternator fires?
A: Some vehicles have recalls for belt or bearing issues that could overheat the alternator drive; check your VIN on the NHTSA site to be sure. (NHTSA Static)

Q: Can I upgrade to a higher-amp unit?
A: Yes, 160 A or even 180 A units fit most V-6 brackets, but confirm pulley alignment and wire size first. (Advance Auto Parts)

For wiring diagrams and torque specs see the factory service manual or trusted repair databases. (Dealer eProcess) Forums like SebringClub share step-by-step photos from fellow owners. (sebringclub.net) If you need recall details, visit the official NHTSA lookup page. (NHTSA Static)
