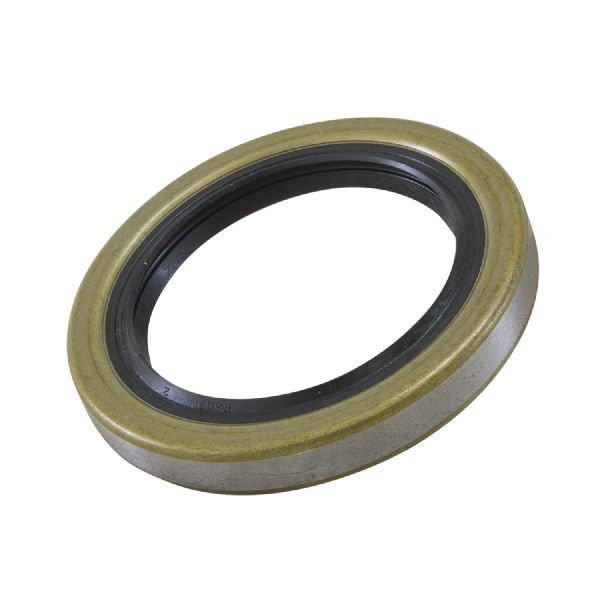

Ford Bronco Differential Pinion Seal Replacement

1.813 Shaft Diameter 2.776 Bore Diameter 2.781 Outside Diameter Seal 0.432 Width with 8.8 Ring Gear

8.8 in. Reverse; 7.5 in. 10 Bolt Or Rear Ford 8.8 in.; Front Or Rear

1.813 Shaft Diameter 3.001 Bore Diameter 3.006 Outside Diameter Seal 0.563 Width

3 in. O.D. Ford 9 in.; 3 in. O.D.

8.80" Ring Gear FAG Global Number 413 2865 100

1.813 Shaft Diameter 2.777 Bore Diameter 2.781 Outside Diameter Seal 0.608 Width with 9 Ring Gear

Replacement Dana 44; Standard Rotation; Pinion seal; 3.165 in. x 1.552 in. x 0.53 in.

1.552 Shaft Diameter 3.160 Bore Diameter 3.165 Outside Diameter Seal 0.665 Width From Serial # K20001

FAG Global Number 413 2934 100

with 9 (in) Ring Gear with Ford H/D Axle

9 in. Ring Gear

with 8.8 (in) Ring Gear with Ford Axle

From Chassis #K20001 FAG Global Number 413 2633 100

Nitrile with 8.5 (in) Ring Gear with Spicer 44-1F Axle

with 0.530in Width with Dana 44 Axle

8.8 in. Ring Gear

with Dana 44 AdvanTEK Rear Axle

Viton Type with 8.5 (in) Ring Gear with Spicer 44-1F Axle

9 in. 10 Bolt; 35 Spline Only 9 in. 10 Bolt; 35 Spline Pinion Only
