Buy Ford Explorer Sport Trac Alternators

• Model years covered: 2001-2005 (1st gen) and 2007-2010 (2nd gen) Explorer Sport Trac pickups (Kbb.com)
• Engine pairings: 4.0 L SOHC V-6 (all years) and 4.6 L SOHC 3-valve V-8 (2007-2010)
• Stock output: ~120 A (early V-6), 130-135 A (later V-6 & V-8) (Ford Parts, PartsGeek)
• Alternator family: Ford 3G on some early trucks, Ford 6G on later V-6 and all V-8 models (Ford Explorer Forums)
• Average replacement cost: $377-$451 nationwide; parts ~70 % of total (RepairPal.com)
• Warning signs: battery light glowing, dim headlights, whining or grinding noise, engine stalling (JustAnswer, Reddit)

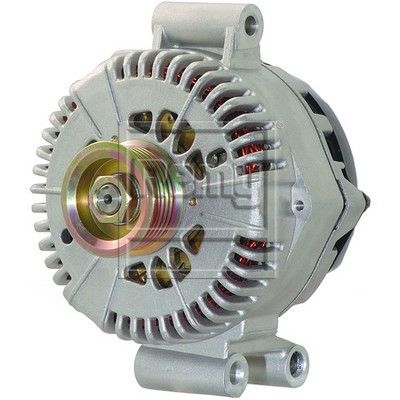

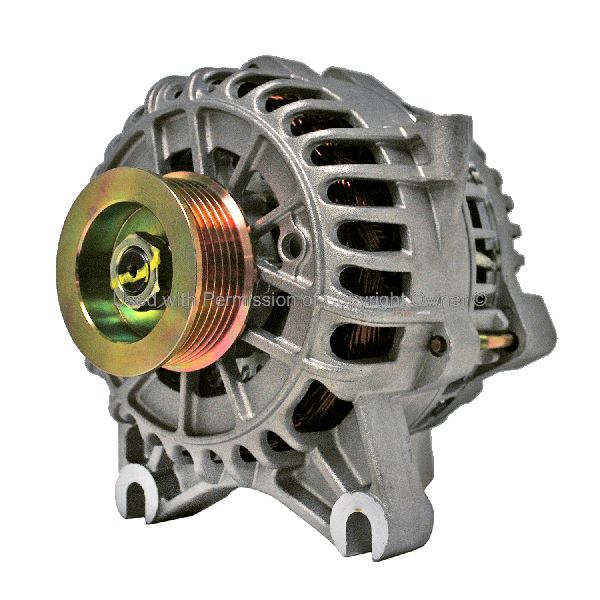

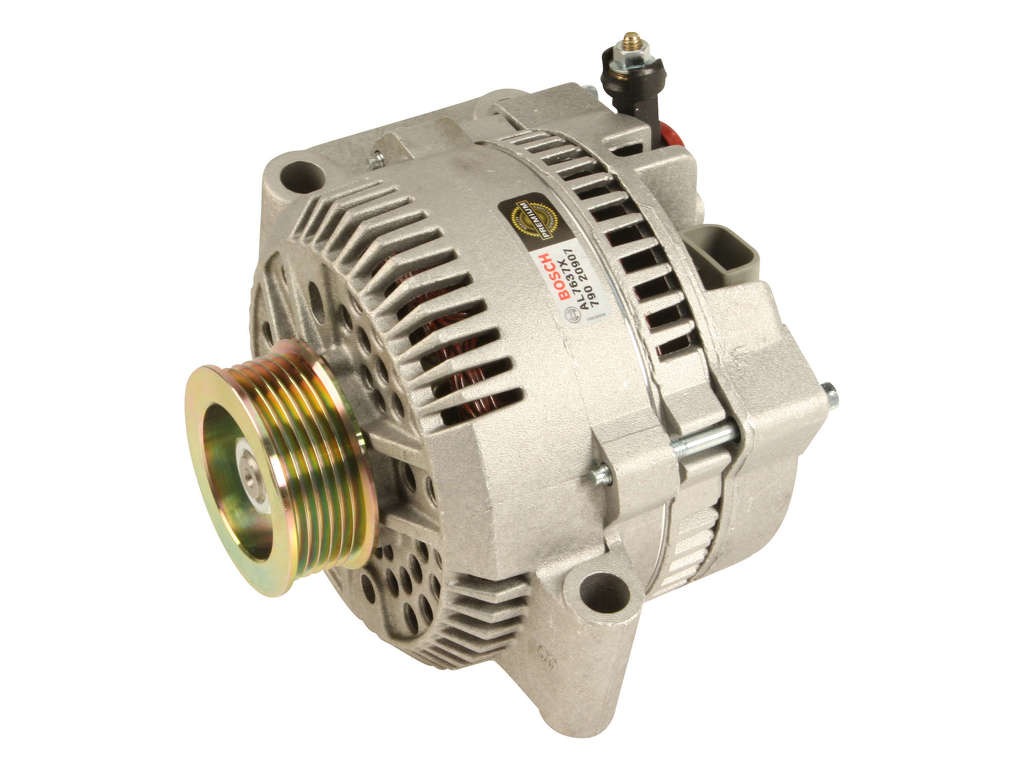

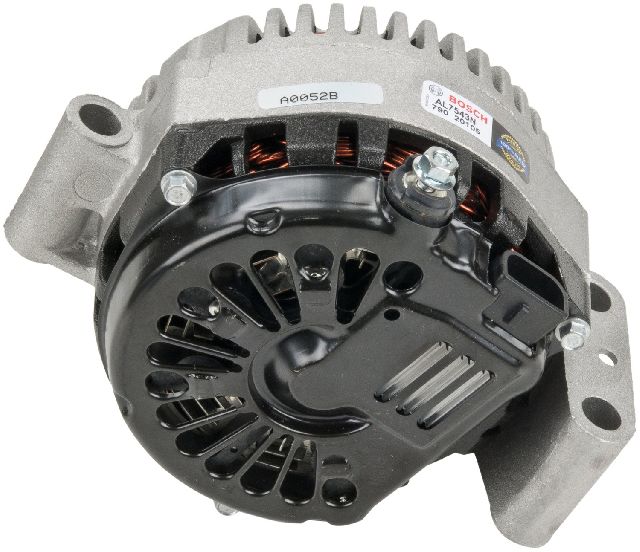

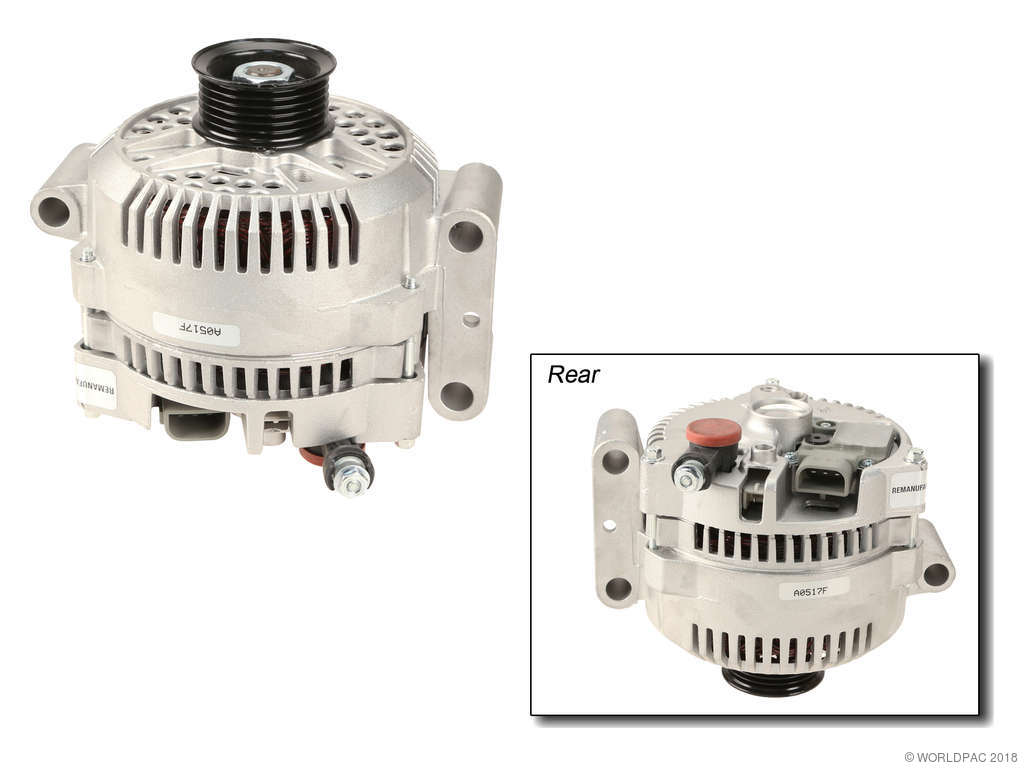

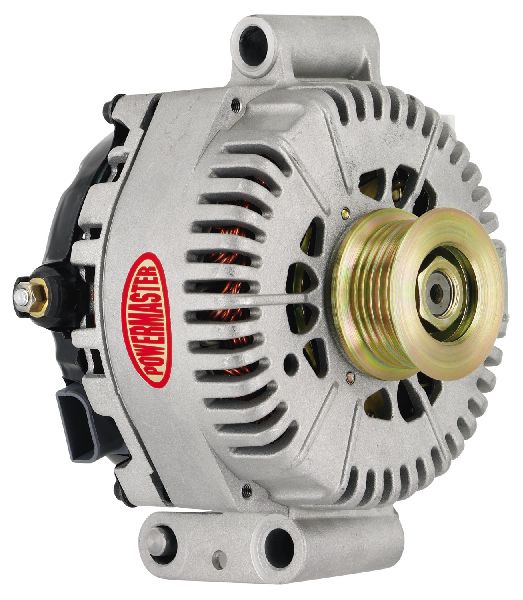

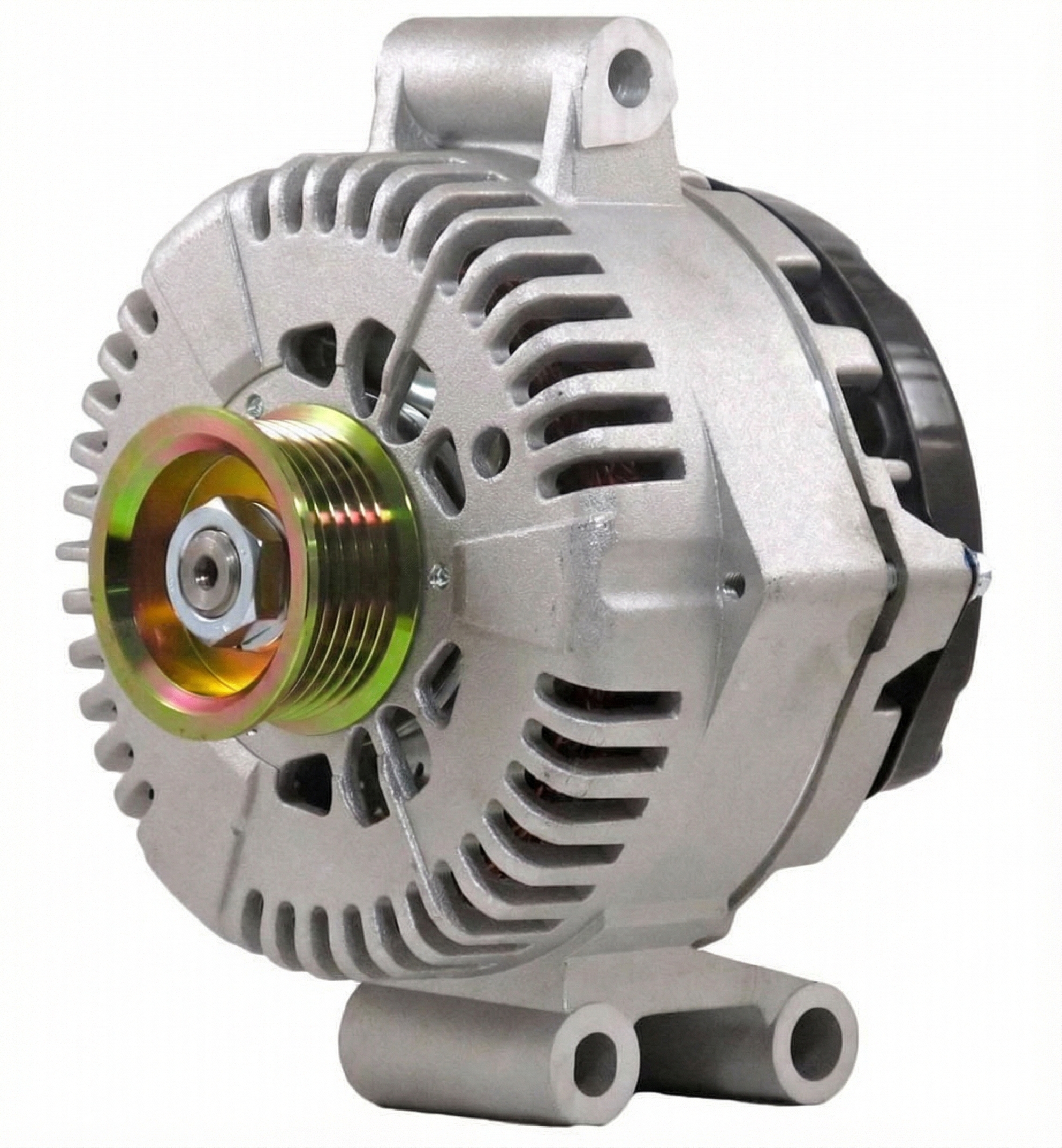

Ford categorized Sport Trac alternators by amperage and plug clock position. Early 2001-2004 trucks often carried a 120-amp 3G unit; later V-6 trucks upgraded to a 130-amp 6G, while V-8 models received a 135-amp 6G with an internal fan (Ford Parts, PartsGeek). Bolt patterns are the same across engines, so higher-output 6G units can replace lower-amp originals if the pulley and plug orientation match (Ford Explorer Forums, Quality Power). Common Motorcraft part numbers you may encounter on the housing or rebuild kits include GL-8740-RM for 120 A and GL-9097-RM for 130 A assemblies (Ford Parts). High-output aftermarket options push 200-320 amps for heavy accessory loads, but you must upgrade wiring to handle the extra current (Maniac Electric Motors, Lincoln Forums).

1. Battery light stays on or flashes-Ford's dash lamp indicates the PCM sees low charging voltage (JustAnswer).
2. Dim or flickering headlights and interior lamps, especially at idle, point to poor alternator output.
3. Electrical accessories quit (radio, HVAC fan) as battery voltage drops below ~12 V (Reddit).
4. Whine or grinding noise hints at worn bearings inside the generator.
5. Burning smell can come from a seized alternator pulley and slipping belt.

A simple multimeter test tells the story:

1. Start the engine and set accessories off.
2. Probe the battery posts-healthy systems read 13.5-14.8 V DC (YouTube).
3. Turn on headlights and blower; voltage should stay above 13 V.
4. Read under 13 V? Retest directly at the alternator B+ terminal to rule out cable drops.
5. If voltage is still low, the alternator's internal voltage regulator or diodes have likely failed (YouTube).

Swapping the unit takes about one hour with hand tools; always follow safe-work practices:

1. Disconnect the negative battery cable to protect the PCM (YouTube).
2. Loosen the serpentine belt using a 3⁄8-inch ratchet on the tensioner.
3. Unplug the regulator harness and remove the B+ nut.
4. Remove the two mounting bolts and lift out the old alternator.
5. Seat the new unit, torque bolts to factory spec (~30 lb-ft), reconnect wiring, and reinstall the belt.
6. Clear any battery light codes by running the engine and verifying 14 V output.

Tip: Keep the old core-rebuilders recycle copper windings and iron housings, reducing landfill waste and often earning you a refund credit (Maniac Electric Motors).

RepairPal shows national averages of $377-$451 for a complete alternator swap on a Sport Trac; labor typically runs $97-$143 while the part itself is $279-$308 (RepairPal.com). YourMechanic's mobile-service data is similar, quoting ~$344 total with $204 parts and $140 labor (YourMechanic). Prices vary by output rating and location; V-8 units cost slightly more, and high-amp upgrades can exceed $400 for the part alone.

• Inspect the drive belt at every oil change; cracks or glazing reduce grip and can hasten alternator failure (Ford Service Content).
• Keep terminals clean-corrosion increases resistance and heat.
• Use an AGM or flooded battery that meets Ford spec so the voltage regulator can maintain proper charge profiles (NHTSA).
• Limit jump-starts; voltage spikes stress diode packs.
• Run high-draw accessories with the engine running to prevent deep discharges that shorten alternator life.

A failing alternator often drags other components along:

← scroll table horizontally →

Automotive alternators are 100 % recyclable. Professional rebuilders replace bearings, brushes, and regulators, diverting roughly three pounds of aluminum and copper from the waste stream per unit (Maniac Electric Motors, Quality Power). Returning your core also keeps heavy metals like lead solder within controlled facilities rather than landfills.

Q: What size alternator came stock on my 2004 Sport Trac?
A: Most 2001-2004 V-6 trucks left the factory with a 120-amp Ford 3G generator; later 2004 and all 2005 V-6 models upgraded to a 130-amp 6G unit (Ford Parts, Ford Explorer Forums).

Q: Can I install a higher-output alternator for a big stereo?
A: Yes. Aftermarket 200-plus-amp 6G-style units bolt in, but you must upsize the battery-to-alternator cable (often 4-gauge) and add proper fusing for safety (Maniac Electric Motors, Lincoln Forums).

Q: The battery light flickers at idle-does that always mean a bad alternator?
A: Not always. Loose belts, corroded ground straps, or a weak battery can trigger the same lamp. Verify voltage at the alternator and at the battery before replacing parts (JustAnswer, YouTube).

Q: What voltage should I see after a cold start?
A: Expect about 14.2 V (±0.3 V). Once the battery is topped up, Ford's PCM may drop charge voltage closer to 13.5 V to save fuel and reduce wear .

Q: Is there a recall on Sport Trac alternators?
A: No alternator-specific recalls exist for Sport Trac models, though a 2007 campaign addressed transmission-cooler lines on some V-8 trucks (Kbb.com).

Q: How long does an alternator last?
A: Many original Sport Trac units exceed 120,000 miles, but high heat, big electrical loads, or frequent short trips can shorten life. Plan on inspection or replacement every 10-12 years.

Q: Why did my new alternator quit after a week?
A: Common causes are a weak battery that strains the replacement, a loose belt, or overlooked corroded cables. Always load-test the battery and clean connections during replacement (Reddit).

Q: Can I rebuild the alternator myself?
A: Yes-brush and bearing kits for the 3G/6G cost under $40 and come with step-by-step guides for hobbyists with soldering skills (Maniac Electric Motors).

Q: What tools do I need for a driveway swap?
A: A basic metric socket set (10 mm, 13 mm), 3⁄8-inch ratchet, torque wrench, belt-tensioner bar, and a multimeter are sufficient (YouTube).

Q: Does upgrading affect fuel economy?
A: A high-output alternator draws slightly more engine power under load, but the difference is minimal unless you frequently run large accessories.

Q: Is the voltage regulator separate?
A: On 6G units it's integrated; on early 3G generators you can replace the regulator without pulling bearings (eBay).

Q: What amperage do I need for a tow-package Sport Trac?
A: Ford matched tow-package trucks with 130-135 amp units. If your truck has extra lighting or a camping fridge, consider a 200 amp upgrade (Lincoln Forums).

By understanding how the Sport Trac's alternator (a.k.a. generator or charging unit) works, spotting early warning signs, and following the straightforward DIY-friendly replacement steps above, you'll keep your truck's battery strong and its electronics humming for years to come.
