The Ford Mustang's fuel injector-sometimes called a fuel nozzle or injector valve-is a small but mighty part that sprays gasoline (or E-85) into each cylinder in a fine mist. Healthy injectors keep your pony car running smooth, powerful, and clean. When an injector clogs, leaks, or the O-ring fails, you can face rough idle, misfires, strong fuel odor, poor mileage, or even a fire risk.

A fuel injector is an electronically controlled spray nozzle that opens for milliseconds, delivering metered fuel to the engine. Port-injected Mustangs use eight injectors-one per cylinder-while EcoBoost engines add a direct-injection rail for finer atomization. Compared with older carburetors, injectors allow more precise fuel metering, which boosts power and cuts emissions according to the fuel injection overview.

Inside the injector body is a pint-size solenoid, filter basket, pintle, and spring. When the powertrain control module (PCM) energizes the solenoid, the pintle lifts and lets fuel spray through tiny holes in a cone shape. Spray angle, hole count, and fuel pressure (about 39 psi on most Mustangs) determine flow and mixing efficiency. (performanceparts.ford.com)

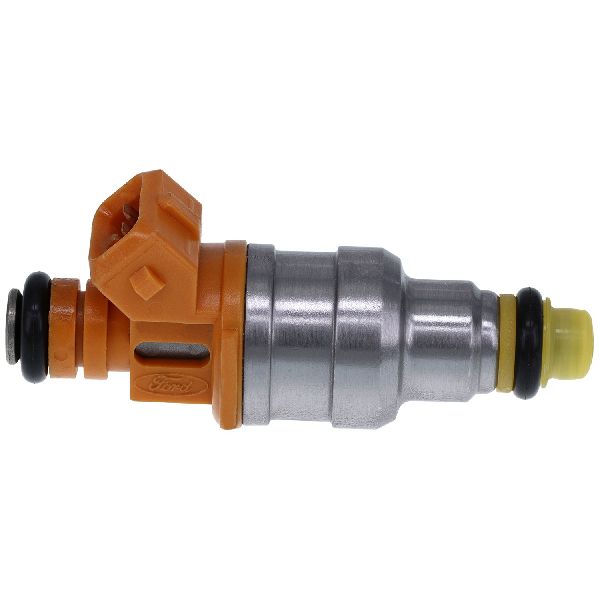

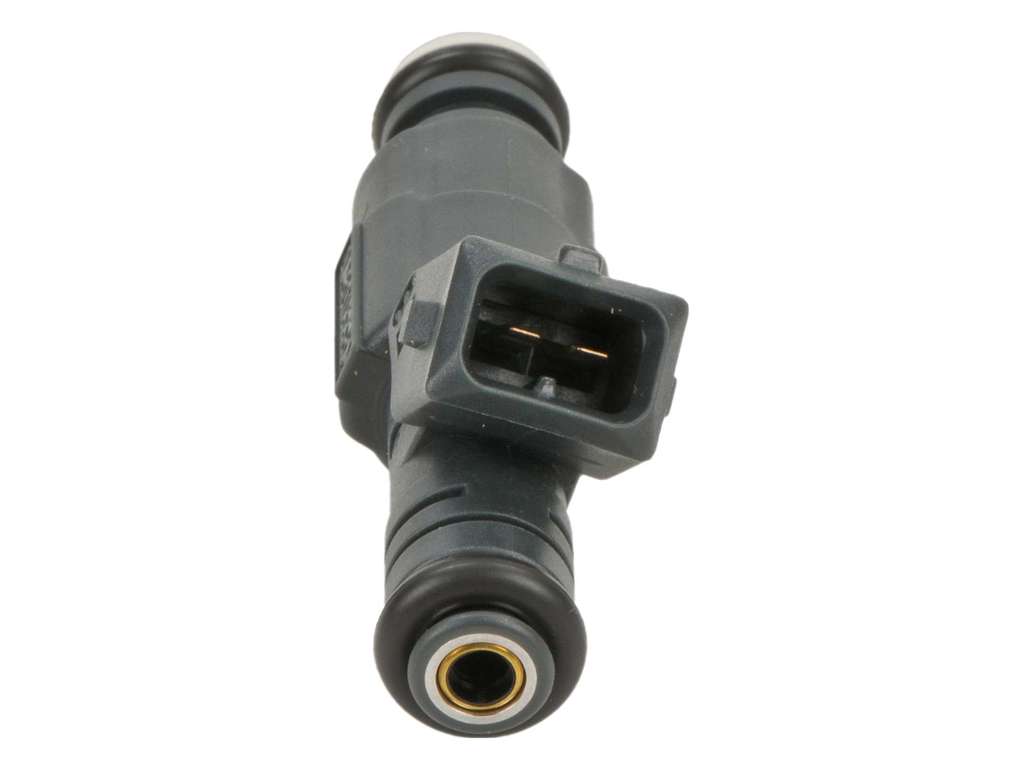

• 1986-1995 5.0 L HO (Fox & SN95): 19 lb/hr orange-top injectors are factory-issue. (performanceparts.ford.com)
• 1993-1995 Cobra: Upgraded to 24 lb/hr blue-tops to feed the GT-40 heads.
• 1996-2004 4.6 L SOHC/DOHC: Still 19 lb/hr, but with a slimmer EV6 body after 1999 for better spray.
• 2003-2004 Cobra (Terminator): 39 lb/hr "green" injectors match the Eaton supercharger.

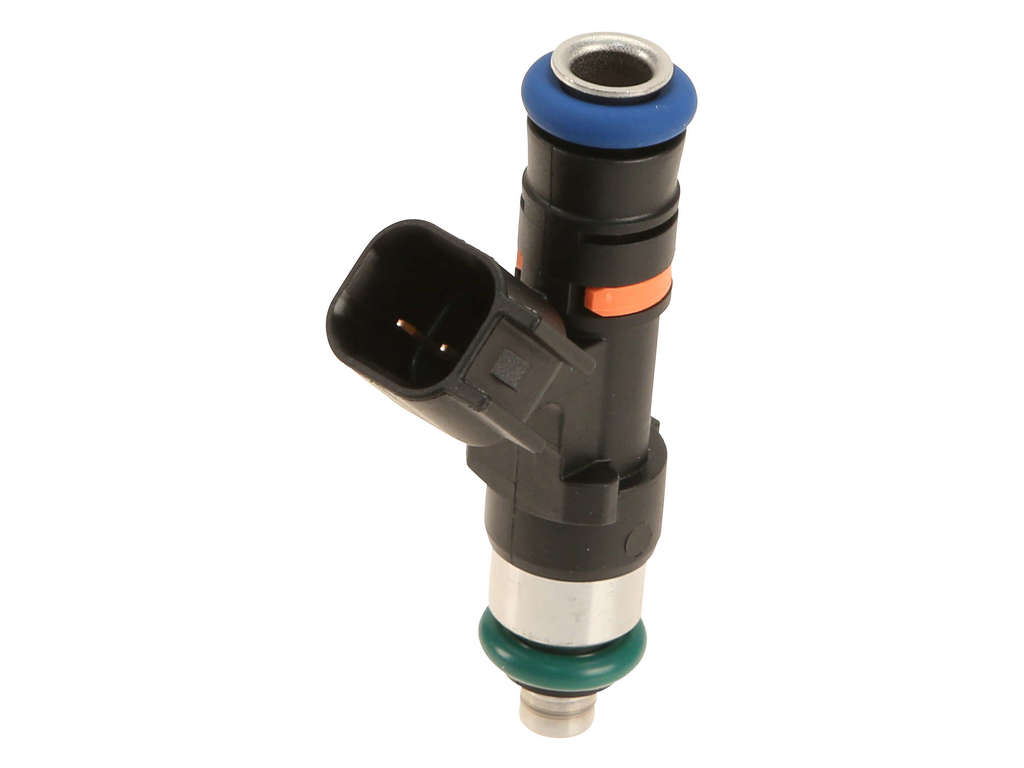

• 2005-2014 4.6 L & 5.0 Coyote: 47 lb/hr long EV14s in later GTs for higher power. (performanceparts.ford.com)
• 2015-2023 Coyote Gen 2-3: 24-hole 37 lb/hr direct-fed injectors plus port units on Gen 3. (lethalperformance.com)
• 2024-on S650: Revised multi-cone injectors; early recall for missing O-ring support discs on a small batch. See the NHTSA recall page for VIN checks. (static.nhtsa.gov, static.nhtsa.gov)

Ford rates injectors at a standard 39.15 psi delta pressure. To estimate needed flow:
Flow(lb/hr)=(HP×BSFC)÷(NumberofInjectors×DutyCycle)Flow (lb/hr) = (HP × BSFC) ÷ (Number of Injectors × Duty Cycle) (lmr.com)
A naturally aspirated 450 HP Coyote with a 0.50 BSFC at 85 % duty needs ~ 53 lb/hr injectors, so 55 lb/hr units offer headroom.

• Rough idle or popping exhaust note (corral.net)
• Gasoline smell inside or outside the car (corral.net)
• Hard-start after heat-soak (fuel drips onto hot intake) (static.nhtsa.gov)
• Check-engine codes P0201-P0208 or misfire codes (youtube.com)

1. Ohm Test: Unplug and measure resistance-Ford spec is about 11-14 Ω for high-impedance units. (corral.net)
2. Noid Light: Confirms PCM pulse.
3. Fuel-pressure Drop: A leaking nozzle lowers line pressure when you shut the pump off.
4. Scan Data: Look for short-term fuel trim over +15 %.

Need a walk-through? This multimeter how-to video shows each step.

Periodic injector cleaning helps prevent carbon buildup-especially on direct-injection EcoBoost valves where fuel no longer washes intake ports. A professional pressurized cleaner every 30-45 k miles can restore lost flow. The U.S. EPA warns that over-the-counter "power pills" rarely improve mileage; stick with reputable services. (mustangecoboost.net, epa.gov)

1. Depressurize the fuel rail via the Schrader valve.
2. Disconnect battery ground.
3. Remove intake plenum; torque on reinstall is 8-10 ft-lb upper, 16-18 ft-lb lower. (stangnet.com)
4. Unclip electrical connectors and rail bolts.
5. Pull injectors straight out; twisting can tear O-rings.
6. Lubricate new seals with clean engine oil before seating.
7. Cycle key twice to prime and check for leaks.

• Larger Injectors: Choose high-impedance EV14 47 lb/hr or 80 lb/hr sets for boosted builds-just remember to tune the PCM. (performanceparts.ford.com, performanceparts.ford.com)
• Spray Pattern: A six-hole dual-cone pattern improves air-fuel mixing, sharpening throttle response. (sae.org)
• E-85 Ready: 2015-2017 GTs can run ethanol blends on stock injectors up to ~ 500 HP with a proper ECU tune. (lethalperformance.com)
• Sequential vs. Batch: Later PCMs fire injectors in exact cylinder order for cleaner emissions and smoother idle. (classicbroncos.com, forums.holley.com)

Faulty injectors that leak raw fuel onto a hot manifold can ignite. Ford's 2024 bulletin cites missing O-ring discs as the root of a recent recall-dealers replace affected parts free. (static.nhtsa.gov)
Using the NHTSA tool lets owners check recalls by VIN in seconds. Always recycle old injectors and fuel-soaked rags at certified hazardous-waste facilities.

Q: What does a fuel injector do?
A: It's a tiny valve that squirts a precise mist of fuel into the engine so the spark plug can ignite it.

Q: How long do factory Mustang injectors last?
A: With clean fuel and regular maintenance, many last 150,000 miles or more before flow drops.

Q: Can I drive with a bad injector?
A: It may run, but you risk washing cylinder walls with excess fuel, damaging the catalytic converter, or even causing a fire if it leaks.

Q: Why does my 5.0 L Mustang have orange-top 19 lb injectors?
A: Ford chose that size for stock 225 HP output; bigger injectors are only needed when horsepower climbs.

Q: Do I need a tune after installing larger injectors?
A: Yes. The PCM must know the new flow rate so it can shorten the on-time and keep the air-fuel ratio safe.

Q: What's the difference between high-impedance and low-impedance?
A: It's the resistance of the injector coil. Most modern Mustangs use high-impedance (12 Ω) units that work directly with the stock PCM.

Q: How can I tell if my injector O-ring is leaking?
A: Look for wet fuel around the rail or smell raw gasoline after parking; a smoke test may also reveal seepage.

Q: Will injector cleaners fix a dead injector?
A: They can clear mild varnish, but a stuck or electrically open injector usually needs professional cleaning or replacement.

Q: Is direct injection better?
A: Direct injectors spray right into the combustion chamber, improving power and lowering emissions, but they cost more and see higher pressures.

Q: Can injectors handle E-85 ethanol?
A: Many late-model OE injectors are built with stainless internals and Viton seals that resist ethanol, yet always verify flow capacity and get the PCM calibrated for the richer fuel.

Q: Are bigger injectors the same as a bigger fuel pump?
A: No. Injectors meter the fuel; the pump supplies it. High-flow injectors still require a pump that keeps adequate pressure.

Q: How often should I replace injector O-rings?
A: Any time you pull the rail, replace the upper and lower O-rings-they're cheap and prevent leaks.

Q: Does injector firing order match spark firing order?
A: In sequential systems, yes. The PCM times each injector to open just before its cylinder's intake valve.

Q: What tool eases removal?
A: A small fuel-line disconnect tool pops the rail loose; gentle rocking frees the injector without damage.

Q: Is there a recall on my Mustang's injectors?
A: Use the or call Ford with your VIN to see open safety recalls.
