Buy Ford Ranger A/C Condensers

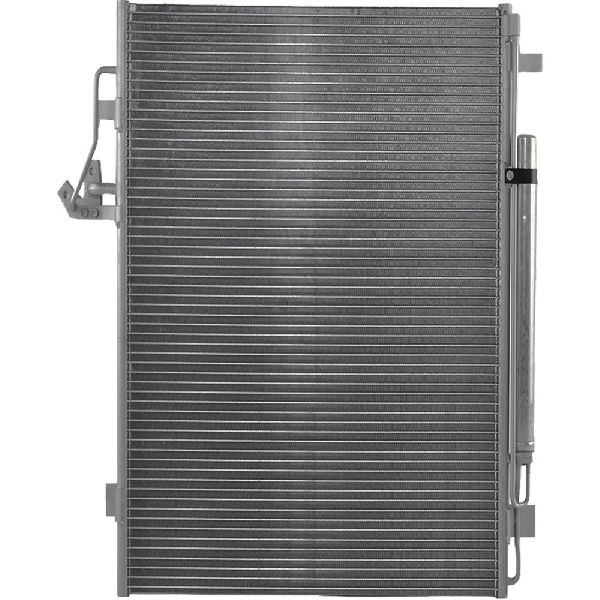

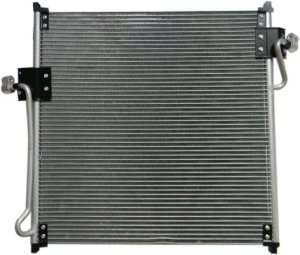

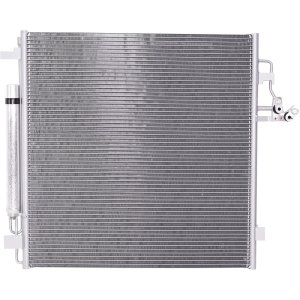

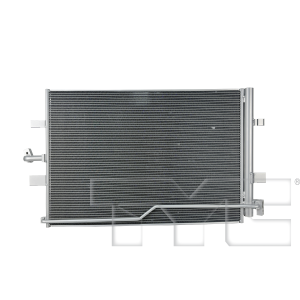

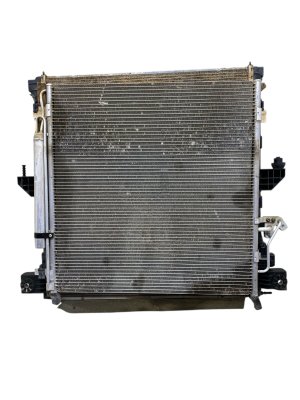

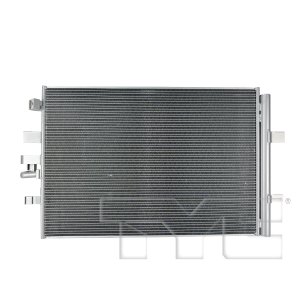

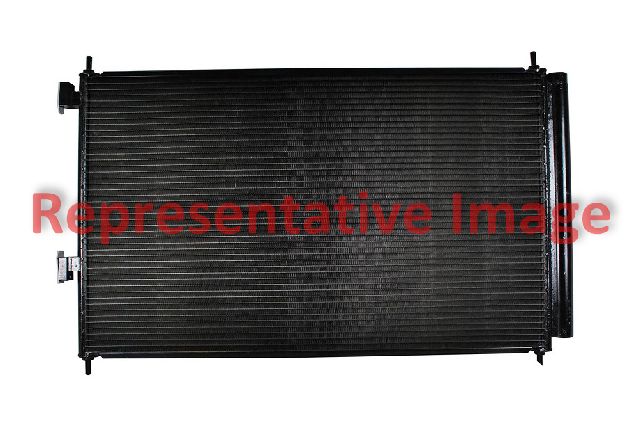

A Ford Ranger A/C condenser (also called an air conditioning condenser, AC radiator, condenser coil, or A/C cooler) is the thin, radiator-like part at the front of the truck that dumps heat from the refrigerant. Hot, high-pressure vapor from the compressor enters the condenser and leaves as a cooled, high-pressure liquid. That liquid moves on to the rest of the system to make cold air inside the cab. For a simple walk-through of a condenser's job in a vehicle A/C system, see this short explainer from MACS.

The condenser is mounted at the very front of the Ranger, just behind the grille and in front of the engine radiator. Air moving through the grille-and the cooling fans-flows across its fins to carry heat away. That front-row position is great for cooling, but it also means the part can be exposed to bugs, leaves, and road grit. A clear, plain-English location note appears in this training article from UTI.

Think of the condenser like a small radiator for your air-conditioning. The compressor squeezes refrigerant into a hot gas. The condenser cools that gas back into a liquid by giving off heat to the outside air. Good airflow is everything-blocked fins or weak fans mean poor cooling at the vents. For a simple system overview, see UTI's "How Car A/C Works."

• Most late-model U.S. Ford Rangers (2019 and newer, 2.3L EcoBoost) use R-1234yf refrigerant and a specific PAG oil listed in the owner's manual. Always match the refrigerant and oil listed on your Ranger's under-hood A/C label.
• Some Rangers in other markets and earlier generations used R-134a. If you're working on an older or non-U.S. model, verify type before service.
• Not sure what yours takes? The under-hood label is required by SAE J639 and tells you the exact refrigerant and charge amount for that vehicle.
• R-1234yf systems have unique service fittings and safety rules. EPA's listing explains the use-conditions and SAE standards (J639, J2844).

• A/C blows warm, especially at idle or in traffic.
• Short cold bursts, then warm air.
• Oily, dirt-sticky spots on the condenser fins (refrigerant mixed with oil often leaves a stain).
• Fans run hard, but vent air still isn't cold.
Basic leak-detection and symptom checks are covered in ASE's refrigerant recovery/609 guide.

• Physical damage to the thin fins/tubes (front-of-truck exposure).
• Corrosion and age.
• Internal debris after a compressor failure. When a compressor fails, best practice is to replace the filter-drier/desiccant and expansion device (orifice tube/TXV) to protect the new parts and keep warranties valid, per MACS.

1. Look through the grille with a flashlight. Bent or clogged fins? Oily spots?
2. UV dye or an electronic leak detector helps find small leaks.
3. Check that both cooling fans work and that nothing blocks airflow.
4. Use proper manifold gauges and follow service procedures in EPA Section 609 resources (overview and training PDF). (US EPA, ase.com)

• Recover refrigerant-venting is illegal. See EPA's MVAC servicing rules.
• Remove front trim as needed, disconnect lines, and swap the condenser. Replace all O-rings.
• Replace the receiver-drier or desiccant bag any time the system has been open, and especially after compressor failure (MACS guidance).
• Add the correct type/amount of oil for your exact Ranger (owner's-manual "Capacities and Specifications"; example for U.S. 2.3L models shows R-1234yf refrigerant and specified PAG oil).
• Evacuate with a vacuum pump, then recharge by weight using certified equipment. SAE J2788 sets accuracy for R-134a machines, and similar standards apply for R-1234yf service machines; don't charge by "feel." See SAE J2788 and EPA's rule clarifying that even "top-off only" shops must use approved equipment in compliance with Subpart B of 40 CFR Part 82. (SAE International, eCFR)

With the truck running, select MAX A/C (recirculated air) for the fastest cooldown-this is how Ford recommends quick cooling in Ranger manuals. See the "Recirculated air / MAX A/C" notes in the owner's manual and this climate control page. (Ford Service Content)

• Keep the grille area clear of leaves, bugs, and mud so air can flow.
• Rinse gently with low-pressure water; don't bend fins.
• Fix cooling-fan issues quickly; weak airflow can raise pressures and stress the system.
• Follow the label under the hood for the exact refrigerant and charge amount-this label is required by SAE J639.

• Venting any refrigerant (R-1234yf, R-134a, etc.) is illegal. Use recovery machines. See EPA's MVAC servicing requirements.
• If you repair A/C for pay, U.S. law requires Section 609 certification. See the EPA's 609 certification page.
• R-1234yf systems must follow specific safety standards and unique fittings; details are in EPA's HFO-1234yf listing.

Q: What does the condenser do in my Ranger's A/C?
A: It removes heat from the refrigerant so the system can blow cold air. It looks like a thin radiator up front. Learn more from MACS.

Q: Where is the condenser located?
A: In front of the radiator, behind the grille, to get the most airflow. See this location overview.

Q: Which refrigerant does my 2019-present U.S. Ranger use?
A: Most use R-1234yf. Check your under-hood A/C label or your owner's manual "Capacities and Specifications" section for your exact truck (example Ranger page).

Q: Do older Rangers use R-134a?
A: Many do (varies by market and year). Some international Ranger manuals list R-134a; always confirm by label/manual for your exact model. Here's an example Ranger spec page showing R-134a.

Q: How do I find the correct charge amount?
A: Read the A/C label under the hood; it lists refrigerant type and the precise fill weight. That label is required by SAE J639.

Q: Is it okay to "top off" the A/C without using recovery/recharge equipment?
A: No. Venting refrigerant is illegal, and even shops that only "top off" must use approved recovery/recycling gear under 40 CFR 82 Subpart B.

Q: Do I need to be certified to work on my own truck's A/C?
A: Certification (EPA Section 609) is required if you repair or service MVAC for payment. DIYers still must follow the law (no venting, proper handling). See EPA Section 609.

Q: Should I replace the receiver-drier/desiccant when I change the condenser?
A: Yes-especially if the system has been open or the compressor failed. It protects the new parts and is commonly required for compressor warranties, per MACS.

Q: What are signs my condenser is leaking?
A: Warm air, dye traces under UV light, or oily residue on the fins. ASE's Section 609 materials cover common leak checks and good service practices (overview).

Q: Why is MAX A/C colder than normal A/C?
A: MAX A/C uses recirculated air, which cools faster than hot outside air. Ford explains this in the Ranger owner's manual (example climate control page).

Q: Can road debris damage a condenser?
A: The part sits at the front of the truck, so it can be struck by debris and have bent fins or leaks. Keeping the grille area clean helps airflow. General placement and airflow notes are covered in UTI's guide.

Q: After replacing the condenser, how should the system be recharged?
A: Evacuate, then recharge by the exact weight on the label with certified equipment. See SAE J2788 for charge accuracy and EPA rules for approved recovery/recycling.

Q: Which oil does my Ranger A/C use?
A: Use the oil specification listed for your engine and market in the owner's manual (for many late U.S. models: Motorcraft R-1234yf PAG Oil).

Q: Is R-1234yf flammable?
A: It's mildly flammable and has special safety requirements. That's why the systems use unique fittings and follow SAE standards; see EPA's HFO-1234yf listing.

Q: Can I mix R-134a and R-1234yf?
A: No. Never mix refrigerants. Use only the type listed on your label. The label and fittings are there to prevent mixing (see SAE J639 label note).

Q: Do I need to pull the front bumper to replace the condenser?
A: Access varies by model year and trim. Many trucks require front-end disassembly to get the condenser out. Always follow the factory service procedures for your build and driveline. Your owner's manual links to service info and key climate control notes; start with the Ranger manual hub.

Q: What else should be replaced with the condenser?
A: New O-rings, and often the receiver-drier/desiccant. If a compressor failed, replace the expansion device and follow clean-system procedures. See MACS compressor/drier guidance.

Q: Why is vent air cool while driving but warm at idle?
A: Airflow is higher at speed. At idle, weak fans, clogged fins, or high system pressure can reduce cooling. System basics and airflow effects are explained in UTI's overview.

Q: What's the fastest way to cool the cab after start-up?
A: Use MAX A/C (recirculate) and set the fan high. Ford's climate-control sections recommend MAX A/C for quick cooldown on the Ranger. See the recirculated-air note.

Q: Is it okay to run the A/C with a suspected leak?
A: It might cool a little, but running low on refrigerant can hurt the compressor and is not environmentally safe. Follow EPA guidance and repair leaks using proper recovery and recharge (EPA MVAC hub).

Q: Do I have to flush the system when replacing a failed compressor and condenser?
A: Follow factory procedures. In general, after a compressor sheds debris, techs replace the drier/desiccant and expansion device and ensure the rest of the system is clean before recharging (see MACS best-practice note).

Q: Why do new trucks use R-1234yf?
A: It has a much lower global-warming impact than R-134a and is approved by EPA for new MVAC systems with specific safety standards. See EPA's HFO-1234yf listing.

Q: Can I add a screen behind the grille to protect the condenser?
A: Some owners add a fine mesh screen to help block pebbles and bugs. If you do, make sure it does not restrict airflow.

Q: How often should I service the A/C?
A: There's no fixed interval-service it when performance changes or when components are replaced. Any paid servicing must follow EPA Section 609.

If you want, tell me the exact model year/engine and I'll tailor the refrigerant, oil spec, and any install watch-outs for that specific Ranger.
