Key Points

The engine-coolant thermostat housing-also called the water outlet, coolant outlet, or thermostat cover-keeps the thermostat sealed, directs hot coolant out of the Kia Optima's engine, and provides a mounting point for sensors and hoses. When the housing cracks or its gasket fails, coolant escapes, the engine overheats, and expensive damage such as warped heads or bearing wear can follow. Kia's own service guide stresses leak-free operation and the right bolt torque (13.7-17.4 lb·ft) when the housing is re-installed. (Kioptima, Be Car Care Aware, Wikipedia)

New Section:

What It Does

Inside the sealed housing sits a wax-pellet thermostat. When coolant reaches about 195 °F, the pellet melts, the valve opens, and hot fluid flows to the radiator; below that point the valve stays shut so the engine warms quickly. (, Be Car Care Aware)

New Section:

Where It Sits

On most 2011-2020 Kia Optima models, the housing bolts to the cylinder block near the upper radiator hose and water-pump inlet; some 2.0 T and 2.4 GDI versions place it on the lower hose. (Kioptima, Mechanic Base)

New Section:

Signs of Trouble

• Puddles of bright-green or orange coolant under the passenger-side engine bay. (Optima Forums)
• Sweet odor or steam around the coolant outlet. (Mechanic Base)
• Unstable temperature gauge or overheating after start-up. (Mechanic Base, YouTube)
• Trouble codes P0125, P0128, or coolant temperature too low/high. (, MOTOR)

New Section:

Why It Fails

• Heat-cycle fatigue-plastic housings can warp and seep after ~100 k miles. (Kia Forums, Bimmerpost)
• Over-tightened bolts-cracks radiate from bolt holes. (Kia Forums)
• Old coolant-acids attack gaskets and polymer walls. (Mechanic Base)
• Engine vibration-Theta-series engines that mis-fire or knock (subject of multiple recalls) shake fittings loose. (NHTSA Static, Wikipedia)

New Section:

Check & Test

1. Let the engine cool.
2. Shine a light along the seam where the thermostat cover meets the block-look for dried coolant flakes. (Optima Forums)
3. Pressurize the system to 15 psi; even a hairline crack will seep. (MOTOR)
4. Scan for P0128 and watch live temp data; a stuck-open thermostat never climbs above 170 °F. (MOTOR)

New Section:

Fixing It

• Drain two quarts of coolant below the housing level.
• Remove the air-cleaner duct for hand room.
• Unbolt the housing with a 10 mm socket; capture the old O-ring.
• Clean mating faces with plastic scraper-no metal tools.
• Set the new thermostat with the jiggle-valve up. (Kioptima)
• Torque the three bolts evenly to 13.7-17.4 lb·ft (18.6-23.5 N·m). (, Kia Forums)
• Refill coolant, then "burp" air until both radiator hoses are hot. (Car Care Central)
  Step-by-step videos for 2011-2015 models show the whole job in under an hour. (YouTube, )

New Section:

Plastic vs Metal

Early Optimas use a lightweight composite outlet; owners on enthusiast boards report seepage by year 7-10. Upgrading to cast-aluminum offers better clamp load and heat resistance, though galvanic corrosion can occur without 50/50 coolant. (Bimmerpost, VW Vortex, Reddit)

New Section:

Prevent Leaks

• Flush coolant every 5 years / 60 k mi to cut acid build-up. (Be Car Care Aware, goodworksautorepair.com)
• Use only HOAT, pre-mixed coolant of the correct silicate level.
• Inspect hoses each oil change for crusty residue at the coolant outlet. (Mechanic Base)

New Section:

Safety Alerts

Although no Kia recall targets the thermostat housing alone, 2011-2013 Optima Hybrids carry a safety campaign for engine-compartment fire risk linked to leaks and bearing wear-another reason to fix cooling issues fast. (NHTSA Static)

New Section:

Compatible Models

The housing design is shared by:

• 2011-2013 Optima 2.4 L GDI & Hybrid
• 2011-2015 Optima 2.0 T

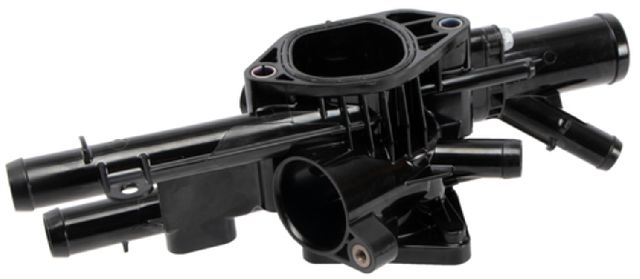

• 2016-2020 Optima/K5 1.6 T & 2.4 MPI (slightly different sensor port)
  Replacement videos confirm identical removal on these engines. (YouTube, YouTube)

New Section:

DIY Level

Intermediate-basic hand tools, a torque wrench, and fresh coolant. Expect 60-90 minutes for first-timers and under 45 minutes once familiar. (YouTube, YouTube)

New Section:

Q: What exactly is a thermostat housing?
A: It's the metal or plastic shell that seals the thermostat and guides coolant from the engine to the radiator.

Q: What other names does it go by?
A: Water outlet, coolant outlet, or thermostat cover.

Q: How can I tell mine is leaking?
A: Look for green or orange drops under the passenger-side fender and smell for a sweet odor after parking. (Optima Forums, Mechanic Base)

Q: Is it safe to drive with a small leak?
A: No-low coolant can trigger overheating in minutes and may warp the cylinder head. (MOTOR)

Q: Will a leak set a dash light?
A: Yes. Codes P0125 or P0128 and the "temperature" lamp often appear when coolant runs low. (YouTube)

Q: Why do plastic housings crack?
A: Heat cycling dries out the polymer, and over-tightened bolts add stress. (Kia Forums, Bimmerpost)

Q: Should I switch to aluminum?
A: Aluminum lasts longer but requires perfect gasket sealing and fresh coolant to prevent corrosion. (VW Vortex, Bimmerpost)

Q: What tools do I need?
A: 10 mm socket, ratchet, 3-inch extension, drip pan, and a small torque wrench. (YouTube)

Q: What is the correct bolt torque?
A: Tighten to 13.7-17.4 lb·ft (18.6-23.5 N·m). (Kioptima)

Q: Do I have to drain all the coolant?
A: No-drain only until the fluid level falls below the housing.

Q: How long does replacement take?
A: An experienced DIYer can finish in about 45 minutes. (YouTube)

Q: Will a bad housing trigger an engine-fire recall?
A: Not directly, but leaks raise the same overheating risks noted in Kia's engine safety recall. (NHTSA Static)

Q: Do hybrids use the same part?
A: Hybrids share the housing but may include an extra coolant-temperature sensor-verify before ordering. (YouTube)

Q: How often should I change coolant?
A: Every 5 years or 60 k mi, whichever comes first. (Be Car Care Aware)

Q: How do I burp the system?
A: After refilling, run the engine with the heater on high and squeeze the upper hose until air bubbles stop surfacing in the filler neck. (Car Care Central)

New Section:

Learn More

• Kia Service Manual - step-by-step diagrams and torque tables. (Kioptima)
• Be Car Care Aware guide - basics of cooling-system maintenance. (Be Car Care Aware)
• MechanicBase tutorials - locating, testing, and replacing thermostats. (Mechanic Base, Mechanic Base)
• Motor Magazine tech tips - professional cooling-system diagnostics. (MOTOR, MOTOR)
• NHTSA recall notice - current engine-related safety campaigns for 2011-2013 Optima hybrids. (NHTSA Static)

By understanding how the Kia Optima's engine-coolant thermostat housing works-and keeping it leak-free-you protect the engine, improve fuel economy, and stay ahead of costly breakdowns.
