Buy Lexus ES300 Engine Valve Cover Gasket Sets

Replacing or upgrading the engine valve cover gasket set-also called a rocker-cover gasket or cam-cover seal-on a Lexus ES 300 keeps oil inside the 3.0-liter V-6 (3VZ-FE or later 1MZ-FE) and stops messy leaks that can damage sensors or create burning smells. Typical torque for the cover bolts is about 69 inch-pounds (Å 8 Nám), and a fresh molded-rubber or silicone set often lasts 4-5 years or 50-100 k mi with proper care. (Toyota Nation, Reddit) This guide explains fitment years, leak symptoms, materials, installation tips, disposal rules, and answers to common questions-sprinkling in everyday synonyms so shoppers find the info they need.

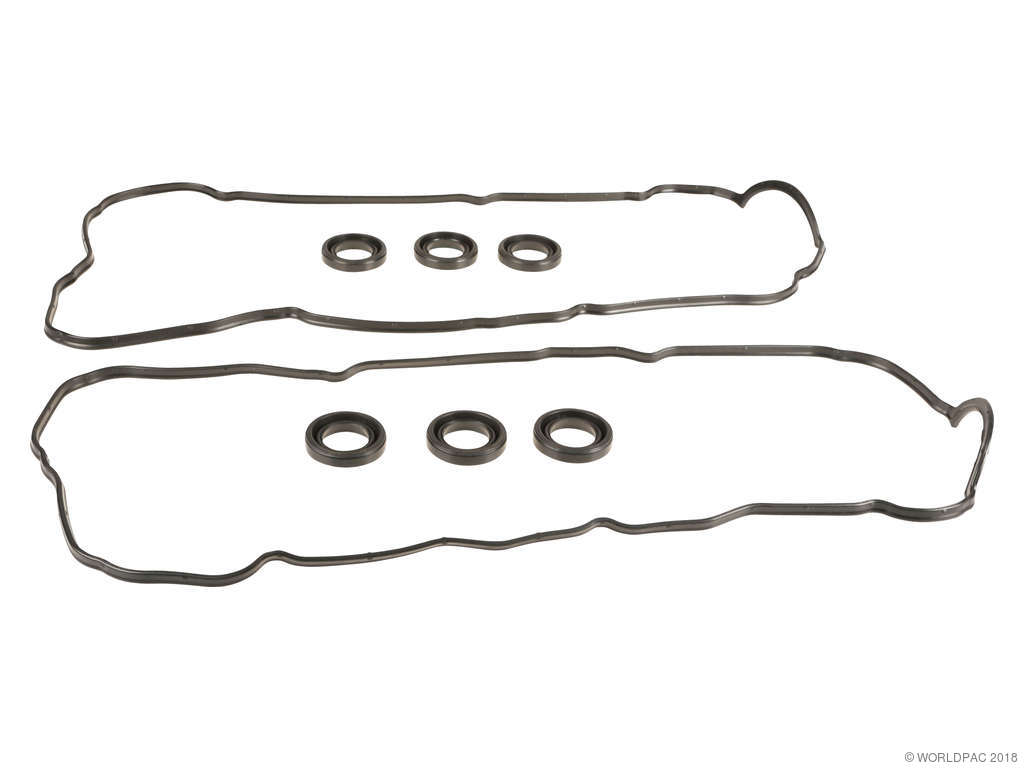

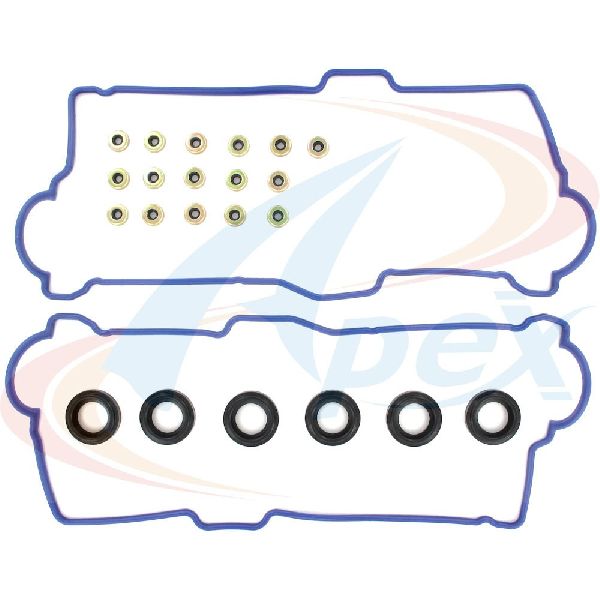

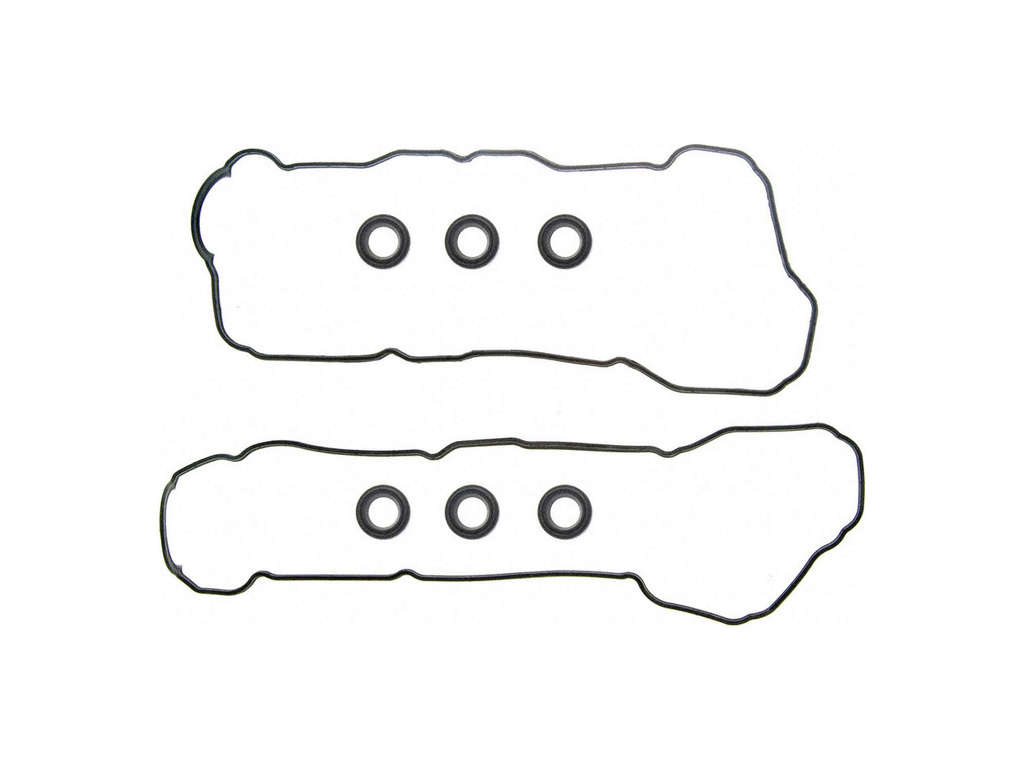

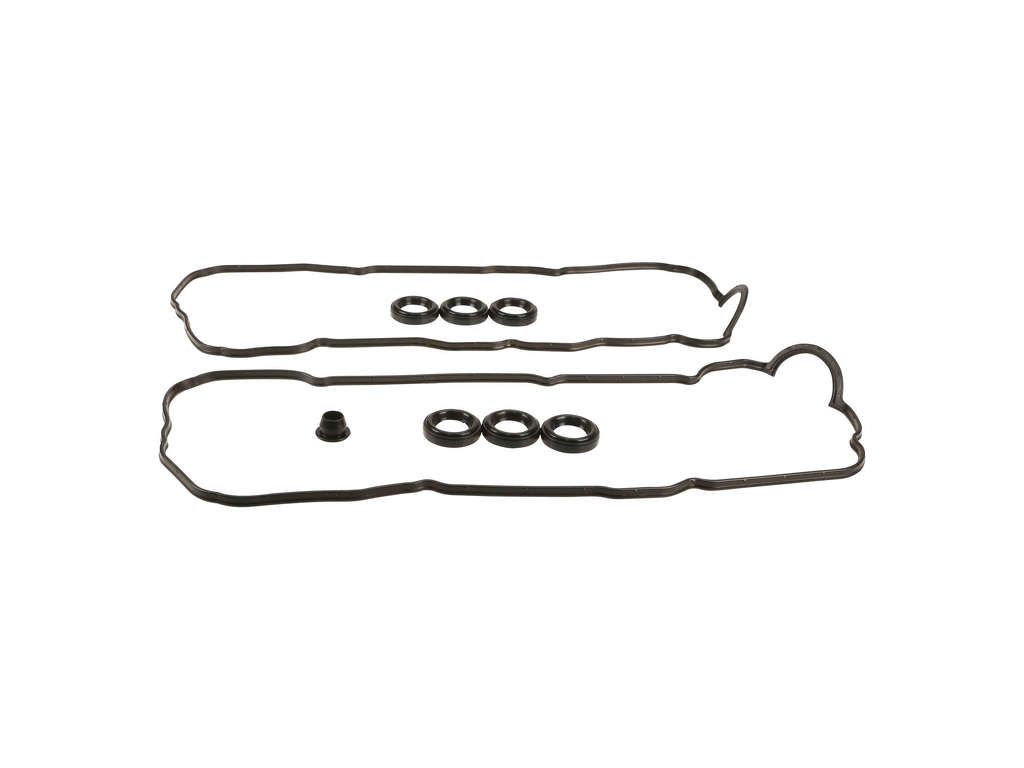

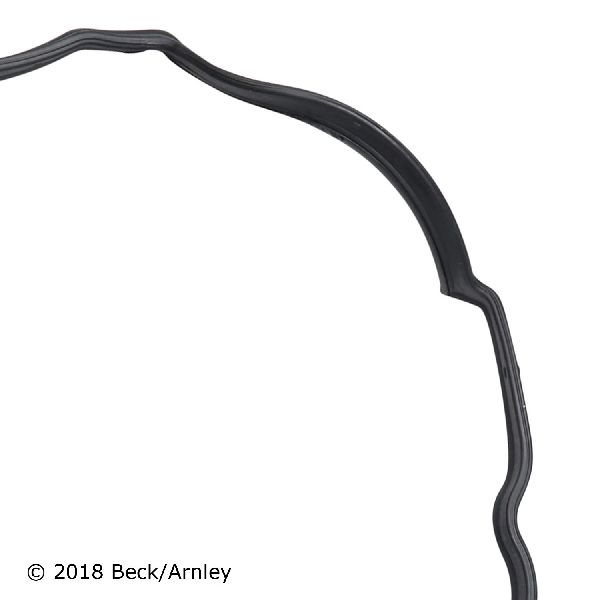

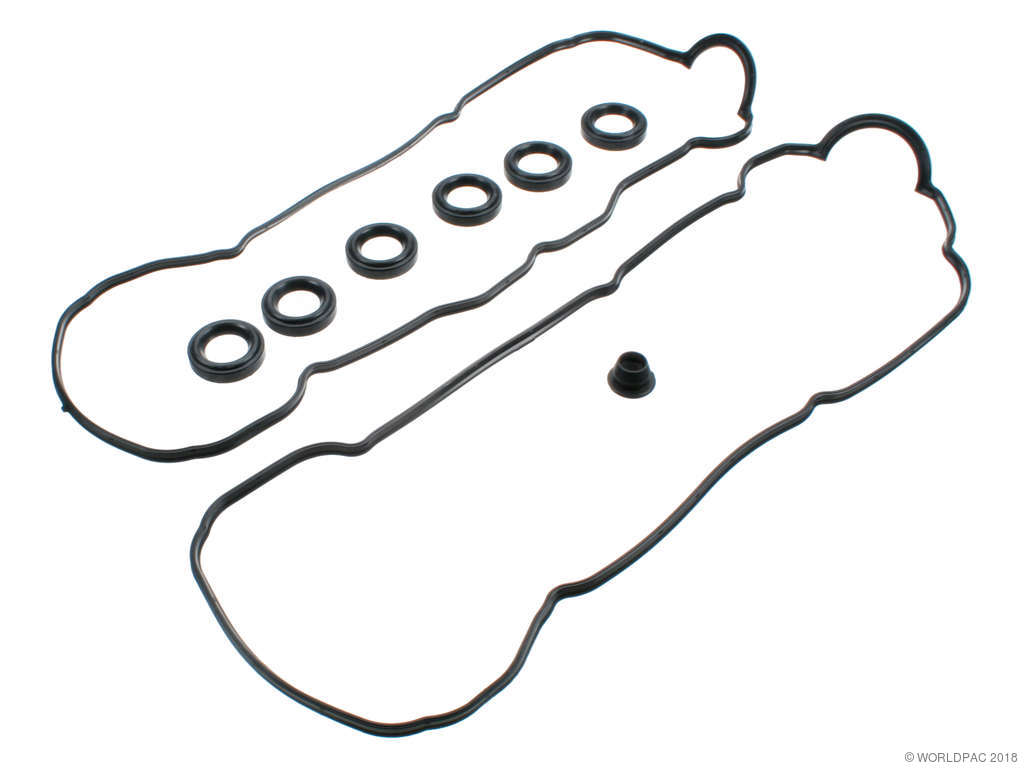

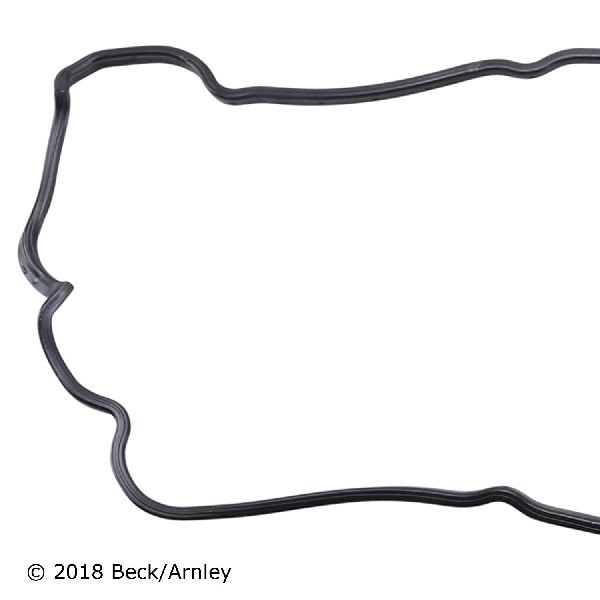

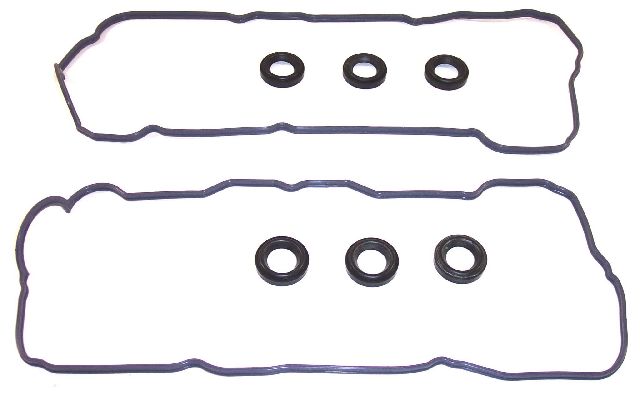

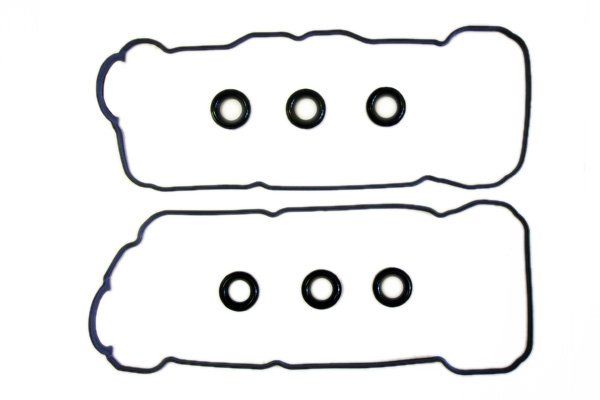

A valve (rocker) cover shields the camshafts and helps route crankcase gases; its gasket forms the vital seal between cover and cylinder head. (Wikipedia) On the ES 300 V-6 you'll find two covers-front and rear-each using a rubber bead style gasket plus spark-plug-tube seals.

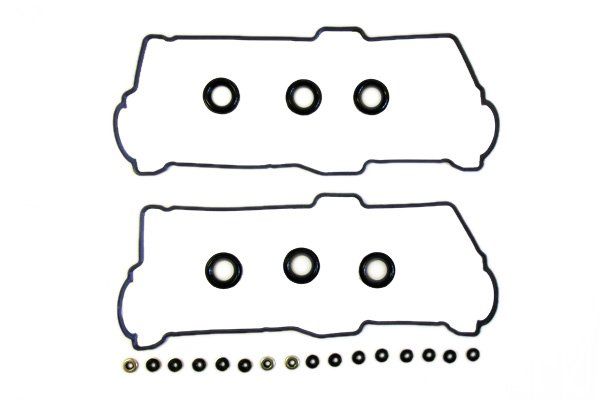

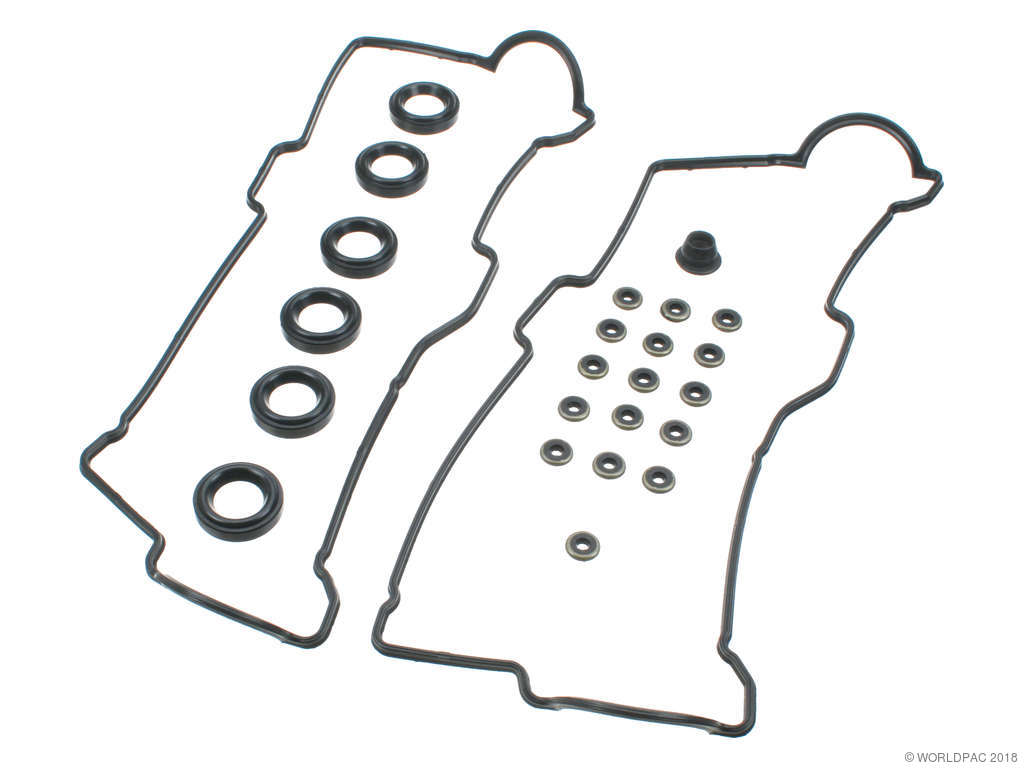

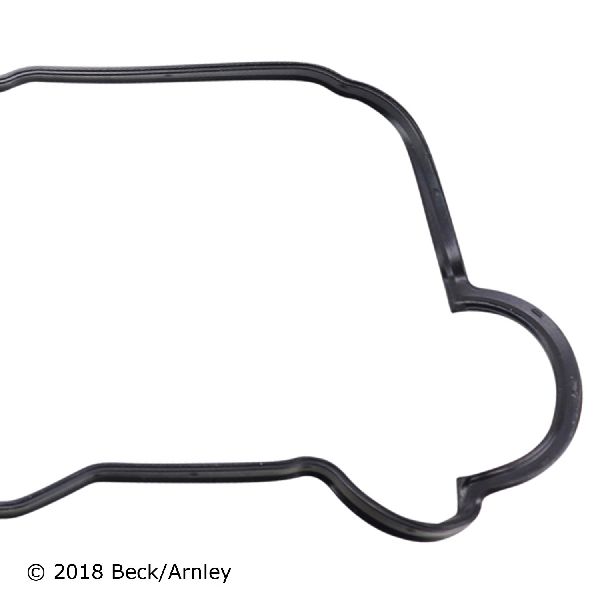

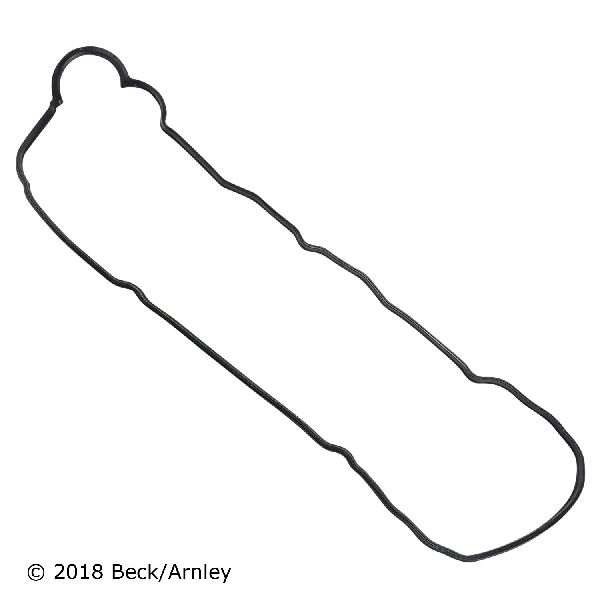

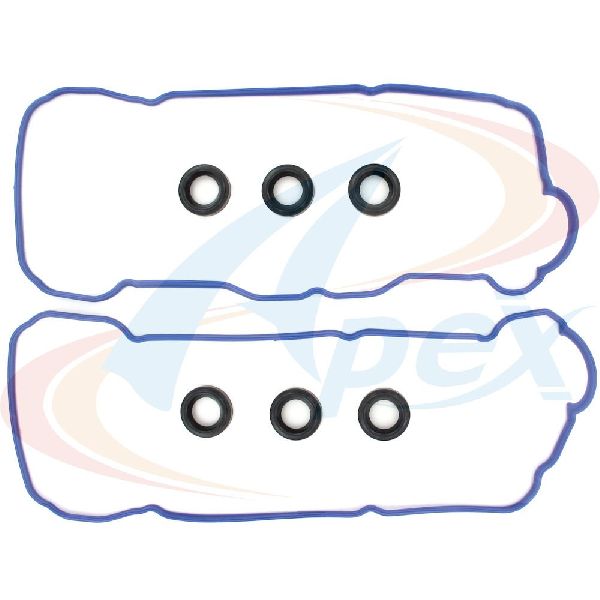

• 1992-1996 ES 300 with 3VZ-FE V-6 (3.0 L) (Wikipedia)

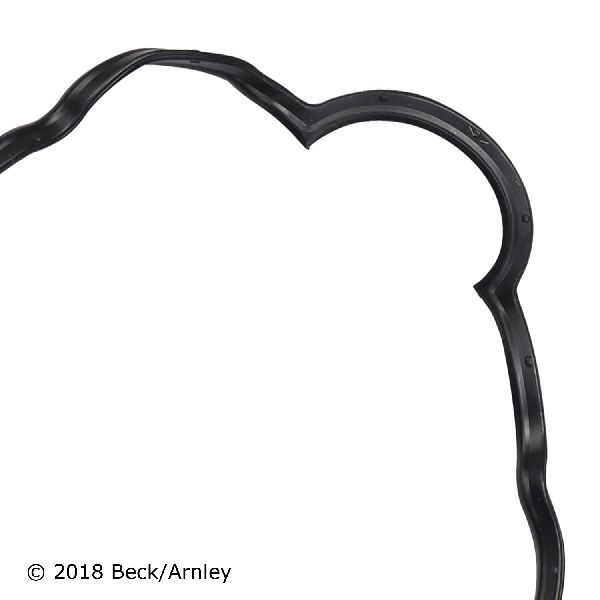

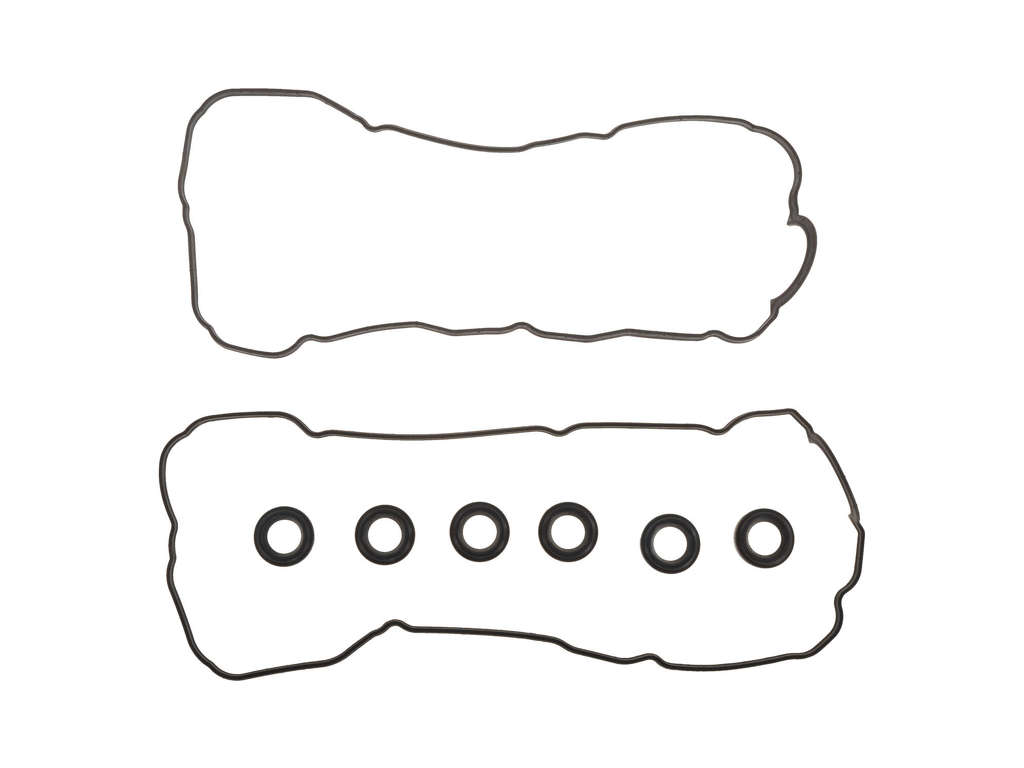

• 1997-2003 ES 300 with 1MZ-FE V-6 (3.0 L DOHC) (Wikipedia)

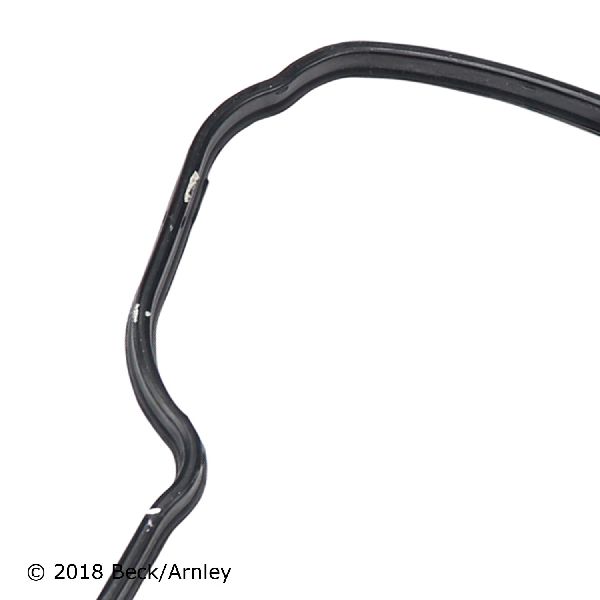

  While the basic shape stayed similar, later 1MZ-FE covers added extra baffles and require the updated gasket profile (Toyota p/n 11213-20020 for RH side). (toyotapartsdeal.com)

During combustion, oil splashes against the inside of the cover. The gasket's molded ridges compress to keep oil from weeping out and dust from creeping in. Modern molded-rubber or silicone-rubber formulas flex with aluminum expansion, resist heat near 300 ¡F, and seal even when bolts Òbottom-out.Ó (victorreinz.us, victorreinz.us)

• Oil drops on transmission or exhaust shield. (carparts.com)
• Burning-oil smell or light smoke after parking.
• Misfire codes when oil fills spark-plug tubes. (Scribd)
• Low-oil warning despite recent service.
  Catch leaks early to avoid saturating the starter or oxygen sensors.

← scroll table horizontally →

1. Degrease the head and cover mating lips-any oil film prevents sealing.
2. Set gasket in groove; add a pea-size dot of RTV only at sharp radius corners. (YouTube)
3. Snug bolts in criss-cross pattern to 69 in-lb (some manuals list 59 in-lb; both fall in 7-8 Nám range). (clublexus.com, clublexus.com)
4. Re-check torque after a warm-up cycle; rubber relaxes slightly.

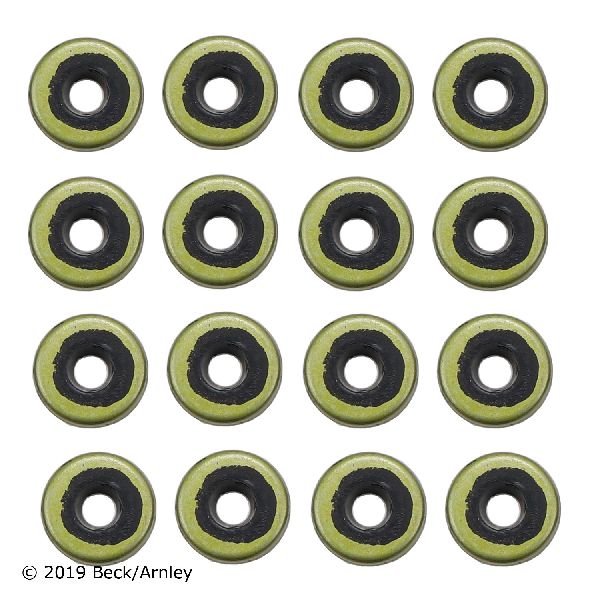

5. Replace tube seals and grommets together so clamp force stays even.

Quality gaskets last roughly 50 000-100 000 mi or 4-5 years, provided crankcase ventilation and oil changes stay on schedule. (Reddit) Inspect annually for seepage near the timing-belt end. A clogged PCV valve can spike crankcase pressure and force oil past even a new seal.

Used gaskets fall under non-metal automotive waste; wipe off excess oil, bag them, and place in a sealed container until you can drop them at a household-hazardous-waste center. The U.S. EPA's maintenance guide offers disposal basics for small-quantity generators. EPA Vehicle Maintenance PDF

• Toyota 1MZ-FE tech specs on Wikipedia
• Valve/rocker cover overview on Wikipedia
• Molded-rubber gasket science by Victor Reinz
• Step-by-step Lexus ES 300 video on YouTube (YouTube)

Q: What's the quickest sign my Lexus ES 300 valve cover gasket is leaking?
A: A faint burnt-oil smell right after shutting off the engine, often accompanied by fresh oil around the rear bank near the firewall. (carparts.com)

Q: Do I need special tools to replace it?
A: Beyond basic sockets, a 1/4-in-drive torque wrench reading inch-pounds (7-8 Nám) is essential for tightening the cover evenly. (Toyota Nation)

Q: Is RTV silicone required everywhere?
A: No. Use it sparingly-just two pea-size dabs at the semicircular cam-plug corners. The molded gasket seals the rest. (YouTube)

Q: Can I reuse the old bolts?
A: Yes; the bolts bottom out on sleeves, so as long as threads are clean they can be reused. Add flat washers only if sleeves no longer pinch the gasket. (clublexus.com)

Q: How long should a premium silicone gasket last?
A: In normal driving it often tops 100 k mi before hardening, outlasting standard nitrile versions by roughly two years. (Reddit)

Q: Why torque values vary between 59 and 69 in-lb?
A: Early service manuals published 59 in-lb, but Toyota later standardized on 69 in-lb for all 1MZ-FE and 3VZ-FE covers to improve clamp load. Either value is safe-stick to the higher spec for leak-free results. (clublexus.com, clublexus.com)

Q: Does replacing the gasket improve performance?
A: It doesn't add horsepower, but stopping leaks keeps oil pressure stable and protects ignition coils and O₂ sensors-preventing misfires that rob power. (carparts.com)

Q: Are cork gaskets OK?
A: Cork-composite fits older engines but tends to shrink on modern aluminum heads; rubber or silicone is the better long-term choice. (breinerco.com)

Feel confident knowing the right gasket set-and a careful installation-will keep your Lexus ES 300 engine clean, quiet, and leak-free for years to come.
