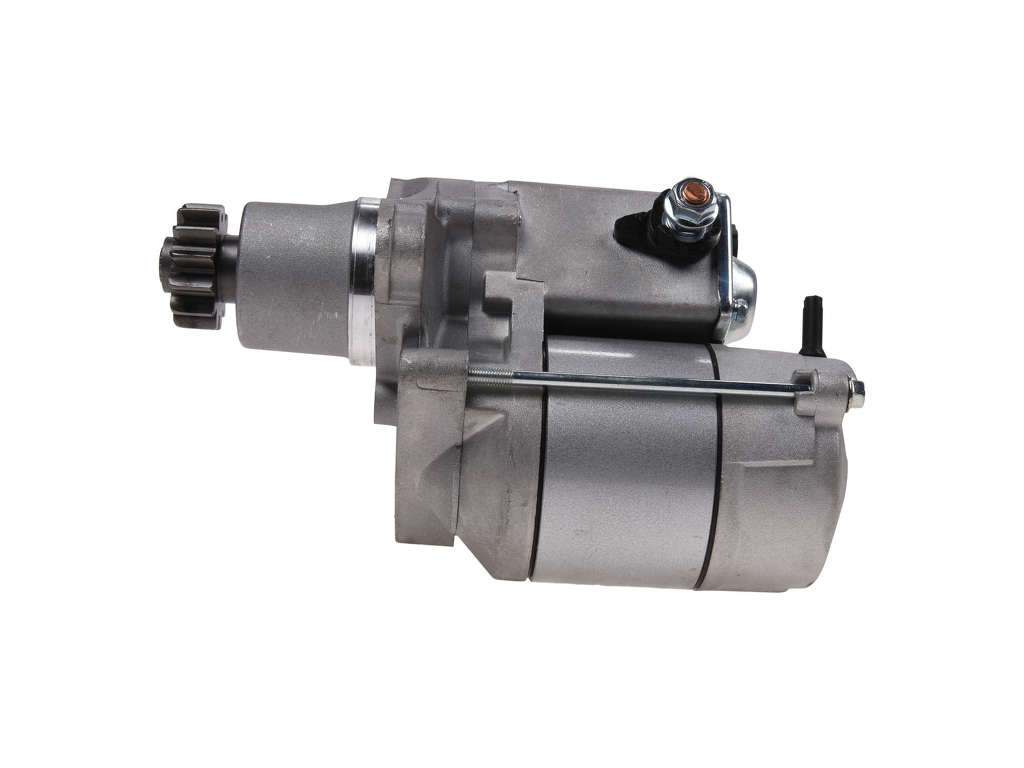

The starter motor is a little electric engine that spins the ES 300's crankshaft until its V-6 fires up on its own. It hides low on the transmission bellhousing, is held by two bolts torqued to about 29 ft-lb, and tends to last 100 k miles or more when the battery and cables stay healthy. A single "click," slow cranking, or grinding sounds are the classic clues it's wearing out. Testing is simple with a multimeter, and replacement is a bolt-on job once you clear a path. Recycling the heavy copper and steel inside keeps valuable metals out of landfills. (The Engineering Mindset, autoelectro.co.uk)

The starter's small but powerful electric motor drives a pinion gear that meshes with the flywheel to crank the 3.0-liter engine until it lights off under its own fuel-spark power. As soon as the motor starts, an internal mechanism pulls the gear back so it doesn't over-spin. (The Engineering Mindset, YouTube)

All 1997-2003 ES 300 models (VVT-i and non-VVT-i 1MZ-FE V-6) share the same starter design, and the fastening points match other Toyota 1MZ-FE vehicles like the Camry and RX 300. The unit sits low on the engine's rear side, accessible from underneath after removing the splash shield or, on some jobs, from above by taking off the intake plenum. (YouTube, YouTube)

A built-in solenoid acts as a heavy-duty switch, closing the high-current path from the battery and pushing the pinion forward in one motion. Inside the housing, brushes ride the commutator to pass electricity to the armature, while reduction gears multiply torque so the tiny motor can spin the big flywheel fast enough. (autoelectro.co.uk, YouTube)

• Single click, no crank - solenoid energizes but motor can't turn. (RepairPal.com)
• Rapid clicking - low battery voltage or corroded cables starving the starter. (CarGurus, JustAnswer)
• Slow, dragging crank - worn brushes or failing armature; sometimes just a weak battery. (lexusorangecounty.com)
• Grinding noise - pinion or flywheel teeth damaged from repeated failed engagements.

1. Battery first. Confirm at least 12.6 V at rest and >9.6 V while cranking. (YouTube, Ars Technica)
2. Voltage drop test. A fall of more than 0.5 V between battery positive and starter terminal while cranking points to a cable or connection issue. (Reddit)
3. Bench test. Off-car, clamp the starter in a vise, jump it with booster cables, and watch for crisp, quick spin. (Remove fuel and spark fuses first if testing in-car.) (YouTube)

1. Disconnect negative cable and wait 5 minutes for airbag backup power to bleed off.
2. Remove engine cover and, if working topside, the upper intake plenum for room. (YouTube)
3. Unplug the solenoid wire and slip off the main power nut.
4. Back out the two 14 mm mounting bolts; reinstall to about 29 ft-lb (39 N·m). (Club Lexus)
5. Reverse steps, reconnect battery, and verify quick, quiet starts.

Handy hint: Some owners fix intermittent "click-no-crank" by replacing only the worn copper contacts inside the solenoid for a few dollars instead of swapping the whole unit. (Lexus Owners Club of North America)

Keeping the battery fully charged, cleaning terminals every oil change, and avoiding very short trips (which don't let the alternator replenish the battery) all ease the starter's workload and can double its service life. (Club Lexus)

Starter motors are rich in copper and steel. Roughly 20 000 tons of copper and 130 000 tons of iron are recovered each year from scrapped starters and alternators, slashing the need for new mining. (911 Metallurgist) Recyclers pay for scrap starters because copper fetches a good price, and re-smelting uses far less energy than refining virgin ore. (The Environmental Blog, Scrap Yards Near Me)

A sluggish starter may actually point to a tired battery, corroded cables, or a failing alternator. Always test those partners before condemning the cranking motor itself. (CarGurus)

Q: How long should a Lexus ES 300 starter motor last?
A: With a strong battery and clean cables, many last 100,000-150,000 miles before the internal brushes wear down. (Club Lexus)

Q: Why do I hear one loud "click" but nothing else?
A: The solenoid is closing, yet the motor can't spin-often due to worn internal contacts or low voltage reaching the unit. (RepairPal.com, JustAnswer)

Q: Can I tap the starter with a hammer as a temporary fix?
A: A gentle tap can jolt sticky brushes free, but it is only a short-term trick; plan a repair soon. (Lexus Owners Club of North America)

Q: What size are the mounting bolts?
A: Two 14 mm-head bolts thread into the bellhousing; torque them to roughly 29 ft-lb. (Club Lexus)

Q: Will replacing solenoid contacts void my warranty?
A: If the car is past its factory coverage, rebuilding the solenoid is fine. When under warranty, follow the manufacturer's replacement policy to avoid disputes. (Lexus Owners Club of North America)

Q: Is it safe to jump-start often?
A: Frequent jump-starts can stress both the battery and the starter. Find and fix the root cause, like an aging battery, instead. (CarGurus)

Q: What tools do I need?
A: A basic metric socket set, extensions, and a torque wrench. Flex-head ratcheting wrenches help in the tight space. (Lextreme)

Q: How do I test the starter on the bench?
A: Clamp it firmly, connect jumper cables-positive to the large stud and negative to the case-and briefly jump the solenoid terminal. It should spin hard and pop the gear outward. (YouTube, Ars Technica)

Q: Does cold weather shorten starter life?
A: Cold, thick oil makes the engine harder to spin, increasing load on the starter; using the correct oil weight and a strong battery helps. (autoelectro.co.uk)

Q: What happens to old starters?
A: Recyclers strip them for copper, steel, and aluminum. Proper recycling conserves resources and keeps heavy metals out of landfills. (The Environmental Blog, Scrap Yards Near Me)

This guide is built from trusted technical, engineering, and recycling sources to help you keep your Lexus starting strong while protecting the planet.
