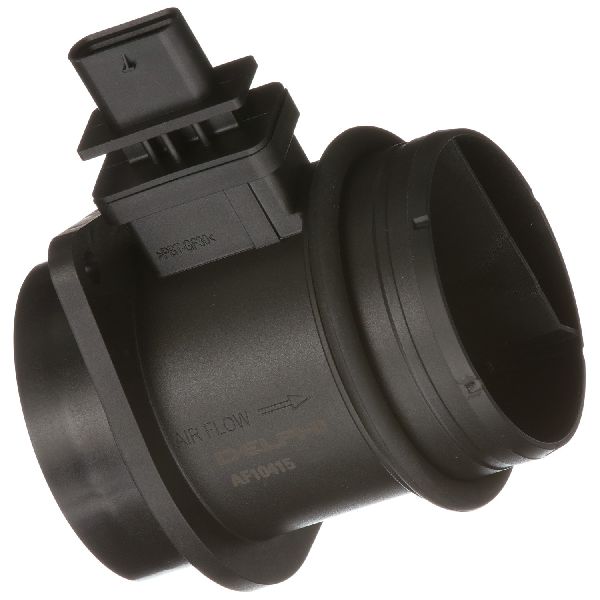

The Mini Cooper's Mass Air Flow (MAF) sensor-also called an air‑mass meter or air‑flow meter-sits between the air‑filter box and throttle body. It tells the engine computer exactly how much air is entering, so the car can mix in the right amount of fuel and run smoothly. A healthy sensor supports strong acceleration, stable idle, good gas mileage, and low emissions. When it goes bad, you may see the check‑engine light or feel jerks and stalls, especially on 2002‑2024 Minis that use hot‑wire‑style MAFs. Common Mini part numbers include 13627542418 (earlier R50/R53/R56) and 13627602038 (later F56/F60). (Wikipedia, AutoZone.com, Mini Parts Direct)

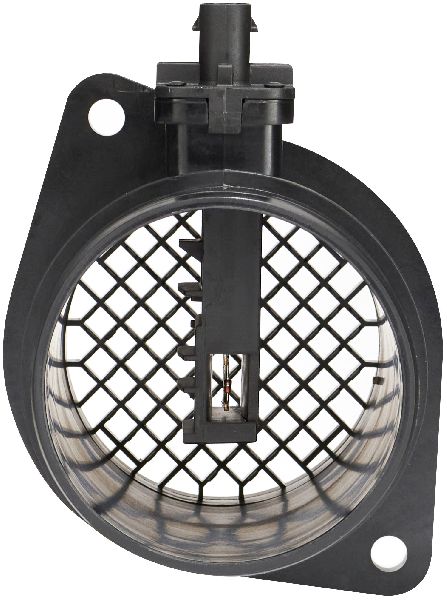

Inside the sensor, a tiny electrically‑heated wire stays about 200 °C hotter than the incoming air. When air rushes past, it cools the wire; the circuit adds more current to keep temperature steady and sends that changing signal to the ECU. Because the reading is based on mass (not volume), the system stays accurate from sea level to the mountains. See an illustrated explanation in this mass flow sensor article. (MotorTrend, MotorTrend)

Most gasoline Minis-R50, R52, R53, R55/56/57, R58/59, R60 Countryman, and current F55/56/57 hatchbacks-use a hot‑wire MAF. Diesel variants add an air‑mass sensor for exhaust‑gas‑recirculation checks. After installation, BMW/Mini service software recommends running an "air‑mass meter adaptation" so the ECU stores the new baseline. (NHTSA, Mini Parts Direct)

• Rough idle, hesitation, or sudden surges. (AutoZone.com)
• Hard starts or stalling right after cranking. (YourMechanic)
• Big drop in MPG and a rich or lean exhaust smell. (Hagerty)
• Codes such as P0100-P0104 stored in the ECU memory. (Haynes Publishing, YourMechanic)

• P0100 - circuit malfunction (check wiring first). (YourMechanic)
• P0101 - range/performance (often air leaks or dirty sensor). (Haynes Publishing)
• P0102 - low input, typical after contamination or unplugging. (eeuroparts.com, Haynes Publishing)
• P0103 - high input, can point to intake tract leaks. (YourMechanic)
• P1101 / P110D - self‑test range fault on some turbo Minis. (YourMechanic)

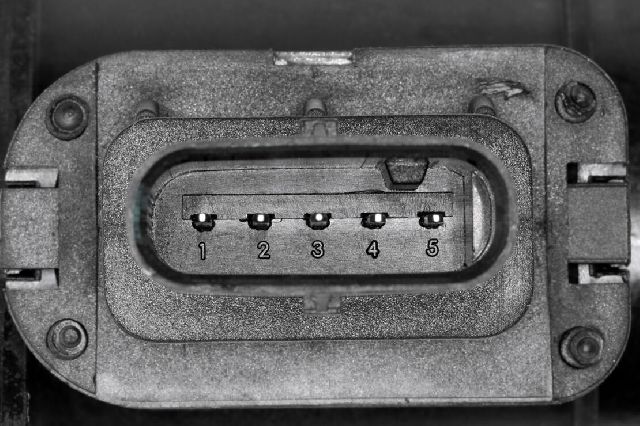

1. Visual check: make sure the intake hose clamps and the sensor's 5‑pin connector are tight.
2. Live‑data scan: airflow at warm idle is usually 2-4 g/s on a 1.6 L Mini; numbers that jump or read zero show trouble. (Popular Mechanics)
3. Tap test: lightly tap the housing; if the engine hiccups, the wire is loose inside.
4. Smoke test: any unmetered air leak downstream of the meter will trigger the same lean codes. (Haynes Publishing)

A dirty sensor can often be revived in minutes:

1. Unplug the connector and remove two Torx screws.
2. Hold the element upright and give 10-15 gentle sprays of dedicated MAF cleaner (never carb or brake cleaner). (AutoZone.com, au-uat.crcindustries.com)
3. Let it air‑dry for at least five minutes-no compressed air or cloth touching the wire.
4. Re‑install, clear codes, and test‑drive. Drivers frequently report smoother idle and stronger pull after this quick fix (see mechanic Scotty Kilmer's demonstration on YouTube). (YouTube, CRC Industries)

Replace the sensor if:

• The element looks burned, the plastic is cracked, or cleaning fails to clear codes.
• The wiring pigtail shows corrosion or broken strands. (YourMechanic)
• You swapped intakes that changed airflow range beyond calibration.
  Always reset adaptations with a scan tool; skipping this step can leave the engine in limp mode. (NHTSA)

A clean, accurate air‑mass sensor helps the ECU keep the ideal 14.7:1 air‑fuel ratio, unlocking 4-10 wheel‑horsepower on some dyno tests and boosting MPG by a few points. (CRC Industries)

Because the MAF governs fuel delivery, a faulty reading can raise hydrocarbons and CO, risking inspection failure. Maintaining the sensor supports the catalytic converter and keeps greenhouse gases lower. (Wikipedia, NHTSA)

Always disconnect the battery before touching any sensor wiring, wear gloves to avoid solvent irritation, and keep spray cans away from open flames-they're highly flammable. (CRC Industries)

• Swap the engine‑air filter at the same time; dusty filters quickly re‑contaminate the meter. (YourMechanic)
• Avoid over‑oiled reusable filters-excess oil can coat the hot wire.
• Check intake boots for cracks, especially on turbo models where heat accelerates rubber aging.

Q: Where is the MAF sensor on my Mini?
A: It's in the plastic tube between the air‑filter box and throttle body-look for the plug with five wires and two Torx screws. (YouTube)

Q: Can I drive with a bad MAF?
A: The car will run, but you'll notice rough driving, high fuel use, and possible catalytic‑converter damage, so fix it soon. (Haynes Publishing)

Q: How often should I clean it?
A: Inspect at every air‑filter change and clean once a year or every 15,000 miles, whichever comes first. (CRC Industries)

Q: Do I need to reset anything after replacement?
A: Yes-clear codes and run the "air‑mass meter adaptation" or drive for about 10 minutes so the ECU relearns. (NHTSA)

Q: Will a dirty sensor hurt gas mileage?
A: Yes; the ECU may inject extra fuel to stay safe, cutting MPG by up to 20 percent. Cleaning often restores economy immediately. (Hagerty)

Q: Why did I get P0102 right after washing the engine bay?
A: Moisture may have entered the connector or soaked dust into the sensor. Dry it thoroughly and clear the code. (eeuroparts.com)

Q: What cleaner can I use?
A: Use a product labeled "MAF Sensor Cleaner"; throttle‑body or brake cleaners leave residue and can burn the wire. (AutoZone.com, au-uat.crcindustries.com)

Q: Are MAF and MAP sensors the same?
A: No. A MAF reads incoming air mass; a MAP sensor reads intake manifold pressure. Some engines use both for precision fuel control. (Wikipedia)

Q: Do turbo Minis need a different MAF?
A: Turbo models use the same housing style but the calibration tables in the ECU differ, so always match the correct part number for your VIN. (Mini Parts Direct)

Q: Can a clogged air filter cause MAF codes?
A: Yes; restricted airflow skews readings and can set P0101 or P0102. Replace the filter and clear codes before swapping the sensor. (Haynes Publishing)

Q: What happens if I unplug the MAF?
A: The ECU switches to a backup fuel map and may idle, but power drops and emissions rise. Reconnect and diagnose instead. (AutoZone.com)

Q: Is there a way to test the sensor without a scan tool?
A: A multimeter can measure the 0-5 V output while you gently blow air through the tube-voltage should rise smoothly. (MotorTrend)

Q: Does ethanol fuel affect the sensor?
A: No, because the MAF never contacts fuel. It reads air only, so fuel choice has little direct effect.

Q: Can I upgrade to a larger‑diameter sensor for more power?
A: Only if you retune the ECU; otherwise, airflow readings will be off, causing lean running.

Q: Why does my Mini start fine cold but stumble warm?
A: Heat‑soaked dirt or wiring resistance can skew the hot‑wire reading once temperatures climb. Cleaning and inspecting the harness usually helps. (YourMechanic)

With the right care-clean air filter, intact hoses, and an accurate air‑mass sensor-your Mini stays peppy, efficient, and emission‑friendly for many miles.
