Buy Porsche Cayenne Electronic Air Intake Change Over Valves

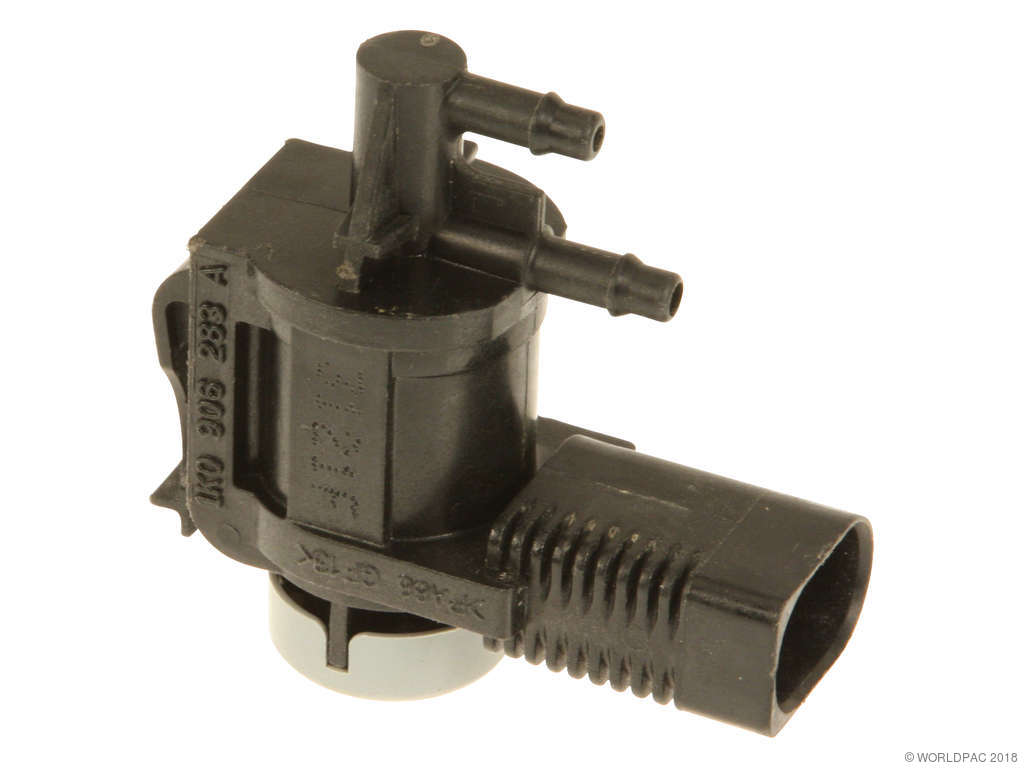

The change‑over valve is a small electric‑vacuum solenoid that directs vacuum to the intake‑runner flaps inside the Cayenne's variable‑length intake manifold. By switching the flaps between long and short runners, the valve helps the V‑engine make stronger low‑end torque and high‑rpm power while also boosting fuel economy. (Wikipedia, Rennlist)
On first‑ and second‑generation Cayennes it mounts on the intake manifold or near the throttle body; on later 9Y0/E3 models it moves to a bracket on the cylinder‑head cover but serves the same purpose. (YouTube, Rennlist)

Inside the intake manifold are resonance flaps. At low engine speed the flaps stay shut, forcing air through long runners for quicker low‑rpm response. When engine speed climbs, the ECU energizes the change‑over solenoid; vacuum pulls the flaps open so air can take a shorter path, increasing horsepower higher in the rev range. (Wikipedia, PcarWise)
Because the solenoid sees heat, oil mist, and constant on‑off cycling, its plastic body and internal diaphragm can crack or stick, causing drivability problems and fault codes. (, YouTube)

• 9PA / 955‑957 (2003‑2010): 3.2 V6, 4.5 V8, and 4.8 V8 use a two‑pin electronic solenoid on the manifold. (Rennlist)
• 92A / 958 (2011‑2018): Revised valve on 3.0 Diesel, 3.6 VR6, 4.8 V8, and hybrid models; some diesels covered by an extended emissions warranty that specifically lists the change‑over valve. (NHTSA Static)
• E3 / 9Y0 (2019‑present): Function carried over; location and plug shape changed but wiring logic is identical. (Rennlist)

Tip: Always match the electrical connector and vacuum port count to your exact engine code.

• Check‑Engine‑Light with codes P1095, P1096, or P2015. (PFF, Rennlist, Kbb.com)
• Rough idle or hesitation when the engine switches cam profiles around 3,800 rpm. (YouTube)
• Noticeable loss of top‑end power or poor fuel mileage. (PcarWise)
• Audible hissing from broken vacuum lines near the manifold. (Rennlist)
• Fluttering intake sound during throttle blips, indicating the flaps are not fully engaging. (YouTube)

← scroll table horizontally →

1. Disconnect battery to avoid accidental throttle sweep.
2. Remove engine cover and unclip the vacuum line bundle. (YouTube)
3. Label hoses-each port only fits one hose size. (Rennlist)
4. Unplug the electrical connector and free the solenoid from its bracket (Torx 30 on early cars, 10 mm bolt on 958). (YouTube, Rennlist)
5. Swap in the new valve, ensuring arrow on body faces vacuum source.
6. Clear any stored codes and run an idle‑to‑redline test drive to confirm flap operation. (YouTube, 6SpeedOnline)

Average driveway time is 30-45 minutes; no special tools beyond pliers and basic sockets are required.

• Replace brittle vacuum lines every 8 years or 80 k miles. (Rennlist)
• Keep the PCV system healthy; excess oil vapor accelerates diaphragm wear. (YouTube)
• Use quality fuel and perform periodic intake‑valve cleaning to reduce carbon that can load the flaps. (YouTube)
• Scan the ECU twice a year; catching soft codes early stops further damage. (PcarWise)

• Intake‑runner flaps: Plastic levers inside the manifold that the valve controls. (YouTube)
• Vacuum reservoir & check‑valve: Stores vacuum so the flaps respond instantly at wide‑open throttle. (Rennlist)
• Mass‑air‑flow (MAF) sensor: Failure here mimics a bad change‑over valve with identical codes. (Planet 9)

Q: What does the change‑over valve actually change?
A: It switches vacuum on and off so the intake‑runner flaps move between long and short paths, changing the way air flows into the engine for better power and efficiency. (Wikipedia)

Q: Is it safe to keep driving when the valve fails?
A: The engine will usually run, but you may lose power and risk fouling spark‑plugs from a rich mixture-fix it soon. (PcarWise, Rennlist)

Q: Can I just clean the valve?
A: Because the failure is often a cracked plastic body or weak internal spring, replacement is the reliable fix; cleaning seldom restores full function. (YouTube)

Q: Which fault codes point to this valve?
A: P1095, P1096, P2015, and sometimes P2004-P2008 on newer models. (RennTech.org Community, Kbb.com)

Q: Do I need to remove the entire intake manifold?
A: No-the valve sits externally. You only remove the engine cover and a few hoses. (YouTube)

Q: What tools will I need?
A: Flat‑blade screwdriver, Torx 30 or 10 mm socket (model‑dependent), hose‑clamp pliers, and a scan tool to clear codes.

Q: How do I know the new solenoid is working?
A: With the engine idling, unplug its connector; RPM should dip slightly. Reconnect and rev above 4 k-flap movement should be audible. (YouTube)

Q: Could a bad MAF sensor throw the same codes?
A: Yes; always rule out MAF issues before condemning the change‑over solenoid. (Planet 9)

Q: Does this part affect emissions?
A: Yes-on diesel Cayennes it is covered under an extended emissions warranty because improper flap control can raise NOx. (NHTSA Static)

Q: Are upgraded metal‑body solenoids available?
A: Porsche does not offer metal units; choose a reputable brand that meets the factory spec for switching time and resistance. (Rennlist)

Q: Will performance tuning delete this valve?
A: Most tunes keep it active because variable runners improve both low‑end torque and peak power. (6SpeedOnline)

Q: How often should I replace it?
A: Many last 100 k miles, but inspect hoses at every major service and plan a preventive swap near that mileage. (PcarWise)

With these details, you can confidently diagnose, replace, and maintain the electronic air‑intake change‑over valve on any Porsche Cayenne while keeping your engine breathing at its best.
