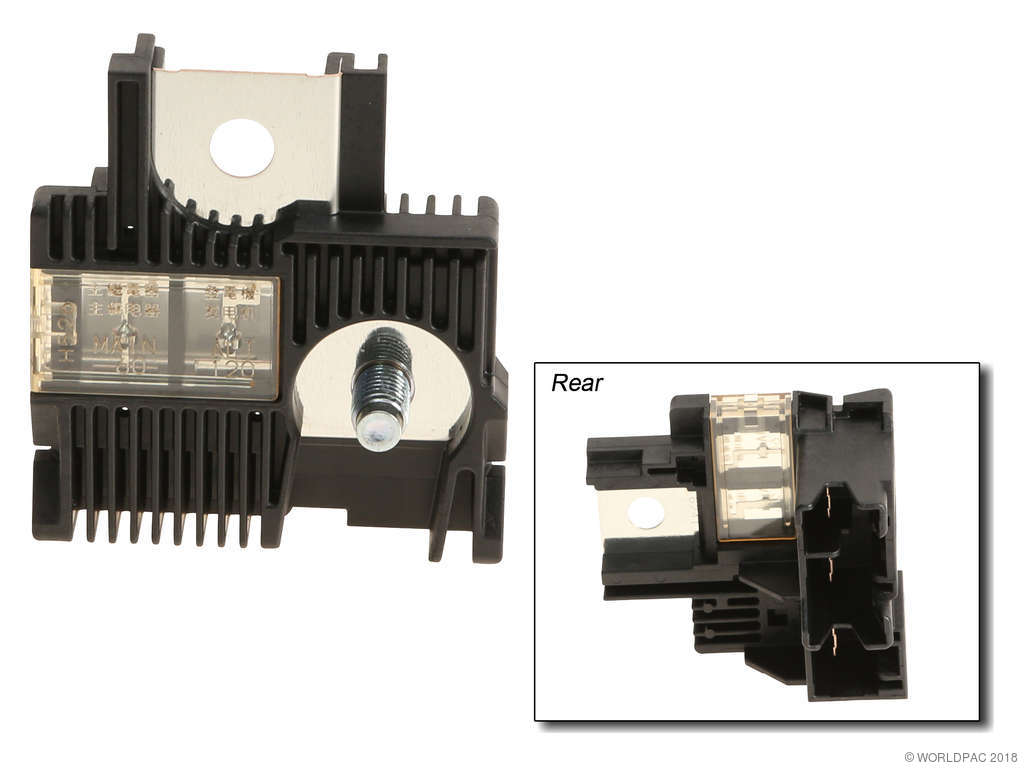

Buy Scion xD Fusible Links

A fusible link is a special type of electrical conductor used in automotive wiring systems to protect circuits from excessive current. Similar to a fuse, it acts as a safety device that melts and breaks the circuit when the current surpasses safe levels. This prevents damage to vital electrical components and reduces the risk of electrical fires. Often referred to as a fusible wire or fusible element, it is an essential part of a vehicle's electrical system, safeguarding against overloads and short circuits.

When a fusible link fails or becomes damaged, it can lead to various electrical problems within a vehicle. Common symptoms include:

Loss of Electrical Power: Certain electrical components or entire circuits may stop functioning, such as the ignition system, headlights, or dashboard instruments.
Engine Fails to Start: A blown fusible link in the starting circuit can prevent the engine from cranking.
Battery Charging Issues: If the fusible link connected to the alternator fails, the battery may not charge properly, leading to a dead battery.
Visible Damage: Physical signs like melted insulation or a burnt appearance on the fusible link wire indicate it has blown.

Proper maintenance of fusible links is important to ensure the reliability of the vehicle's electrical system. Here are some tips:

Regular Inspection: Periodically check fusible links for signs of wear, corrosion, or damage. Look for discoloration or melting of the insulation.
Keep Connections Clean: Ensure that all connections are free of dirt and corrosion. Clean terminals help maintain good electrical conductivity.
Follow Manufacturer Specifications: When replacing, use a fusible link of the same gauge and material as specified by the vehicle manufacturer.
Avoid Overloading Circuits: Do not add accessories or modify circuits without proper guidance, as this can cause excessive current flow and damage the fusible link.

Replacing a fusible link requires careful attention to ensure safety and proper function:

Disconnect the Battery: Always disconnect the negative battery terminal before starting any electrical work to prevent shocks or short circuits.
Use Proper Tools: Utilize appropriate wire cutters, strippers, and crimping tools to avoid damaging wires during installation.
Match the Specifications: Install a new fusible link that matches the original in length, gauge, and material to maintain the correct protection level.
Secure Connections: Ensure all connections are tight and secure. Poor connections can lead to increased resistance and potential overheating.
Route Properly: Position the fusible link away from heat sources and moving parts to prevent damage.

Fusible links play a critical role in vehicle safety by acting as a safeguard against electrical overloads. They protect expensive and sensitive components like the alternator, starter motor, and main wiring harness from damage caused by excessive current. By melting and breaking the circuit during overload conditions, fusible links help prevent electrical fires and ensure the longevity of the vehicle's electrical system.

While both fusible links and standard fuses serve to protect electrical circuits, they have distinct differences:

Design and Construction: Fusible links are made of a special wire that is a few gauge sizes smaller than the circuit it protects, whereas fuses are enclosed in a plastic or glass housing with a metal filament inside.
Location and Usage: Fusible links are typically integrated into the wiring harness and used in high-current circuits, such as the alternator or battery connections. Standard fuses are housed in fuse boxes and protect individual circuits.
Response Characteristics: Fusible links have a slower response to overload conditions, providing protection against sustained overcurrents. Standard fuses react quickly to both short-term spikes and sustained overloads.
Replacement Process: Replacing a fusible link involves cutting and splicing wires, while fuses can be easily removed and replaced without special tools.

Selecting the appropriate fusible link is essential for proper circuit protection:

Correct Gauge Size: The fusible link should generally be four wire gauge sizes smaller than the wire it is protecting.
Material Compatibility: Use fusible links made of the same or compatible material as the existing wiring to prevent corrosion and ensure consistent electrical properties.
Length Considerations: Maintain the same length as the original fusible link, as length can affect the link's ability to dissipate heat and function correctly.
Quality Products: Choose high-quality fusible links from reputable manufacturers to ensure reliability and safety.

In modern vehicles, the complexity of electrical and electronic systems has increased significantly:

Protection of Sensitive Electronics: Fusible links safeguard complex control modules and electronic devices from damage due to overcurrent conditions.
Integration with Safety Systems: They play a part in protecting safety-critical systems like airbags, anti-lock brakes, and stability control systems.
Energy Management: Fusible links help manage the distribution of electrical power efficiently, ensuring that vital systems receive power while preventing overloads.

When experiencing electrical problems, consider the following steps:

Check for Blown Fusible Links: Inspect fusible links visually and with a multimeter to see if they have continuity.
Assess Related Components: If a fusible link has failed, investigate the cause, such as a short circuit or faulty component, before replacing it.
Consult Wiring Diagrams: Use the vehicle's wiring diagrams to identify which circuits are protected by fusible links and trace any issues.
Seek Professional Assistance: If unsure, consult a qualified technician to diagnose and repair electrical problems safely.

Working with fusible links requires caution:

Wear Protective Gear: Use insulated gloves and safety glasses when working on electrical systems.
Avoid Unauthorized Modifications: Do not bypass fusible links or replace them with standard wires, as this removes essential protection.
Dispose of Damaged Components Properly: Recycle or dispose of blown fusible links according to local regulations to prevent environmental harm.
