The Subaru Forester uses heated oxygen (O₂) or "lambda" sensors-also called air-fuel-ratio (AFR) sensors up front and plain O₂ sensors in back-to measure exhaust oxygen and help the engine computer keep the mixture clean and efficient oxygen sensor basics . A typical Forester has two sensors: one before the catalytic converter (upstream) and one after it (downstream) (Subaru Forester Forum). Most owners see reliable service for about 100,000 miles before readings slow or fail emissions FAQ . Replacing a bad sensor can restore fuel economy, reduce emissions, and clear check-engine-light codes such as P0134 (no activity detected) (Subaru Forester Forum).

An oxygen sensor is a small probe screwed into the exhaust pipe that tells the engine computer how much oxygen is left in the gases. When the computer knows this, it can add or subtract fuel so combustion stays near the ideal "stoichiometric" 14.7 parts air to 1 part fuel learn more . Subaru began using fast-response AFR sensors upstream after 2000; they read a wide band of mixtures, while the downstream narrow-band sensor just monitors catalytic-converter health video example .

Inside the sensor is a ceramic element that generates a tiny voltage when hot exhaust passes over it. A built-in heater brings the tip to about 600 °F so it works within seconds of start-up (Wikipedia). The sensor's signal swings between "rich" and "lean" many times per second; a sluggish, flat, or stuck signal warns the computer something is wrong (Subaru Forester Forum).

Most 2009-2021 Forester 2.5 L models have:

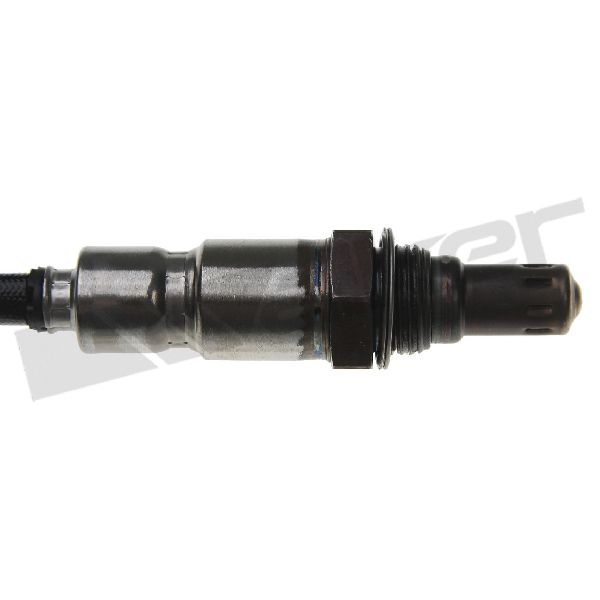

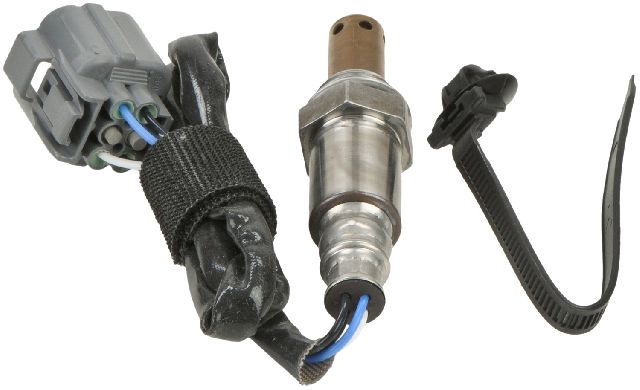

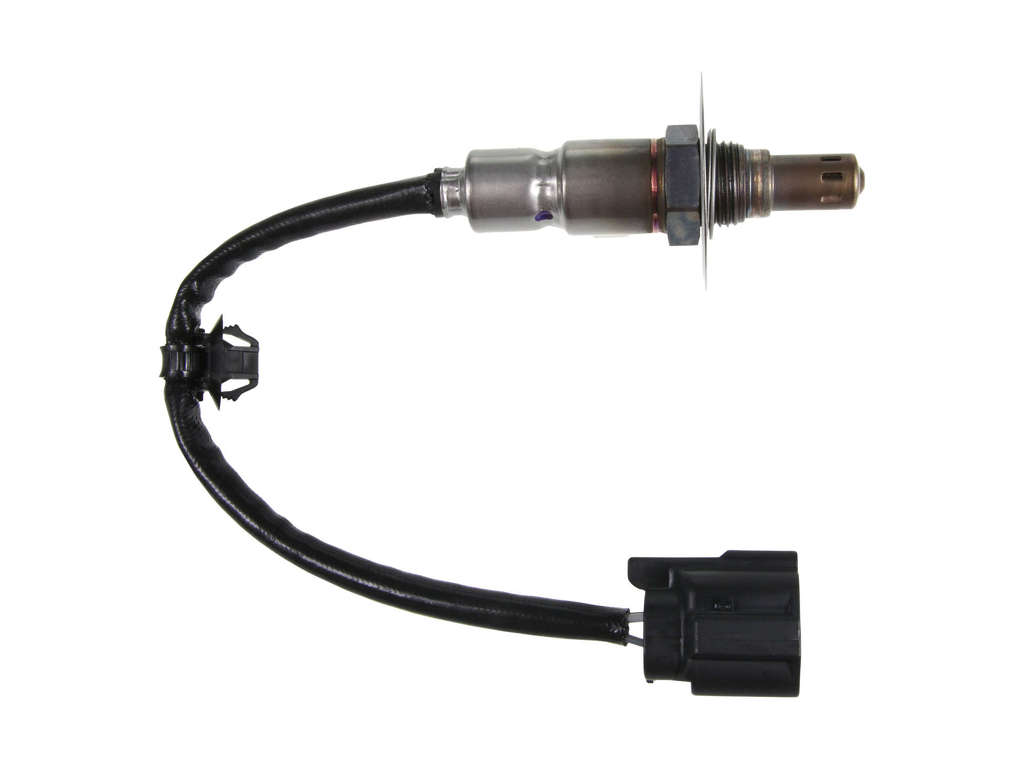

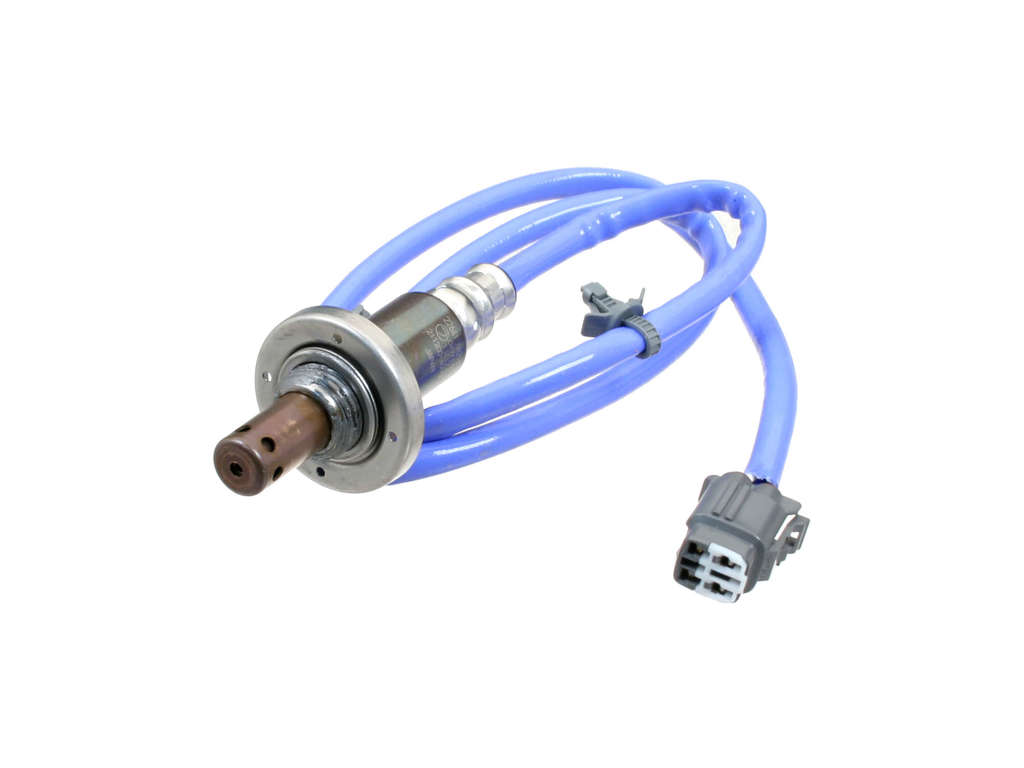

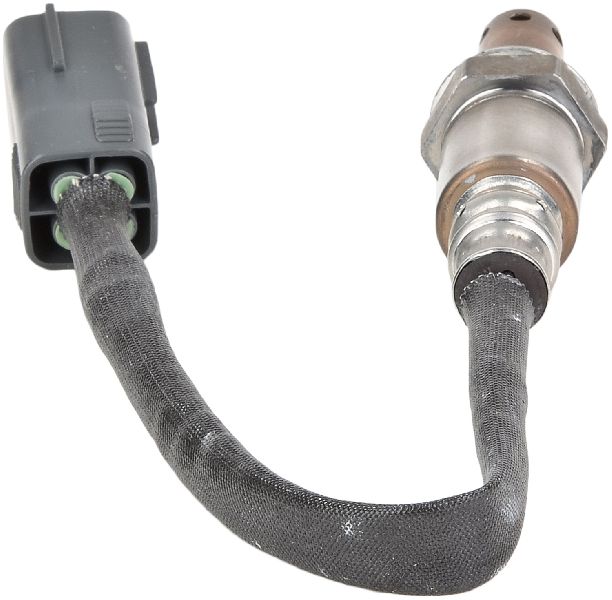

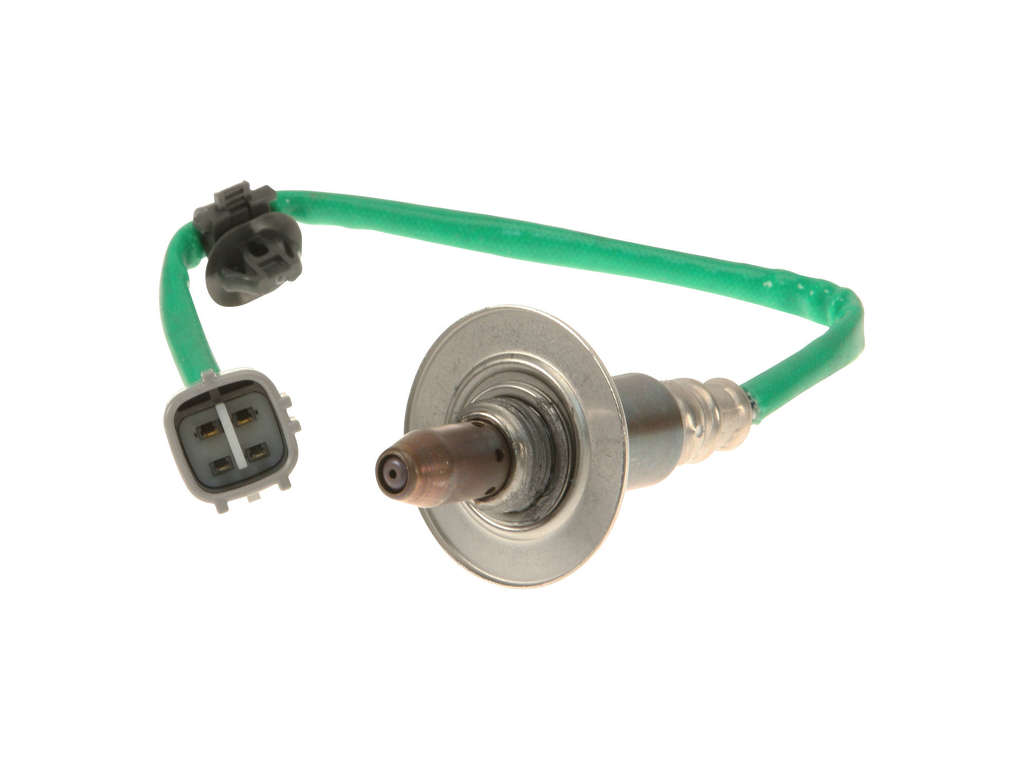

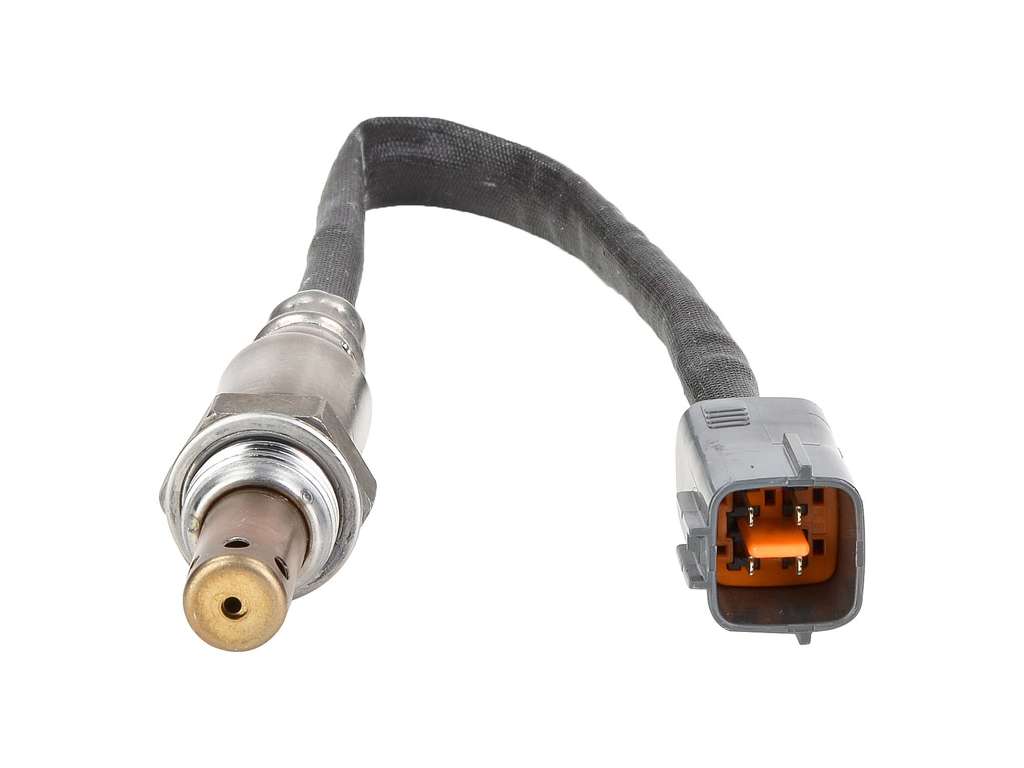

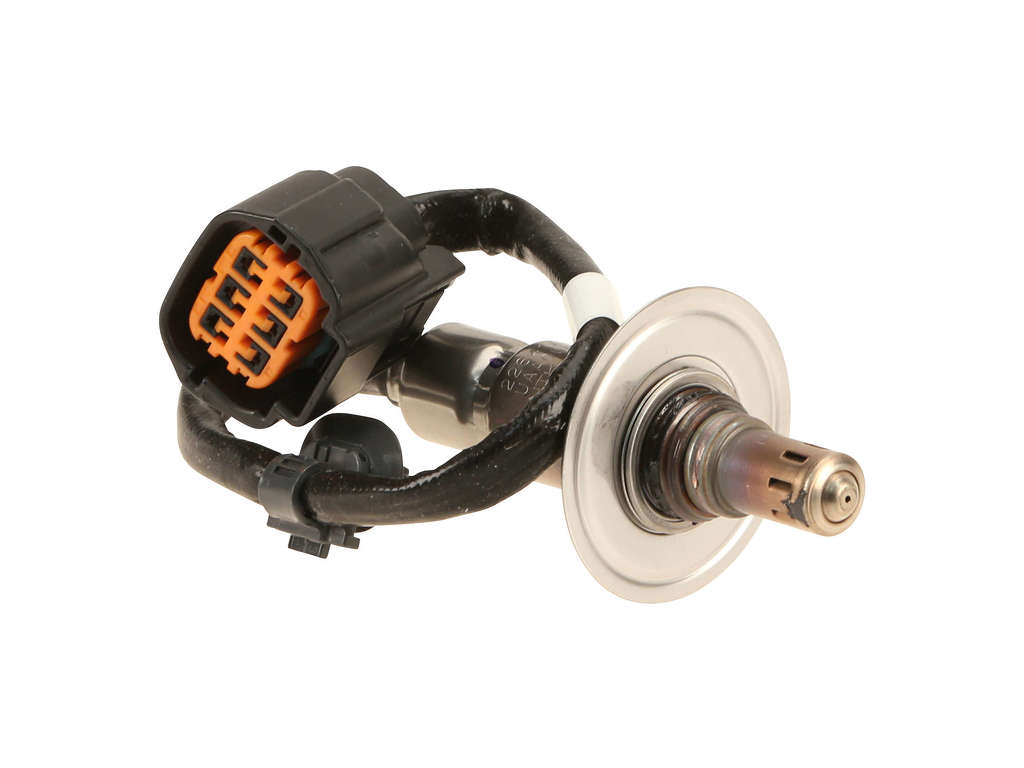

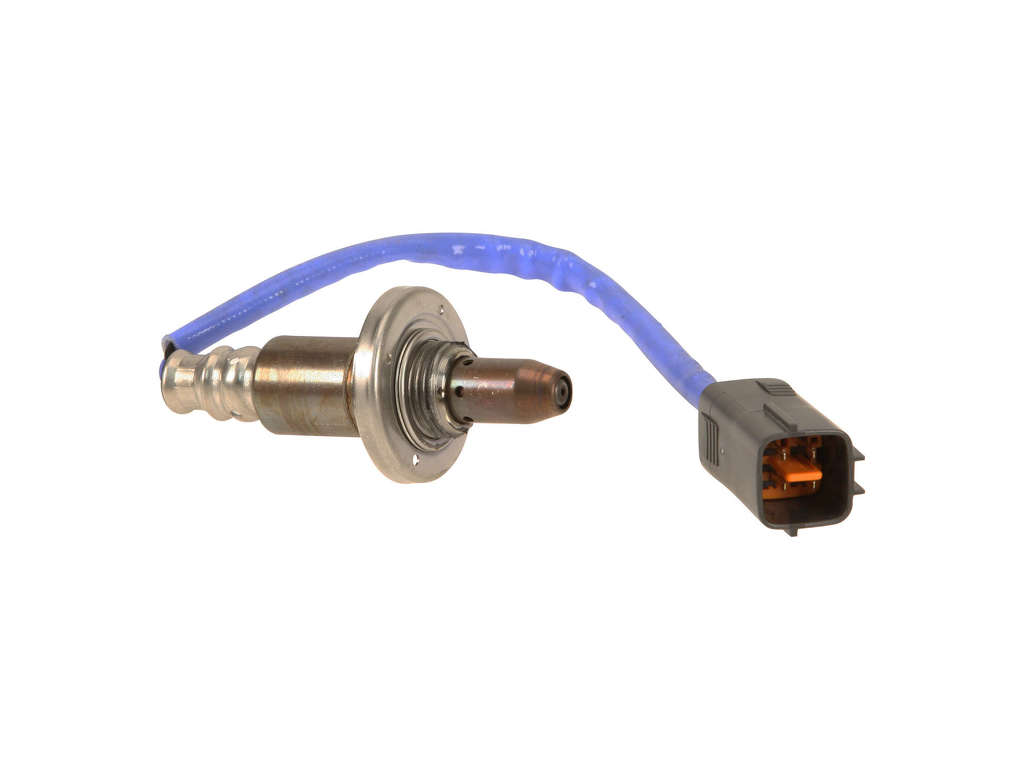

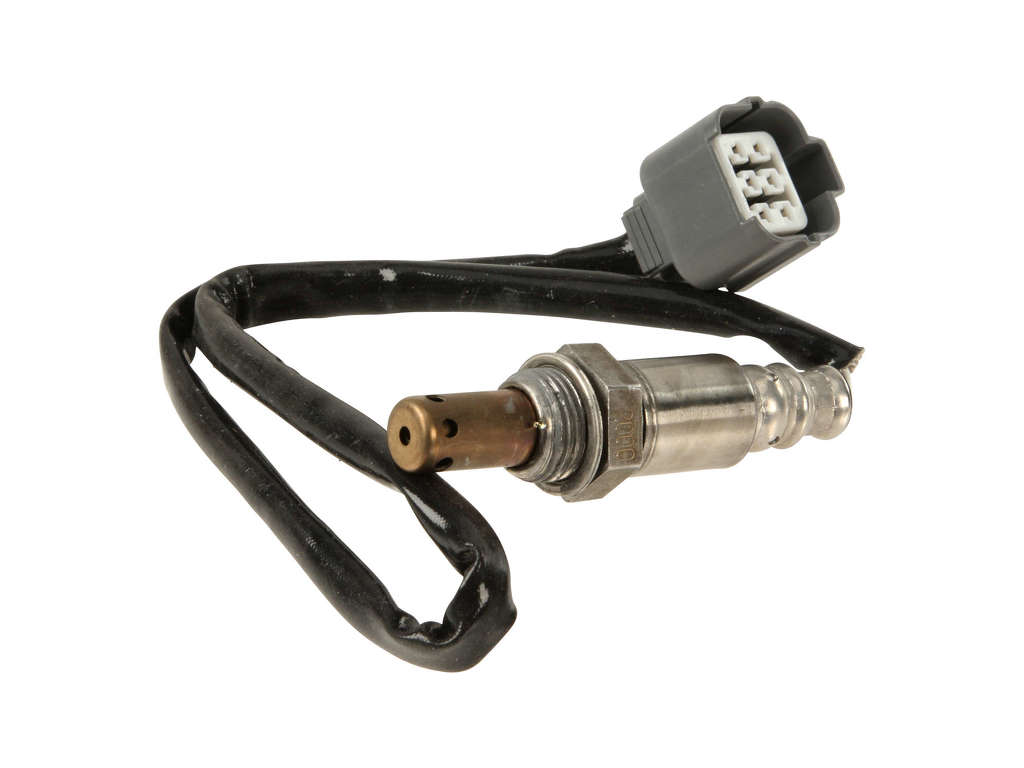

• Bank 1 Sensor 1 (upstream AFR sensor)-threaded into the exhaust manifold right behind the radiator fan owner forum guide .

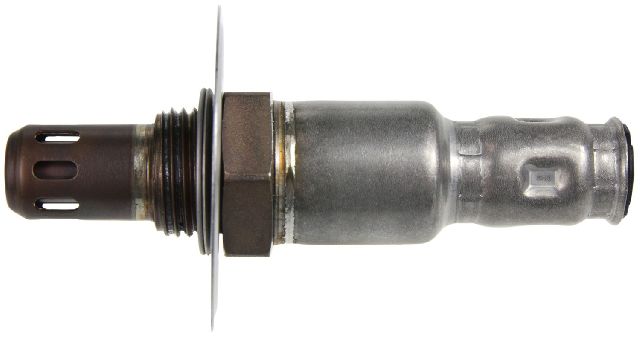

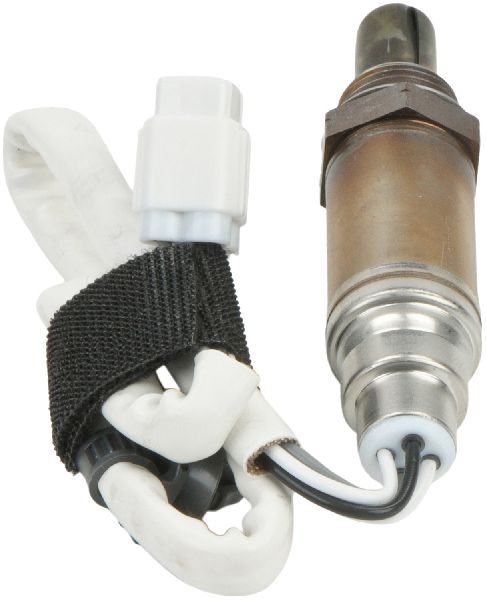

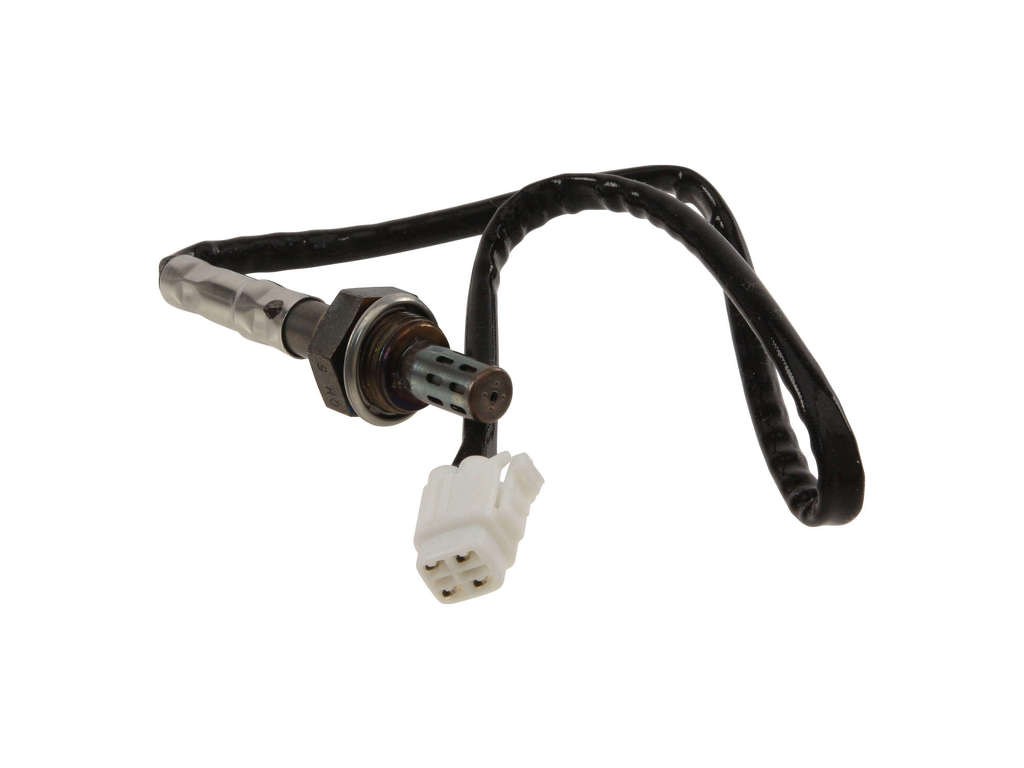

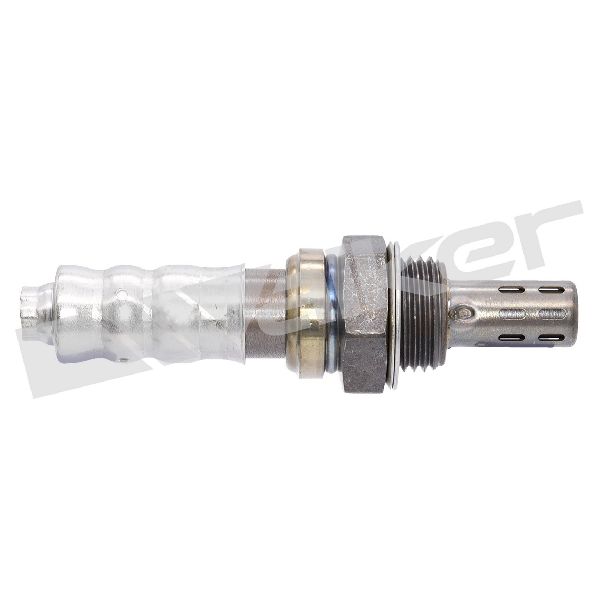

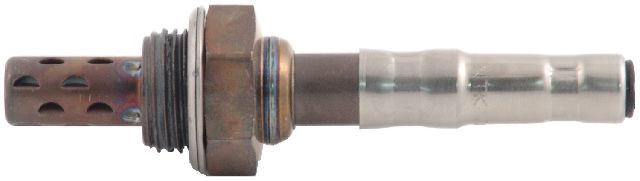

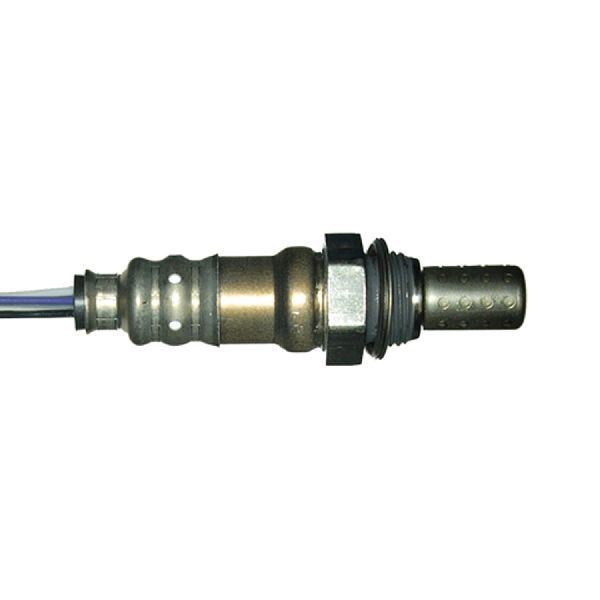

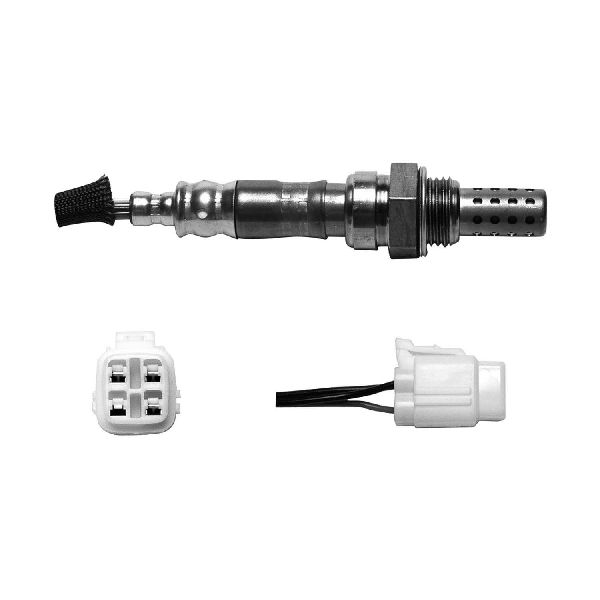

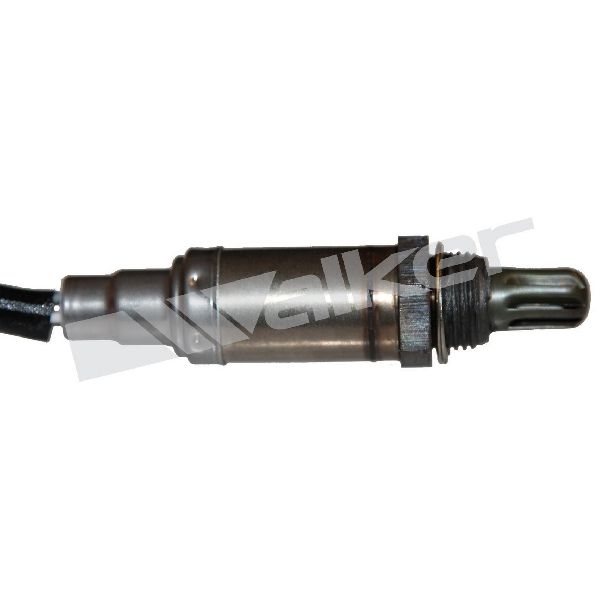

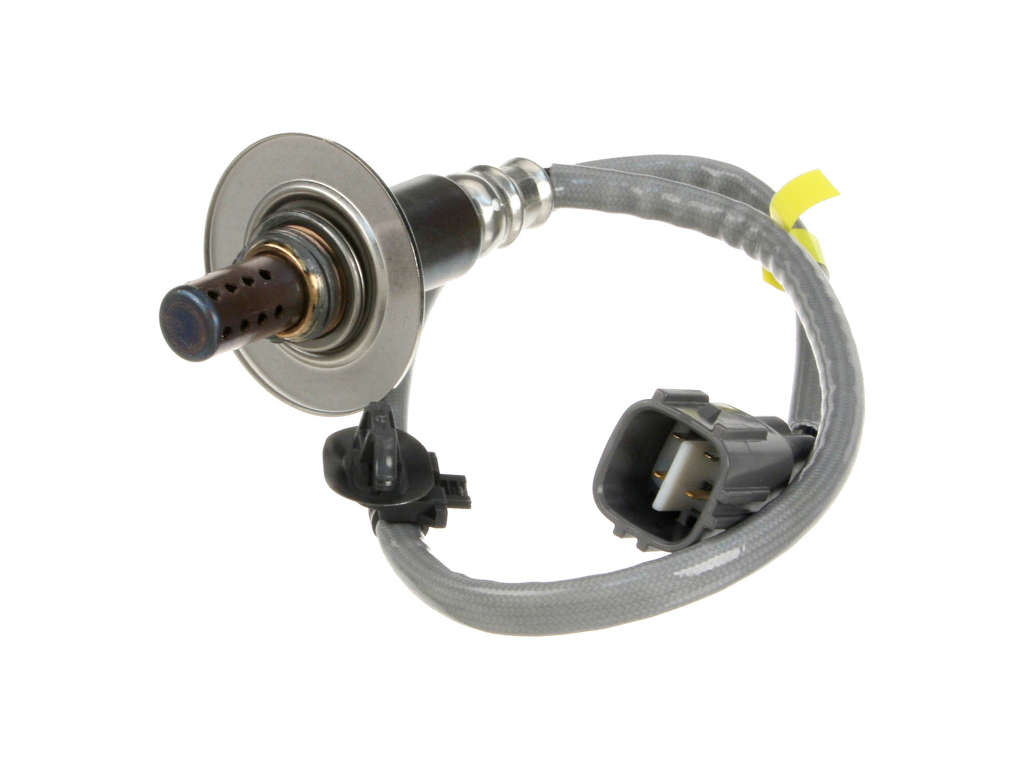

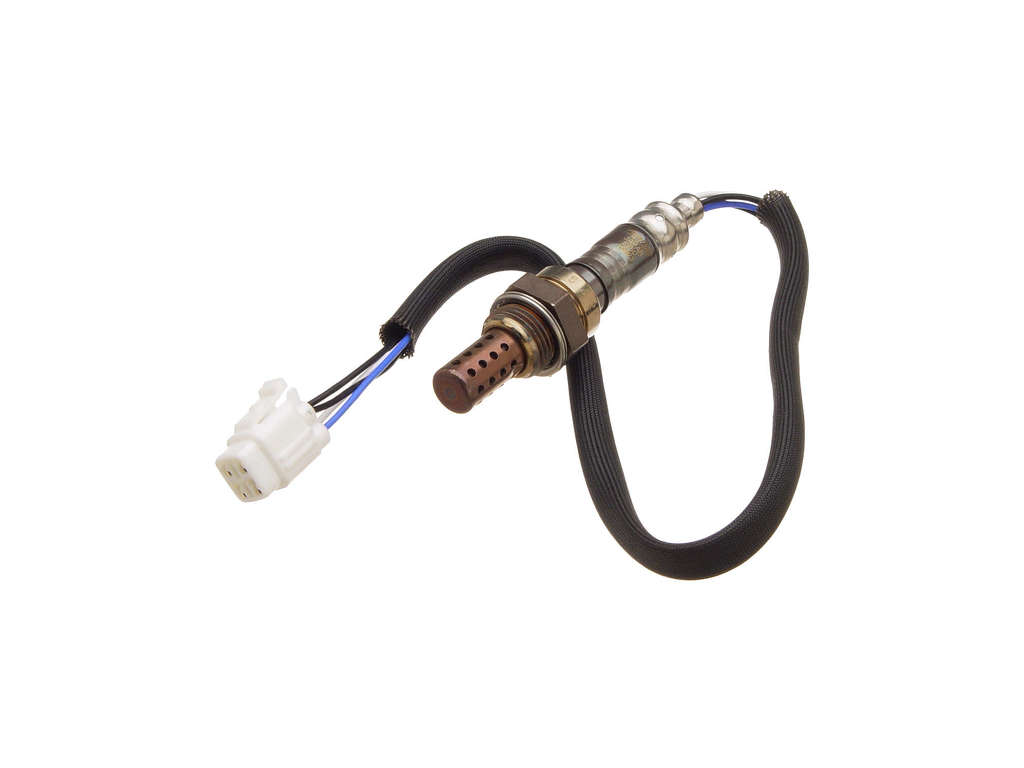

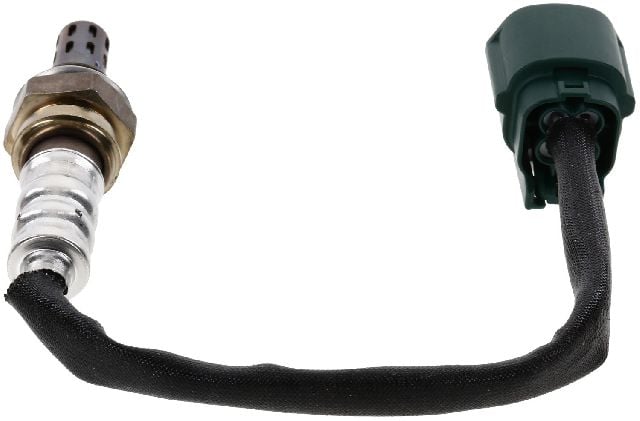

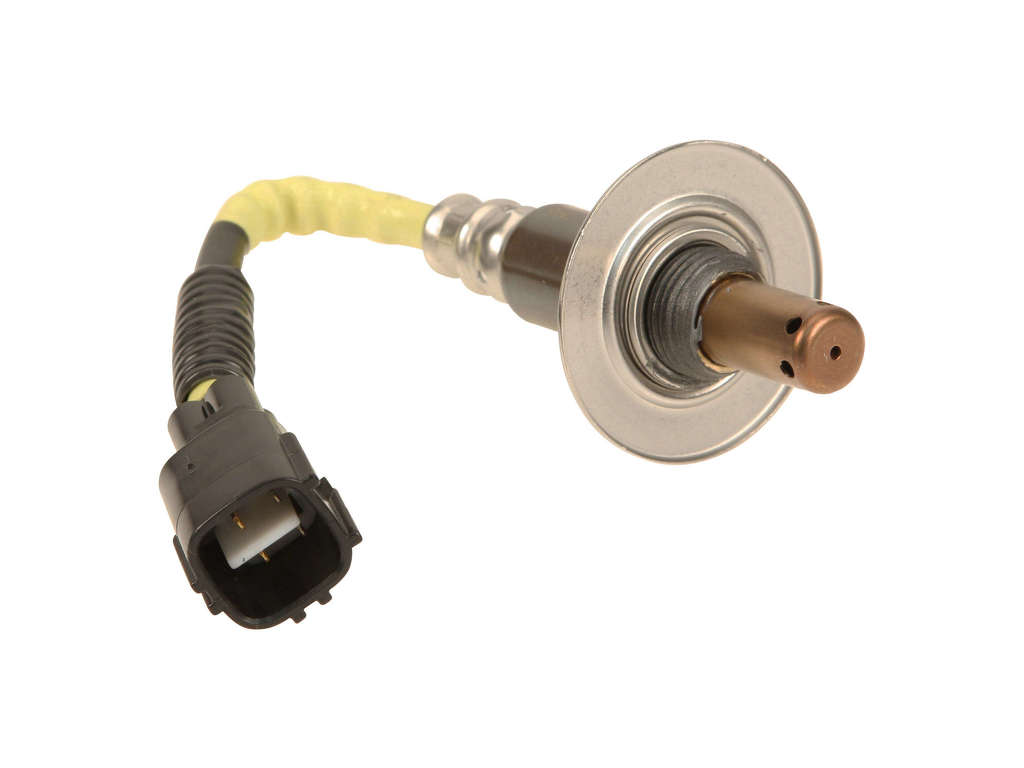

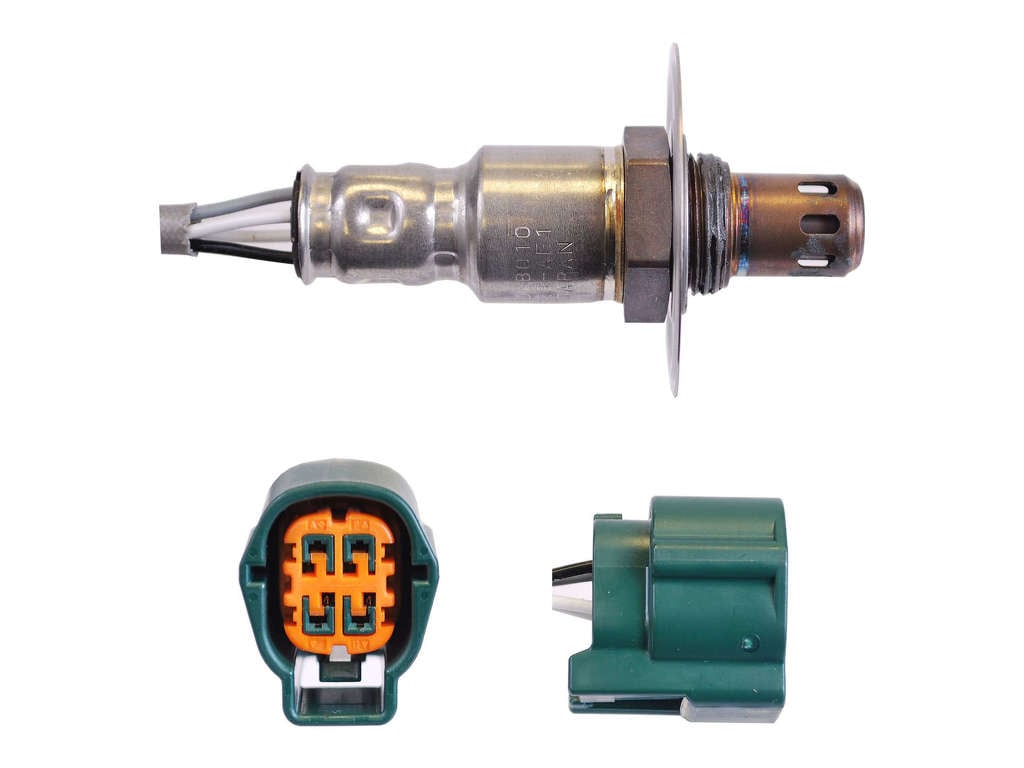

• Bank 1 Sensor 2 (downstream O₂ sensor)-mounted after the catalytic converter under the floor pan (Subaru Forester Forum).

Turbo XT trims and some California-emissions cars may add secondary monitoring sensors, so always match the sensor count to your VIN before ordering parts.

• Check-engine light with codes P0134, P0030, P0420, or P0171 (Subaru Forester Forum, Subaru Forester Forum)
• Drop in fuel mileage or rough idle driver report
• Hesitation on acceleration or "sulfur" smell from exhaust diagnostic blog (Subaru Parts Plus)
• Failed emission test because the catalyst monitor cannot run.

A healthy sensor lets the engine computer trim fuel within ±1 %, giving the Forester its rated mpg and keeping hydrocarbons and carbon-monoxide low Clean Air Act info . A lazy sensor can push fuel use up 10 % or more and may harm the catalytic converter with unburned fuel (Bob Is The Oil Guy).

1. Warm Up & Soak: Run the engine for a minute, then spray the threads with penetrating oil. Heat expands the bung and eases removal (Subaru Forester Forum).
2. Sensor Socket: Use an O₂-sensor socket or a 22 mm crow-foot wrench to protect the wire harness video walk-through .
3. Torque Spec: Subaru's service manual lists 22 ft-lb (30 N·m) for the sensor, or 15.5 ft-lb on some newer models factory spec discussion .
4. Anti-Seize: Most new sensors ship with a nickel anti-seize; a thin coat keeps threads from galling but avoid the tip.
5. Clear Codes: After replacement, clear codes with a scan tool or by disconnecting the battery for 10 minutes.

Heated sensors usually last about 100,000 miles, but Subaru enthusiasts often change them proactively at 90 k miles to keep mpg high maintenance debate . Avoid silicone spray, leaded fuel additives, or coolant leaks-these can coat the ceramic and kill a sensor prematurely (Wikipedia).

Because the sensor helps the catalytic converter scrub harmful gases, replacing a bad unit can cut tail-pipe pollution by up to 40 % and is often required before a state smog inspection will pass Clean Air Act overview . Properly working sensors also lower fuel use, saving money and reducing CO₂.

• P0134 - No activity detected (Bank 1, Sensor 1): usually wiring or dead upstream sensor (Subaru Forester Forum)
• P0030 / P0031 - Heater circuit malfunction: check 12 V supply and ground to sensor heater (Subaru Forester Forum)
• P0171 - System too lean: a slow sensor may be under-reporting fuel mix (YouTube)
• P0420 - Catalyst efficiency below threshold: often caused by a tired downstream sensor or genuine cat failure.

Exhaust pipes can top 1,000 °F. Wear heat-resistant gloves, let the car cool, and support the chassis on jack stands before crawling underneath safety reminder . Disconnect the battery to avoid shorting the harness.

• AFR Sensor: Wide-band upstream sensor reading exact air/fuel ratio.
• Lambda Sensor: Alternate name for O₂ sensor; "λ" refers to the ideal mix.
• Upstream/Pre-Cat: Sensor before catalytic converter.
• Downstream/Post-Cat: Sensor after catalyst, monitors converter performance.
• Bung: Welded fitting in the exhaust where the sensor threads in.

Q: How many oxygen sensors does my Forester have?
A: Most non-turbo Foresters since 2000 use two sensors-one upstream AFR sensor and one downstream O₂ sensor-but always verify by VIN for your exact trim (Subaru Forester Forum, Reddit)

Q: What mileage should I replace them?
A: Subaru and EPA guidance place service life around 100,000 miles; earlier if codes or poor mpg show up (Bob Is The Oil Guy, EPA NEMS)

Q: Can I drive with a bad sensor?
A: Yes, but fuel use rises, power may drop, and you risk damaging the catalytic converter, which costs far more than a sensor.

Q: What size wrench do I need?
A: A 22 mm (7/8-inch) O₂-sensor socket fits most Subaru sensors (Subaru Forester Forum)

Q: Do I need anti-seize on the threads?
A: Most new sensors come pre-coated; if not, use a tiny dab of high-temp nickel anti-seize-avoid getting any on the vent holes (NASIOC Forums)

Q: Will an O₂ spacer fool the computer and clear codes?
A: Spacers may hide a P0420 briefly but often hurt mileage and the code returns, as owners have reported (Reddit)

Q: Are upstream and downstream sensors interchangeable?
A: No. The AFR sensor reads a wide band and has different wiring and response than the narrow-band downstream unit.

Q: What happens if I ignore a P0134 code?
A: The ECU runs "open-loop," adding extra fuel to protect the engine, wasting gas and tripping more codes.

Q: Can water splash ruin a sensor?
A: The ceramic element is sealed, but rapid cooling from deep puddles can crack it.

Q: Do aftermarket headers change sensor placement?
A: Some do; always check that bungs are welded at the same distances so wiring reaches and readings remain accurate.

Q: Does premium fuel extend sensor life?
A: Sensor life is more affected by contamination (oil, coolant, silicone) than octane.

Q: How tight should I torque the new sensor?
A: Follow Subaru spec-22 ft-lb for most models, or 15.5 ft-lb on late-model 2.5 L engines (NASIOC Forums, Subaru Forester Forum)

Q: Why does the rear sensor matter if it doesn't trim fuel?
A: The downstream sensor confirms the catalytic converter is working; if it fails, you may get P0420 and fail emissions.

Q: Can I clean a sensor instead of replacing it?
A: Cleaning rarely restores accuracy; replacement is the reliable fix.

Q: Are wide-band O₂ sensors the same as AFR sensors?
A: Yes-different names for the same wide-range device used upstream on newer Subarus.

Using the tips above will help any Subaru Forester owner understand, diagnose, and replace oxygen sensors confidently while keeping emissions low and fuel mileage high.
