The Toyota Camry ABS control module-also called the anti-lock brake brain, pump computer, or hydraulic control unit-helps stop the wheels from locking up and keeps the car steady during hard or slippery braking. When it fails, the ABS light glows, braking distance grows, and traction or stability warnings may appear. Studies from the National Highway Traffic Safety Administration (NHTSA) show ABS shortens stops on wet or slick roads, but only when the system is healthy. Regular brake-fluid service, clean electrical grounds, and quick attention to warning lights can make the module last the life of the sedan.

The module watches wheel-speed sensors hundreds of times per second and pulses brake pressure through tiny valves so each tire keeps just enough grip to turn while slowing down. If one tire begins to skid, the module commands a pump to relieve pressure for that wheel, then reapplies it a split-second later, repeating until traction returns. This rapid cycling lets the driver steer around obstacles while braking hard, a benefit proven in NHTSA test-track work where ABS cut stopping distance on wet concrete for every Camry-class vehicle examined. (NHTSA, NHTSA)

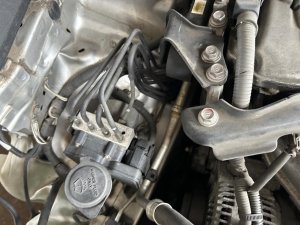

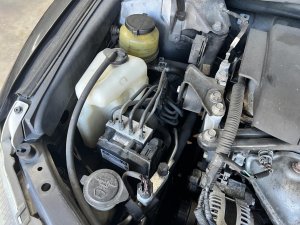

On 2007-present Camry models the ABS computer is bolted to the brake actuator block on the driver-side firewall, just below the master cylinder; four star-head bolts and two multi-pin plugs hold it in place. Earlier generations (1997-2006) place the unit on the left frame rail behind the air-box. Always disconnect the battery before touching the module to avoid shorting sensitive circuits. (Toyota Nation, YouTube)

While the basic job is the same, Toyota released different part numbers for each Camry generation and for hybrids versus gasoline trims. Swapping a used module from a different year can set code C1345 (linear valve offset-not-learned) because the calibration file will not match the car's yaw sensor and steering-angle settings. Check the build date on the driver-door jamb, then cross-check the part number printed on the old unit before ordering a replacement. (YouTube, JustAnswer)

• ABS, brake, or VSC lights stay on after start-up. (NHTSA Static)
• Pedal feels hard, then suddenly dips under heavy pressure. (Olathe Toyota Parts)
• Wheels skid during panic stops, especially on rain-slick pavement. (CarParts.com)
• Diagnostic codes C1252, C1256, or C1391 point to internal leaks or motor faults. (NHTSA Static)

Scan for ABS codes with any OBD-II tool that can read chassis data. If you only need to clear a soft code after a fuse swap, many owners use Toyota's pedal-pump reset: key ON (engine off) and press the brake fast eight times within five seconds-the light blinks then clears. (Toyota Nation, JustAnswer)
To bench-check the valve coils, measure resistance at each solenoid; 4-8 Ω is normal, anything outside that range means the coil is burnt or shorted. (Olathe Toyota Parts)

Toyota's service bulletin allows replacing just the control module section if the hydraulic body is dry and leak-free; otherwise replace the entire actuator assembly. After install, perform a linear-valve offset relearn with a professional scan tool; skipping this step leaves the ABS in failsafe. Bleed the brakes with Techstream or any bi-directional tool that can run the pump and cycle each valve. (YouTube, JustAnswer)

A new Camry ABS computer averages US $1,100-1,300 for parts, with labor adding 2-3 hours. Total shop bills run around US $1,800, but dealer quotes for certain hybrid actuators can top US $4,000 because of longer bleeding time. (Kbb.com, Reddit)
Modules are designed to last the life of the car-often well past 150,000 miles-if the brake fluid is changed every two years and moisture is kept out of the connectors. (YourMechanic, AutoNation Mobile Service)

Government crash-data studies find that ABS lowers the rate of multi-vehicle collisions in wet conditions yet has mixed benefits for single-vehicle run-offs on dry roads. Proper tire pressure and driver familiarity with ABS pulsing help realize its full safety gain. (NHTSA, NHTSA)

1. Flush DOT-3 or DOT-4 brake fluid every 24 months to prevent internal corrosion.
2. Keep wheel-speed sensor gaps free of mud or rust; even a tiny metal shaving can mis-read wheel speed. (YouTube)
3. Check battery voltage; low voltage can trigger false ABS fault codes.
4. Fix any engine-bay water leaks-roof drains ending over the module have corroded Camry harness plugs in humid climates. (YouTube)

The Camry ABS unit also manages traction control (TRAC) and vehicle stability control (VSC). A single fault can light all three icons. After a repair, driving straight for a few minutes above 25 mph lets the module verify yaw and steering data, turning the lights off if no codes return. (YouTube)

Q: What does the ABS light mean on my Camry?
A: It shows the control module has stored a fault code-common ones include pump motor current too high or internal leak-so the anti-lock function is disabled until repaired. (NHTSA Static)

Q: Can I still drive when the ABS light is on?
A: Yes, the base brakes still work, but the wheels can lock under heavy stops and traction control is off, so take extra care in rain or snow. (CarParts.com)

Q: How do I reset the ABS light without a scan tool?
A: Turn the key to ON, then press and release the brake pedal eight times within five seconds; if the fault was temporary, the light will blink and clear. (JustAnswer)

Q: Do I need to program a used module?
A: Yes-after installation, run the linear-valve offset and steering-angle calibrations or the system will store code C1345 and shut down. (YouTube)

Q: How long should an ABS control unit last?
A: Many last the life of the vehicle, but extreme heat, collisions, or contaminated brake fluid can shorten life to 10-15 years. (YourMechanic, AutoNation Mobile Service)

Q: What causes code C1391 on a Camry?
A: An internal leak inside the brake booster or actuator can drop pressure and set this code along with the ABS and brake lights. (NHTSA Static)

Q: Does ABS really shorten stopping distance?
A: On wet or slick pavement it does; NHTSA testing found the shortest stops on wet concrete when ABS was active for every sedan in the study. (NHTSA)

Q: Where is the ABS module located?
A: It sits on the driver-side firewall, joined to the actuator block, with two electrical connectors and four bolts holding it on. (YouTube)
