Buy Toyota Tercel Engine Coolant Thermostat Housings

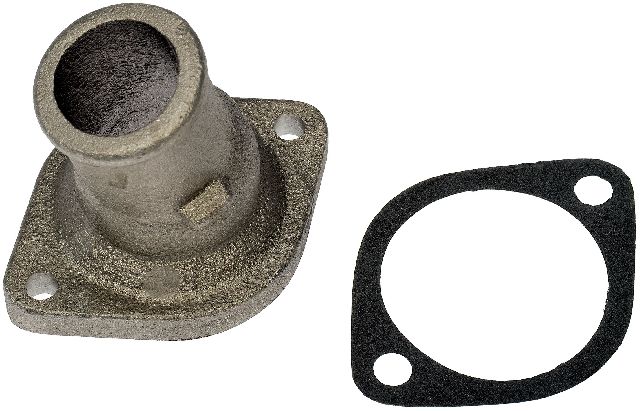

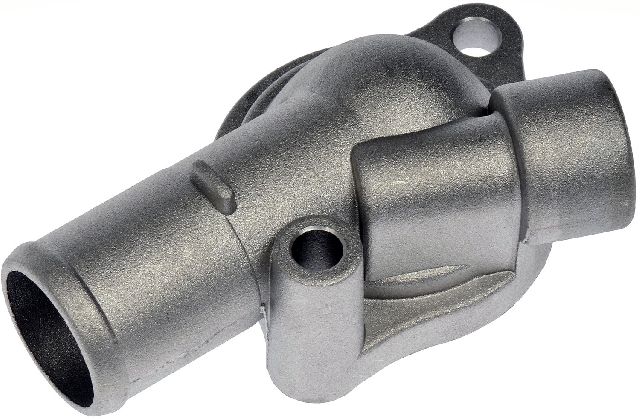

The thermostat housing-also called a coolant outlet, water neck, or thermostat cover-holds the thermostat that lets hot coolant leave your Toyota Tercel's engine and flow to the radiator. When this small part cracks or its gasket fails, the engine can overheat, lose coolant, and even warp the cylinder head. Tercel models from 1987-1998 use light aluminum or molded plastic housings that bolt to the cylinder head with a simple O-ring seal. Tightening them to the correct torque (about 82 in-lbs) and using fresh coolant every few years keeps the housing leak-free and the engine running at its happy 195 ¡F point. (Toyota Nation, J.D. Power)

• What it is: The housing is the place where engine coolant exits the motor and where the thermostat sits.
• Key jobs:
  • Holds the thermostat steady so it can open and close at the right temperature (YouTube)
  • Seals the coolant passage with an O-ring or paper gasket
  • Provides a hose connection for the upper radiator hose
• Common names: coolant outlet, water neck, coolant flange, thermostat cover.

When the engine is cold, the thermostat stays shut so coolant can't flow, letting the motor warm fast. Once coolant hits about 195 ¡F, the wax pellet inside the thermostat melts and pops the valve open. Hot fluid races through the housing, into the upper radiator hose, and down the radiator tubes where outside air cools it. The thermostat then cycles open and closed, keeping temperature steady no matter if you're crawling in traffic or cruising the highway. (, CarParts)

← scroll table horizontally →

*Part numbers are for reference only; always match by VIN.

• Puddle of coolant near transmission bell-housing-look for a hairline crack around the outlet flange. (CarParts)
• Temperature gauge swings hot-cold-the thermostat may stick because of corrosion. (MotoRad)
• Hose feels cool while engine overheats-the thermostat is stuck closed. (J.D. Power)
• Sweet smell inside car-leaking coolant can hit the exhaust and vaporize.

1. Let the engine cool, then drain two quarts of antifreeze into a clean pan.
2. Unclip the upper radiator hose from the housing.
3. Remove two 10 mm bolts; catch any coolant that drips.
4. Lift off the old housing and thermostat. Clean the mating surface.
5. Seat the new O-ring, install the thermostat with Òjiggle-pinÓ up, and fit the new housing.
6. Torque bolts evenly to ~82 in-lbs. (Toyota Nation)
7. Re-fill with Toyota long-life coolant mixed 50/50 with distilled water.
8. Bleed air by squeezing the upper hose and running the engine with the cap off until warm, topping up as needed. (YouTube)

• Replace coolant every 2-3 years to stop corrosion that pits the housing. (Toyota Club)
• Inspect the hose clamp each oil change-loose clamps cause slow leaks.
• Keep a spare O-ring in the glove box; it costs less than a snack.

Never dump used antifreeze down a storm drain. The U.S. EPA says spent coolant should be recycled on-site, handled by a mobile recycler, or taken to a licensed facility. Check the official EPA antifreeze guide for details. Used coolant can poison pets and wildlife, so seal it in a labeled container until you can recycle it.

The housing fits all North American Toyota Tercel engines from 1987 (EA92 chassis) through 1998 (EJ50 chassis) using the 3E-E or 5E-FE four-cylinders. (Charm)

Early housings are die-cast aluminum for heat resistance; many late-1990s versions switched to high-temp nylon plastic to save weight. Aftermarket ÒperformanceÓ outlets are often machined aluminum to handle higher coolant pressures on turbo builds. (CarParts)

Q: Can I drive with a leaking thermostat housing?
A: It's risky. Even a slow drip can empty the cooling system in minutes and overheat the engine.

Q: Do I need sealant on the O-ring?
A: No. A clean surface and the rubber ring are enough. Extra sealant can squeeze out and clog passages. (YouTube)

Q: What temperature thermostat should I use?
A: The factory 180-190 ¡F unit is best; cooler stats can cause poor fuel economy. (Toyota Club)

Q: Why does my gauge jump up and down?
A: A sticking thermostat or air trapped behind it can cause sudden swings. (Reddit)

Q: How tight should the bolts be?
A: About 82 inch-pounds (just snug with a 1/4-inch ratchet). (Toyota Nation)

Q: Is coolant the same as antifreeze?
A: Yes-premixed coolant is half water, half antifreeze. Straight antifreeze must be mixed before use.

Q: What coolant does a Tercel need?
A: Use a long-life ethylene-glycol coolant rated for aluminum engines; Toyota Super Long Life or an equivalent works fine. (Toyota Club)

Q: How often should I change the thermostat?
A: Many owners change it every 60 000 miles or whenever the timing belt is replaced.

Q: Can I reuse the old O-ring?
A: It's safer to install a fresh ring-it costs pennies and prevents leaks.

Q: Where can I learn more?
A: Visit the Toyota Tercel Wikipedia page for model details or watch this helpful 3-D thermostat animation to see how it works.

Feel free to bookmark this guide so your next thermostat housing swap on the trusty Tercel is quick, clean, and leak-free!
