This part comes with our industry-leading lifetime warranty. Shop with confidence!
Let Wrenchy help you confirm if this is the right part.

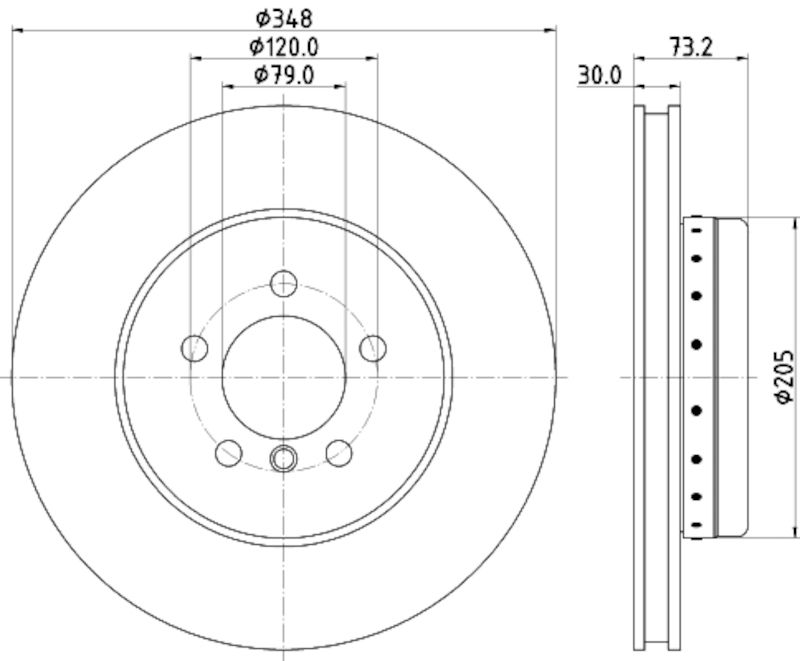

Detailed specifications and attributes for this part:
| Attribute | Value |
|---|---|
| 120.00 | |
| ABS Tone Ring Included | No |
| Assy/Disassy By Qualified Personnel Required! | . |
| Balancing Type | Mill Balancing |
| Bearings Included | No |
| Bolt Hole Circle Ø [in] | 4.72 |
| Bolt Hole Circle Ø [mm] | 120 |
| Bolt Hole Quantity | 6 |
| Brake Disc Thickness [in] | 1.18 |
| Brake Disc Thickness [mm] | 30 |
| Brake Disc Type | Internally Vented, Two-piece Brake Disc |
| California Proposition 65 Required | No |
| Center Hole Diameter | 120.0 |
| Centering Diameter [in] | 3.11 |
| Construction | Composite |
| Directional Or Non Directional Brake Surface | Non-directional |
| Disc Finish | Coated |
| Discard Thickness | 28.40 |
| Grade Type | Standard Replacement |
| Hat Finish | Coated |
| Hole Arrangement / Number | 05/06 |
| Hole Arrangement/Number | 05/06 |
| Inside Diameter | 79.0 |
| Machining | High-carbon |
| Material | Gray Cast Iron & Alum Hat, Gray Cast Iron & Aluminium Hat |
| Minimum Thickness [mm] | 28,4, 28.4 |
| Mounting Bolt Hole Circle Diameter | 120.00 |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 30.00 |
| Number Of Bolts/screws | 1 |
| Outer Diameter [in] | 13.70 |
| Overall Height | 73.20 |
| Rust Resistant Coating | Yes |
| Solid Or Vented Type Rotor | Vented |
| Surface | Coated |
| Surface Type | Smooth |
| Technical Information Number | 65138pro_hc |
| Weight [kg] | 9,9, 9.9 |
| Wheel Bolt Bore Diameter [mm] | 14.5 |
| Wheel Bolt Bore Ø [mm] | 14.5 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Design Pure Traction | Convertible | 2014 - 2016 | L4 2.0L Turbo | RWD Automatic |
| Design Pure Traction | Convertible | 2014 | L4 2.0L Turbo | RWD Manual |
| M Sport | Convertible | 2014 - 2016 | L4 2.0L Turbo | RWD Automatic & Manual |
| M Sport | Convertible | 2014 - 2016 | L6 3.0L | RWD Automatic & Manual |
| sDrive18i | Convertible | 2014, 2016 | L4 2.0L Turbo | RWD Automatic |
| sDrive18i | Convertible | 2014 | L4 2.0L Turbo | RWD Manual |
| sDrive18iA | Convertible | 2015 | L4 2.0L Turbo | RWD Automatic |
| sDrive20i | Convertible | 2012 - 2013 | L4 2.0L Turbo | RWD Automatic & Manual |
| sDrive23i | Convertible | 2011 | L6 2.5L | RWD Automatic & Manual |
| sDrive28i | Convertible | 2012 - 2016 | L4 2.0L Turbo | RWD Automatic & Manual |
| sDrive30i | Convertible | 2011 | L6 3.0L | RWD Automatic & Manual |
| sDrive35i | Convertible | 2011 - 2013 | L6 3.0L | RWD Automatic & Manual |
| sDrive35i | Convertible | 2011 - 2016 | L6 3.0L Turbo | RWD Manual & Automatic Dual Clutch |
| sDrive35i | Convertible | 2011 - 2013 | L6 3.0L Turbo | RWD Automatic |
| sDrive35i Pure Traction | Convertible | 2014 | L6 3.0L Turbo | RWD Automatic Dual Clutch |
| sDrive35is | Convertible | 2011 - 2016 | L6 3.0L Turbo | RWD Automatic Dual Clutch |
⚠️ Important: Please verify your vehicle's year, make, model, and specifications before ordering. If you're unsure about fitment, contact our customer service team for assistance.
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| ATE | 24013002162 |
| Blue Print | ADB1143114 |
| BMW | 34 41 6 259 593 |
| BMW | 6 782 593 |
| Bosch | 0986479E24 |
| Brake Engineering | DI956878S |
| Brembo | 09C41513 |
| Delphi | BG9159BC |
| Delphi | BG9159C |
| Dynamic Friction Company | 600-31105 |
| Dynamic Friction Company | 604-31105 |
| Dynamic Friction Company | 900-31105 |
| Dynamic Friction Company | 900-31105A |
| EBC Brakes | D1815R |
| EBC Brakes | USR1815R |
| Febi-Bilstein | 107504 |
| Ferodo | DDF2616VC1 |
| Hella Pagid | 65138PROHC |
| Hella Pagid | 8DD355120751 |
| Jurid | 563201JVC1 |
| LPR | B2089VBR |
| Mintex | MDCB2596 |
| Optimal | BS9326 |
| Optimal | BS9326HC |
| PAGID Racing | 65138 |
| PAGID Racing | 65138HC |
| Pilenga | V728B1 |
| Remsa | 6163010 |
| Textar | 92266825 |
| Textar | 98200266801 |
| Tridon | 8120111044C |
| VAICO | V2080018 |
| Zimmermann | 150349120 |
| Zimmermann | 150349132 |
| Zimmermann | 150349152 |
Fits Years: 2011 2012 2013 2014 2015 2016
Fits Models: Z4
