See Other BMW Z4 Disc Brake Rotors
2019-2024 BMW 640i xDrive Gran Turismo Disc Brake Rotor Pagid

2019 - 2024 BMW Z4 xDrive Gran Turismo Disc Brake Rotor - Front Left (Pagid)

$141.53
Save up to 80% vs List Price!

ℹ️ Product Notes

Position: Front Left (Driver Side)
Coated, High Carbon, Full-Cast Disc
OE Composite Two-Piece Design
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.
Brand: Pagid
Condition: New
See Other BMW Z4 Disc Brake Rotors
🤝
100% Money-Back Guarantee
↩️
120-Day Returns
🏅
Insurance-Grade Quality

🛡️ Lifetime Warranty Included

This part comes with our industry-leading lifetime warranty. Shop with confidence!

SKU #
351A5D3
  • Direct Fit for 2019 - 2024 BMW Z4
  • Position: Front Left (Driver Side) Position
  • New Condition
  • Pagid Quality
  • Easy Installation - No Modifications
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!Meet Wrenchy
The Amazing Assistant!

Let Wrenchy help you confirm if this is the right part.

Ask Wrenchy -
Type or Speak! 🎤

Product Specifications


Detailed specifications and attributes for this part:

Attribute Value
ABS Tone Ring Included No
Assy/Disassy By Qualified Personnel Required! .
Balancing Type Mill Balancing
Bearings Included No

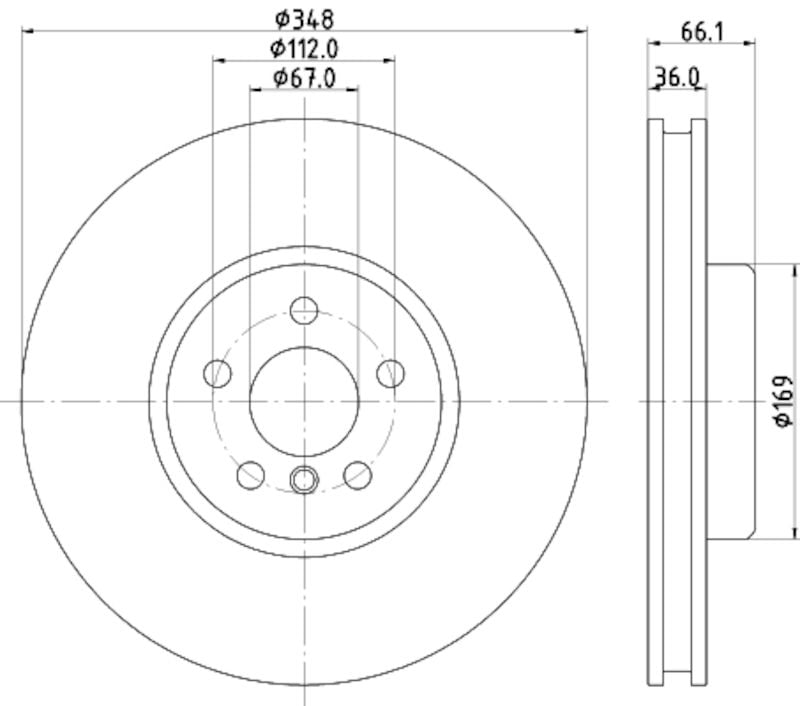

Bolt Hole Circle Ø [in] 4.41
Bolt Hole Circle Ø [mm] 112
Brake Disc Thickness [in] 1.42
Brake Disc Type Internally Vented, Two-piece Brake Disc
California Proposition 65 Required No
Center Hole Diameter 114.3
Centering Diameter [in] 2.64
Construction Composite
Directional Or Non Directional Brake Surface Directional
Disc Finish Coated
Discard Thickness 34.4
Fitting Position Front Axle Left
Grade Type Standard Replacement
Hat Finish Coated
Hole Arrangement / Number 05/06
Hole Arrangement/Number 05/06
Inner Diameter [in] 6.06
Inside Diameter 67.0
Machining High-carbon
Material Gray Cast Iron
Mounting Bolt Hole Circle Diameter 112.0
Mounting Bolt Hole Quantity 5
Nominal Thickness 36.0
Outer Diameter [in] 13.70
Overall Height 66.1
Paired Catalog Number 8dd 355 133-621
Rust Resistant Coating Yes
Solid Or Vented Type Rotor Vented
Surface Coated
Surface Type Smooth
Technical Information Number 56126pro_hc
Weight [kg] 13, 13,0
Weight [lb] 28.67
Weight [lbs] 28.67
Wheel Bolt Bore Diameter [mm] 16.6
Wheel Bolt Bore Ø [mm] 16.6

Vehicle Fitment Guide

This part fits the following vehicles:

BMW
Z4 2019-2024 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
M40i Convertible 2019 - 2024 L6 3.0L Turbo RWD Automatic
M40i First Edition Convertible 2020 - 2021 L6 3.0L Turbo RWD Automatic
sDrive M40i Convertible 2020 - 2021 L6 3.0L Turbo RWD Automatic
sDrive20i Convertible 2021 - 2023 L4 2.0L Turbo RWD Automatic
sDrive20i M Sport Convertible 2019 - 2020 L4 2.0L Turbo RWD Automatic
sDrive20i Sport Line Convertible 2019 - 2020 L4 2.0L Turbo RWD Automatic
sDrive30i Convertible 2019 - 2024 L4 2.0L Turbo RWD Automatic

⚠️ Important: Please verify your vehicle's year, make, model, and specifications before ordering. If you're unsure about fitment, contact our customer service team for assistance.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

More Information


HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

Interchange Parts

Brand Part Number
Blue Print ADBP430020
BMW 34 41 6 007 075
BMW 34 41 6 091 911
BMW 34106880075
BMW 34108858705
BMW 34116860911
BMW 6 880 075
BMW 6860911
BMW 8858705
Borg & Beck BBD7017S
Cifam 8001867C
Delphi BG9364BC
Dynamic Friction Company 600-31134D
Dynamic Friction Company 604-31134D
Dynamic Friction Company 631-31096L
Dynamic Friction Company 631-31134D
Dynamic Friction Company 631-31168L
Dynamic Friction Company 631-31171L
Dynamic Friction Company 633-31096L
Dynamic Friction Company 633-31134D
Dynamic Friction Company 633-31168L
Dynamic Friction Company 633-31171L
Dynamic Friction Company 644-31132D
Dynamic Friction Company 810-31112L
Dynamic Friction Company 810-31134D
Dynamic Friction Company 810-31168L
Dynamic Friction Company 810-31171L
Dynamic Friction Company 820-31096L
Dynamic Friction Company 820-31112L
Dynamic Friction Company 820-31134D
Dynamic Friction Company 820-31168L
Dynamic Friction Company 820-31171L
Dynamic Friction Company 830-31096L
Dynamic Friction Company 830-31134D
Dynamic Friction Company 830-31168L
Dynamic Friction Company 830-31171L
Dynamic Friction Company 900-31134D
Dynamic Friction Company 900-31134DA
EBC Brakes D2065R
Febi-Bilstein 171454
FREMAX BRAKE ROTORS AND DRUMS BD3577
Hella Pagid 56126PROHC
Hella Pagid 8DD355133591
HERTH+BUSS J3302207
Japan Parts DI0147
Japan Parts DI0147C
Jurid 563210JC1
LPR B2108VR
METELLI 231867C
MEYLE 3835211019PD
National NBD2127
Remsa 6212710
Textar 92312605
Textar 98200312601
Textar MDC83109LC
Toyota 43516WAA01
TRW Steering and Suspension Parts DF8648S
VAICO V2040044
Valeo 672702
Zimmermann 150293620
Zimmermann 150293652

Fits Years: 2019 2020 2021 2022 2023 2024

Fits Models: Z4
