This part comes with our industry-leading lifetime warranty. Shop with confidence!
Let Wrenchy help you confirm if this is the right part.
Detailed specifications and attributes for this part:
| Attribute | Value |
|---|---|
| Bearing Cap Diameter (1) | 1.125 |
| Bearing Cap Diameter (2) | 1.125 |
| Bearing Cap Diameter A (mm) | 28.575 |
| Bearing Cap Diameter B (mm) | 28.575 |
| Bearing Cap Finish | Ground |
| Bearing Cap Type | Round With Isr Groove |
| Bearing Cap Type A | Isr |
| Bearing Cap Type B | Isr |
| Coating Type | None |
| Grease Fitting Location | Side Of Cross |
| Grease Type | N.l.g.i. Grade 2 |
| Grease Zerk Included | Y |
| Greaseable | Y |
| Length A (In) | 2.556 |
| Length A (mm) | 64.9 |
| Length B (In) | 2.556 |
| Length B (mm) | 64.9 |
| Material | Steel |
| Model Number | 3r, Saginaw 44, Aam 1344 |
| Mounting Hardware Included | N |
| OEM Mfg | Mechanics |
| OEM Series | S44 |
| Pre Greased | N |
| Prop 65 | Yes |
| Seal Color/Finish | Blue |
| Seal Material | Rubber |
| Snap Ring Included | Y |
| Snap Ring Type | Internal |

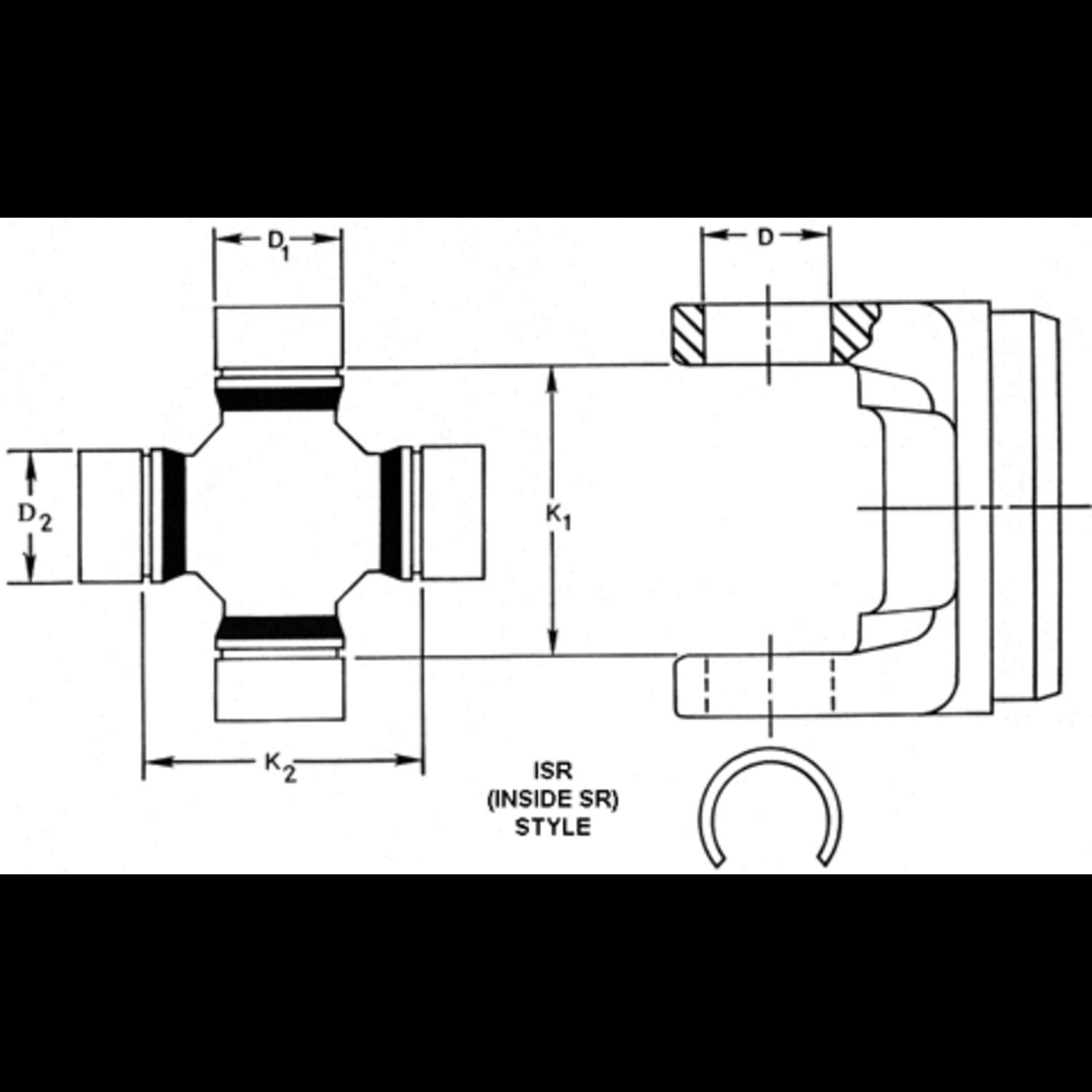

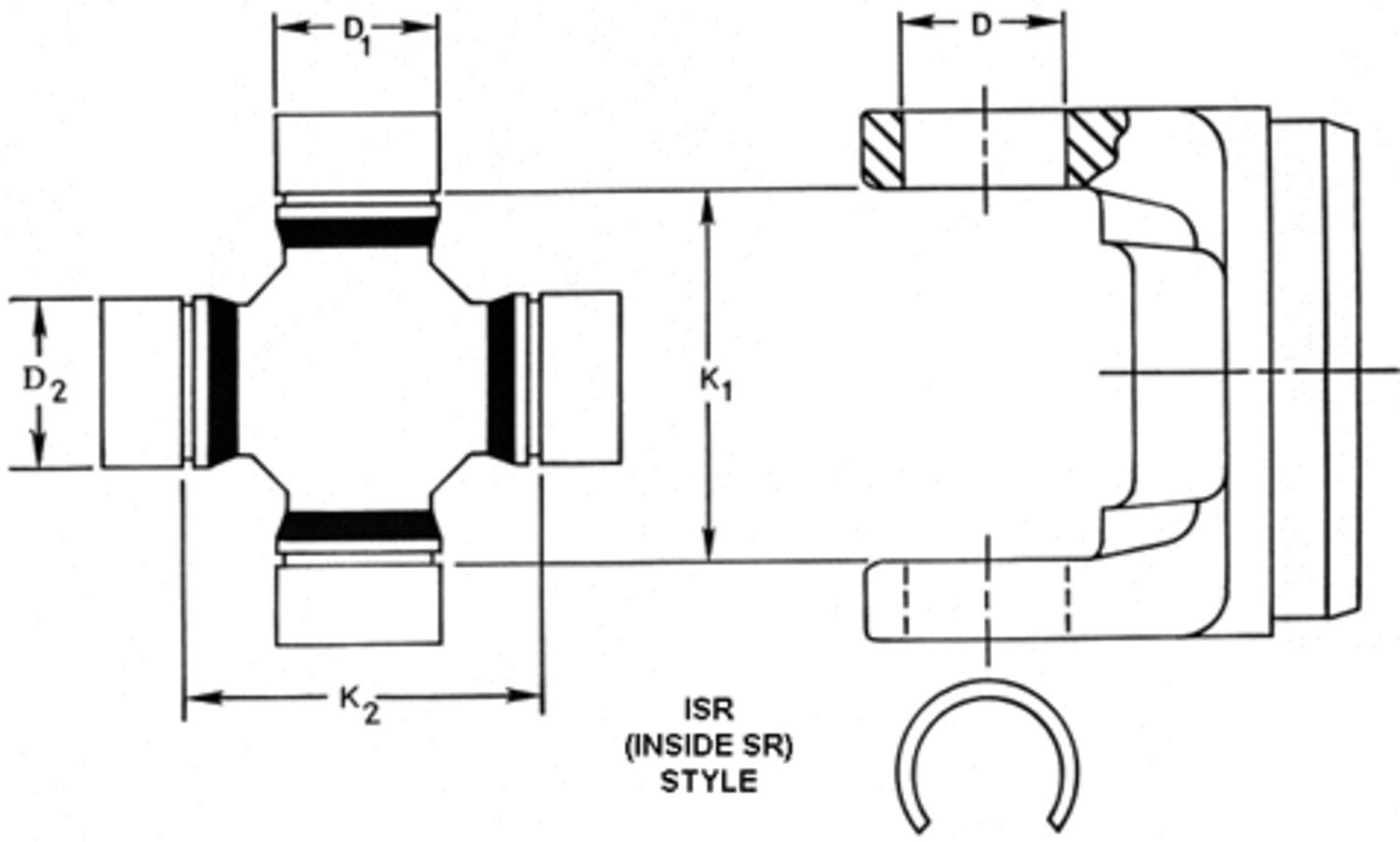

| Type | Isr Style |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| A | SUV | 2004 - 2007 | L6 4.2L | RWD Automatic |
| B | SUV | 2006 | L6 4.2L | 4WD Automatic |
| B | SUV | 2004 - 2007 | L6 4.2L | RWD Automatic |
| Base | SUV | 2008 | L6 4.2L | 4WD Automatic |
| Base | SUV | 2008 | V8 5.3L | RWD/4WD Automatic |
| Base | SUV | 2003 - 2008 | L6 4.2L | RWD Automatic |
| LS | SUV | 2006 - 2007 | V8 5.3L | RWD/4WD Automatic |
| LS | SUV | 2002 - 2007 | L6 4.2L | RWD/4WD Automatic |
| LT | SUV | 2006 - 2008 | V8 5.3L | RWD/4WD Automatic |
| LT | SUV | 2002 - 2009 | L6 4.2L | RWD/4WD Automatic |
| LTZ | SUV | 2002 - 2003 | L6 4.2L | RWD/4WD Automatic |
| North Face | SUV | 2002 - 2004 | L6 4.2L | RWD/4WD Automatic |
| Q | SUV | 2005 | L6 4.2L | RWD Automatic |
| R | SUV | 2005 | L6 4.2L | RWD Automatic |
| SS | SUV | 2006 - 2009 | V8 6.0L | AWD/RWD Automatic |
⚠️ Important: Please verify your vehicle's year, make, model, and specifications before ordering. If you're unsure about fitment, contact our customer service team for assistance.
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| ACDelco | 45U0108 |
| ACDelco | 45U0110 |
| ACDelco | 45U0136 |
| ACDelco | 45U0158 |
| American Axle & Manufacturing | 12479126 |
| Chrysler | 04030848 |
| Chrysler | 5093 377AA |
| Chrysler | 5093 377AB |
| Chrysler | 50933777AB |
| Chrysler | 5093377AA |
| Chrysler | 5093377AB |
| Chrysler | 5093377AC |
| Daimler Truck North America | SP 5 3147X |
| Daimler Truck North America | SP 5 3147XHP |
| Dana Commercial Vehicle Service Parts | 2104-53147X |
| Dana Commercial Vehicle Service Parts | 5-3147XB250 |
| Dana Commercial Vehicle Service Parts | 5-3147XSB |
| Dana Commercial Vehicle Service Parts | 5-3211X |
| Dana Commercial Vehicle Service Parts | DT3147 |
| Dana Commercial Vehicle Service Parts | SP53147X |
| General Motors | 12471502 |
| General Motors | 23104840 |
| General Motors | 26042371 |
| General Motors | 7806140 |
| General Motors | 7816006 |
| General Motors | 8-12479-126-0 |
| General Motors | 8078061400 |
| General Motors | 8124715020 |
| General Motors | 8124791260 |
| General Motors | 8260423710 |
| International Harvester IHC | D53147X |
| International Harvester IHC | E53147X |
| International Harvester IHC | ZJU53147X |
| Isuzu | 8231048400 |
| McNeilus | 2GN156 |
| Meritor | CP3147X |
| Midwest | 5-3147XR |
| Navistar | DS53147X |
| Neapco OE Series | 23011 |
| Paccar Parts | 5-3147X |
| Peterbilt | 2GN272 |
| Precision | 234 |
| Precision | 235 |
| Precision | 534G |
| Rockwell International | CP 3147X |
| SKF | 2-0795 |
| SKF | 2-3010 |
| SKF | 2-3011 |
| SKF | 2-3011G |
| SKF | 2-3111 |
| SKF | UJ234 |
| SKF | UJ235 |
| SKF | UJ534G |
| SVL | 15-3147X |
| Volvo | 53147X |
| Volvo | 85106690 |
| Volvo | SHP5-3147X |
| Volvo | SHP53147X |
| Volvo | SP 5-3147X |
| Volvo | SP 53147X |
Fits Years: 2002 2003 2004 2005 2006 2007 2008 2009
Fits Models: Trailblazer
