2002 - 2009 Chevrolet Trailblazer Chassis Differential - Front or Rear (Auburn Gear)
$1,634.30
Save up to 80% vs List Price!
ℹ️ Product Notes
Position: Front or Rear Selectable Full Locker w/Limited Slip; For Use w/2.73-Up Ratio; 30 Spline
8.5 in. (10 Bolt)

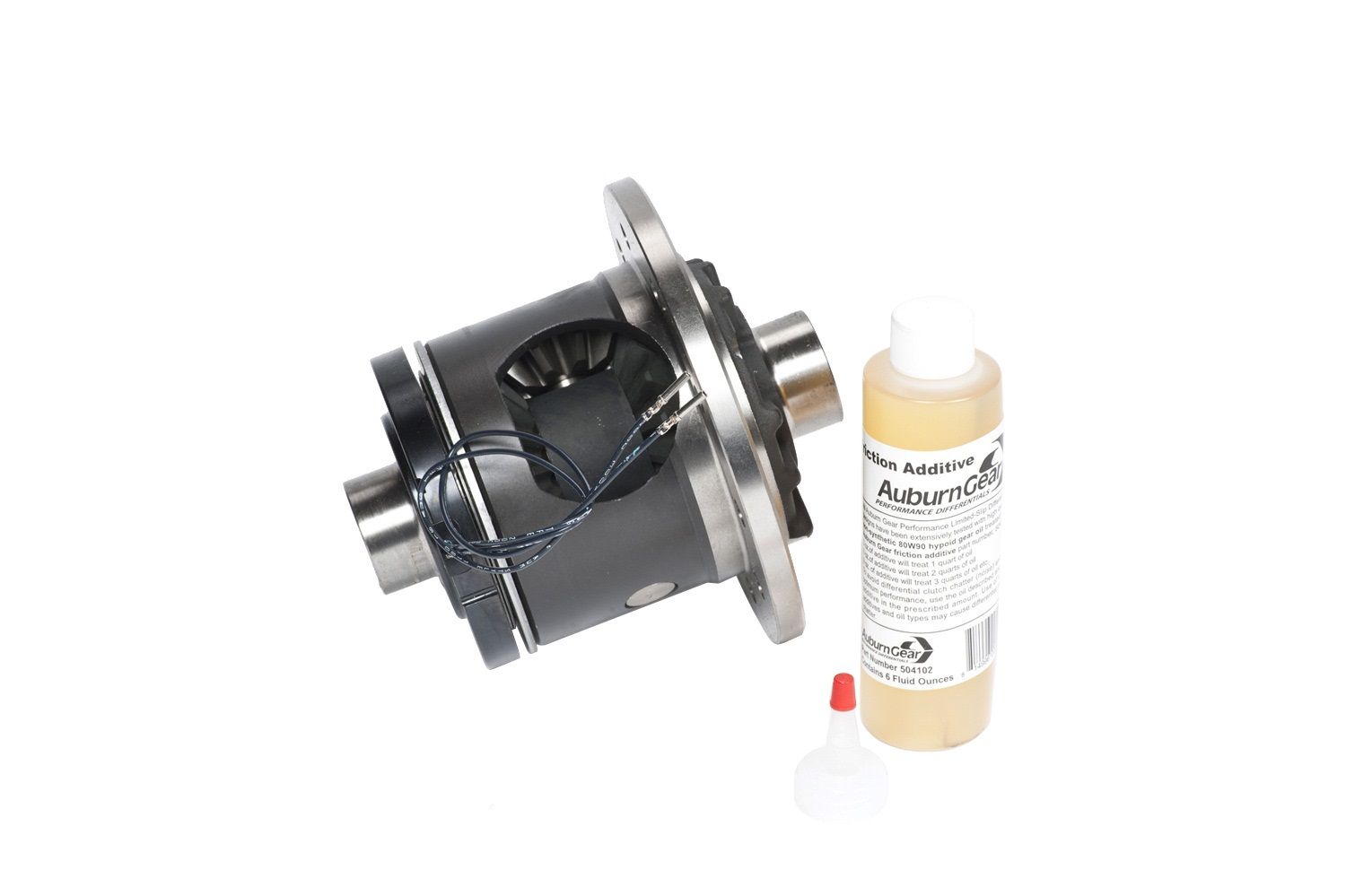

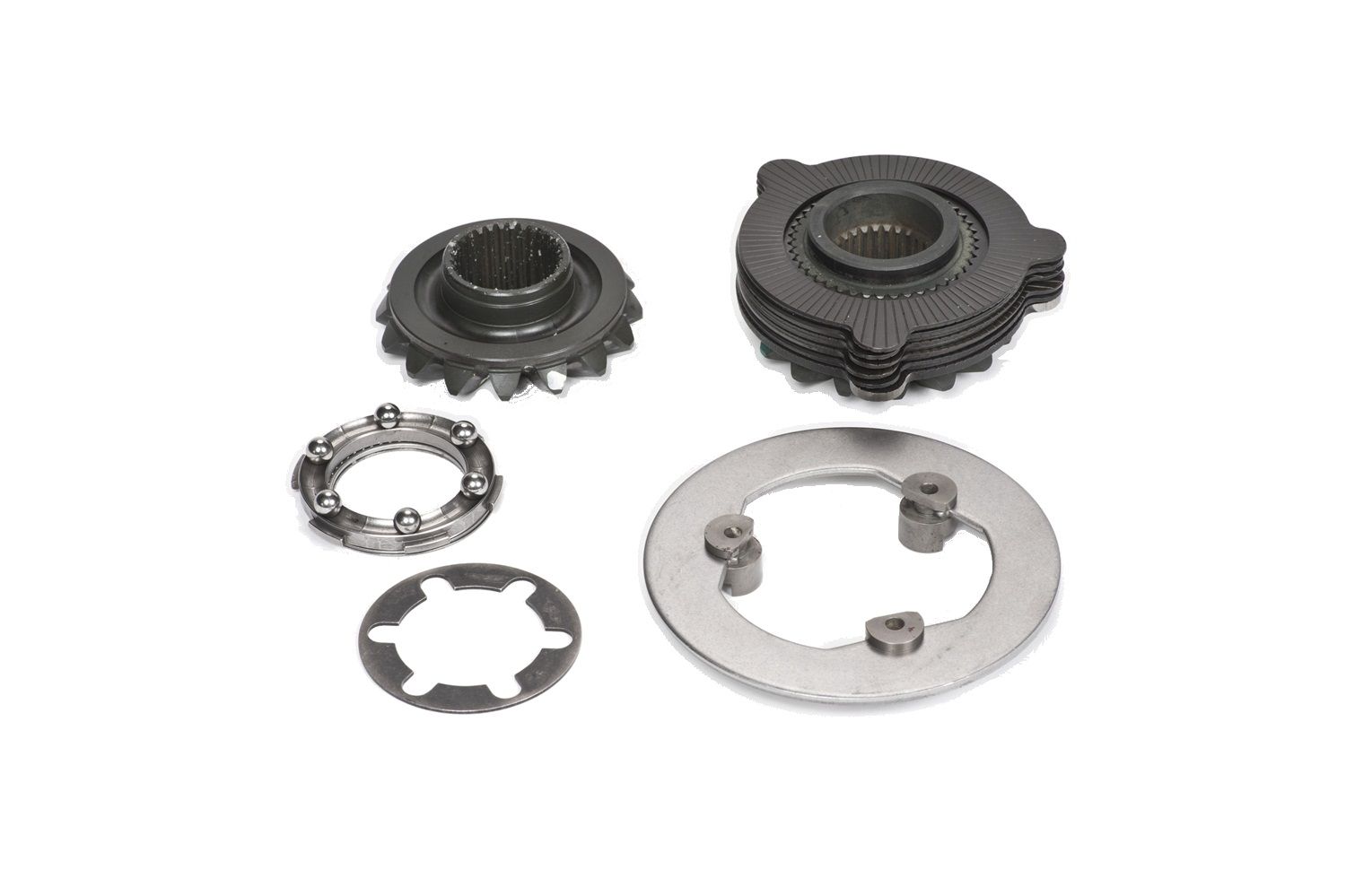

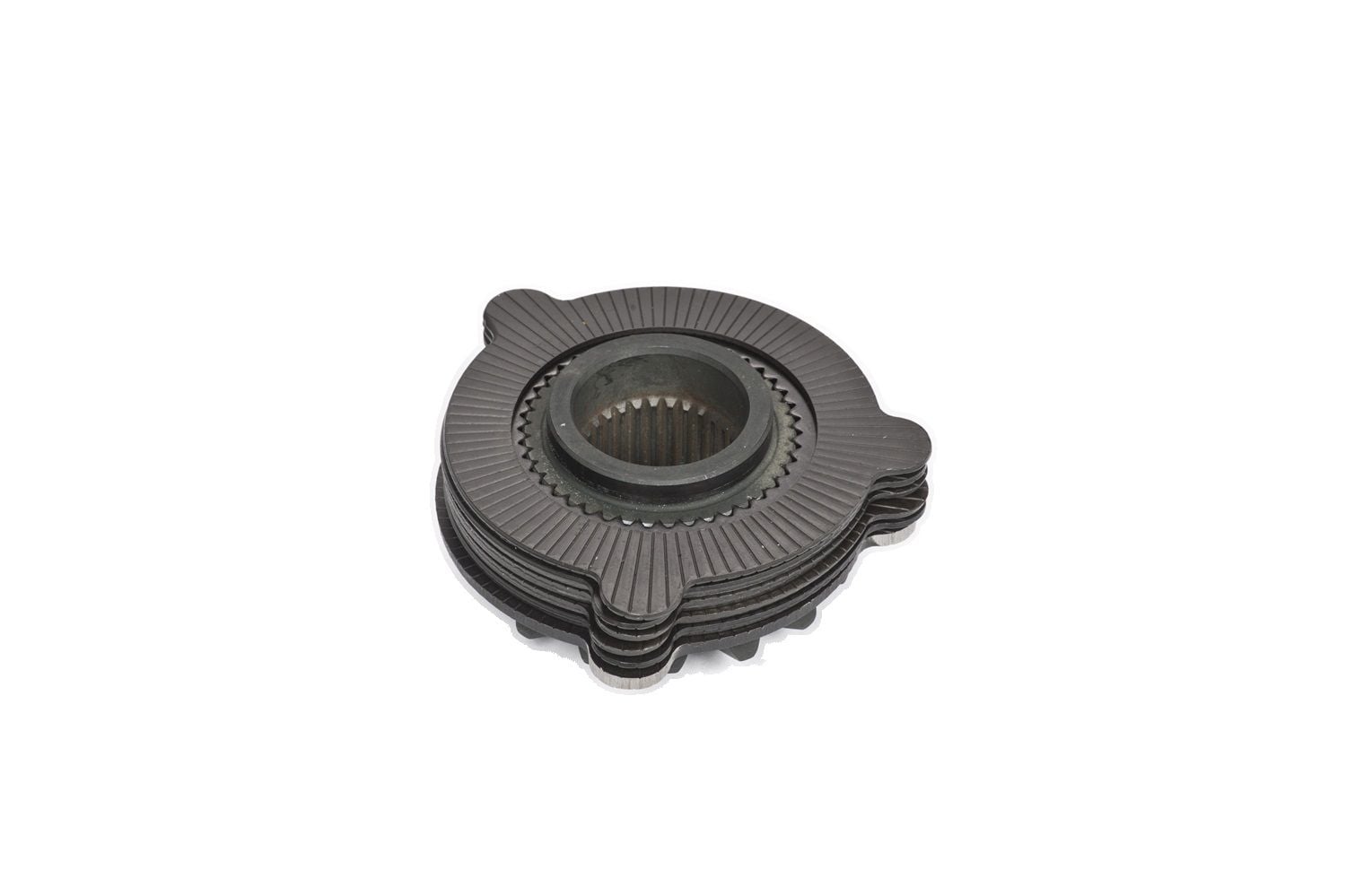

Auburn Gear Ected Max The ECTED Max is a selectable traction device; an on/off switch is mounted near the driver. When off–the clutch pack,located behind the side gear provides the limited slip mode. As torque increases, the separating forces within the differential gears increase, causing the clutch pack to be compressed and thereby providing bias torque to the high traction wheel–your performance limited slip differential action. When selected on, current is sent to the electromagnetic coil. The coil is retained by a clip that fits over one of the bearing cap bolts, making it non-rotational. The coil rides on a ball bearing. The ball bearings spin with the differential case. The coil creates a magnetic flux so that the pilot cone is pulled into engagement with the differential case. This frictional engagement causes the bearing balls to ride up on a ramp machined into the side gear. This radial travel of the balls also causes lateral movement of the side gear. This applies a force onto the center block. The center block has an elongated hole that the center pin fits through, allowing it to float. The center block applies force to the opposite side gear, compressing the clutch pack giving the user a solid axle assembly–the spool/locker performance you desire at the strip/off-road. ECTED Max gearing is made from aircraft quality, 9310 heat-treated billet steel. Tough as nails! ECTED Max can be switched on or off on the fly, at any road speed. ECTED Max does not have any shift forks or pins that must be lined up to obtain locker mode. ECTED Max is quiet. Good-bye to noisy lockers! ECTED Max is backed by industry-leading 1 year warranty, like all Auburn Gear Performance Differentials. ECTED Max is backed by the industry-exclusive program. D-REX=Differential–Replacement EXchange Program. ECTED Max can be used in front axle applications–with or w/out lockout hubs. ECTED Max is the only selectable locker offering both limited slip and locker modes. Forget the rest-go with the best! Brand: Auburn Gear Condition: New
This part comes with our industry-leading lifetime warranty. Shop with confidence!
SKU #
58DBB20
Direct Fit for 2002 - 2009 Chevrolet Trailblazer
Position: Front or Rear Position
New Condition
Auburn Gear Quality
Easy Installation - No Modifications
Meet Wrenchy - The Amazing Parts Assistant!Meet Wrenchy The Amazing Assistant!
Let Wrenchy help you confirm if this is the right part.
Ask Wrenchy - Type or Speak! 🎤
Wrenchy the Robot ®
Product Specifications
Detailed specifications and attributes for this part:
No additional attributes are available for this product.
Vehicle Fitment Guide
Active Filters:
This part fits the following vehicles:
⚠️ No Matching Vehicles Found
This part does not fit the vehicle specifications you selected. Please try adjusting your filter criteria or to see all compatible vehicles.
Chevrolet
Trailblazer2002-2009(tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB- MODEL
Body Style
Years
Engine
Attributes
A
SUV
2004 - 2007
L6 4.2L
RWD Automatic
B
SUV
2006
L6 4.2L
4WD Automatic
B
SUV
2004 - 2007
L6 4.2L
RWD Automatic
Base
SUV
2008
L6 4.2L
4WD Automatic
Base
SUV
2008
V8 5.3L
RWD/4WD Automatic
Base
SUV
2003 - 2008
L6 4.2L
RWD Automatic
LS
SUV
2006 - 2007
V8 5.3L
RWD/4WD Automatic
LS
SUV
2002 - 2007
L6 4.2L
RWD/4WD Automatic
LT
SUV
2006 - 2008
V8 5.3L
RWD/4WD Automatic
LT
SUV
2002 - 2009
L6 4.2L
RWD/4WD Automatic
LTZ
SUV
2002 - 2003
L6 4.2L
RWD/4WD Automatic
North Face
SUV
2002 - 2004
L6 4.2L
RWD/4WD Automatic
Q
SUV
2005
L6 4.2L
RWD Automatic
R
SUV
2005
L6 4.2L
RWD Automatic
SS
SUV
2006 - 2009
V8 6.0L
AWD/RWD Automatic
Years
Make
Model
Submodel
Body Style
Engine
Attributes
2006 - 2009
Chevrolet
Trailblazer
SS
SUV
V8 6.0L
AWD/RWD Automatic
2002 - 2009
Chevrolet
Trailblazer
LT
SUV
L6 4.2L
RWD/4WD Automatic
2008
Chevrolet
Trailblazer
Base
SUV
L6 4.2L
4WD Automatic
2008
Chevrolet
Trailblazer
Base
SUV
V8 5.3L
RWD/4WD Automatic
2006 - 2008
Chevrolet
Trailblazer
LT
SUV
V8 5.3L
RWD/4WD Automatic
2003 - 2008
Chevrolet
Trailblazer
Base
SUV
L6 4.2L
RWD Automatic
2006 - 2007
Chevrolet
Trailblazer
LS
SUV
V8 5.3L
RWD/4WD Automatic
2004 - 2007
Chevrolet
Trailblazer
A
SUV
L6 4.2L
RWD Automatic
2004 - 2007
Chevrolet
Trailblazer
B
SUV
L6 4.2L
RWD Automatic
2002 - 2007
Chevrolet
Trailblazer
LS
SUV
L6 4.2L
RWD/4WD Automatic
2006
Chevrolet
Trailblazer
B
SUV
L6 4.2L
4WD Automatic
2005
Chevrolet
Trailblazer
Q
SUV
L6 4.2L
RWD Automatic
2005
Chevrolet
Trailblazer
R
SUV
L6 4.2L
RWD Automatic
2002 - 2004
Chevrolet
Trailblazer
North Face
SUV
L6 4.2L
RWD/4WD Automatic
2002 - 2003
Chevrolet
Trailblazer
LTZ
SUV
L6 4.2L
RWD/4WD Automatic
⚠️ Important: Please verify your vehicle's year, make, model, and specifications before ordering. If you're unsure about fitment, contact our customer service team for assistance.
Policies
Shipping Information
We offer fast, reliable shipping on all orders:
Ships to all countries via US Postal Service Priority Mail.
Most orders ship within 1 business day.
Delivery time: 1-4 business days after shipment.
International shipping available, including APO/FPO addresses.
Tracking information provided for all shipments.
Additional handling fees may apply for oversized/overweight packages.
Return Policy
We want you to be 100% satisfied with your purchase. That's why we offer:
120-Day Returns - Return any part within 120 days from date of receipt.
Must obtain RMA (Return Merchandise Authorization) number before returning.
Parts must be in original condition, uninstalled, unaltered, and in original packaging.
Important: Electrical parts are not returnable if unsealed.
Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
Refunds processed after warehouse receives return and credited to original payment method.
Warranty
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
Shipping costs or labor expenses.
Installation errors.
Parts used for racing.
Commercial vehicle parts.
More Information
The ECTED Max is a selectable traction device; an on/off switch is mounted near the driver. When off–the clutch pack,located behind the side gear provides the limited slip mode. As torque increases, the separating forces within the differential gears increase, causing the clutch pack to be compressed and thereby providing bias torque to the high traction wheel–your performance limited slip differential action. When selected on, current is sent to the electromagnetic coil. The coil is retained by a clip that fits over one of the bearing cap bolts, making it non-rotational. The coil rides on a ball bearing. The ball bearings spin with the differential case. The coil creates a magnetic flux so that the pilot cone is pulled into engagement with the differential case. This frictional engagement causes the bearing balls to ride up on a ramp machined into the side gear. This radial travel of the balls also causes lateral movement of the side gear. This applies a force onto the center block. The center block has an elongated hole that the center pin fits through, allowing it to float. The center block applies force to the opposite side gear, compressing the clutch pack giving the user a solid axle assembly–the spool/locker performance you desire at the strip/off-road. ECTED Max gearing is made from aircraft quality, 9310 heat-treated billet steel. Tough as nails! ECTED Max can be switched on or off on the fly, at any road speed. ECTED Max does not have any shift forks or pins that must be lined up to obtain locker mode. ECTED Max is quiet. Good-bye to noisy lockers! ECTED Max is backed by industry-leading 1 year warranty, like all Auburn Gear Performance Differentials. ECTED Max is backed by the industry-exclusive program. D-REX=Differential–Replacement EXchange Program. ECTED Max can be used in front axle applications–with or w/out lockout hubs. ECTED Max is the only selectable locker offering both limited slip and locker modes. Forget the rest-go with the best!
