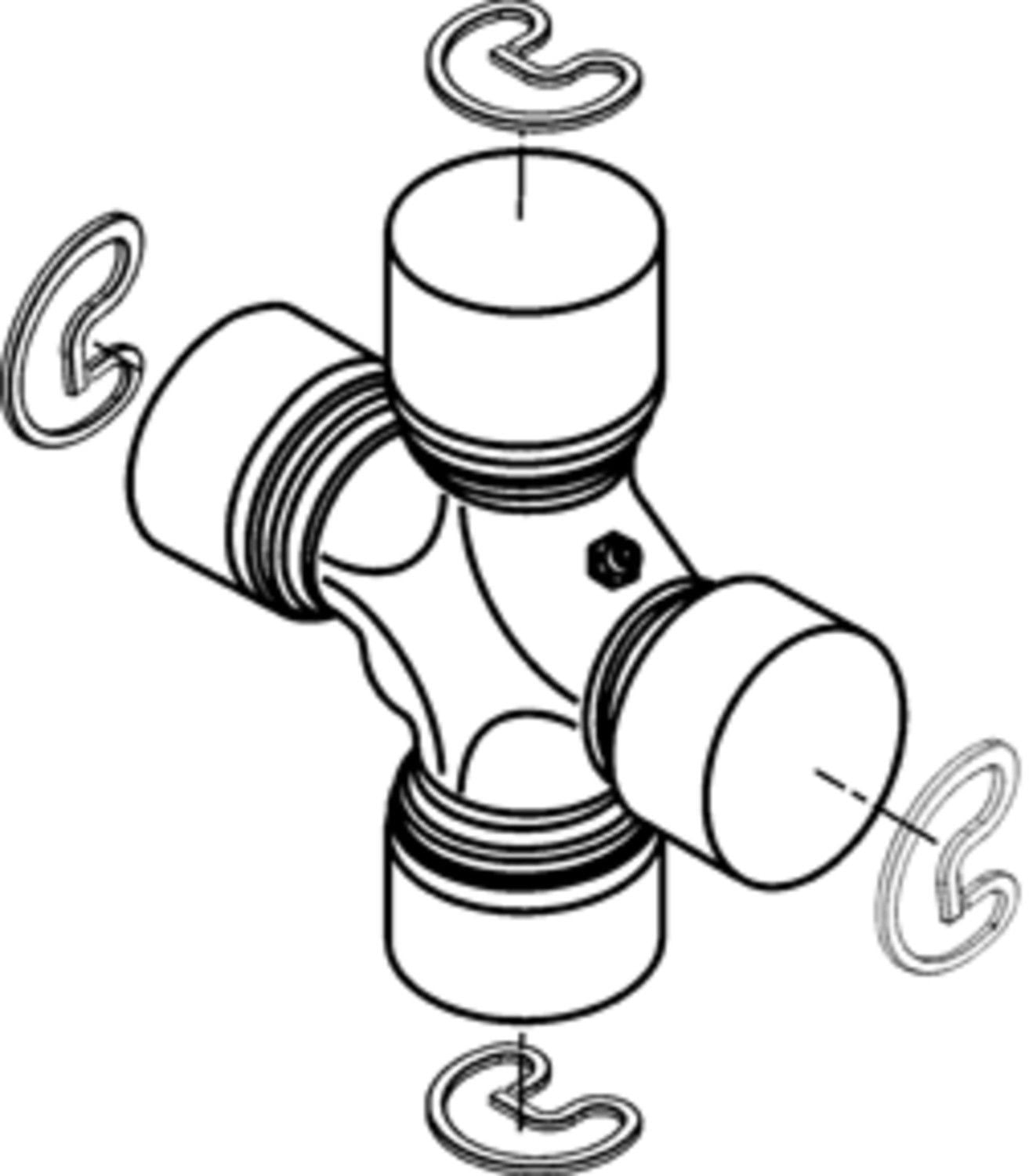

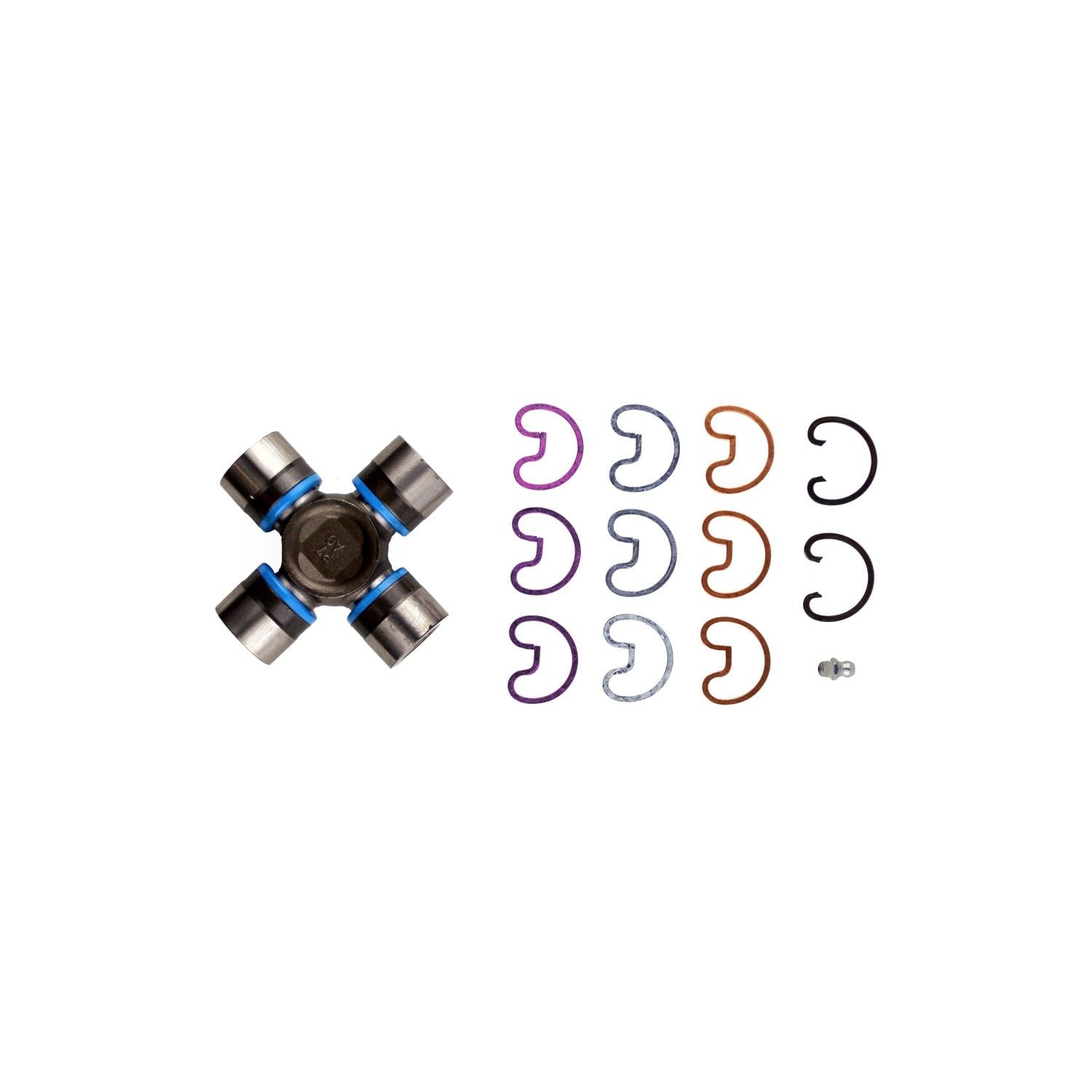

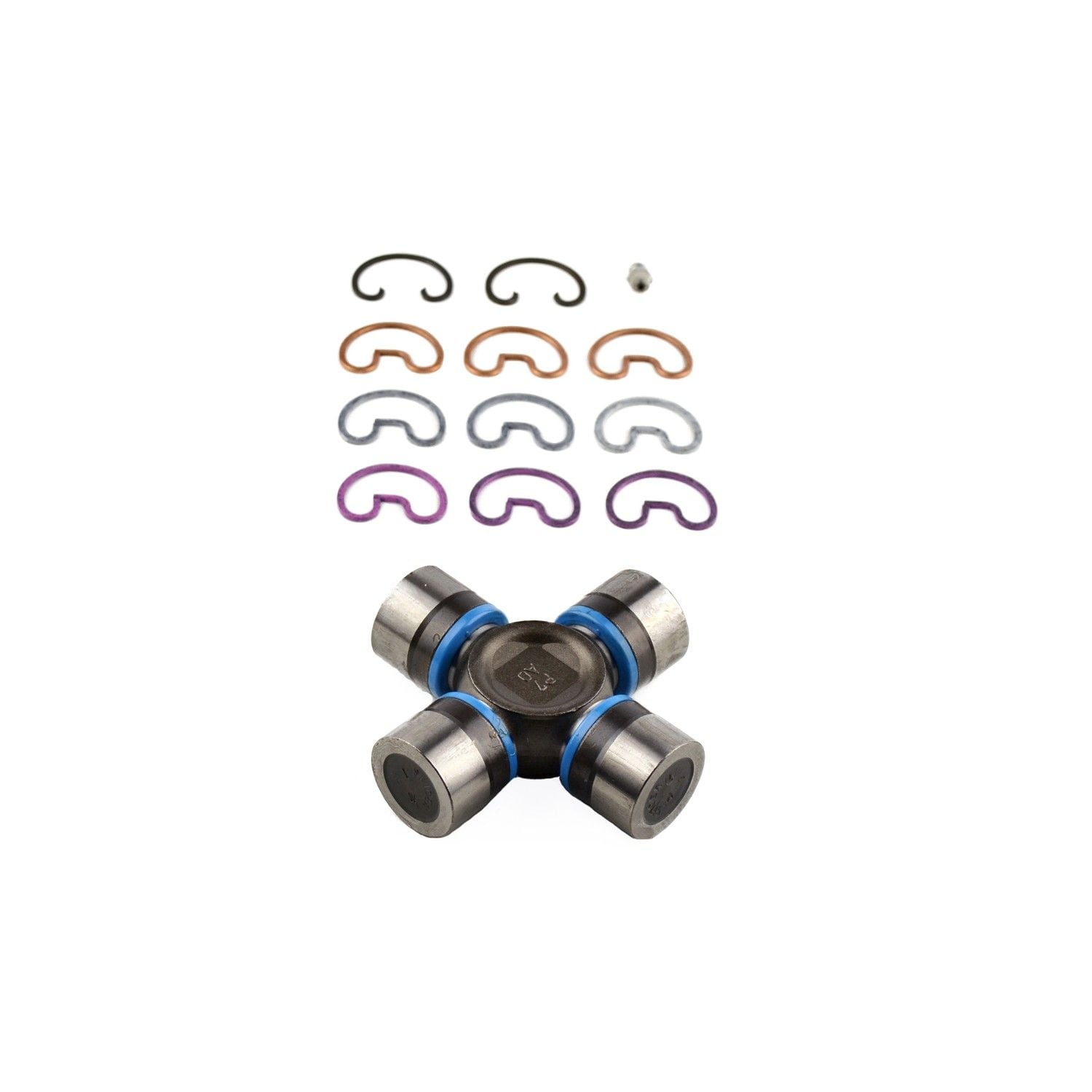

2006 - 2009 Chevrolet Trailblazer Universal Joint - Rear Driveshaft at Rear Axle or Rear Driveshaft at Transmission (Dana Spicer Chassis)

$58.05
Save up to 80% vs List Price!

ℹ️ Product Notes

Position: Rear Driveshaft at Rear Axle or Rear Driveshaft at Transmission
with 3.625in Outside Snap Ring Dimension with Aftermarket 1350 Drive Shaft 1.188in Bearing Cap Diameter Greaseable with Uncoated
HGVF
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Brand: Dana Spicer Chassis
Condition: New
See Other Chevrolet Trailblazer Universal Joints
🤝
100% Money-Back Guarantee
↩️
120-Day Returns
🏅
Insurance-Grade Quality

🛡️ Lifetime Warranty Included

This part comes with our industry-leading lifetime warranty. Shop with confidence!

SKU #
8589721
  • Direct Fit for 2006 - 2009 Chevrolet Trailblazer
  • Position: Rear Driveshaft at Rear Axle or Rear Driveshaft at Transmission Position
  • New Condition
  • Dana Spicer Chassis Quality
  • Easy Installation - No Modifications
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!Meet Wrenchy
The Amazing Assistant!

Let Wrenchy help you confirm if this is the right part.

Ask Wrenchy -
Type or Speak! 🎤

Product Specifications


Detailed specifications and attributes for this part:

Attribute Value
Bearing Cap Diameter (1) 1.188
Bearing Cap Diameter (2) 1.188
Bearing Cap Diameter A (mm) 30.175
Bearing Cap Diameter B (mm) 30.175
Bearing Cap Finish Ground
Bearing Cap Type Round
Bearing Cap Type A Osr
Bearing Cap Type B Osr
Coating Type None
Grease Fitting Location One Lube Fitting In Bearing
Grease Type N.l.g.i. Grade 2
Grease Zerk Included Y
Greaseable Y
Length A (In) 3.625
Length A (mm) 92.1
Length B (In) 3.625
Length B (mm) 92.1
Material Steel
Model Number Spicer 1350 (spl30)
Mounting Hardware Included N
OEM Mfg Spicer
OEM Series 1350/spl30
Pre Greased N
Prop 65 Yes
SR(1)Brng Cap To Brng Cap(OSR) 3.625
SR(2)Brng Cap To Brng Cap(OSR) 3.625
Seal Color/Finish Blue
Seal Material Rubber
Snap Ring Included Y
Snap Ring Type External
Type Osr Style

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet
Trailblazer 2006-2009 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
A SUV 2006 - 2007 L6 4.2L RWD Automatic
B SUV 2006 - 2007 L6 4.2L RWD Automatic
B SUV 2006 L6 4.2L 4WD Automatic
Base SUV 2008 L6 4.2L 4WD Automatic
Base SUV 2008 V8 5.3L RWD/4WD Automatic
Base SUV 2006 - 2008 L6 4.2L RWD Automatic
LS SUV 2006 - 2007 L6 4.2L RWD/4WD Automatic
LS SUV 2006 - 2007 V8 5.3L RWD/4WD Automatic
LT SUV 2006 - 2009 L6 4.2L RWD/4WD Automatic
LT SUV 2006 - 2008 V8 5.3L RWD/4WD Automatic
SS SUV 2006 - 2009 V8 6.0L AWD/RWD Automatic

⚠️ Important: Please verify your vehicle's year, make, model, and specifications before ordering. If you're unsure about fitment, contact our customer service team for assistance.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

More Information


When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

Interchange Parts

Brand Part Number
ACDelco 45U0103
ACDelco 45U0109
ACDelco 45U0123
Caterpillar 1350-1X
International Harvester IHC D5471X
John Deere AT394774
Navistar 5542X
Navistar DS513501X
Navistar E513501X
Navistar E5471X
Navistar E5542X
Precision 231
Precision 232
Precision 331
Precision 331BL
SKF 2-0052
SKF 2-0053
SKF 2-0053G
SKF 2-0799
SKF UJ231
SKF UJ232
SKF UJ331
SKF UJ331BL
Spicer 5-178X
SVL 15-178X
Volvo SP 513501X

Fits Years: 2006 2007 2008 2009

Fits Models: Trailblazer
