See Other Chevrolet Trailblazer Universal Joints
2002-2009 Chevrolet Blazer Universal Joint Dana Spicer Chassis
View 1
View 2
View 3
View 4
View 5
View 6

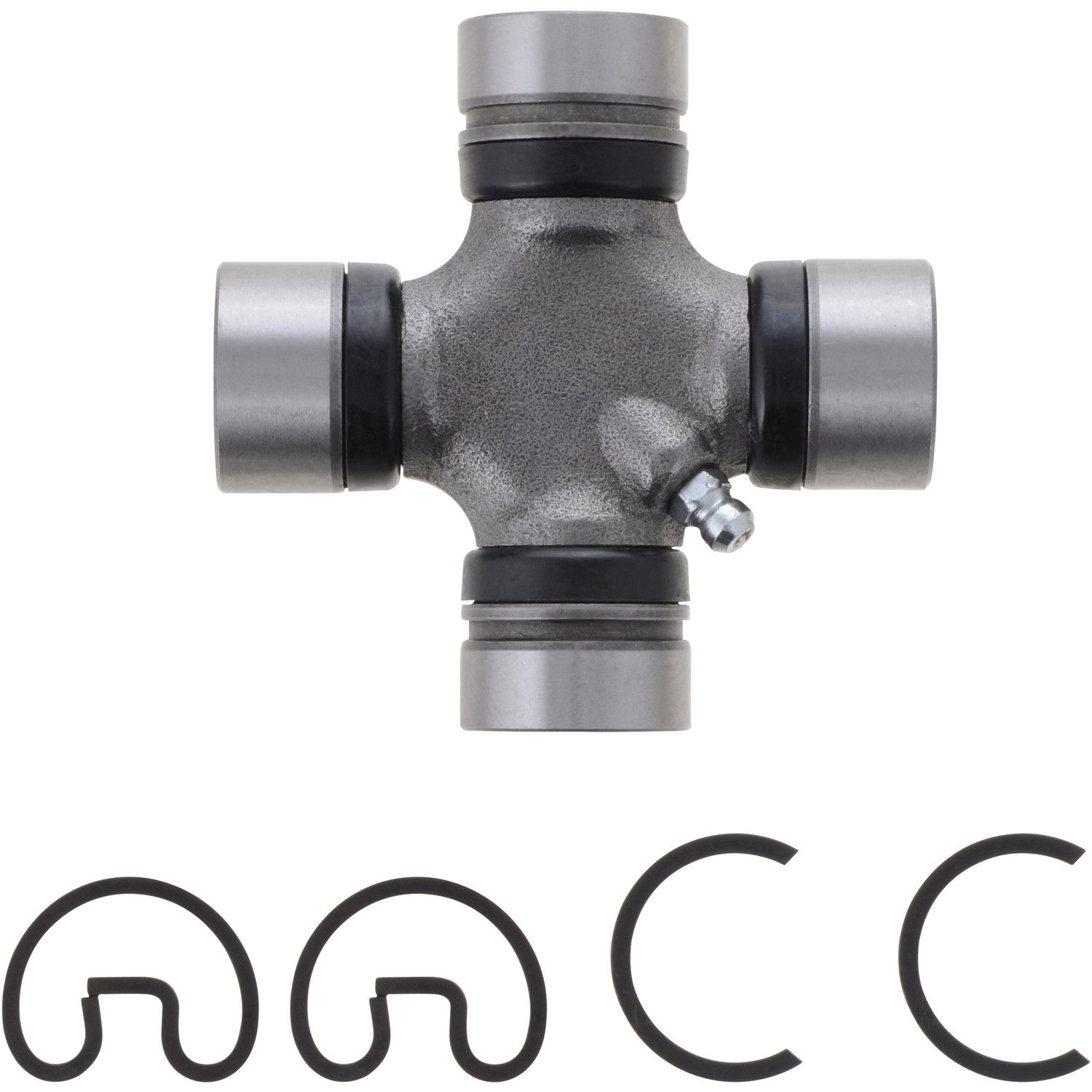

2002 - 2009 Chevrolet Trailblazer Universal Joint - Front Driveshaft at Front Axle (Dana Spicer Chassis)

$79.10
Save up to 80% vs List Price!

ℹ️ Product Notes

Position: Front Driveshaft at Front Axle
Inside Snap Ring Dimension of 2.324in with 1 Piece Rear Driveshaft 1.062in Bearing Cap Diameter Greaseable with 3.219in Outside Snap Ring Dimension
FSGR
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand: Dana Spicer Chassis
Condition: New
See Other Chevrolet Trailblazer Universal Joints
🤝
100% Money-Back Guarantee
↩️
120-Day Returns
🏅
Insurance-Grade Quality

🛡️ Lifetime Warranty Included

This part comes with our industry-leading lifetime warranty. Shop with confidence!

SKU #
A557A42
  • Direct Fit for 2002 - 2009 Chevrolet Trailblazer
  • Position: Front Driveshaft at Front Axle Position
  • New Condition
  • Dana Spicer Chassis Quality
  • Easy Installation - No Modifications
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!Meet Wrenchy
The Amazing Assistant!

Let Wrenchy help you confirm if this is the right part.

Ask Wrenchy -
Type or Speak! 🎤

Product Specifications


Detailed specifications and attributes for this part:

Attribute Value
Bearing Cap Diameter (1) 1.062
Bearing Cap Diameter (2) 1.062
Bearing Cap Diameter A (mm) 26.975
Bearing Cap Diameter B (mm) 26.975
Bearing Cap Type Round/round With Isr Groove
Bearing Cap Type A Isr
Bearing Cap Type B Osr
Grease Fitting Location One Straight Lube Fitting In Cross
Grease Zerk Included Y
Greaseable Y
Length A (In) 2.343
Length A (mm) 59.5
Length B (In) 3.219
Length B (mm) 81.8
Material Steel
Mounting Hardware Included N
OEM Series 1310 Spec
Prop 65 Yes
SR(2)Brng Cap To Brng Cap(OSR) 3.219
Snap Ring Included Y
Snap Ring Type External, Internal

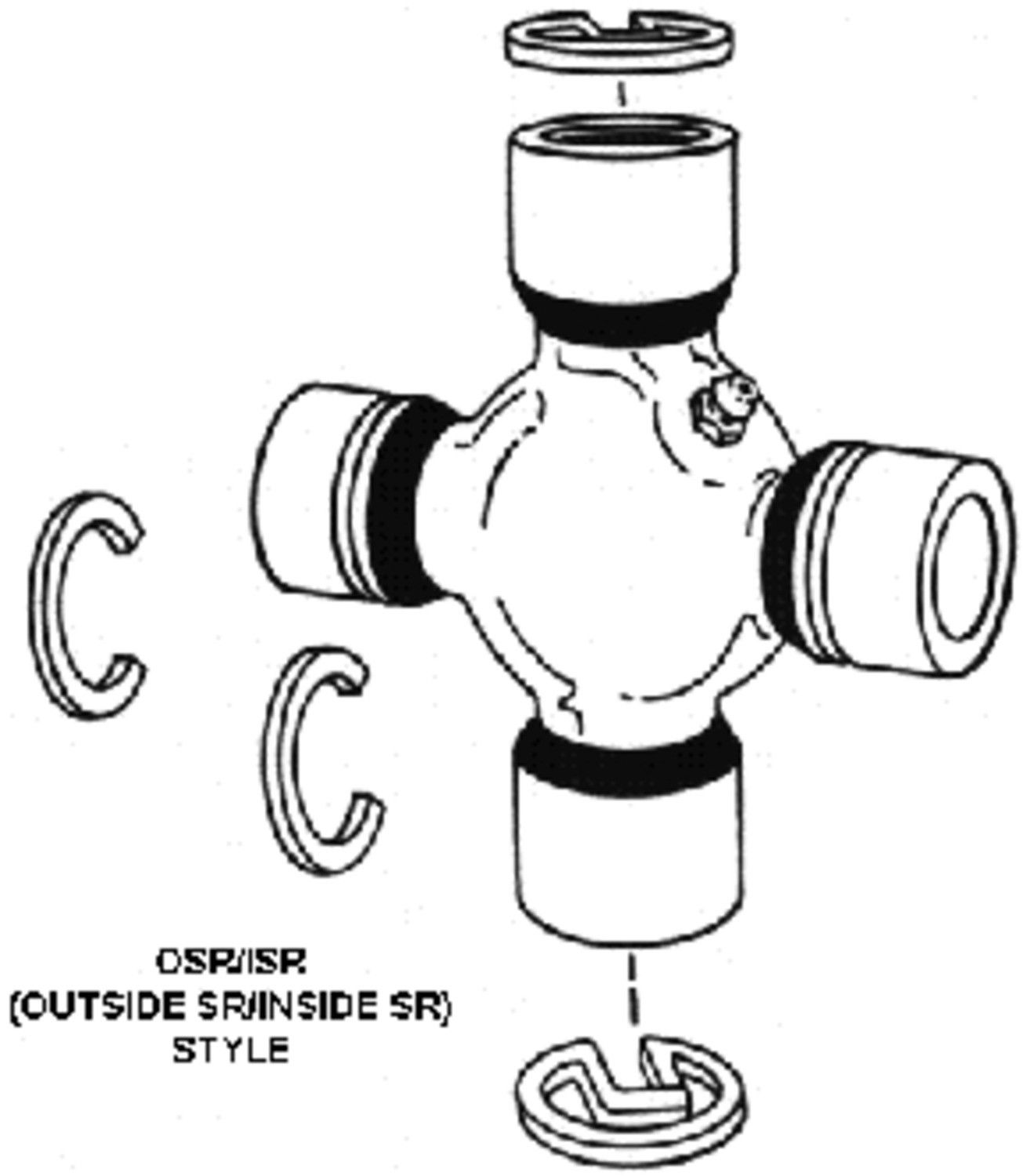

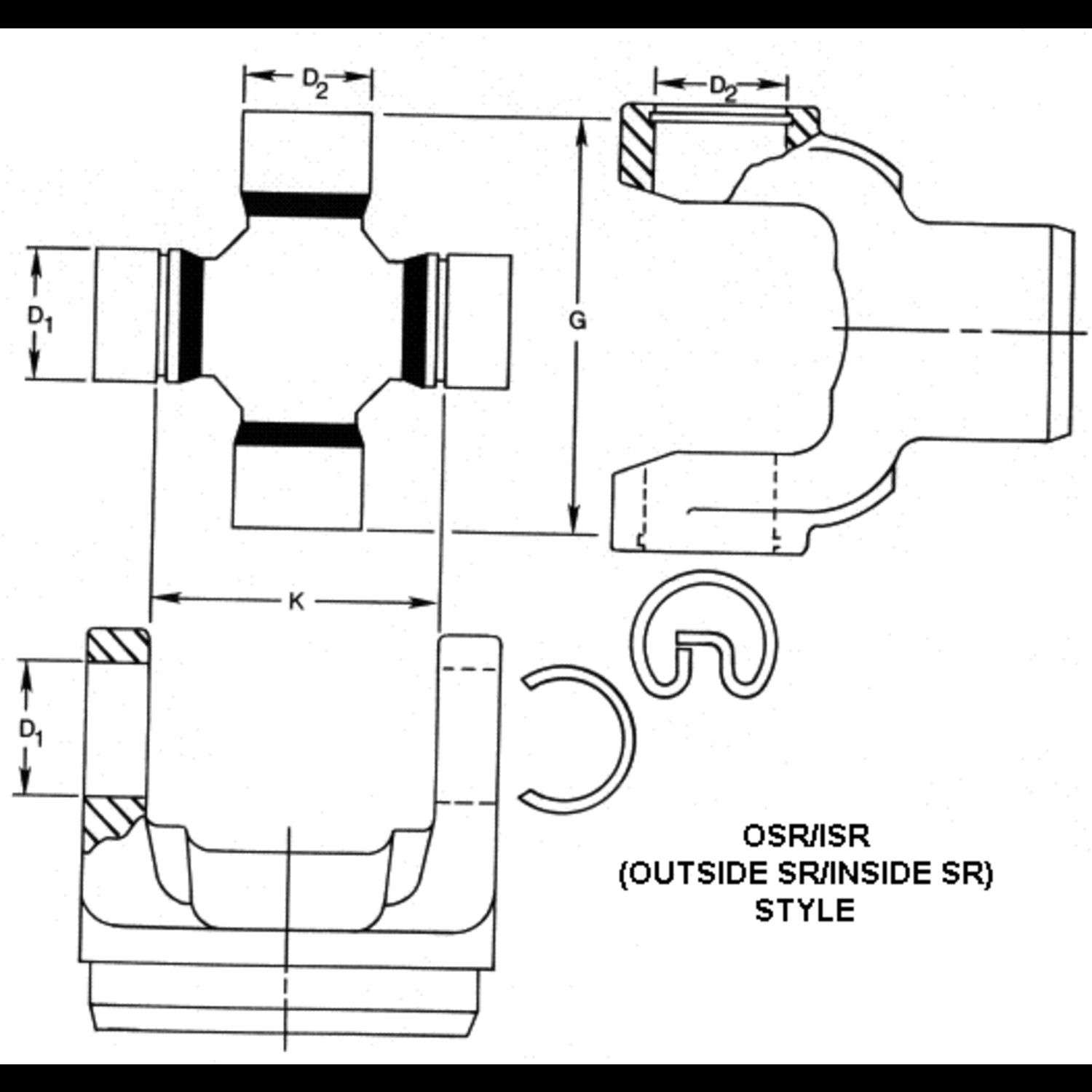

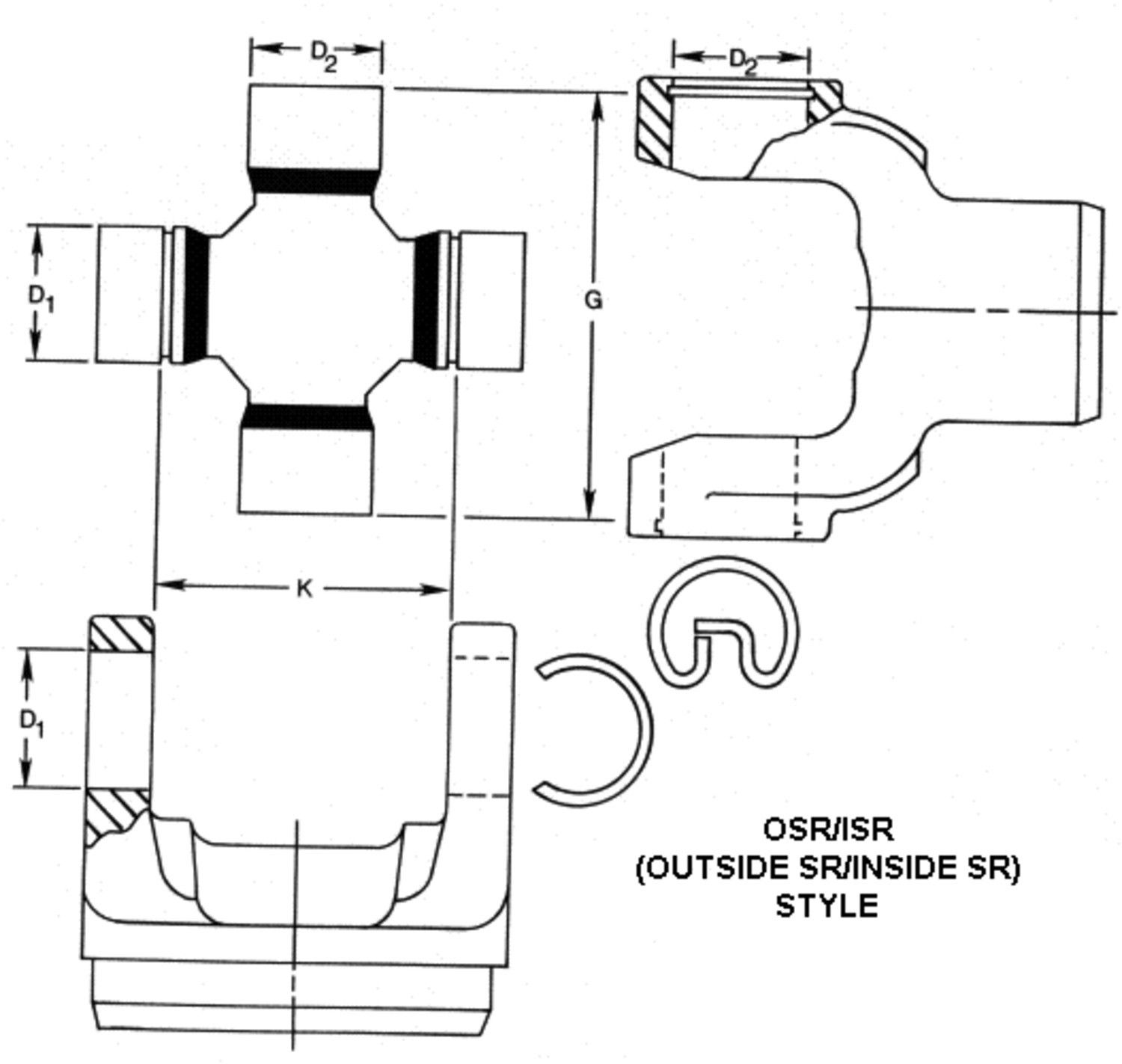

Type Osr/isr Style

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet
Trailblazer 2002-2009 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
A SUV 2004 - 2007 L6 4.2L RWD Automatic
B SUV 2006 L6 4.2L 4WD Automatic
B SUV 2004 - 2007 L6 4.2L RWD Automatic
Base SUV 2008 L6 4.2L 4WD Automatic
Base SUV 2008 V8 5.3L RWD/4WD Automatic
Base SUV 2003 - 2008 L6 4.2L RWD Automatic
LS SUV 2006 - 2007 V8 5.3L RWD/4WD Automatic
LS SUV 2002 - 2007 L6 4.2L RWD/4WD Automatic
LT SUV 2006 - 2008 V8 5.3L RWD/4WD Automatic
LT SUV 2002 - 2009 L6 4.2L RWD/4WD Automatic
LTZ SUV 2002 - 2003 L6 4.2L RWD/4WD Automatic
North Face SUV 2002 - 2004 L6 4.2L RWD/4WD Automatic
Q SUV 2005 L6 4.2L RWD Automatic
R SUV 2005 L6 4.2L RWD Automatic
SS SUV 2006 - 2009 V8 6.0L AWD/RWD Automatic

⚠️ Important: Please verify your vehicle's year, make, model, and specifications before ordering. If you're unsure about fitment, contact our customer service team for assistance.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

More Information


Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Interchange Parts

Brand Part Number
ACDelco 45U0131
American Axle & Manufacturing 26010027
General Motors 26008858
General Motors 31 02 2848
General Motors 3102 2848
General Motors 31022848
General Motors 8-26008-858-0
General Motors 8260088580
Navistar 5350X
Navistar DS53213X
Navistar E5350X
Precision 225
Precision 445
SKF 1-0445
SKF UJ225
SKF UJ445

Fits Years: 2002 2003 2004 2005 2006 2007 2008 2009

Fits Models: Trailblazer
