See Other Chevrolet Trailblazer Engine Camshafts

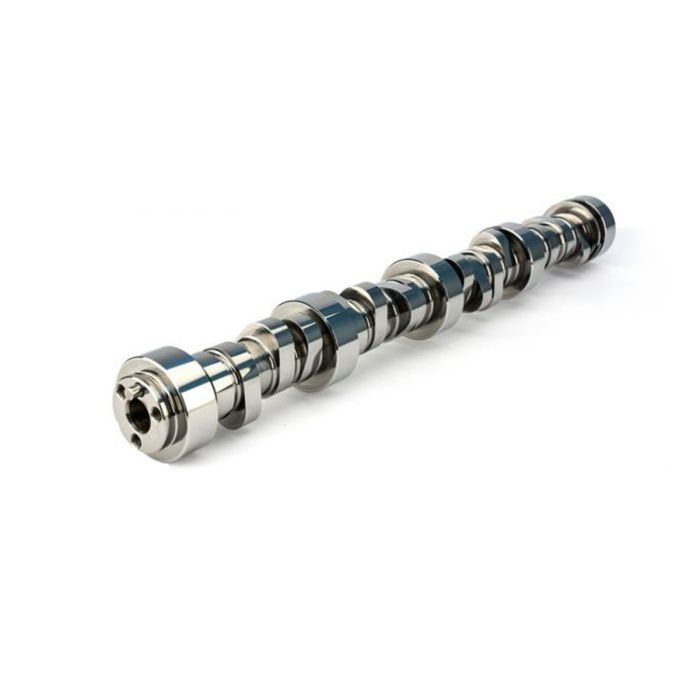

2006-2009 Avanti II Engine Camshaft COMP Cams

2006 - 2009 Chevrolet Trailblazer Engine Camshaft (COMP Cams)

✗ OUT OF STOCK
$541.95
Save up to 80% vs List Price!

ℹ️ Product Notes

This COMP Cams® HV NSR cam is designed for GM cathedral port 4.8L/5.3L/6.0L powered vehicles. It provides amazing drivability and throttle response while also requiring minimal tuning. Torque is increased across the entire operating range while still producing +69 horsepower at peak. Get the most out of your daily driver truck, SUV or 4x4 without sacrificing street manners. The NSR HV cam will provide a deep rumble with a mild, yet noticeable lope. At .541" lift, this cam is designed to allow drop-in performance with stock valve springs. Also compatible with stock converters.
Brand: COMP Cams
Condition: New
See Other Chevrolet Trailblazer Engine Camshafts
🤝
100% Money-Back Guarantee
↩️
120-Day Returns
🏅
Insurance-Grade Quality

🛡️ Lifetime Warranty Included

This part comes with our industry-leading lifetime warranty. Shop with confidence!

SKU #
E95C7A2
  • Direct Fit for 2006 - 2009 Chevrolet Trailblazer
  • New Condition
  • COMP Cams Quality
  • Easy Installation - No Modifications
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!Meet Wrenchy
The Amazing Assistant!

Let Wrenchy help you confirm if this is the right part.

Ask Wrenchy -
Type or Speak! 🎤

Product Specifications


Detailed specifications and attributes for this part:

Attribute Value
Advance 5
Advertised Exhaust Duration 278
Advertised Intake Duration 272
Basic Operating RPM Range 2500 - 6200
Cam Grind # Ls272pu-12
Cam Type Hydraulic Roller
Camshaft Intake Centerline 107
Camshaft Series Hv
Computer Controlled Compatible Yes
Direct Injection No
Engine Platform Gm Ls Gen Iii/iv
Exhaust Close ATDC -4
Exhaust Lobe Lift 0.318
Exhaust Valve Lash Hyd
Exhaust Valve Lift 0.541
Exhaust Valve Lift With Factory Rocker Arm Ratio 0.541
Factory Rocker Ratio 1.7
Fuel Management Strategy Compatible No
Intake Duration At .050 Inch Lift 218
Intake Lobe Lift 0.318
Intake Open BTDC 2
Intake Valve Lash Hyd
Intake Valve Lift 0.541
Intake Valve Lift With Factory Rocker Arm Ratio 0.541
Lifter Type Hydraulic Roller, Roller
Lobe Separation 112
Phaser Requirement None
Usage Street
VVT Compatible No
Valve Springs Required Yes

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet
Trailblazer 2006-2009 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
A SUV 2006 - 2007 L6 4.2L RWD Automatic
B SUV 2006 - 2007 L6 4.2L RWD Automatic
B SUV 2006 L6 4.2L 4WD Automatic
Base SUV 2008 L6 4.2L 4WD Automatic
Base SUV 2008 V8 5.3L RWD/4WD Automatic
Base SUV 2006 - 2008 L6 4.2L RWD Automatic
LS SUV 2006 - 2007 L6 4.2L RWD/4WD Automatic
LS SUV 2006 - 2007 V8 5.3L RWD/4WD Automatic
LT SUV 2006 - 2009 L6 4.2L RWD/4WD Automatic
LT SUV 2006 - 2008 V8 5.3L RWD/4WD Automatic
SS SUV 2006 - 2009 V8 6.0L AWD/RWD Automatic

⚠️ Important: Please verify your vehicle's year, make, model, and specifications before ordering. If you're unsure about fitment, contact our customer service team for assistance.
