See Other Chevrolet Trailblazer Tire Pressure Monitoring System (TPMS) Sensors
2002-2009 Buick Rainier Tire Pressure Monitoring System (TPMS) Sensor Schrader
View 1

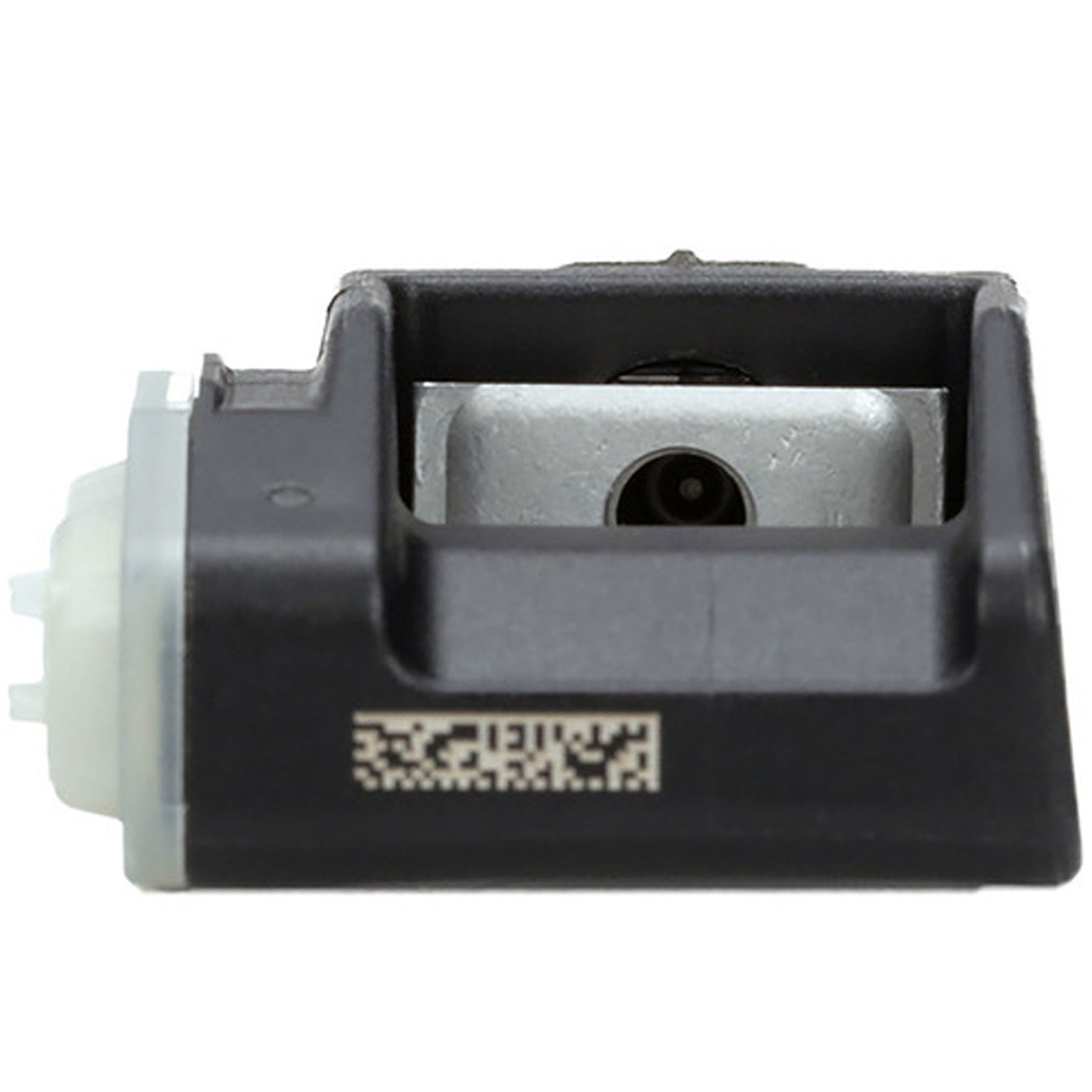

View 2
View 3

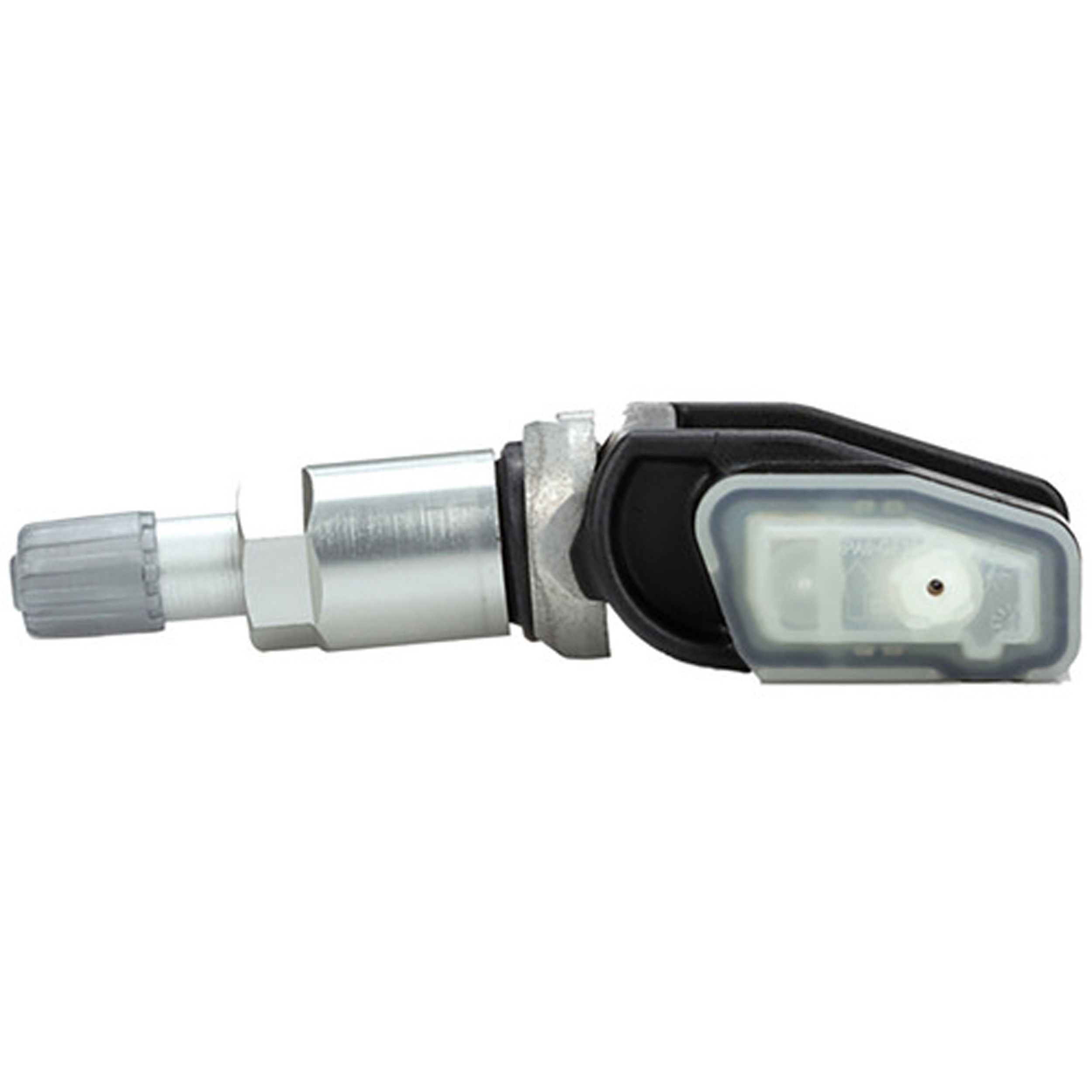

View 4
View 5

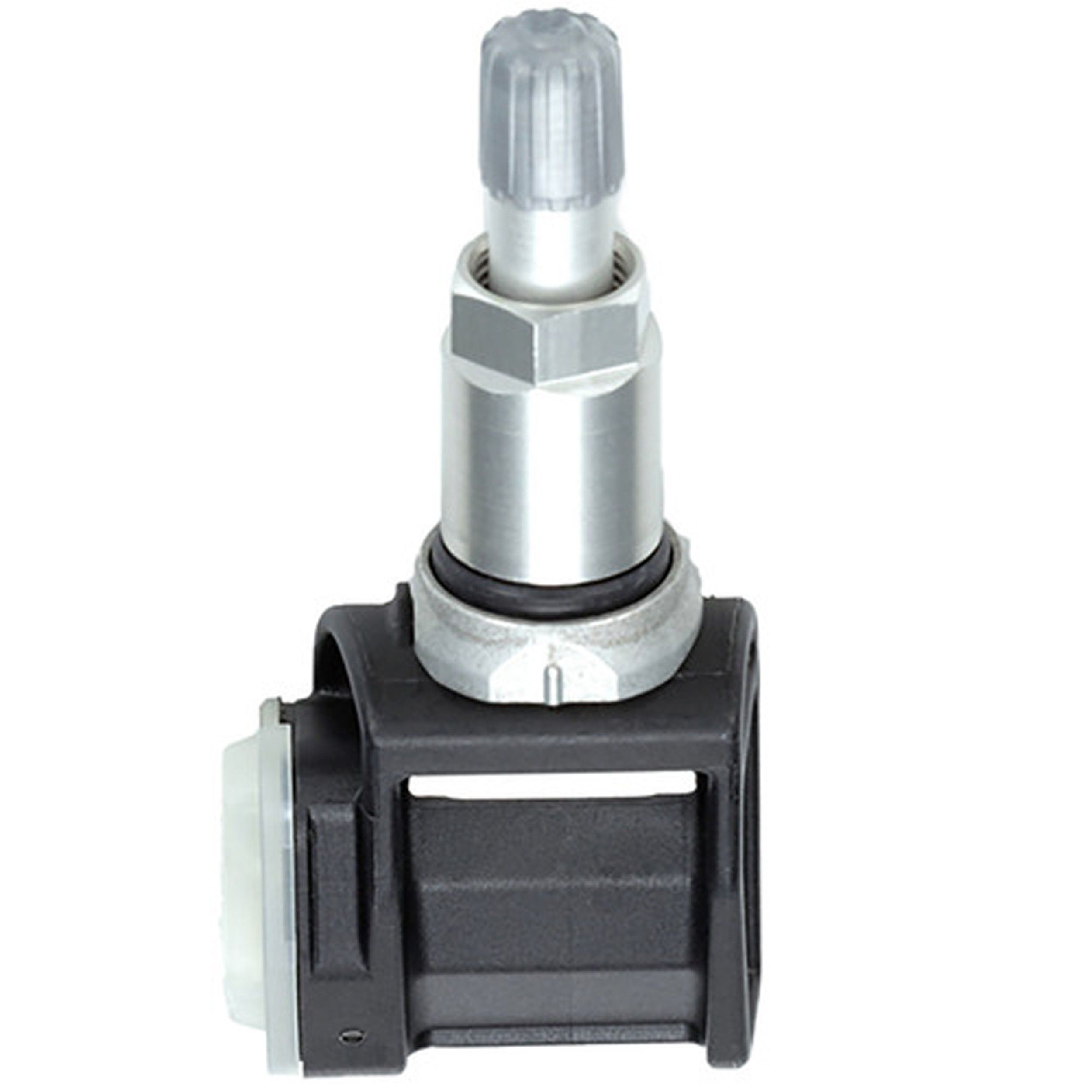

View 6

2002 - 2009 Chevrolet Trailblazer Tire Pressure Monitoring System (TPMS) Sensor (Schrader)

$44.85
Save up to 80% vs List Price!

ℹ️ Product Notes

⚠️ Most jobs typically require 4 of this item.
Supersession (ACES) Replaces 20115 Mounting Method: Clamp-in Torque: Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Not Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Silver Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Replaces ~20116~ Quantity Included: 1

Schrader is a pioneer in TPMS, a vehicle safety feature that is now standard on all cars and light trucks sold in the U.S. Schrader’s direct TPMS technology can be found in over 50 percent of global OEM vehicle platforms.
Brand: Schrader
Condition: New
See Other Chevrolet Trailblazer Tire Pressure Monitoring System (TPMS) Sensors
🤝
100% Money-Back Guarantee
↩️
120-Day Returns
🏅
Insurance-Grade Quality

🛡️ Lifetime Warranty Included

This part comes with our industry-leading lifetime warranty. Shop with confidence!

SKU #
D749A44
  • Direct Fit for 2002 - 2009 Chevrolet Trailblazer
  • New Condition
  • Schrader Quality
  • Easy Installation - No Modifications
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!Meet Wrenchy
The Amazing Assistant!

Let Wrenchy help you confirm if this is the right part.

Ask Wrenchy -
Type or Speak! 🎤

Product Specifications


Detailed specifications and attributes for this part:

Attribute Value
California Prop 65 Warning Label (Text) Warning: This Product Can Expose You To Chemicals Including Lead, Which Is Known To The State Of California To Cause Cancer And Birth Defects And Other Reproductive Harm. For More Information, Go To Www.p65warnings.ca.gov
Frequency 315
Manufacturer Warranty 2 Years
Mounting Hardware Included Yes
Mounting Method Clamp-in
Programmable Yes
Valve Color Silver
Valve Material Aluminum

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet
Trailblazer 2002-2009 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
A SUV 2004 - 2007 L6 4.2L RWD Automatic
B SUV 2006 L6 4.2L 4WD Automatic
B SUV 2004 - 2007 L6 4.2L RWD Automatic
Base SUV 2008 L6 4.2L 4WD Automatic
Base SUV 2008 V8 5.3L RWD/4WD Automatic
Base SUV 2003 - 2008 L6 4.2L RWD Automatic
LS SUV 2006 - 2007 V8 5.3L RWD/4WD Automatic
LS SUV 2002 - 2007 L6 4.2L RWD/4WD Automatic
LT SUV 2006 - 2008 V8 5.3L RWD/4WD Automatic
LT SUV 2002 - 2009 L6 4.2L RWD/4WD Automatic
LTZ SUV 2002 - 2003 L6 4.2L RWD/4WD Automatic
North Face SUV 2002 - 2004 L6 4.2L RWD/4WD Automatic
Q SUV 2005 L6 4.2L RWD Automatic
R SUV 2005 L6 4.2L RWD Automatic
SS SUV 2006 - 2009 V8 6.0L AWD/RWD Automatic

⚠️ Important: Please verify your vehicle's year, make, model, and specifications before ordering. If you're unsure about fitment, contact our customer service team for assistance.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

More Information


Schrader is a pioneer in TPMS, a vehicle safety feature that is now standard on all cars and light trucks sold in the U.S. Schrader’s direct TPMS technology can be found in over 50 percent of global OEM vehicle platforms.

Interchange Parts

Brand Part Number
DENSO 550-2407
Dill Air Control 9116
Dorman 974-015
Echlin Ignition Parts 921003C
Isuzu 8257740060
Standard Motor Products TPM40

Fits Years: 2002 2003 2004 2005 2006 2007 2008 2009

Fits Models: Trailblazer
