See Other Chevrolet Trailblazer Wheel Bearing and Hub Assemblies

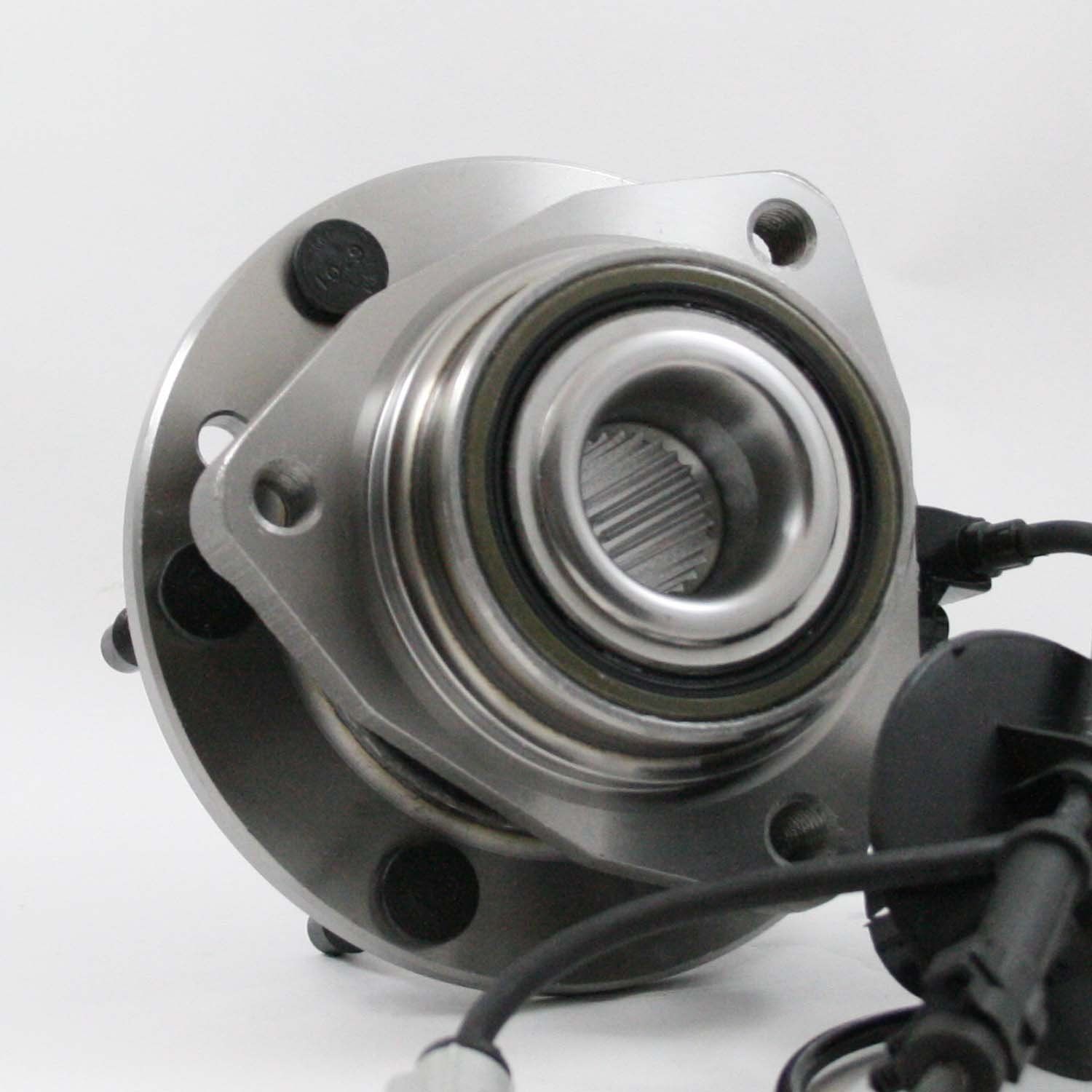

2002-2009 Isuzu Ascender Wheel Bearing and Hub Assembly IAP Hub Assembly
View 1

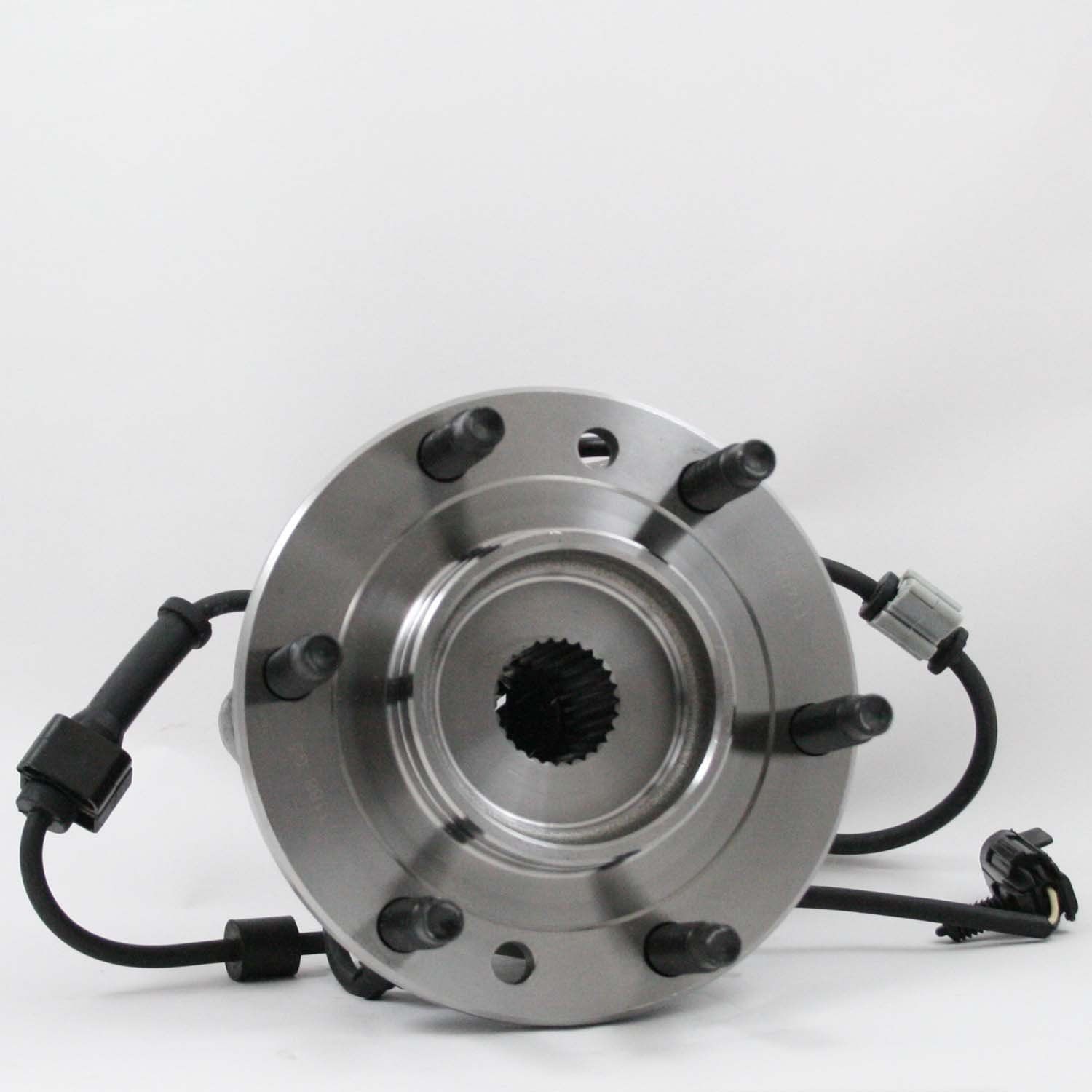

View 2

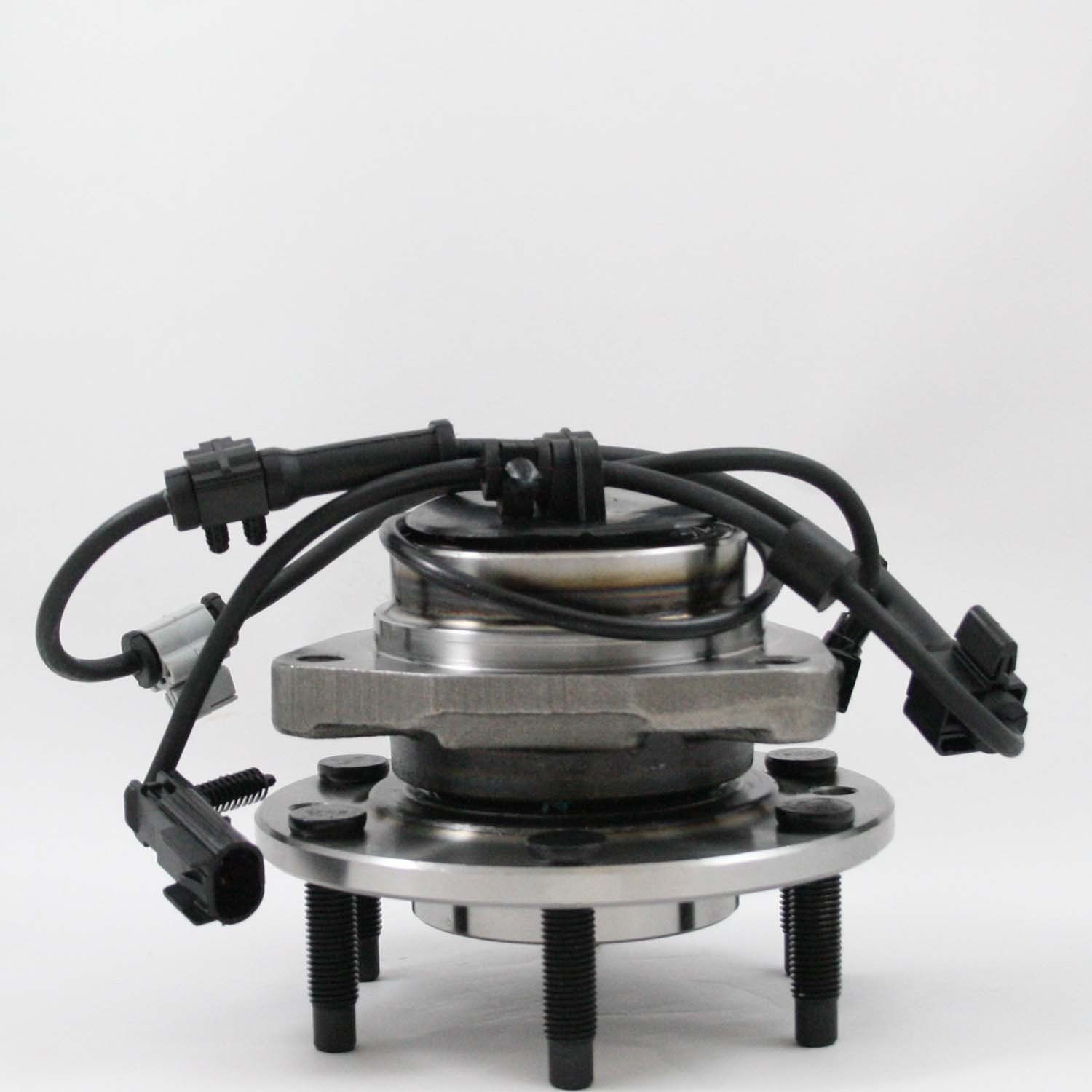

View 3

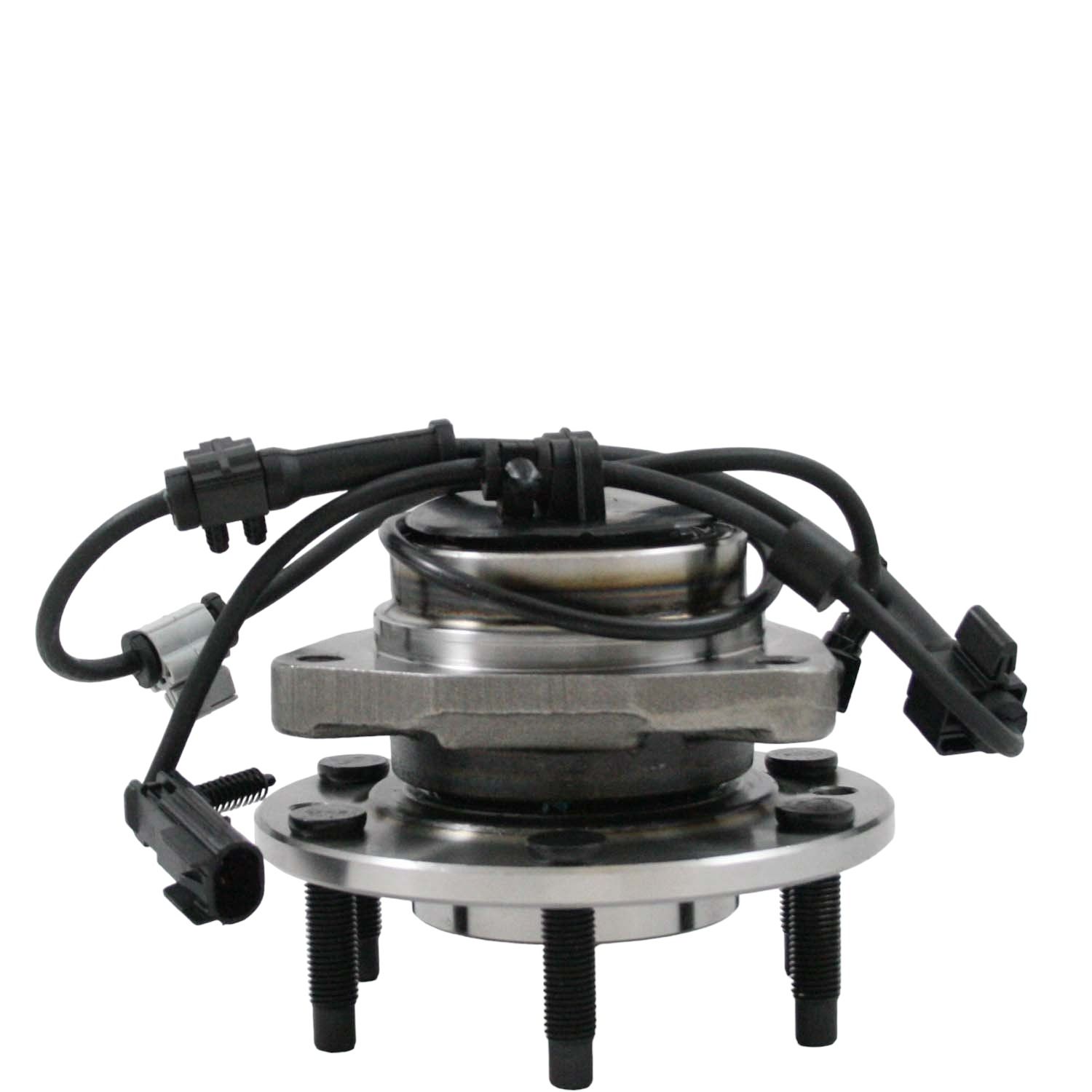

View 4

2002 - 2009 Chevrolet Trailblazer Wheel Bearing and Hub Assembly - Front (IAP Hub Assembly)

$97.63
Save up to 80% vs List Price!

ℹ️ Product Notes

Position: Front
⚠️ Most jobs typically require 2 of this item.
Axle Nut Torque 103 ft. lbs

DuraGo® has a rich history in manufacturing aftermarket automotive products. The company was founded over 45 years ago and through the years has developed a diverse product offering. Replacing worn hub assemblies with DuraGo® Premium Hub Assemblies will reduce friction and improve fuel economy. We use the highest quality components to assemble each hub unit. Our Hub Assemblies are 100% tested to ensure each unit meets our high standards. All DuraGo® Hub Assemblies are proudly manufactured to industry leading quality standards and meet ISO/TS 16949:2002.
Brand: IAP Hub Assembly
Condition: New
See Other Chevrolet Trailblazer Wheel Bearing and Hub Assemblies
🤝
100% Money-Back Guarantee
↩️
120-Day Returns
🏅
Insurance-Grade Quality

🛡️ Lifetime Warranty Included

This part comes with our industry-leading lifetime warranty. Shop with confidence!

SKU #
13B82C5
  • Direct Fit for 2002 - 2009 Chevrolet Trailblazer
  • Position: Front Position
  • New Condition
  • IAP Hub Assembly Quality
  • Easy Installation - No Modifications
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!Meet Wrenchy
The Amazing Assistant!

Let Wrenchy help you confirm if this is the right part.

Ask Wrenchy -
Type or Speak! 🎤

Product Specifications


Detailed specifications and attributes for this part:

Attribute Value
ABS Wheel Speed Sensor Cable Included Yes
Anti Lock Braking System Yes
Anti Lock Braking System Type Sensor
Bolt Circle Diameter 127, 5
Brake Pilot Diameter 3.11, 79
Connector Quantity 1
Driven Or Non Driven Type Hub Assembly Driven
Flange Bolt Hole Quantity 3
Flange Bolt Size M12 X 1.75
Flange Bolts Included No
Flange Diameter 150.3, 5.92
Flange Offset 1.85, 47
Flange Shape Triangle
Hub Pilot Diameter 3.29, 83.5
Spline Quantity 27
Wheel Pilot Diameter 3.06, 77.8
Wheel Stud Quantity 6
Wheel Stud Size M12 X 1.5
Wheel Studs Included Yes

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet
Trailblazer 2002-2009 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
A SUV 2004 - 2007 L6 4.2L RWD Automatic
B SUV 2006 L6 4.2L 4WD Automatic
B SUV 2004 - 2007 L6 4.2L RWD Automatic
Base SUV 2008 L6 4.2L 4WD Automatic
Base SUV 2008 V8 5.3L RWD/4WD Automatic
Base SUV 2003 - 2008 L6 4.2L RWD Automatic
LS SUV 2006 - 2007 V8 5.3L RWD/4WD Automatic
LS SUV 2002 - 2007 L6 4.2L RWD/4WD Automatic
LT SUV 2006 - 2008 V8 5.3L RWD/4WD Automatic
LT SUV 2002 - 2009 L6 4.2L RWD/4WD Automatic
LTZ SUV 2002 - 2003 L6 4.2L RWD/4WD Automatic
North Face SUV 2002 - 2004 L6 4.2L RWD/4WD Automatic
Q SUV 2005 L6 4.2L RWD Automatic
R SUV 2005 L6 4.2L RWD Automatic
SS SUV 2006 - 2009 V8 6.0L AWD/RWD Automatic

⚠️ Important: Please verify your vehicle's year, make, model, and specifications before ordering. If you're unsure about fitment, contact our customer service team for assistance.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

More Information


DuraGo® has a rich history in manufacturing aftermarket automotive products. The company was founded over 45 years ago and through the years has developed a diverse product offering. Replacing worn hub assemblies with DuraGo® Premium Hub Assemblies will reduce friction and improve fuel economy. We use the highest quality components to assemble each hub unit. Our Hub Assemblies are 100% tested to ensure each unit meets our high standards. All DuraGo® Hub Assemblies are proudly manufactured to industry leading quality standards and meet ISO/TS 16949:2002.

Interchange Parts

Brand Part Number
Beck/Arnley 0516171
Centric Parts 40262004
GMB 7250086
MOOG Chassis Products 513188
OES Genuine 12413037
OES Genuine 7467657
SKF BR930397
SKF BR930470
Timken TKN513188

Fits Years: 2002 2003 2004 2005 2006 2007 2008 2009

Fits Models: Trailblazer
