The Volkswagen Jetta cooling fan-also called the radiator fan, engine-cooling fan, condenser fan, or electric fan assembly-is an electric blower that pulls fresh air through the radiator and A/C condenser whenever natural airflow is too low. It keeps coolant at the right temperature, prevents overheating in traffic, and helps the air-conditioning work well. Problems with the fan often trace back to a blown 30-amp fuse on the battery fuse block, a worn relay or fan-control module, a bad temperature sensor, or a tired fan motor. Replacing a faulty fan motor typically costs $900-$1,000 including labor, while a complete fan assembly averages $700-$760. Regular inspections, quick fuse checks, and cleaning leaves from the radiator keep the system healthy.

Overview

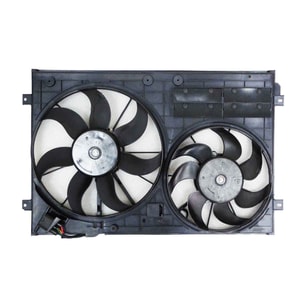

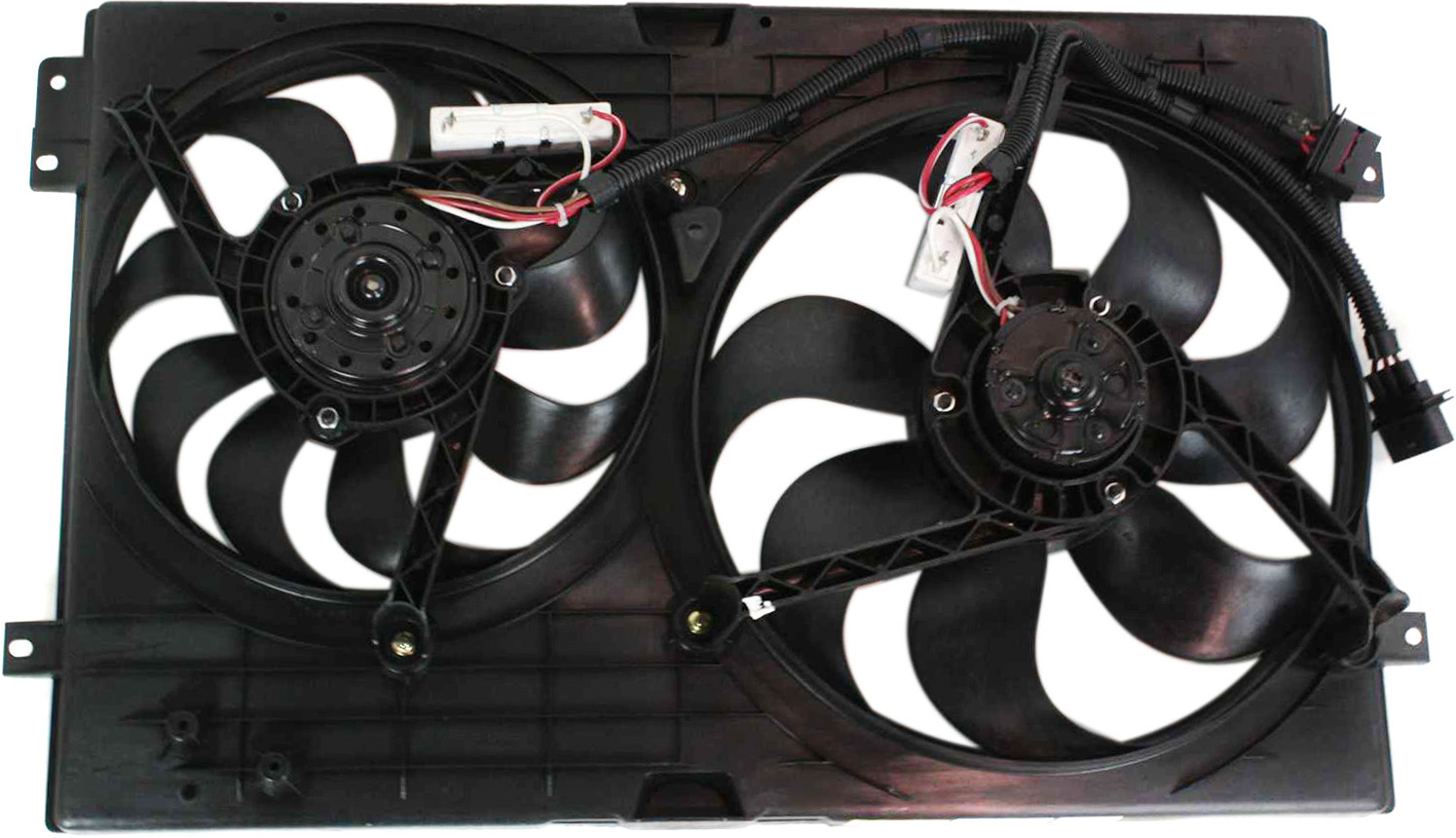

The Jetta uses one or two electric fans behind the radiator. The large primary fan cools engine coolant; a smaller secondary fan helps the A/C at idle. Both are commanded by the fan-control module, which receives signals from the coolant-temperature sensor and the A/C pressure switch. When coolant tops about 203 °F (95 °C) or the A/C loads up, the module sends power through a 30-amp "Fuse 8" strip on the battery to spin the motors (VWVortex, JustAnswer).

How It Works

• Sensors talk first. The coolant-temperature sensor feeds data to the engine computer; when the reading rises, the computer requests fan speed (JustAnswer).
• Module decides speed. Inside the fan-control module, solid-state switches deliver low or high voltage to the fan motor (YouTube).
• Motors move air. The fan's plastic blades draw outside air through the radiator fins and blow it across the engine block and exhaust manifold (YouTube).

Failure Symptoms

• Engine temperature gauge creeps toward "hot," especially while idling (Mint Automotive).
• A/C air turns warm at stoplights.
• Fan never spins-or stays on for minutes after shut-down (Reddit).
• Dashboard stores code P0480 or "radiator fan control circuit" (YouTube).
• Buzzing, rattling, or scraping noises from the fan shroud (Jetta Junkie).

Common Causes

← scroll table horizontally →

Diagnosis Steps

1. Listen: Key ON-engine OFF; fan should stay silent unless A/C is engaged.
2. Fuse test: Pull Fuse 8 (30 A); replace if blown (VWVortex).
3. Direct power: Jumper 12 V from battery to fan pins to prove motor (YouTube).
4. Scan tool: Read coolant temp and fan request PIDs; if request present but fan idle, suspect module (YouTube).
5. Wiring diagram: Confirm ground G101 behind left headlamp and power path using factory schematic (Scribd).

Replacement & Cost

• A new fan motor: $903-$991 (parts + labor) (RepairPal.com).
• Whole fan assembly: $703-$760 installed (RepairPal.com).
  DIYers need Torx T30, 10 mm sockets, and a trim-clip tool. Always disconnect the negative battery cable before removing the shroud.

Maintenance Tips

• Spray garden-hose water through grille monthly to wash bugs from fins.
• Keep coolant at 50/50 mix; low coolant lets air pockets fool the sensor (NHTSA Static).
• After any coolant repair, idle engine until fans cycle on once to purge air .
• Check fan blades every oil-change for cracks or wobble.
• Inspect harness grommets; road salt can chew insulation.

Environmental Impact

Efficient fans cut idle fuel waste and lower under-hood temps that bake hoses. They also support greener A/C systems that use low-GWP refrigerants such as R-1234yf (US EPA). The U.S. DOE notes that better cooling strategies could save drivers millions of gallons of fuel each year (WIRED).

Upgrades

Performance-grade fan assemblies move more cubic-feet-per-minute (CFM) for track days but draw extra amperage-verify alternator output first. Silicone-sealed brushless motors last longer and run quieter.

Frequently Asked Questions

Q: Where is the cooling fan fuse on a Jetta?
A: It's the left-most 30 A strip fuse (Fuse 8) on the battery-top fuse holder (VWVortex).

Q: Why does my fan keep running after I turn off the engine?
A: The fan-control module may command "after-run" to cool the turbo or engine bay; if it runs more than ten minutes, the relay may be stuck (Reddit).

Q: My Jetta overheats only in traffic-what should I check first?
A: Verify that both radiator fans spin when coolant temp tops 203 °F (95 °C). If silent, test the fuse and module (JustAnswer).

Q: Can a bad cooling fan affect A/C performance?
A: Yes. Without airflow across the condenser, high refrigerant pressure forces the A/C clutch to cycle off, so cabin air warms up (Mint Automotive).

Q: What diagnostic trouble code points to fan problems?
A: Code P0480 indicates a fault in the radiator fan control circuit (YouTube).

Q: Is there a recall for Jetta cooling fans?
A: As of May 2025, no federal recall targets the fan itself, but a Volkswagen technical bulletin instructs techs to confirm fan operation after coolant service (NHTSA Static).

Q: How do I bench-test the fan motor?
A: Remove the connector and apply 12 V positive to one pin and ground to the other; if the blades don't spin briskly, replace the motor (YouTube).

Q: Can I drive with a noisy cooling fan?
A: No. Worn bearings can seize without warning, causing rapid overheating and possible head-gasket failure (Jetta Junkie).

Q: What tools do I need to replace the fan at home?
A: Basic hand-tools: Torx T30 driver, 10 mm socket, flat-blade screwdriver, and jack-stands. A shop manual or wiring diagram helps (Scribd).

Q: Does the fan run at different speeds?
A: Modern Jettas use pulse-width modulation (PWM) to vary speed smoothly between low and high, giving quieter operation and saving power (YouTube).

Q: Will upgrading to a brushless fan improve MPG?
A: Slightly. Brushless designs draw less current, easing alternator load, but the gain is small-about 0.5 MPG at city speeds (WIRED).

Keeping the Volkswagen Jetta cooling fan in good shape protects the engine, improves cabin comfort, and saves fuel. Quick checks, timely fuse changes, and quality replacement parts ensure the fan does its simple but vital job for years to come.
