C0040 on 2007-2010 Saturn Sky: Right Front Wheel Speed Sensor Circuit Fault Causes and Fixes

What's Unique About the 2007-2010 Saturn Sky

The Saturn Sky and its sibling, the Pontiac Solstice (both on the GM Kappa platform), use a wheel speed sensor that is integrated directly into the front wheel hub and bearing assembly. This means you cannot replace just the sensor; the entire hub must be replaced if the sensor itself fails. However, a very common point of failure on these and similar GM vehicles is not the sensor, but the short wiring pigtail that connects the hub to the main vehicle harness. This wire is prone to breaking internally from the constant flexing of the suspension and steering, often with no visible external damage.

Symptoms You May Notice

• ABS warning light is illuminated on the dashboard.
• Traction control or StabiliTrak warning light is illuminated.
• ABS and traction control systems are disabled.
• Cruise control may be disabled.
• Brake pedal may feel different or the ABS pump may make unusual noises.
• In rare cases, the speedometer may malfunction.

Most Likely Causes

1. Damaged Wheel Speed Sensor Wiring Pigtail 🔴 High Probability → Shop ABS Wheel Speed Sensor The wiring harness is subject to constant movement and stress from steering and suspension travel, leading to internal wire fatigue and breakage over time. This is a well-documented issue on many GM platforms of this era, including the Kappa platform (Sky/Solstice).
   How to confirm: With the ignition on, use an ABS-capable scan tool to monitor live data for the right front wheel speed. Wiggle the wiring harness between the wheel hub and the car's frame. If the signal cuts in and out, the wiring is faulty. You can also perform a continuity test with a multimeter while flexing the wire; an open circuit confirms the break.
   Typical fix: Splice in a new wheel speed sensor pigtail connector. 🎬 See this walkthrough on how to replace the wiring pigtail. This is a common wiring repair that avoids replacing the entire hub.
   Est. part cost: $15-$40
2. Failed Wheel Speed Sensor / Hub Bearing Assembly 🟡 Medium Probability → Shop ABS Wheel Speed Sensor The sensor is an electronic component exposed to harsh conditions (heat, water, vibration) at the wheel, and can fail internally. On the Sky, it is integrated into the hub assembly and cannot be replaced separately. NHTSA ODI #10629708 notes a case on a similar GM platform where the front wheel hub had to be replaced because the right front hub was dropping the signal, triggering code C0040.
   How to confirm: If the wiring is confirmed to be good but the scan tool shows a zero or erratic reading from the right front wheel, the sensor/hub assembly has failed. Checking for excessive play or noise from the wheel bearing by rocking the wheel can also point to a worn hub, which would necessitate replacement anyway.
   Typical fix: Replace the entire front wheel hub and bearing assembly. The front and rear hubs are the same part on this vehicle.
   Est. part cost: $70-$200

Rare But Worth Checking

• Debris or Corrosion on Hub's Magnetic Ring: Metal shavings or heavy rust on the magnetic encoder ring (reluctor), which is part of the hub, can disrupt the sensor's reading. Cleaning the area during inspection is a good practice, though replacement is often necessary if the ring is damaged.
• Failed Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is very unlikely and should only be considered if new wiring and a new hub assembly do not resolve the code. A failed EBCM would typically set multiple codes for different sensors or internal faults.

Diagnosis Steps

1. Connect an ABS-capable OBD-II scanner and confirm the presence of code C0040. Note any sub-codes like '05' or '0F'.
2. Access the live data stream on the scanner and monitor the speeds of all four wheels while driving or with the front wheels raised and spinning by hand.
3. Confirm that the Right Front (RF) wheel speed reads 0 mph or is erratic while the others read correctly.
4. Raise and safely support the front of the vehicle. Remove the right front wheel.
5. Visually inspect the wiring harness running from the back of the wheel hub up into the wheel well. Look for any obvious signs of damage, chafing, or corrosion at the connector.
6. While observing the live data (or using a multimeter to check continuity), wiggle and flex the entire length of the pigtail harness. If the speed reading appears or disappears, or if continuity is intermittent, the harness is broken internally and needs replacement.
7. If the wiring seems good, disconnect the pigtail and test the sensor's resistance with a multimeter. Compare the reading to the vehicle's service manual specifications. An out-of-spec reading points to a bad sensor/hub.
8. If wiring and sensor resistance are good, inspect the magnetic reluctor ring on the hub for damage or debris.
9. If wiring is confirmed to be good, the fault lies within the integrated sensor. Check for excessive play or grinding noises from the wheel bearing by rocking the tire at the 12 and 6 o'clock positions. Any play indicates the hub assembly needs replacement.
10. If wiring is good and the hub is the suspected cause, replace the front wheel hub assembly.
🎬 Watch: Step-by-step guide to replacing the front wheel hub assembly.

Parts You'll Likely Need

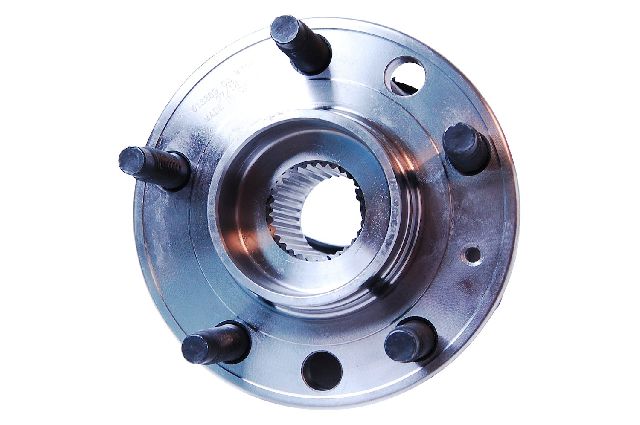

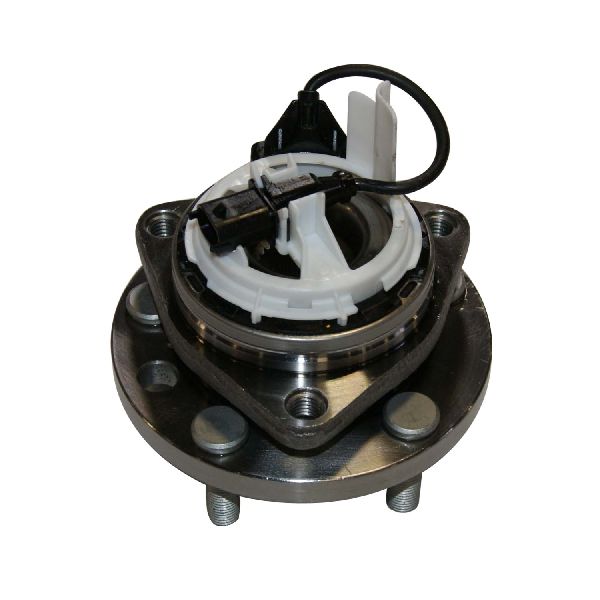

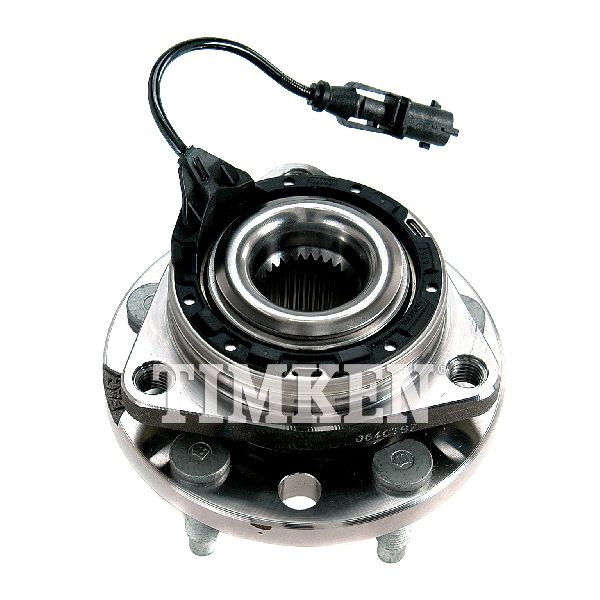

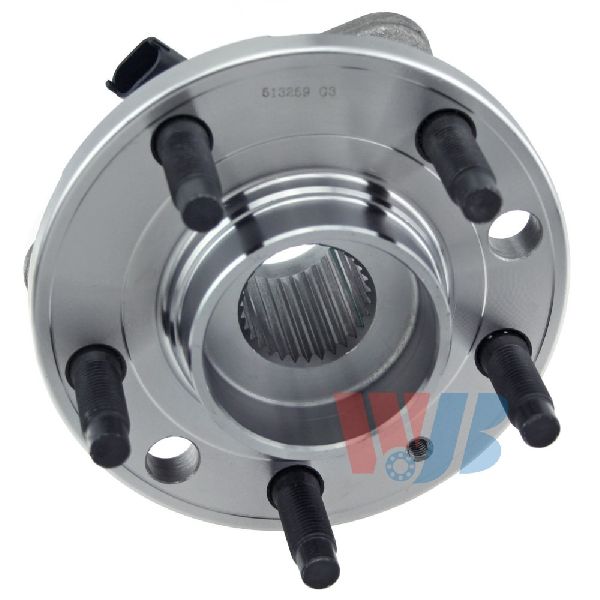

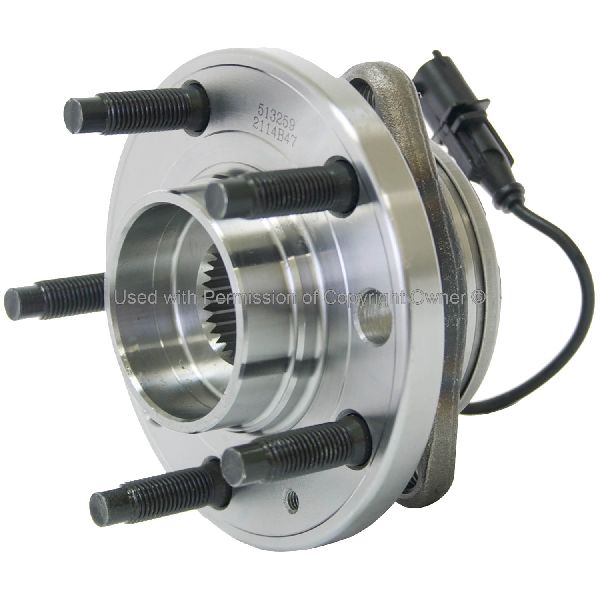

• Front Wheel Hub and Bearing Assembly (OEM #10345966) — This assembly contains the integrated wheel speed sensor, which is a common failure point. It is also the fix for a worn wheel bearing. The same part fits front or rear, left or right.
  Trusted brands: ACDelco, Timken, SKF, Mevotech, TRQ
  OEM price range: $180-$250
  Aftermarket price range: $70-$150
• ABS Wheel Speed Sensor Wiring Harness Pigtail (OEM #88862217 (ACDelco PT2298)) — This is the most probable cause of an intermittent or open circuit fault for code C0040 due to frequent wire flex and fatigue. Splicing in a new pigtail is often the correct and most cost-effective repair.
  Trusted brands: Dorman (970-040), ACDelco (PT2298)
  OEM price range: $30-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• C0035 — This is the code for the Left Front Wheel Speed Sensor Circuit. Seeing both codes together could point to a shared wiring issue, a problem with the EBCM, or simply that both pigtails have failed around the same time due to age and stress, which is a common scenario. NHTSA ODI #10440851 describes a situation where both C0035 and C0040 were present simultaneously, indicating circuit malfunctions on both front wheel sensors.

Technical Service Bulletins (TSBs) & Recalls

• While no TSB is specific to the Saturn Sky for C0040, GM TSB PIC-5992-A for other models like the Grand Prix describes the exact same failure mode (internal break in the WSS jumper harness) for codes C0035 and C0040, confirming this is a known issue across many GM vehicles of the era.

Platform-Specific Known Issues

• Owner Experience: Hub Replaced, But Pigtail Was the Real Issue: A common story on forums involves an owner replacing the expensive hub assembly to fix a C0040 code, only for the ABS light to remain on. Further diagnosis then reveals the true culprit was the inexpensive wiring pigtail, which could have been replaced first for a fraction of the cost and effort.
• Diagnostic Tip: The 'Wiggle Test': Kappa platform owners frequently recommend the 'wiggle test' as the first diagnostic step after reading the code. With the scan tool displaying live wheel speed data, physically wiggling the pigtail harness is the quickest way to confirm an internal wire break if the speed reading flickers.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Resistance — expected: 800 - 2,500 Ω (Ohms). Failure: A reading of infinite resistance (Open Loop) or near zero (short circuit) indicates a failed sensor.
• Wheel Speed Sensor AC Voltage Output — expected: Greater than 100mV (0.1V) AC, increasing with wheel speed. Failure: No AC voltage produced when spinning the wheel by hand indicates a failed sensor or reluctor ring issue.

Hidden / Shadow Codes Worth Checking

• C0040 06: Right Front Wheel Speed Sensor Circuit Low Voltage/Open. This strongly suggests a broken wire or disconnected connector. (see via GM-specific scan tool like a Tech2 or high-end scanner with GM software.)
• C0040 0F: Right Front Wheel Speed Sensor Circuit Signal Erratic. This often points to a failing pigtail harness, a damaged reluctor ring, or a failing bearing causing sensor gap issues. (see via GM-specific scan tool like a Tech2 or high-end scanner with GM software.)
• C0040 18: Right Front Wheel Speed Sensor Circuit Low Signal Amplitude. The signal is present but too weak, often caused by an excessive air gap or internal sensor fault. (see via GM-specific scan tool like a Tech2 or high-end scanner with GM software.)
• C0040 5A: Right Front Wheel Speed Sensor Circuit Not Plausible. The signal from this sensor doesn't make sense when compared to other vehicle sensors (like the other wheels), pointing to an erratic signal or interference. (see via GM-specific scan tool like a Tech2 or high-end scanner with GM software.)

Wiring & Ground Locations

• EBCM (Electronic Brake Control Module) — At the left side of the engine compartment, mounted on the inner frame rail, near the brake master cylinder.. This module receives and interprets the signal from the right front wheel speed sensor. All diagnostic wiring tests ultimately lead back to this module's connector.
• G105 — At the left front corner of the engine compartment, mounted on the frame rail, forward of G101.. This is the primary ground for the Electronic Brake Control Module (EBCM). A poor connection at this ground can cause erratic behavior and various ABS codes, including C0040.
• EBCM Connector (X1) — The main harness connector at the EBCM.. Pin 32 is the Right Front Wheel Speed Sensor Signal circuit (Yellow/Violet wire). Pin 31 is the Low Reference circuit (Dark Blue/White wire). Testing for continuity and voltage at these specific pins can isolate a wiring fault from a module fault.

Documented NHTSA Reports

• NHTSA ODI #11228687: An owner reported multiple warning indicators illuminated on a GM vehicle. Diagnostic codes included C0035, C0040, and C0050, along with various communication codes (U-codes), though the vehicle was not immediately repaired.
• NHTSA ODI #11645269 (Cross-Manufacturer Reference): On some makes, such as Honda, code C0040-62 may indicate a "Brake lamp switch failure stuck" rather than a wheel speed sensor, which can lead to hard steering and other electronic failures.
• NHTSA ODI #11191073 (Cross-Manufacturer Reference): Another report on a different manufacturer's vehicle associated code C0040-12 with a "Brake switch stuck on," which resulted in the left front brakes becoming extremely heated with smoke coming from the area.

Real Owner Repair Stories

• YouTube user comment (1999 Chevrolet Silverado (similar GM ABS system)) — ABS and Brake light would come on after a few minutes of driving and stay on until the truck was shut off.
  ❌ Tried (didn't work) Replaced front wheel speed sensors with junkyard parts.
  ✅ What actually fixed it Cleaning the main ABS ground points on the frame under the front of the vehicle. The user reported the lights stayed off for two days after cleaning the crusty grounds, solving a 2-year-old problem and avoiding a $500 shop repair for a new module.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Rear Differential Pinion Seal Leak 🔴 High — Very common. A recall (NHTSA #07V589000) was issued for early models due to defective seals that could lead to fluid loss and differential failure. Even on later models, leaks from the pinion and axle seals are frequently reported. (Ref: Recall 07204 / NHTSA 07V589000)
• Timing Chain Wear / Tensioner Failure (2.4L LE5 Engine) 🔴 High — Common issue, typically appearing between 80,000 and 120,000 miles. The plastic timing chain guides can become brittle and break, and tensioners can fail, leading to chain slack, rattling noises, and potentially catastrophic engine damage if not addressed.
• HVAC Temperature Control Malfunction 🟡 Low — A moderately common electrical quirk where the temperature control defaults to full heat when turned just one click away from full cold. (Ref: TSB PIC4995A suggests installing a resistor in-line with the HVAC control head to correct the out-of-range feedback voltage.)
• Excessive Oil Consumption (2.4L LE5 Engine) 🟠 Medium — This issue was more prevalent on other GM models using the 2.4L Ecotec, but some Sky owners report it. It is often linked to piston ring issues and can accelerate timing chain wear if the oil level is not carefully monitored.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wheel hub assembly from a verified low-mileage donor vehicle can be a cost-effective option. It is not recommended to buy a used wiring pigtail, as the wire fatigue that causes the failure is age and stress-related, and a used part will have similar wear.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle's mileage.
• Manually spin the hub to ensure the bearing feels smooth with no grinding or roughness.
• Check for any side-to-side or up-and-down play in the bearing, which indicates wear.
• Inspect the plastic sensor connector for cracks or damage.
• Ensure the magnetic reluctor ring (visible on the inboard side) is clean and free of rust or physical damage.

OEM-only on this vehicle (don't cheap out):

• Electronic Brake Control Module (EBCM) - While not a common failure, if replacement is needed, a new or professionally remanufactured OEM unit is recommended due to the need for potential programming to the vehicle's VIN.

Aftermarket brands forum-validated for this vehicle:

• Timken
• SKF
• MOOG
• ACDelco (OEM)

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white box' hub assemblies from online marketplaces are frequently reported to fail prematurely (within a year or less) due to lower quality bearings and seals.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0035 — Left Front Wheel Speed Sensor Circuit. This is the direct companion code for the opposite front wheel. It is often caused by the exact same wiring pigtail failure mode due to suspension and steering stress.
• C0045 — Left Rear Wheel Speed Sensor Circuit. A fault on any wheel speed sensor will disable the ABS and traction control systems. The diagnostic process of checking wiring versus the integrated hub sensor is identical.
• C0050 — Right Rear Wheel Speed Sensor Circuit. Similar to other wheel speed codes, this will illuminate the ABS/Traction Control lights. The context notes the front and rear hubs are the same part on the Sky, indicating a similar design and potential failure mode.
• U0121 — Lost Communication With Anti-Lock Brake System (ABS) Control Module. A severe wiring issue or a failing EBCM could potentially cause both a specific sensor code like C0040 and a general communication code.
