P0502 on 2007-2017 Jeep Compass: Causes and Fixes for Low Speed Sensor Input

What's Unique About the 2007-2017 Jeep Compass

The Jeep Compass of this era, particularly the first generation (2007-2017 MK), shares its Chrysler MK platform with the Dodge Caliber and Jeep Patriot. A common point of failure across these vehicles is the ABS wheel speed sensor and its wiring. Unlike older vehicles that use a single, transmission-mounted Vehicle Speed Sensor (VSS), these models rely entirely on the four ABS wheel speed sensors to report speed to the PCM. This design means that a fault in the ABS system, such as a bad sensor or corroded wire, will directly cause powertrain codes like P0502, which can be confusing for those looking for a traditional VSS.

Generation note: The 2007-2017 year range covers two generations. The first generation (MK) ran from 2007 to 2017 (with a major facelift in 2011). The second generation (MP) began in 2017. This guide primarily applies to the first generation (MK), which is the most common for this year range. The causes and fixes are largely the same as both generations rely on wheel speed sensors for vehicle speed data.

Symptoms You May Notice

• Check Engine Light is on
• Speedometer reads 0 MPH or is erratic
• ABS and Traction Control/Electronic Stability Control (ESC) warning lights are on
• Cruise control is inoperative
• With automatic/CVT transmissions, shifting may feel harsh, erratic, or the transmission may be locked in a single gear (limp mode).
• 4WD warning light may illuminate

Most Likely Causes

1. Failed ABS Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The ABS wheel speed sensors on the Jeep Compass are a widely documented common failure item. They are exposed to harsh conditions, leading to internal failure from heat, moisture, and vibration. This is the most frequent cause for P0502 on this platform.
   How to confirm: Scan the ABS module for codes. A code like C0031, C0034, C0037, or C003A will pinpoint the exact sensor that has failed. Without an ABS scanner, you can test the sensor's output by back-probing the connector and spinning the wheel while a multimeter is set to AC volts; you should see a rising voltage as the wheel spins faster. A more definitive test is checking resistance; a good sensor should read between 1000 and 2500 Ohms.

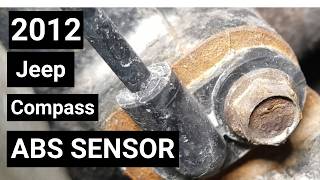

   Typical fix: Replace the failed wheel speed sensor. The sensor is typically held in by a single bolt on the wheel hub/knuckle.
   Est. part cost: $40-$80
2. Damaged Wiring or Corroded Connector 🟡 Medium Probability The wiring harness for the wheel speed sensors runs down the suspension and is exposed to road debris, moisture, and constant flexing, which can cause wires to break or chafe. Connectors, especially in the wheel well, can fill with water and corrode, leading to a low or lost signal.
   How to confirm: Visually inspect the wiring harness from the sensor up into the wheel well for any signs of damage, chafing, or green/white corrosion at the connector plugs. Perform a continuity test on the wires from the sensor connector to the ABS module connector to check for breaks.
   Typical fix: Repair the broken or shorted wire. If the connector is corroded, it may need to be cleaned with electrical contact cleaner or replaced with a new pigtail connector.
   Est. part cost: $10-$30 for a pigtail

Rare But Worth Checking

• Damaged or Corroded ABS Tone Ring: The tone ring is a toothed ring that the wheel speed sensor reads. While less common, it can get damaged, covered in rust/debris, or crack, preventing the sensor from getting a clean signal. On this vehicle, the tone ring is integrated into the wheel hub/bearing assembly or the CV axle.
• Faulty Powertrain Control Module (PCM) or ABS Module: → Shop Engine Control Module (ECM) A control module failure is very rare and should only be considered after all other possibilities (sensor, wiring) have been exhaustively ruled out. Water intrusion into the cabin is a known issue and can potentially damage these modules over time.

Diagnosis Steps

1. Verify the P0502 code is present using a standard OBD-II scanner.
2. Use an ABS-capable scanner to read codes from the Anti-lock Brake System module. This is the most critical step and will likely identify the specific faulty wheel sensor circuit (e.g., C0034 - Right Front Wheel Speed Sensor Circuit).
3. If an ABS code is present for a specific wheel, proceed to inspect that sensor and its wiring.
4. Visually inspect the identified sensor and its wiring harness for any obvious damage, corrosion, or loose connections. Pay close attention to the harness routing in the wheel well.
5. If wiring looks good, test the sensor. With the key on, check for reference voltage at the sensor connector (typically 4.5-5.5V). Then, disconnect the sensor and test its internal resistance with a multimeter; a reading between 1000-2500 Ohms is expected. An open circuit (OL) or near-zero resistance indicates a bad sensor.
6. If the sensor tests bad or is inconclusive, replace the wheel speed sensor. It is the most common failure point.
7. If a new sensor does not fix the issue, perform a continuity and voltage drop test on the sensor's wiring harness between the sensor connector and the ABS module to find a potential break or short in the wire.
8. Inspect the tone ring on the hub or CV axle for damage, rust buildup, or missing teeth.
9. After the repair, clear all codes from the PCM and ABS module. Drive the vehicle above 15 mph to ensure the lights do not return.

Parts You'll Likely Need

• ABS Wheel Speed Sensor (OEM #Front: 68003281AF (replaces 68003281AA, AB, AC, AD, AE); Rear (FWD): ALS1819; Rear (4WD): 5S8486) — This is the most common cause of P0502 on this platform, as the vehicle uses these sensors to determine vehicle speed.
  Trusted brands: Mopar, Dorman, SKP, Standard Motor Products
  OEM price range: $65-$95
  Aftermarket price range: $45-$85

Related Codes That Often Appear With This One

• C0031-C003A — These are ABS-specific codes that directly point to a fault in a specific wheel speed sensor circuit (e.g., C0031 for Front Left). An ABS-capable scanner is needed to read these. Finding one of these codes almost guarantees the associated sensor or its wiring is the cause of P0502.
• U0418 — This code means "Invalid Data Received From Brake System Control Module." It often appears with P0502 because the PCM is flagging the speed data coming from the ABS module as unreliable.

Technical Service Bulletins (TSBs) & Recalls

• TSB 08-071-20: Addresses water intrusion on the front passenger floor due to improperly sealed cowl clips on 2017-2018 models. This is relevant as water leaks can lead to corrosion in electrical connectors and modules over time.

Platform-Specific Known Issues

• A recall (S89 / NHTSA 16V-907) was issued for some 2016 model year Compass vehicles for improperly manufactured crankshaft/camshaft sensor electrical connectors. While not directly related to the VSS, it highlights potential wiring harness quality issues on this platform.
• The front subframe is notoriously prone to severe rust, which can affect suspension alignment and potentially damage nearby wiring harnesses.

Mechanic-Grade Diagnostic Values

• ABS Wheel Speed Sensor Resistance — expected: 1000 to 2500 Ohms (Ω). Failure: A reading of 'OL' (Open Limit) or near 0 Ω indicates a failed sensor.
• ABS Wheel Speed Sensor Supply Voltage — expected: 4.5 - 5.5 Volts DC (at the harness connector, key on, engine off). Failure: Voltage below this range suggests a wiring issue or a problem with the ABS module's power supply.
• ABS Wheel Speed Sensor AC Voltage Output — expected: Greater than 100 millivolts (0.1V) AC, increasing with wheel speed. Failure: No AC voltage generated when spinning the wheel indicates a dead sensor.

Wiring & Ground Locations

• ABS Control Module — Bolted to the ABS hydraulic control unit, located in the engine bay, typically on the driver's side below the master cylinder.. This is the module that receives the wheel speed sensor signals and communicates vehicle speed to the PCM. All sensor wiring terminates here, making its connector a key test point.
• Fuses #33, #34, #35 — In the main fuse box (Totally Integrated Power Module - TIPM) in the engine bay.. These fuses supply power to the ABS module, pump, and valve. Fuse #33 (10A) specifically powers the ABS module itself. A loss of power here will disable the entire system and can cause communication codes.
• Connector C103 — A major 34-way engine compartment connector, often located near the fuse/relay block on the driver's side frame rail.. This is a major pass-through connector for various engine and chassis signals. While not directly for the ABS sensors, corrosion or damage here can cause a wide range of electrical issues, and it's a known area to check for general electrical gremlins on this platform.

Real Owner Repair Stories

• JeepPatriot.com forum user (2014 Jeep Patriot (shared platform)) — ABS, ESC, and 4x4 lights on. Speedometer works intermittently. P0502 and C-codes for a specific wheel speed sensor present.
  ❌ Tried (didn't work) Replaced the indicated ABS wheel speed sensor twice., Replaced the wiring pigtail for the sensor.
  ✅ What actually fixed it The wheel bearing had failed. Even though it wasn't making noise, it had enough play to cause the tone ring (which is integrated into the bearing) to move away from the sensor, creating an erratic signal. Replacing the entire wheel hub/bearing assembly resolved all codes and symptoms.

OEM Part Supersession History

• 68003281AA, 68003281AB, 68003281AC, 68003281AD, 68003281AE → 68003281AF — Part revisions by the manufacturer to improve reliability or change suppliers.
  Heads up: All previous versions are superseded by 68003281AF for the front sensor. While older stock may be available, it is best practice to use the latest revision.

Model Year Variations Within This Range

• 2017: The 2017 model year was a transition year. Both the first generation (MK) and the all-new second generation (MP) were sold as 2017 models. Parts, especially electronic modules and sensors, are NOT interchangeable between them. The 'old style' MK has vertical rear door handles integrated into the C-pillar, while the 'new style' MP has conventional handles on the door panel.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Front and Rear Subframe Corrosion 🔴 High — Very common, especially in salt-belt regions. Can become structurally unsafe. Chrysler issued a 10-year extended warranty, but it has expired for most vehicles. (Ref: No official recall, but a widely acknowledged warranty extension (now expired).)
• CVT Transmission Overheating and Failure 🔴 High → Shop Transmission Assembly — Common on models equipped with the Jatco CVT, particularly the 2011 model year. Issues include overheating, hesitation, and catastrophic failure of the internal belt.
• Water Leaks into Cabin 🟠 Medium — Frequently reported issue from clogged sunroof drains, bad cowl seals, or faulty A-pillar seam sealer, leading to wet carpets and potential electrical problems. (Ref: TSB 08-071-20 addresses water leaks on the passenger floor for 2017-2018 models.)
• Totally Integrated Power Module (TIPM) Failure 🔴 High — Especially noted on earlier models (2007-2008), a faulty TIPM can cause a wide range of bizarre electrical issues, including no-start conditions, and brake light failure.
• Prematurely Leaking Struts 🟡 Low — The seals in the front struts can fail, leading to fluid leaks and a rough ride quality.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, a used part is almost never a smart choice. The primary failure part is an inexpensive electronic sensor with a finite lifespan exposed to harsh conditions. The risk of a used sensor failing shortly after installation is high. A used ABS module could be considered if diagnosed as faulty, but it will require professional programming ('Proxy Alignment') to the vehicle, which adds cost and complexity.

Donor-vehicle mileage cap: roughly under 40000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a used ABS module, ensure the part number matches exactly.
• Verify the donor vehicle was not in a flood.
• Inspect connector pins for any corrosion or damage.

OEM-only on this vehicle (don't cheap out):

• ABS Control Module - While aftermarket modules exist, compatibility and programming can be problematic. A Mopar unit or a professionally rebuilt OEM unit is the safest bet to avoid software conflicts.

Aftermarket brands forum-validated for this vehicle:

• NTK
• Standard Motor Products (SMP)
• Dorman (often a reliable choice for sensors and pigtails)
• SKP

Brands owners have reported issues with on this vehicle:

• No-name, unbranded sensors from online marketplaces should be avoided. Forum discussions frequently mention these failing quickly or being out-of-spec from the box, leading to repeat repairs.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0031 — Left Front Wheel Speed Sensor Circuit — an ABS module code that often accompanies P0502 to pinpoint the specific failed sensor.
• C0034 — Right Front Wheel Speed Sensor Circuit — a specific ABS code used to diagnose which sensor is causing the P0502 vehicle speed error.
• C0037 — Left Rear Wheel Speed Sensor Circuit — identifies a failure in the rear sensor which provides speed data to the PCM.
• C003A — Right Rear Wheel Speed Sensor Circuit — another companion ABS code that helps localize the source of the P0502 signal loss.
