| Attribute | Value |
|---|---|
| Center Electrode Core Material | Copper |
| Center Electrode Design | Fine Wire |
| Center Electrode Insulator Tip Projection | 0.12, 3.0 |
| Center Electrode Projection | Mid Projection |
| Center Electrode Tip Material | Ruthenium |
| Electrical Terminal Type | Non-removable Nut |
| Grade Type | Performance |

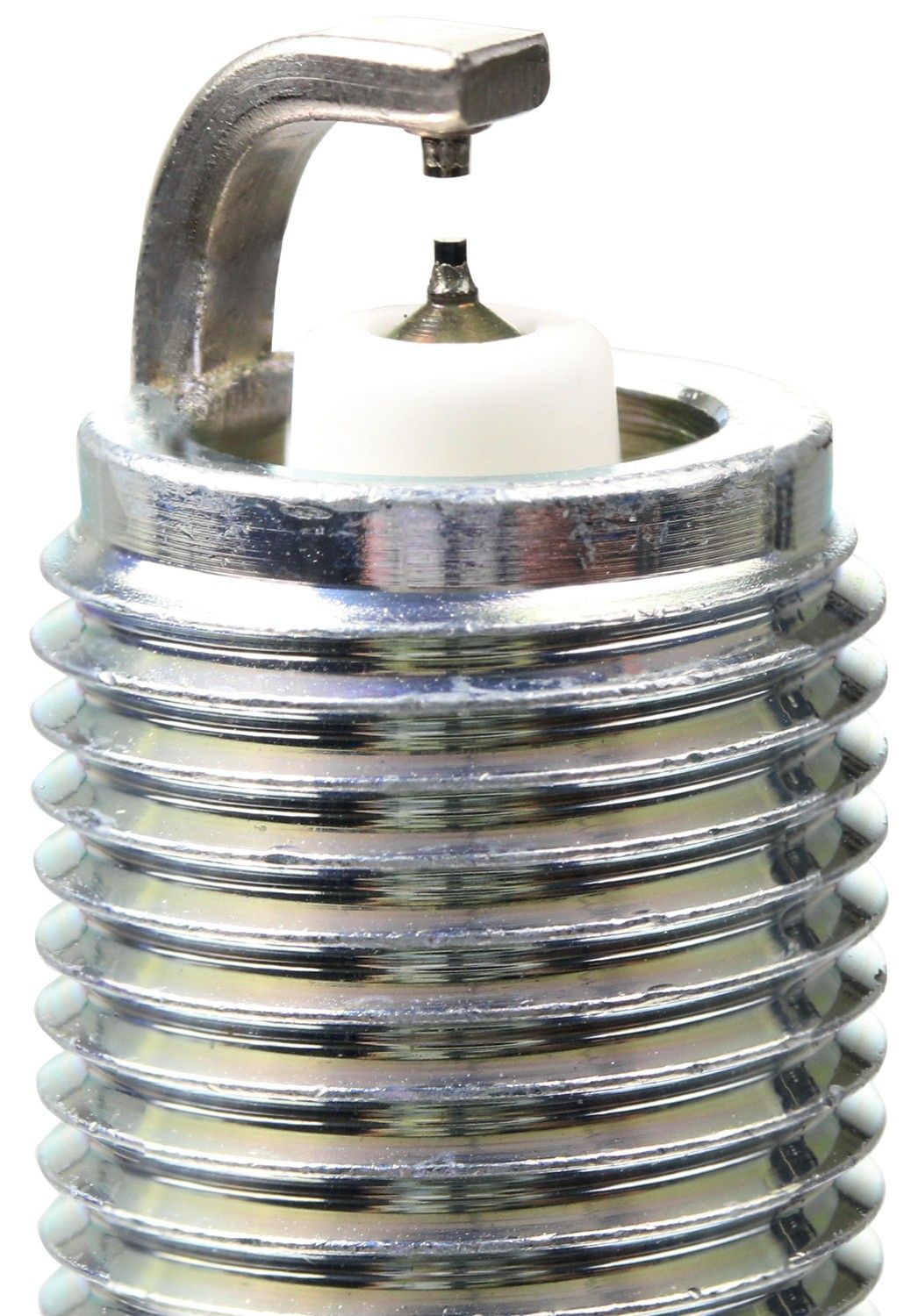

| Ground Configuration | J-gap |
| Ground Electrode Core Material | Nickel |
| Ground Electrode Quantity | 1 |
| Ground Electrode Tip Design | Dual Fine Electrode (dfe) - High Ignitability |
| Ground Electrode Tip Material | Platinum |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99, 50.5 |
| Insulator Material | Ceramic |
| Manufacturer Heat Range | 5 |
| Material Grade | Ruthenium |

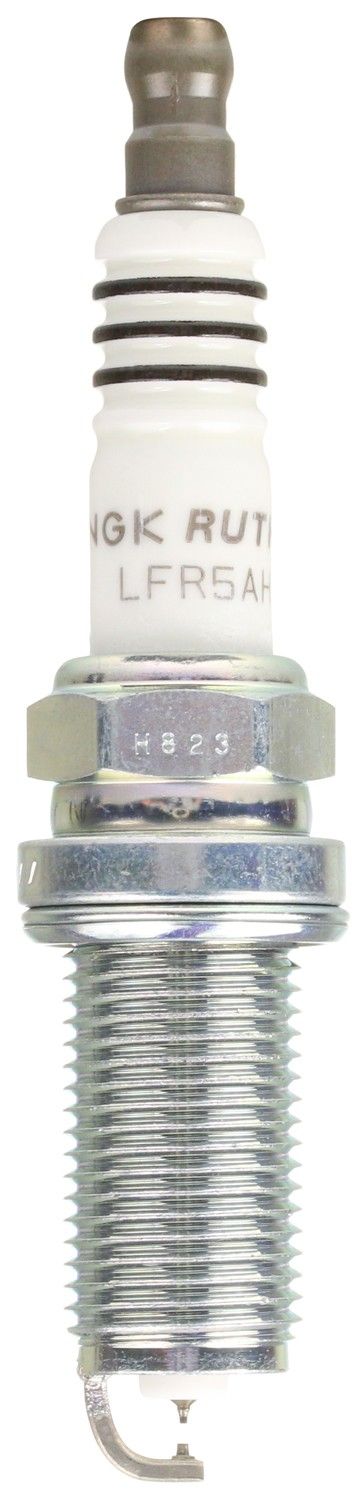

| Part Number | Lfr5ahx |
| Pre Gap Size | .044, 1.1 |
| Reach | 1.043, 26.5 |
| Resistance | 5000.0 |
| Resistor Type | Yes |
| Seat Type | Flat |
| Service Number | Lfr5ahx |
| Short Style Spark Plug | No |
| Skirt | No |
| Skirt Length | 0.0 |
| Stock Number | 96355 |
| Thread Diameter | 0.551, 14.0 |
| Washer Included | Yes |
| Washer Type | Crush |
This part fits the following vehicles:
This is a universal part that fits 1,691 vehicle configurations across 13 makes.
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Chrysler | 68079888AB |
| Chrysler | 68138239AC |
| Chrysler | 68143877AA |
| Chrysler | SP079888AB |
| Chrysler | SP138239AC |
| Chrysler | SP142582AB |
| Chrysler | SP143877AA |
| Chrysler | SP143877AB |
| Chrysler | SP148183AB |
| Chrysler | SP148183AC |
| Chrysler | SPLZFR5B13 |
| Chrysler | SPLZFR5C11 |
| Hyundai | 18840-11051 |
| Hyundai | 18845-11160 |
| Hyundai | 18850-11050 |
| Nissan | 22401-5M015 |
| Nissan | 22401-ZE01B |
| Nissan | 22401-ZH015 |
| Nissan | 22401-ZJ51B |
| Suzuki | 09482-00615 |
| Suzuki | 11182-82Z10 |
| Toyota | 90919-01233 |
| Toyota | 90919-A1003 |
| Toyota | 90919-C1008 |
Fits Years: 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
